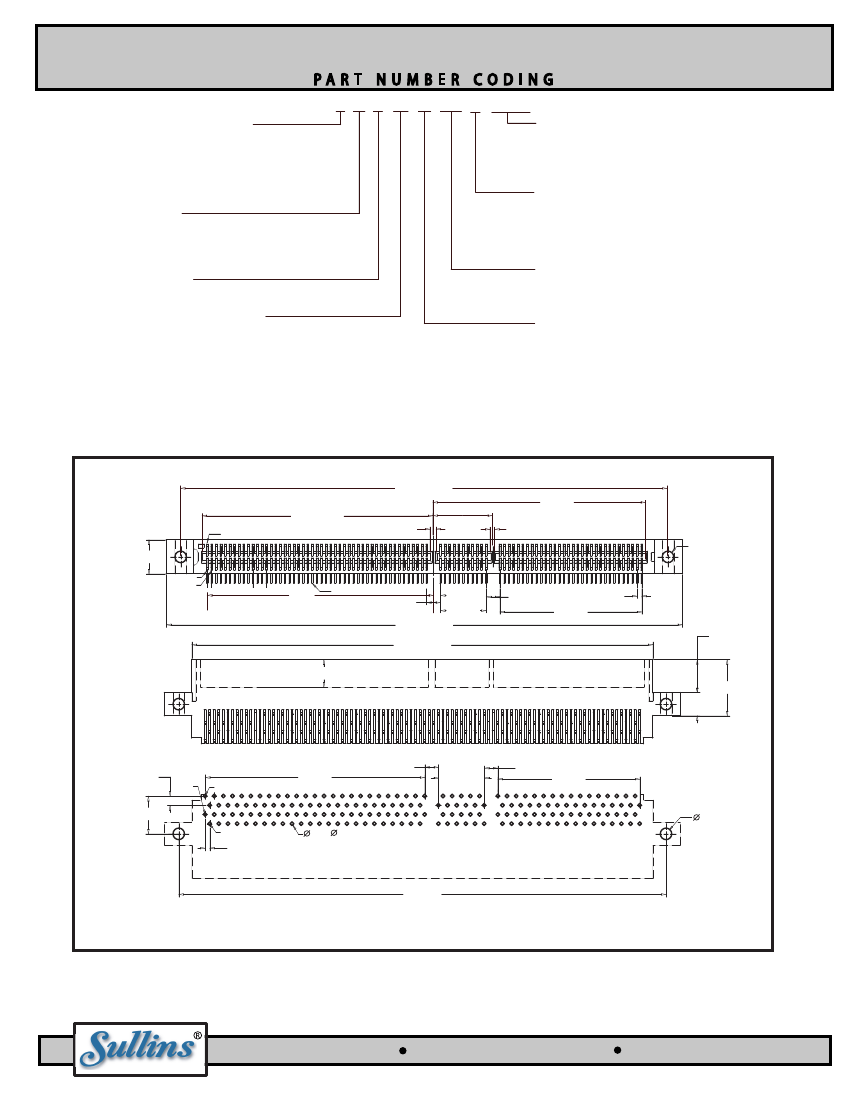

LZB92DHBS-S329 datasheet, PDF - EEWORLD Datasheet

LZB92DHBS-S329: DescriptionCard Edge Connector, 184 Contact(s), 2 Row(s), Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size991KB，4 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric View All

LZB92DHBS-S329 Overview

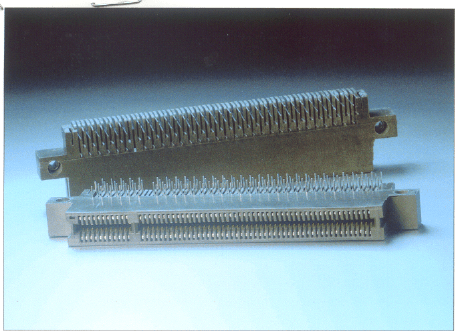

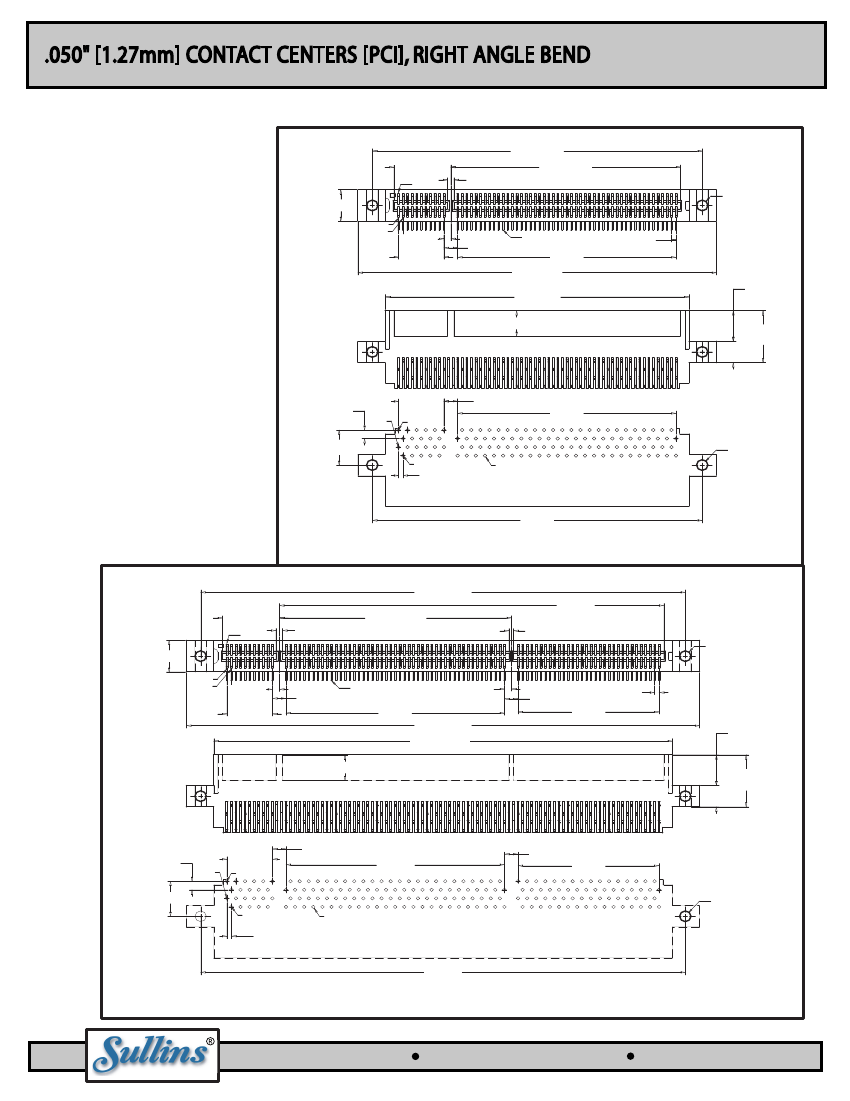

Card Edge Connector, 184 Contact(s), 2 Row(s), Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Objectid	1159621682
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	32 BIT, 3.3 VOLT
Board mount options	HOLE .125 DIA.TYP
body width	0.37 inch
body length	5.64 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VDC V
maximum insertion force	4.448 N
Insulation resistance	5000000000 Ω
insulator material	POLYCARBONATE
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.17 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	184
Evacuation force-minimum value	.278 N

Sullins Electronics

SULLINS NOW OFFERS RIGHT ANGLE PCI CONNECTOR SERIES

San Marcos, CA, November 28, 2001 ... A full series of right angle PCI

(peripheral component interconnect) connectors has today been announced by

Sullins Electronics, Corp., card edge specialists and world leaders in the design

and manufacture of connectors and interconnect systems. This new addition to the

company's full lines of 2 mm Hard Metric (HM) and CompactPCI™ connectors is

comprised of right angle 3.3 volt and 5 volt, 32 and 64 bit connectors engineered

to facilitate horizontal PCI card mating in space-critical applications. Boasting

approvals from UL and CUL, and meeting all PCI (revision 2.0) requirements, the,

highly reliable, economically priced units accept daughter cards which are identical

to the company's vertical mount versions to ensure total PC board design

compatibility.

These components are ideal for use in any application where computer

peripherals, and/or add-on cards need be mounted parallel to motherboards due to

limited room above the PCB. To further provide engineers with superior design

flexibility, the PCI connectors mate with boards ranging in thickness from .054" to

.070", and are available with either 120 (32 bit) or 184 (64 bit) contacts.

Additionally offering the utmost in functionality in designs where a vertical

configuration is precluded, connectors feature a rated voltage of 125 VDC, current

rating of 1.0 ampere (continuous) and operating temperature of 125°C. Moreover,

these devices withstand convectional reflow soldering to optimize manufacturing

efficiencies.

Manufacturer of Electronic Connectors

San Marcos, CA USA

Taoyuan City, Taiwan

www.SullinsElectronics.com
