200110MR027S500ZO datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 200110MR027S500ZO

Preview

200110MR027S500ZO: DescriptionBoard Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size251KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

200110MR027S500ZO Overview

Board Connector, 27 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle

200110MR027S500ZO Parametric

Parameter Name	Attribute value
Objectid	303885500
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PACKAGING SLIM BOX W/O CAP
body width	0.094 inch
subject depth	0.13 inch
body length	2.138 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
Insulator color	BLACK
Manufacturer's serial number	200110
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1.5 A
reliability	COMMERCIAL
Terminal length	0.106 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	27

Preview

Download Datasheet

View All

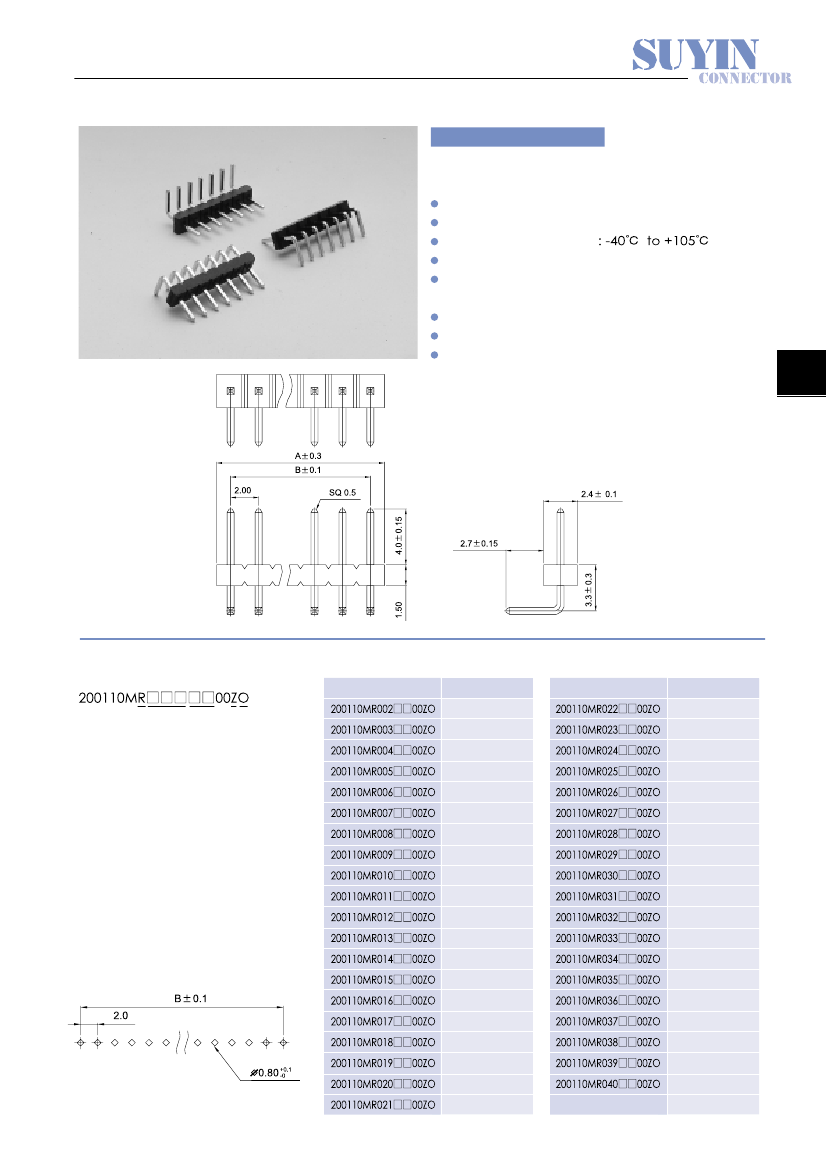

2.0mm SINGLE ROW HEADER

RIGHT ANGLE P.C.B. MOUNT TYPE

200110MR Series

Mates With

SUYIN 200123,200130,200160

Series

Specifications:

2-40 Circuits

Insulator Material

Operating Temp.Range

Terminal Material

Plating

Max. Current Rating

Voltage Rating

Dielectric Strength

: Brass 65/35

: Contact-Selective Gold Plated

or Full Gold Plated

: 1.5A

: 150V AC

: 500V(Min. 60 Seconds)

2.0

mm

: Black High Temp . Plastic

Order Information

1

2

3

45

Dimensional Information

SUYIN P/NO.

DIM.A

4.3

6.3

8.3

DIM.B

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

36.0

38.0

40.0

SUYIN P/NO.

DIM.A

44.3

46.3

48.3

50.3

52.3

54.3

56.3

58.3

60.3

62.3

64.3

66.3

68.3

70.3

72.3

74.3

76.3

78.3

80.3

DIM.B

42.0

44.0

46.0

48.0

50.0

52.0

54.0

56.0

58.0

60.0

62.0

64.0

66.0

68.0

70.0

72.0

74.0

76.0

78.0

1. 'R' : Right Angle DIP Type

2. No. of Pins

3. Plating

4. Color 'Z' : Black

5. Package

'O' : Slim Box Package Without

CAP

Reference Page 11

10.3

12.3

14.3

16.3

18.3

20.3

22.3

24.3

26.3

Recommended P.C.B Layout

28.3

30.3

32.3

34.3

36.3

38.3

40.3

42.3

69
