3-1658439-4 datasheet, PDF - EEWORLD Datasheet

3-1658439-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,112 CONTACTS,SKT,0.032 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size304KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

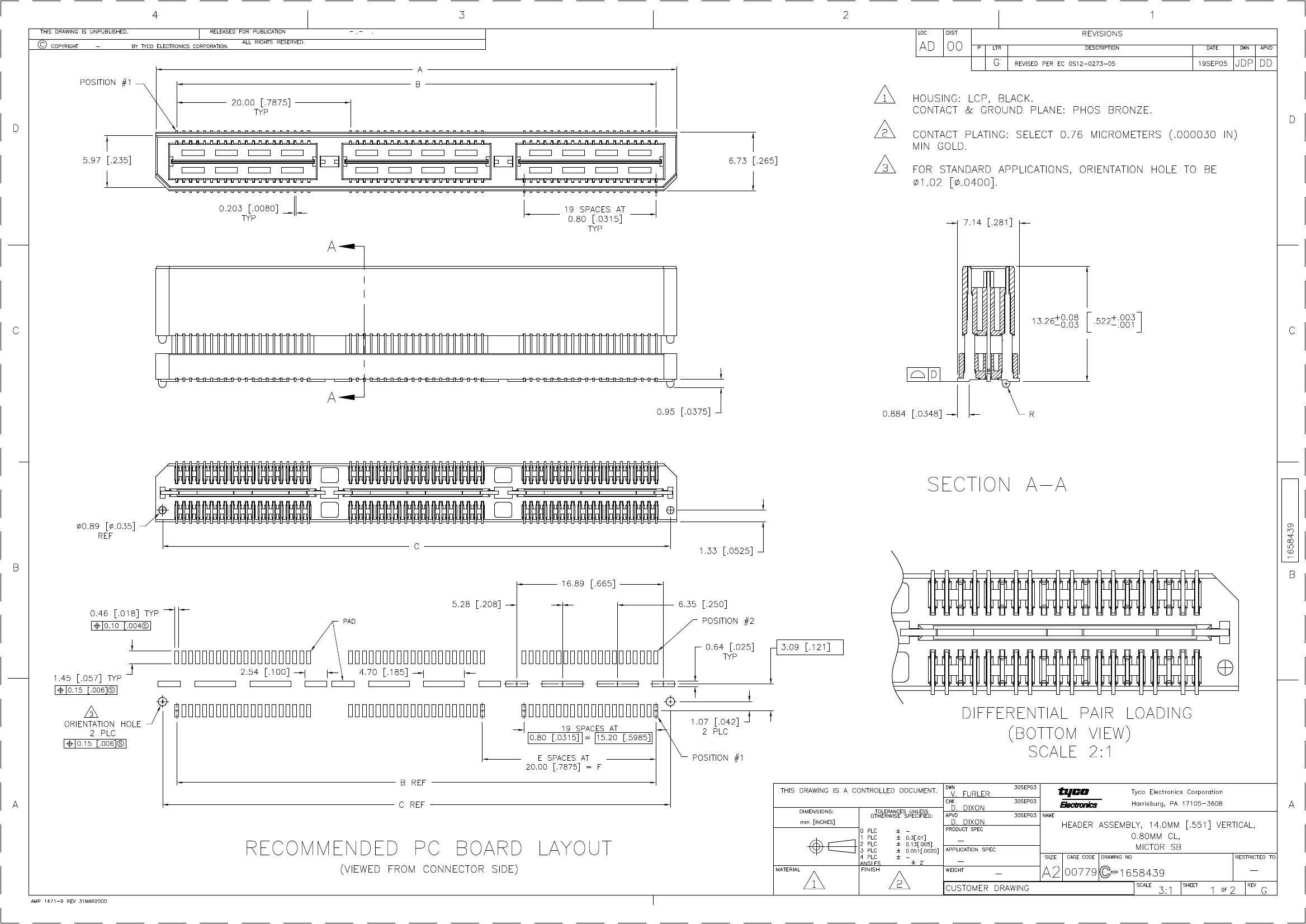

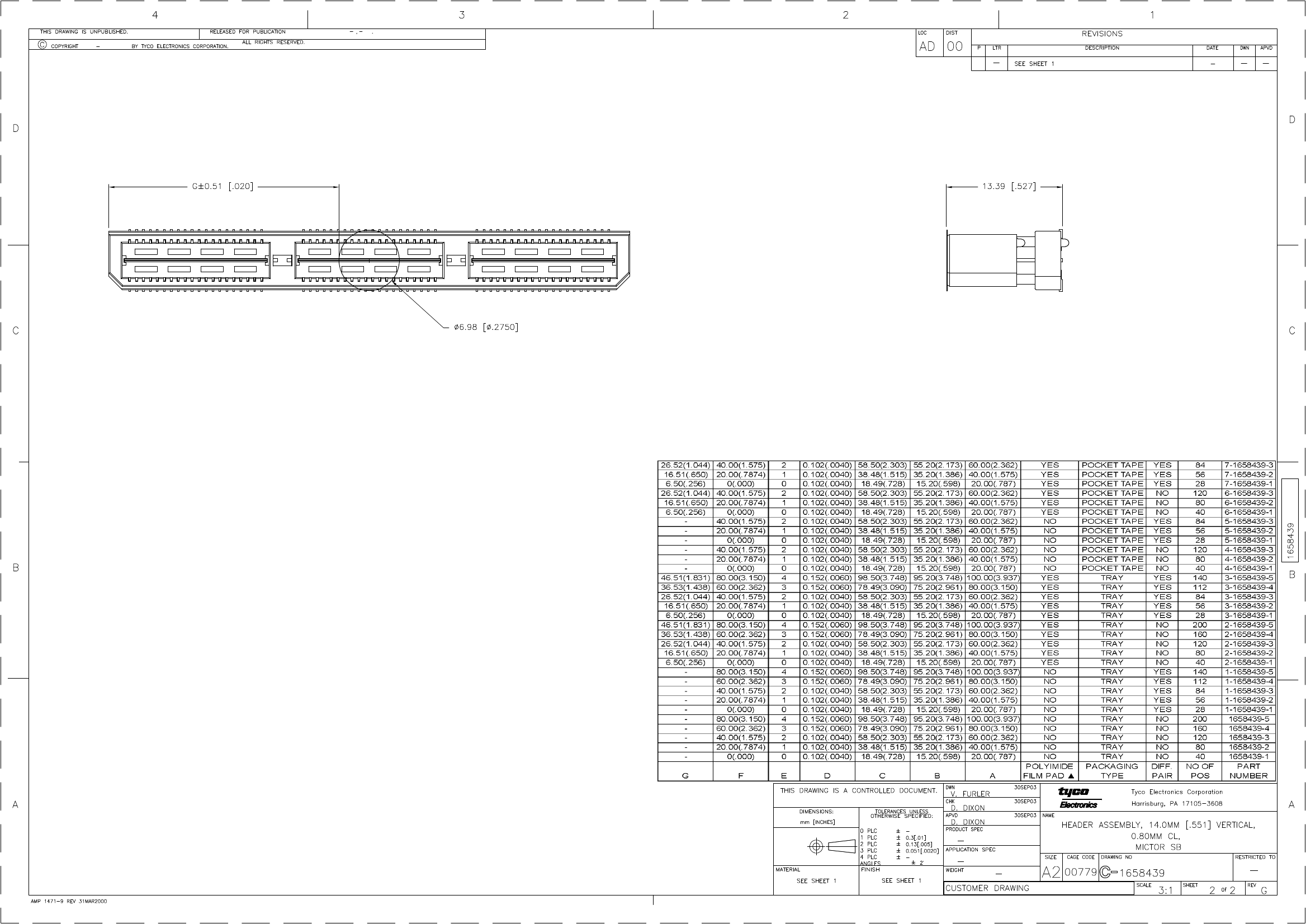

3-1658439-4 Overview

HEADER CONNECTOR,PCB MNT,PLUG,112 CONTACTS,SKT,0.032 PITCH,SURFACE MOUNT TERMINAL,LOCKING,BLACK

Parameter Name	Attribute value
Objectid	312234105
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.4
body width	0.265 inch
subject depth	0.522 inch
body length	3.15 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Dielectric withstand voltage	675VAC V
Durability	100 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
Manufacturer's serial number	1658439
Plug contact pitch	0.032 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.096 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	0.8128 mm
Termination type	SURFACE MOUNT
Total number of contacts	112
