PI5C16233CV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> PI5C16233CV

PI5C16233CV: Description16-Bit to 32-Bit Mux/Demux BusSwitch with Undershoot Protection; Categorylogic logic; File Size170KB，3 Pages; ManufacturerPericom Semiconductor Corporation (Diodes Incorporated); Websitehttps://www.diodes.com/

Download Datasheet Parametric Compare View All

PI5C16233CV Overview

16-Bit to 32-Bit Mux/Demux BusSwitch with Undershoot Protection

PI5C16233CV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP
package instruction	SSOP, SSOP56,.4
Contacts	56
Reach Compliance Code	compli
ECCN code	EAR99
series	CBT/FST/QS/5C/B
JESD-30 code	R-PDSO-G56
JESD-609 code	e0
length	18.415 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER
Number of functions	16
Number of entries	1
Output times	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP56,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	225
power supply	5 V
propagation delay (tpd)	5.2 ns
Certification status	Not Qualified
Maximum seat height	2.79 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	7.5 mm

Preview

Download Datasheet

View All

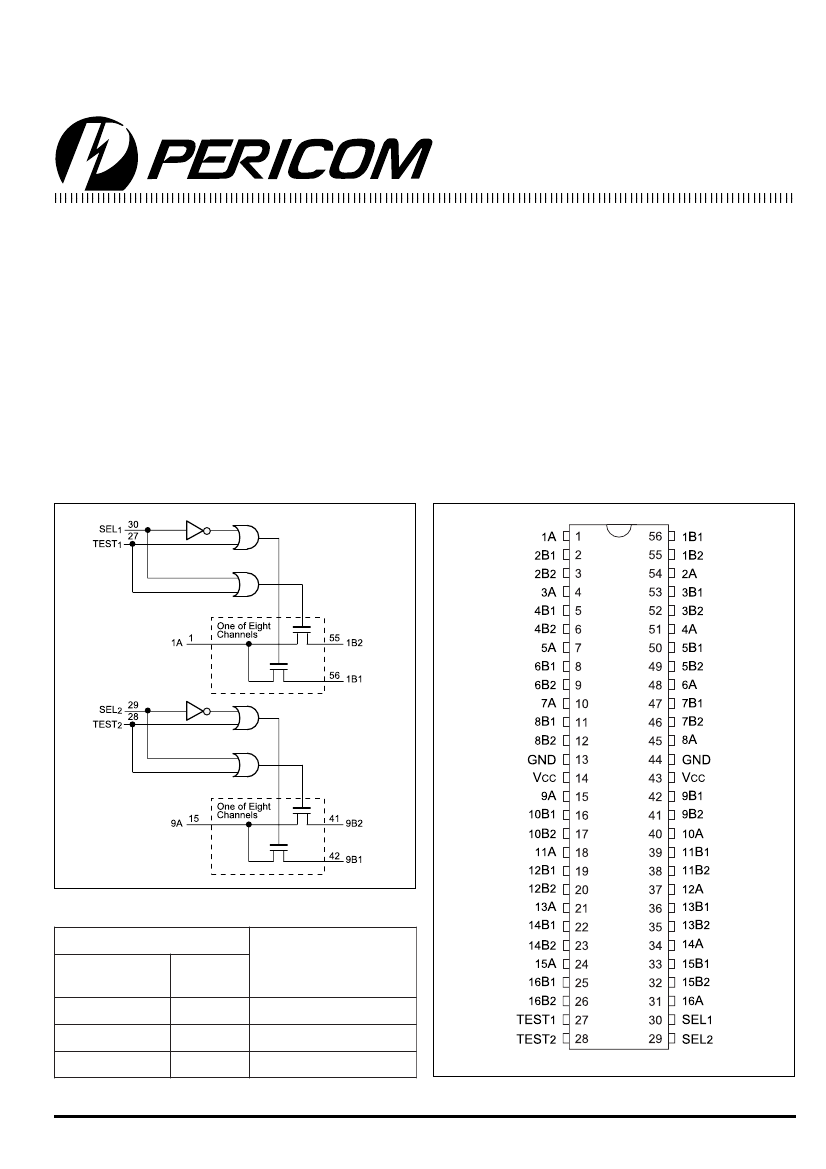

Logic Block Diagram

21098765432121098765432109876543210987654321210987654321098765432109876543212109876543210987654321098765432121098765432109876543210987654321

PI5C16233C

16-Bit to 32-Bit Mux/Demux BusSwitch

with Undershoot Protection

Product Features

• 5Ω switch connection between two ports

• Near zero propagation delay

• -1.5V Input undershoot protection

• Fast switching speed: 5.0ns (max.)

• Ultra -low quiescent power (70µA typical)

- ideal for notebook applications.

• Industrial operating temperature: -40ºC to 85ºC

• Package options:

- 56-pin 240 mil wide plastic TSSOP(A)

- 56-pin 300 mil wide plastic SSOP (V)

Product Description

Pericom Semiconductor’s PI5C series of logic circuits are produced

using the Company’s advanced submicron CMOS technology.

The PI5C16233C is a 16-bit to 32-bit mux/demux switch. This

device can be used for memory bank interleaving. The PI5C16233C

can be used as two 8-bit to 16-bit multiplexers or as one 16-bit to

32-bit multiplexer.

Two select inputs (SEL1 and SEL2) control the data flow. When the

TEST inputs are asserted HIGH, the A port is connected to both the

B1 and the B2 ports.

Product Pin Configuration

56-Pin

A, V

Function Table

INPUTS

SEL

(SEL1/SEL2)

TEST

FUNCTION

A = B1, B

= Z

A = B2, B

= Z

A = B1 and A= B2

PS8361A

06/28/99

PI5C16233CV Related Products

	PI5C16233CV	PI5C16233C	PI5C16233CA
Description	16-Bit to 32-Bit Mux/Demux BusSwitch with Undershoot Protection	16-Bit to 32-Bit Mux/Demux BusSwitch with Undershoot Protection	16-Bit to 32-Bit Mux/Demux BusSwitch with Undershoot Protection
Is it Rohs certified?	incompatible	-	incompatible
Maker	Pericom Semiconductor Corporation (Diodes Incorporated)	-	Pericom Semiconductor Corporation (Diodes Incorporated)
Parts packaging code	SSOP	-	TSSOP
package instruction	SSOP, SSOP56,.4	-	TSSOP, TSSOP56,.3,20
Contacts	56	-	56
Reach Compliance Code	compli	-	compli
ECCN code	EAR99	-	EAR99
series	CBT/FST/QS/5C/B	-	CBT/FST/QS/5C/B
JESD-30 code	R-PDSO-G56	-	R-PDSO-G56
JESD-609 code	e0	-	e0
length	18.415 mm	-	14 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER	-	MULTIPLEXER AND DEMUX/DECODER
Number of functions	16	-	16
Number of entries	1	-	1
Output times	2	-	2
Number of terminals	56	-	56
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
Output characteristics	3-STATE	-	3-STATE
Output polarity	TRUE	-	TRUE
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SSOP	-	TSSOP
Encapsulate equivalent code	SSOP56,.4	-	TSSOP56,.3,20
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	-	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	225	-	240
power supply	5 V	-	5 V
propagation delay (tpd)	5.2 ns	-	5.2 ns
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	2.79 mm	-	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	YES	-	YES
technology	CMOS	-	CMOS
Temperature level	INDUSTRIAL	-	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	-	GULL WING
Terminal pitch	0.635 mm	-	0.5 mm
Terminal location	DUAL	-	DUAL
Maximum time at peak reflow temperature	30	-	30
width	7.5 mm	-	6.1 mm
