PFC-W0402RJ-07-1322-D

Description
Fixed Resistor, Thin Film, 0.05W, 13200ohm, 75V, 0.5% +/-Tol, -25,25ppm/Cel, 0402,
CategoryPassive components    The resistor
File Size409KB,4 Pages
ManufacturerTT Electronics plc
Websitehttp://www.ttelectronics.com/
Environmental Compliance
Download Datasheet Parametric View All

PFC-W0402RJ-07-1322-D Overview

Fixed Resistor, Thin Film, 0.05W, 13200ohm, 75V, 0.5% +/-Tol, -25,25ppm/Cel, 0402,

PFC-W0402RJ-07-1322-D Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid797582094
Reach Compliance Codecompliant
ECCN codeEAR99
structureChip
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package height0.305 mm
Package length1.016 mm
Package formSMT
Package width0.533 mm
Rated power dissipation(P)0.05 W
GuidelineMIL-PRF-55342
resistance13200 Ω
Resistor typeFIXED RESISTOR
seriesPFC(GOLD)
size code0402
technologyTHIN FILM
Temperature Coefficient25 ppm/°C
Tolerance0.5%
Operating Voltage75 V

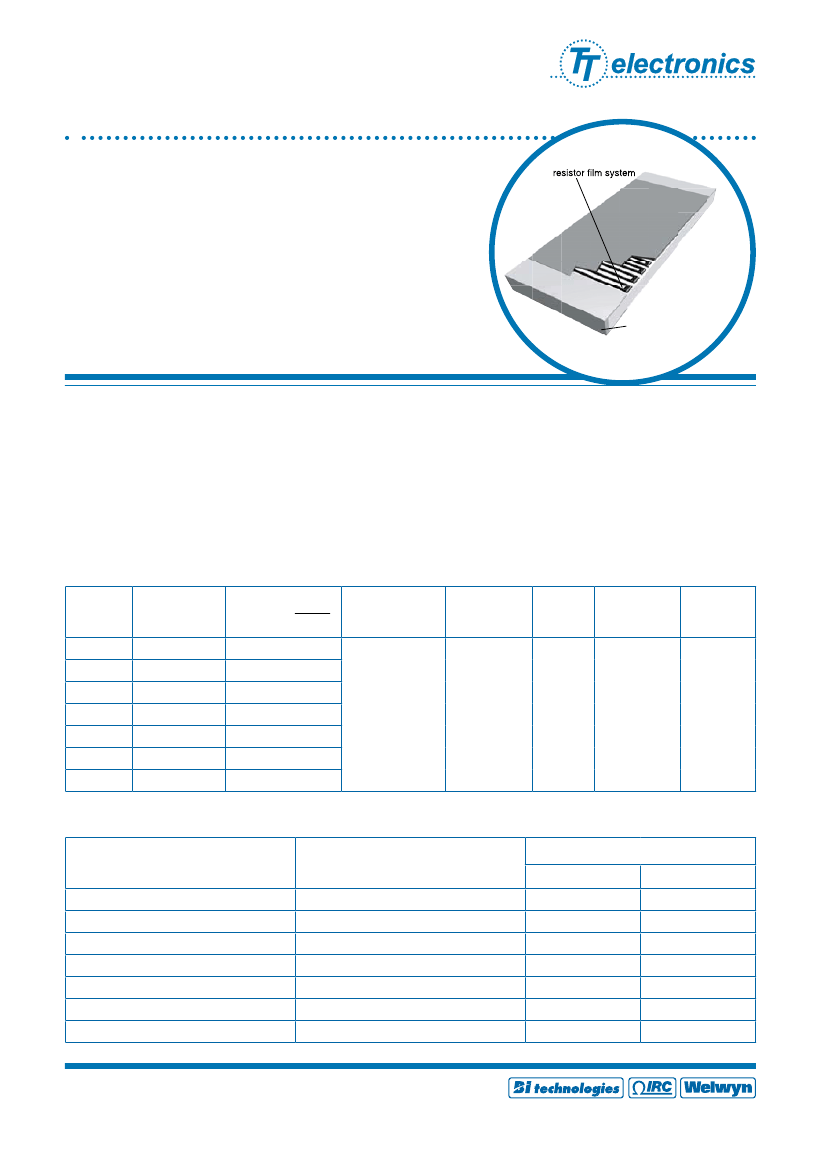

PFC-W0402RJ-07-1322-D Preview

Gold Terminations Precision
Thin Film Chip Resistors
PFC Gold Series
Ultra stable Tantalum Nitride
·
·
·
·
·
Wire, ribbon, or epoxy bondable
gold plated terminations
Available in 0402, 0603, 0805 and 1206 chip sizes
Tested for COTS applications
Absolute TCR to ±10ppm/°C
Mil screening available
Wrap around
termination
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
09. 11
Gold Terminations Precision
Thin Film Chip Resistors
Gold Terminations Precision
Thin
Series
Chip Resistors
PFC Gold
Film
Power Derating Curve
100
% Of Rated Power
50
10
25
70
150
Temperature (˚C)
Manufacturing Capabilities Data (Commercial Product Only)
±5%, ±2%, ±1%, ±0.5%, ±0.1%
W0402
50Ω
±25, ±50 and ±100ppm/°C
30K
Absolute
Tolerance
Resistance Range
Absolute
TCR
±5%, ±2%, ±1%, ±0.5%, ±0.1%, ±0.05%, ±0.02%
±5%, ±2%, ±1%, ±0.5%, ±0.1%, ±0.05%
±5%, ±2%, ±1%, ±0.5%, ±0.1%
W0603
W0805
W1206
5Ω
5Ω
5Ω
10Ω
10Ω
10Ω
50Ω
50Ω
50Ω
100Ω
100Ω
100Ω
200Ω
200Ω
200Ω
±50 or ±100 ppm/°C
±25 ppm/°C
±15 ppm/°C
±10 ppm/°C
50KΩ
100KΩ
400KΩ
75KΩ
180KΩ
650KΩ
100KΩ
267KΩ
1.0MΩ
Absolute
Tolerance
Resistance Range
Absolute
TCR
© IRC Advanced Film Division
T
:
F
:
Website: www
r
risti Te
PFC-Gold Series Issue June 2011 Sheet 2 of 4
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
09. 11
Gold Terminations Precision
Gold Terminations Precision
Gold
Chip Resistors
Terminations Precision
Thin Film
Thin Film Chip Resistors
Thin Film Chip Resistors
PFC Gold Series
Manufacturing Capabilities Data (MIL Screened
Only)
Only)
Manufacturing Capabilities Data (MIL
±5%, ±2%, ±1%, ±0.5%, ±0.1%
±5%, ±2%, ±1%, ±0.5%, ±0.1%
W0402
W0402
Absolute
Absolute
Tolerance
Tolerance
30K
30K
50Ω
50Ω
±25, ±50 and ±100ppm/°C
±25, ±50 and ±100ppm/°C
Resistance Range
Resistance Range
Absolute
Absolute
TCR
TCR
±5%, ±2%, ±1%, ±0.5% ±0.1%, ±0.05%, ±0.02%
,
±5%, ±2%, ±1%, ±0.5% ±0.1%, ±0.05%, ±0.02%
,
±5%, ±2%, ±1%, ±0.5%, ±0.1%, ±0.05%
±5%, ±2%, ±1%, ±0.5%, ±0.1%, ±0.05%
±5%, ±2%, ±1%, ±0.5%, ±0.1%
±5%, ±2%, ±1%, ±0.5%, ±0.1%
100Ω
100Ω
100Ω
100Ω
100Ω
100Ω
±50 or ±100 ppm/°C
±50 or ±100 ppm/°C
±25 ppm/°C
±25 ppm/°C
±15 ppm/°C
±15 ppm/°C
±10 ppm
/°C
±10 ppm
/°C
Absolute
Absolute
Tolerance
Tolerance
50KΩ
50KΩ
100KΩ
100KΩ
125KΩ
125KΩ
59KΩ
59KΩ
125KΩ
125KΩ
N/A
N/A
W0603
W0603
W0805
W0805
W1206
W1206
5Ω
5Ω
5Ω
5Ω
5Ω
5Ω
10Ω
10Ω
10Ω
10Ω
10Ω
10Ω
50Ω
50Ω
50Ω
50Ω
50Ω
50Ω
Resistance Range
Resistance Range
Absolute
Absolute
TCR
TCR
© IRC Advanced Film Division
T
:
F
:
Website: www
r
risti Te
PFC-Gold Series Issue June 2011 Sheet 3 of 4
© IRC Advanced Film Division
T
General Note
:
F
:
Website: www
r
risti Te
PFC-Gold Series Issue June 2011 Sheet 3 of 4
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
09. 11
Gold Terminations Precision
Thin Film Chip Resistors
Gold Terminations Precision
Thin Film Chip Resistors
PFC Gold Series
L
a
Physical Data
TOP
W
BOTTOM
SIDE
b
H
L
W0402
W0603
W0805
W1206
0.040˝ ±0.002
0.063˝ ±0.004
0.081˝ ±0.005
0.126˝ ±0.006
W
0.021˝ ±0.002
0.031˝ ±0.004
0.050˝ ±0.005
0.063˝ ±0.005
H
0.012˝ ±0.003
0.020˝ ±0.004
0.020˝ ±0.006
0.024˝ ±0.004
a
0.008˝ ±0.002
0.012˝ ±0.005
0.015˝ ±0.008
0.025˝ ±0.010
b
0.010˝ ±0.002
0.015˝ ±0.005
0.016˝ ±0.008
0.025˝ ±0.010
Mil Screened Precision Chip Resistors
IRC’s PFC chip resistors are available with Mil screening. These chips are manufactured on the same production line as our Mil-
qualified chip resistors and screened in accordance with MIL-PRF-55342. These chips are identified with IRC’s ordering informa-
tion and not with Mil marking.
Commercial Ordering Data
Prefix
Model
PFC - W1206 RJ - 01 - 1001 - B
W0402; W0603; W0805; W1206
Mil Screened Ordering Data*
Prefix
Model
PFC - W1206
RJ - 04 - 1001 - B
W0402; W0603; W0805; W1206
Termination
TCR Code
RJ = Gold plated
01 = ±100ppm/°C; 02 = ±50ppm/°C; 03 = ±25ppm/°C;
11 = ±15ppm/°C; 12 = ±10ppm/°C
Termination
RJ = Gold plated
Mil-Screened TCR Code
Resistance Code
04 = ±300ppm/°C; 05 = ±100ppm/°C; 06 = ±50ppm/°C;
07 = ±25ppm/°C; 14 = ±20ppm/°C; 15 = ±15ppm/°C;
16 = ±10ppm/°C
4-Digit resistance code.
Ex: 10R0 = 10Ω; 1000 = 100Ω;
1001 = 1000Ω; 1002 = 10KΩ
Resistance Code
Tolerance Code
4-Digit resistance code.
Ex: 10R0 = 10Ω; 1000 = 100Ω;
1001 = 1000Ω; 1002 = 10KΩ
J = ±5%; G = ±2%; F = ±1%; D = ±0.5%;
B = ±0.1%; A = ±0.05%; Q = ±0.02%
For additional information or to discuss your specific requirements,
please contact our Applications Team using the contact details below.
Tolerance Code
J = ±5%; G = ±2%; F = ±1%; D = ±0.5%;
B = ±0.1%; A = ±0.05%; Q = ±0.02%
*Please refer to our PFC Military datasheet to order parts qualified to MIL-PRF-55342.
© IRC Advanced Film Division
T
:
F
:
Website: www
r
risti Te
PFC-Gold Series Issue June 2011 Sheet 4 of 4
General Note
TT electronics reserves the right to make changes in product specification without notice or liability.
All information is subject to TT electronics’ own data and is considered accurate at time of going to print.
www.bitechnologies.com www.irctt.com www.welwyn-tt.com
© TT electronics plc
09. 11
