Type 940C, Polypropylene Capacitors, for Pulse, Snubber
High dV/dt for Snubber Applications
Type 940 round, axial leaded film capacitors have polypropylene
film and dual metallized electrodes for both self healing
properties and high peak current carrying capability (dV/dt). This
series features low ESR characteristics, excellent high frequency
and high voltage capabilities.
Highlights
- High dV/dt
- High pulse current
- Low inductance
- Self healing
Specifications
Capacitance Range
Capacitance Tolerance
Rated Voltage
Operating Temperature Range
Maximum rms Current
Insulation Resistance
Test Voltage between Terminals @ 25 ºC
Test Voltage between Terminals & Case @ 25 ºC
Life Test
Life Expectancy
0.01 to 4.7 µF
±10 % (K) Standard; ±5% (J) Optional
600 to 3000 Vdc (275 to 500 Vac, 60 Hz)
–55 ºC to 105 ºC*
*Full rated voltage at 85 ºC - derated linearly to 50% rated at 105 ºC
Check tables for values
> 100,000 MΩ x µF
160% rated DC voltage for 60 s
3 kVac @ 50/60 Hz for 60 s
2,000 h @ 85 ºC, 125% rated DC voltage
60,000 h @ rated Vdc, 70 ºC
30,000 h @ rated Vac, 70 ºC
RoHS Compliant

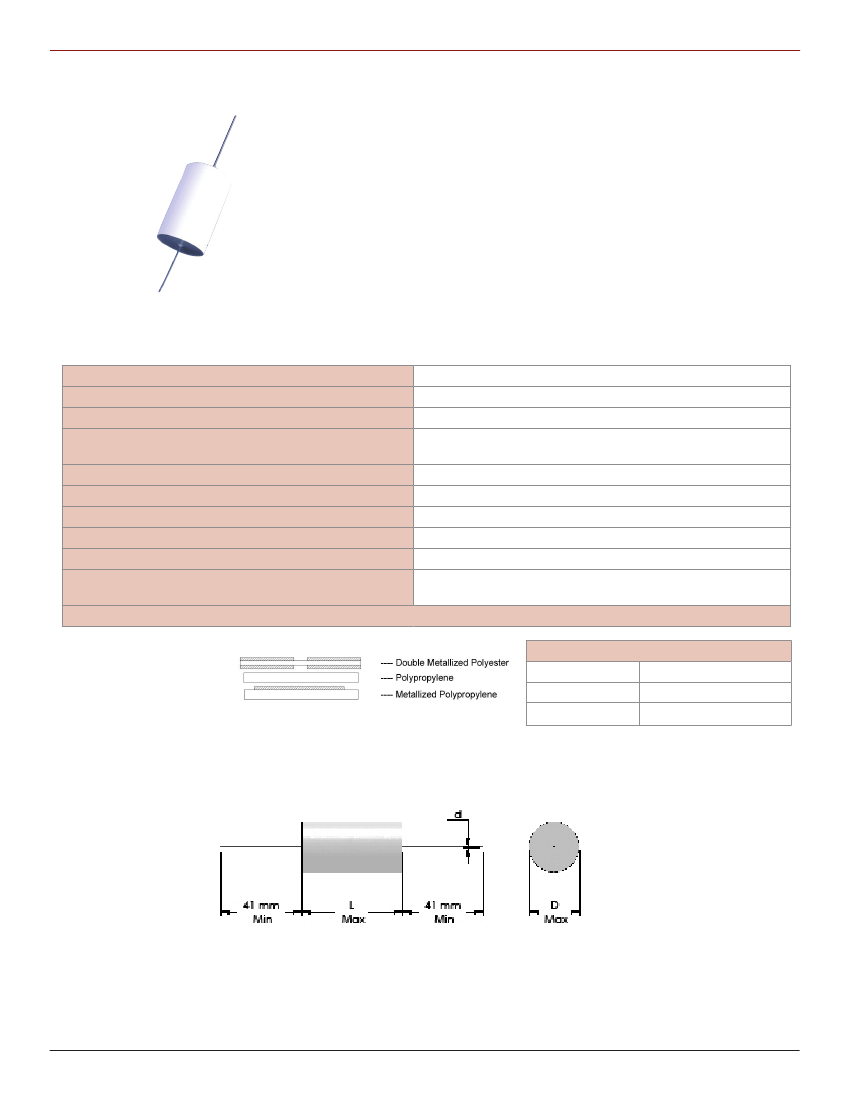

Dimensions
Construction Diagram
Construction Details
Case Material
Resin Material
Terminal Material
UL510 Polyester Tape Wrap
UL94V-0 Epoxy Fill
Tin Plated Copper
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 940C, Polypropylene Capacitors, for Pulse, Snubber
High dV/dt for Snubber Applications
Part Numbering System
940
C
6
P
22
Capacitance
Termination
Series
940
Code
C =Tinned Copper Wire
F = Insulated Stranded
Wire
Voltage Code
6 = 600 Vdc
8 = 800 Vdc
10 = 1000 Vdc
12 = 1200 Vdc
16 = 1600 Vdc
20 = 2000 Vdc
30 = 3000 Vdc
Capacitance
Decimal Point
S = 0.0
P = 0.
W = No decimal
point
Significant
figures in µF
Tolerance
Code
K = ±10%
J = ±5%
K
–F
RoHS
Compliant
Indicator
Ratings
H = Tinned Lugs
NOTE:
Other ratings, sizes and performance specifications are available. Contact us.
I
RMS
Catalog
Cap.
(µF)
.10
.15
.22
.33
.47
.68
1.00
1.50
2.00
3.30
4.70
.15
.22
.33
.47
.68
1.00
1.50
2.00
2.20
2.50
.15
.22
.33
.47
.68
1.00
1.50
2.00
940C6P1K-F
940C6P15K-F
940C6P22K-F
940C6P33K-F
940C6P47K-F
940C6P68K-F
940C6W1K-F
940C6W1P5K-F
940C6W2K-F
940C6W3P3K-F
940C6W4P7K-F
940C8P15K-F
940C8P22K-F
940C8P33K-F
940C8P47K-F
940C8P68K-F
940C8W1K-F
940C8W1P5K-F
940C8W2K-F
940C8W2P2K-F
940C8W2P5K-F
940C10P15K-F
940C10P22K-F
940C10P33K-F
940C10P47K-F
940C10P68K-F
940C10W1K-F
940C10W1P5K-F
940C10W2K-F
Part Number
D
mm
9.0
10.5
11.5
13.5
15.5
18.0
21.0
25.0
23.5
27.0
31.5
13.0
15.5
18.0
21.0
24.5
22.5
27.0
30.5
32.0
34.0
15.0
17.5
20.5
24.0
28.0
26.0
31.0
35.5
L
mm
34.0
34.0
34.0
34.0
34.0
34.0
34.0
34.0
46.0
54.0
54.0
34.0
34.0
34.0
34.0
34.0
46.0
46.0
46.0
46.0
46.0
34.0
34.0
34.0
34.0
34.0
46.0
46.0
46.0
d
mm
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.2
1.2
1.2
1.2
0.8
1.0
1.0
1.0
1.2
1.2
1.2
1.2
1.2
1.2
1.0
1.0
1.0
1.2
1.2
1.2
1.2
1.2
Typical
ESR
(mΩ)
28
13
12
9
7
6
6
5
5
4
4
8
8
7
5
4
5
4
3
3
3
7
7
6
5
5
5
4
3
Typical
ESL
(nH)
19
20
20
21
22
23
24
26
31
36
38
21
22
23
24
26
30
32
34
34
35
22
23
24
26
27
32
34
36
dV/dt
V/µs
196
196
196
196
196
196
196
196
128
105
105
713
713
713
713
713
400
400
400
400
400
856
856
856
856
856
480
480
480
I peak
(A)
20
29
43
65
92
134
196
295
255
346
492
107
157
235
335
485
400
600
800
880
1000
128
188
283
402
582
480
720
960
70 ºC
100 kHz
(A)
2.5
4.0
4.4
5.6
6.9
8.1
8.9
10.9
11.8
15.3
16.8
5.8
6.4
7.5
9.8
12.0
11.5
14.3
17.9
18.4
19.1
6.7
7.4
8.8
10.6
11.7
12.5
15.6
19.6
600 Vdc (275 Vac)
850 Vdc (450 Vac)
1000 Vdc (500 Vac)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 940C, Polypropylene Capacitors, for Pulse, Snubber
High dV/dt for Snubber Applications
I
RMS
Typical
Cap.
(µF)
.10
.15
.22
.33
.47
.68
1.00
1.50
.10
.15
.22
.33
.47
.68
1.00
1.50
.022
.033
.047
.068
.100
.150
.220
.330
.470
.560
.680
1.00
.010
.015
.022
.033
.047
.068
.100
.150
Catalog
Part Number
940C12P1K-F
940C12P15K-F
940C12P22K-F
940C12P33K-F
940C12P47K-F
940C12P68K-F
940C12W1K-F
940C12W1P5K-F
940C16P1K-F
940C16P15K-F
940C16P22K-F
940C16P33K-F
940C16P47K-F
940C16P68K-F
940C16W1K-F
940C16W1P5K-F
940C20S22K-F
940C20S33K-F
940C20S47K-F
940C20S68K-F
940C20P1K-F
940C20P15K-F
940C20P22K-F
940C20P33K-F
940C20P47K-F
940C20P56K-F
940C20P68K-F
940C20W1K-F
940C30S1K-F
940C30S15K-F
940C30S22K-F
940C30S33K-F
940C30S47K-F
940C30S68K-F
940C30P1K-F
940C30P15K-F
D
mm
15.5
18.5
21.5
20.0
23.0
27.0
33.0
35.0
18.0
21.5
25.5
23.5
27.5
32.5
39.0
42.0
11.5
13.5
15.0
17.5
21.0
19.5
22.0
27.0
32.0
31.0
34.0
41.0
11.5
13.5
15.5
18.0
16.5
19.0
22.5
27.0
L
mm
34.0
34.0
34.0
46.0
46.0
46.0
46.0
54.0
34.0
34.0
34.0
46.0
46.0
46.0
46.0
54.0
34.0
34.0
34.0
34.0
34.0
46.0
46.0
46.0
46.0
54.0
54.0
54.0
34.0
34.0
34.0
34.0
46.0
46.0
46.0
46.0
d
mm
1.0
1.0
1.0
1.0
1.2
1.2
1.2
1.2
1.0
1.0
1.2
1.2
1.2
1.2
1.2
1.2
0.8
0.8
1.0
1.0
1.0
1.0
1.0
1.2
1.2
1.2
1.2
1.2
0.8
0.8
1.0
1.0
1.0
1.0
1.2
1.2
ESR
(mΩ)
9
7
7
7
7
6
5
4
7
5
7
7
6
6
5
4
35
20
12
8
7
7
8
8
6
7
6
5
60
40
25
14
14
12
10
8
Typical
ESL
(nH)
22
23
24
29
30
32
35
39
23
24
26
31
32
35
37
42
6
21
22
23
24
29
30
32
34
37
39
42
20
21
22
23
28
29
30
32
dV/dt
V/µs
1142
1142
1142
640
640
640
640
502
1427
1427
1427
800
800
800
800
628
1712
1712
1712
1712
1712
960
960
960
960
754
754
754
2568
2568
2568
2568
1440
1440
1440
1440
I peak
(A)
114
171
251
211
301
435
640
754
143
214
314
264
376
544
800
942
38
57
80
116
171
144
211
317
451
422
513
754
26
39
57
85
68
98
144
216
70 ºC
100 kHz
(A)
6.1
7.6
8.4
9.0
9.8
11.7
14.5
17.9
7.5
9.9
9.3
10.0
11.8
13.1
16.2
20.1
2.6
3.8
5.2
6.9
8.3
8.9
9.0
10.1
13.0
12.6
14.3
17.7
2.0
2.7
3.6
5.3
5.7
6.7
8.1
10.1
1200 Vdc (500 Vac)
1600 Vdc (500 Vac)
2000 Vdc (500 Vac)
3000 Vdc (500 Vac)
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 940C, Polypropylene Capacitors, for Pulse, Snubber
High dV/dt for Snubber Applications

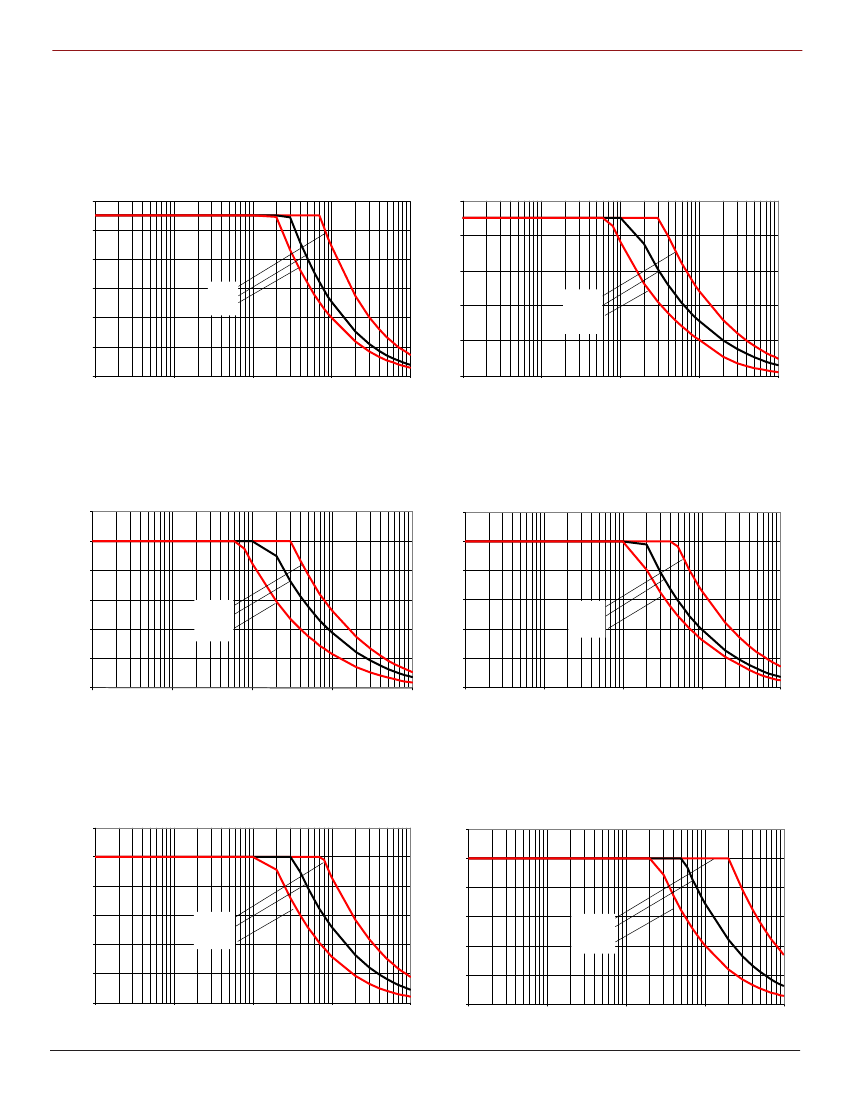

RMS Voltage vs Frequency @ 25 ºC
300
250
200
940C/ 941C - 600 Vdc
500
940C/ 941C - 850 Vdc
400
300
Vrms
150
100
50
0
10
100
1000
Frequency (Hz)
10000
100000
0.1 µF
0.47 µF
1 µF
Vrms
200
0.15 µF
0.68 µF
2.2 µF
100
0
10
100
1000
Frequency (Hz)
10000
100000
600
940C/ 941C - 1000 Vdc
600
500
400
Vrms
940C/ 941C - 1200 Vdc
500
400
Vrms
300
200
0.15 µF
0.47 µF
2 µF
300
200
100
0
0.1 µF
0.47 µF
1 µF
100
0
10
100
1000
Frequency (Hz)
10000
100000
10
100
1000
Frequency (Hz)
10000
100000
600
500
400
Vrms
940C/ 941C - 1600 Vdc
600
500
400
Vrms
940C/ 941C - 2000 Vdc
300
200
100
0
10
100
0.1 µF
0.47 µF
1.5 µF
300
200
100
0
10
100
0.022 µF
0.22 µF
1 µF
1000
Frequency (Hz)
10000
100000
1000
Frequency (Hz)
10000
100000
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Notice and Disclaimer:
All product drawings, descriptions, specifications, statements, information and
data (collectively, the “Information”) in this datasheet or other publication are subject to change. The
customer is responsible for checking, confirming and verifying the extent to which the Information con-
tained in this datasheet or other publication is applicable to an order at the time the order is placed. All
Information given herein is believed to be accurate and reliable, but it is presented without any guaran-
tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability
for certain applications are based on the knowledge that the Cornell Dubilier company providing such
statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards
as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-
tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,
warranty or representation concerning the suitability for a specific customer application, use, storage,
transportation, or operating environment. The Information is intended for use only by customers who
have the requisite experience and capability to determine the correct products for their application. Any
technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference
to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),
and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although
Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design
and manufacturing of its products, in light of the current state of the art, isolated component failures may
still occur. Accordingly, customer applications which require a high degree of reliability or safety should
employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies
or other appropriate protective measures) in order to ensure that the failure of an electrical component
does not result in a risk of personal injury or property damage. Although all product-related warnings,
cautions and notes must be observed, the customer should not assume that all safety measures are indi-
cated in such warnings, cautions and notes, or that other safety measures may not be required.
/940c12w1p5k_pdf/pg_0001.png)
京公网安备 11010802033920号
EEWORLD/940c12w1p5k_pdf/1.png)
/940c12w1p5k_pdf/2.png)
/940c12w1p5k_pdf/3.png)
/940c12w1p5k_pdf/4.png)
/940c12w1p5k_pdf/5.png)
/940c12w1p5k_pdf/pg_0002.png)
/940c12w1p5k_pdf/pg_0003.png)
/940c12w1p5k_pdf/pg_0004.png)
