Winchester Electronics was established in 1941
and is today a global leader in the design,
development, and deployment of interconnect
technology.
Connecticut,
Headquartered
USA,
in
Middlebury,
operates
Winchester
series. This long-trusted RF KINGS
®
Brand is
highly regarded by customers in the Broadcast,
Telecommunications,
and
Commercial
and
Military Aviation industries.
With over 125 years of collective industry
experience, Winchester Electronics and the
KINGS
®
Brand create value for our customers
by offering a proven combination of quality
products, efficient manufacturing, dedicated
service, and inventive design solutions.
In addition to the KINGS
®
Brand RF Connectors,
Winchester Electronics also manufactures a wide
variety of PCB and Power Connectors, as well as
value-added
cable
and
electromechanical
assemblies for customers in the Wireless
Infrastructure, Computer, Industrial, and Medical
Equipment industries.
Realizing its responsibility to the environment,
every
Winchester
Electronics
facility
is
ISO Certified and all of our products are
manufactured in compliance with the European
Union RoHS directive.
Providing superior products built to stringent
specifications, the new Winchester Electronics is a
valuable extension of your product development
team. With the ability to rapidly develop
engineered solutions at reduced costs and time-
to-market, we can help your company maintain
its competitive edge.
worldwide with modern, electronically linked
design, manufacturing, sales, and distribution
facilities in the United States, Mexico, China, and
Malaysia.
Winchester’s competitive advantage is our ability
to solve even the most difficult interconnect
problems, deploy design solutions globally to
meet the customer’s manufacturing needs,
and offer true supply chain management
techniques to deliver value through our
high-mix, low-volume manufacturing
model. Our global IT infrastructure
and
worldwide
communication
capabilities allow for continuous
information access in support of
customer
opportunities.
The
acquisition of Kings Electronics
expanded our technological
capabilities and broadened
our
market
base
and
product offering.
Kings Electronics was
originally founded in 1947 and
has provided numerous contributions to
the advancement of connector technology,
including the
K-Grip
®
crimp style connector, True
75 Ohm BNC connectors, and the industry
standard Tri-Loc
®
triaxial camera connector

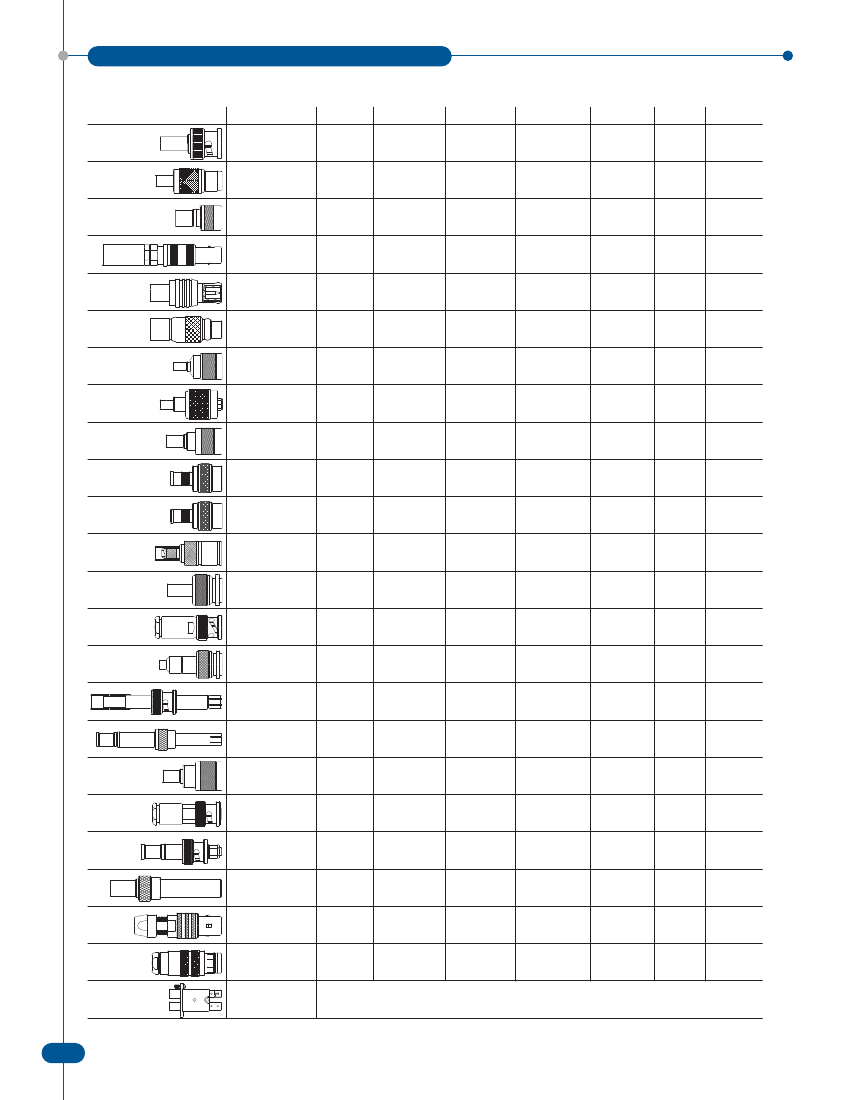

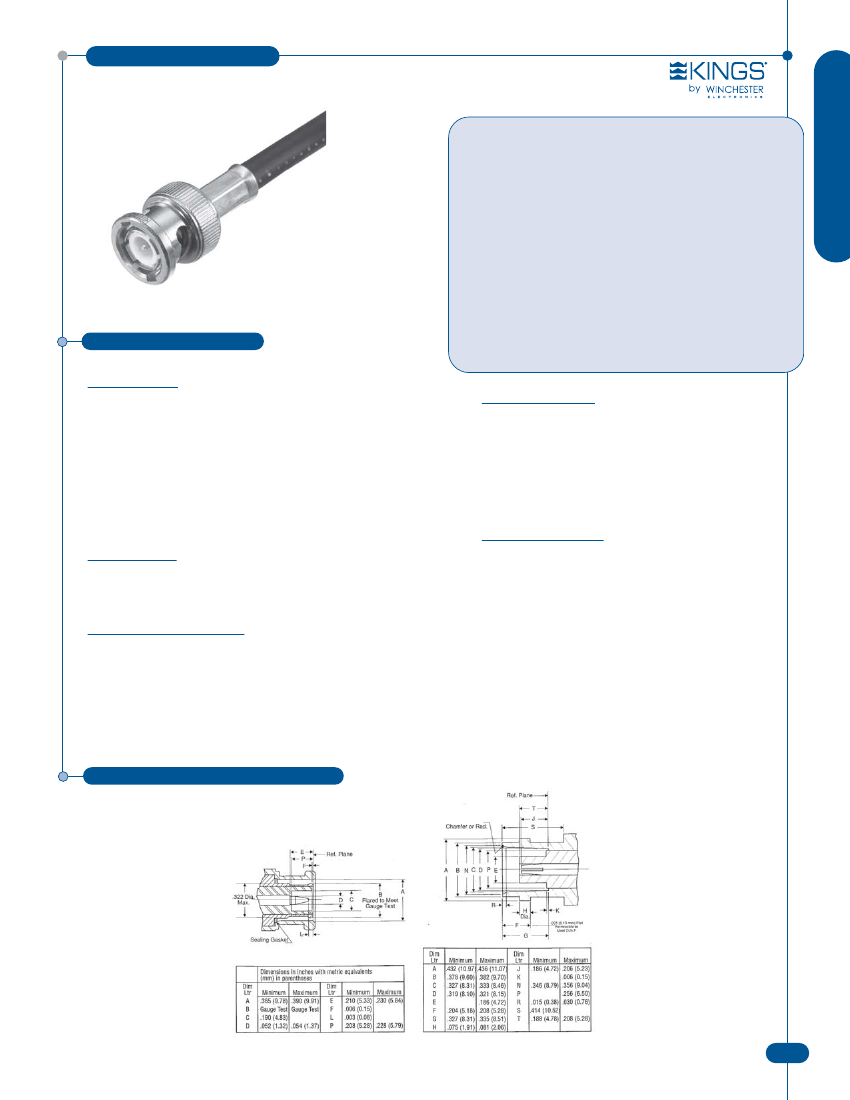

50 Ohm BNC
Connecting Innovation to Application
®
50 Ohm BNC
• 50 Ohm Nominal Impedance.
• Quick connect & disconnect
bayonet coupling design.
• Durable brass bodies with Silver
or Nickel plating.
• Small & lightweight.
• Commercial and Military-Specified
versions available.
Specifications
MATERIAL
Body:
Crimp Sleeves:
Center Contacts:
Outer Contacts:
Insulators:
Gaskets & Seals:
Brass
Commercial Bronze Alloy
Brass (Male)
Beryllium Copper (Female)
Beryllium Copper or Brass (Male)
PTFE
• Frequency Range: Up to 4 GHz
ELECTRICAL
Impedance:
Frequency Range:
Voltage Rating:
VSWR:
Insertion Loss:
50 Ohms
DC to 4 GHz
500 Volts RMS
1.30 Max, DC to 4 GHz
.2 dB Max at 3 GHz
Silicone Rubber
MECHANICAL
FINISHES
Body:
Center Contacts:
Silver or Nickel
Gold
Life:
Cable Retention:
500 Cycles
Non-Crimp: 40 Pounds
Minimum
Crimp: 10 to 40 Pounds,
Depending on Cable Size
ENVIRONMENTAL
Temperature Range:
Vibration:
Shock:
Corrosion:
Moisture Resistance:
-65° C to +165° C
MIL-STD-202, Method 204, Condition B
MIL-STD-202, Method 213, Condition B
MIL-STD-202, Method 101, Condition B
MIL-STD-202, Method 106
Interface Dimensions
5
