5962F9853601VEC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962F9853601VEC

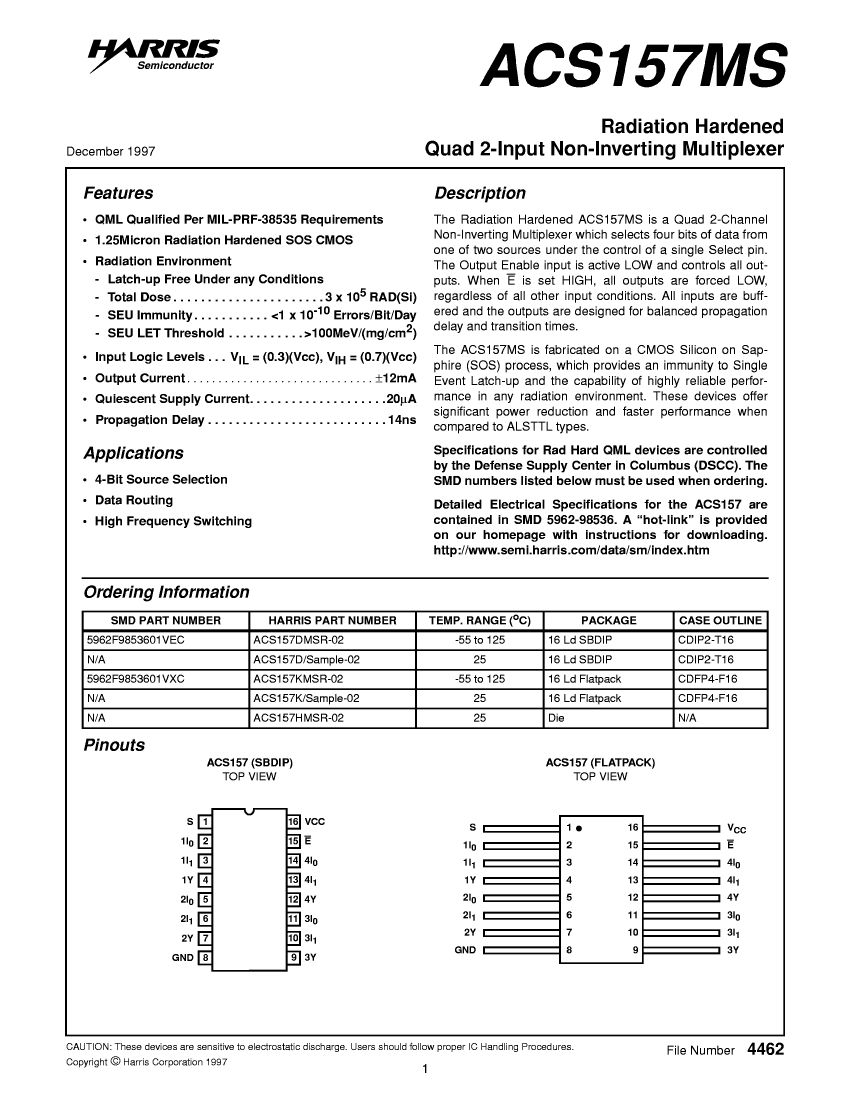

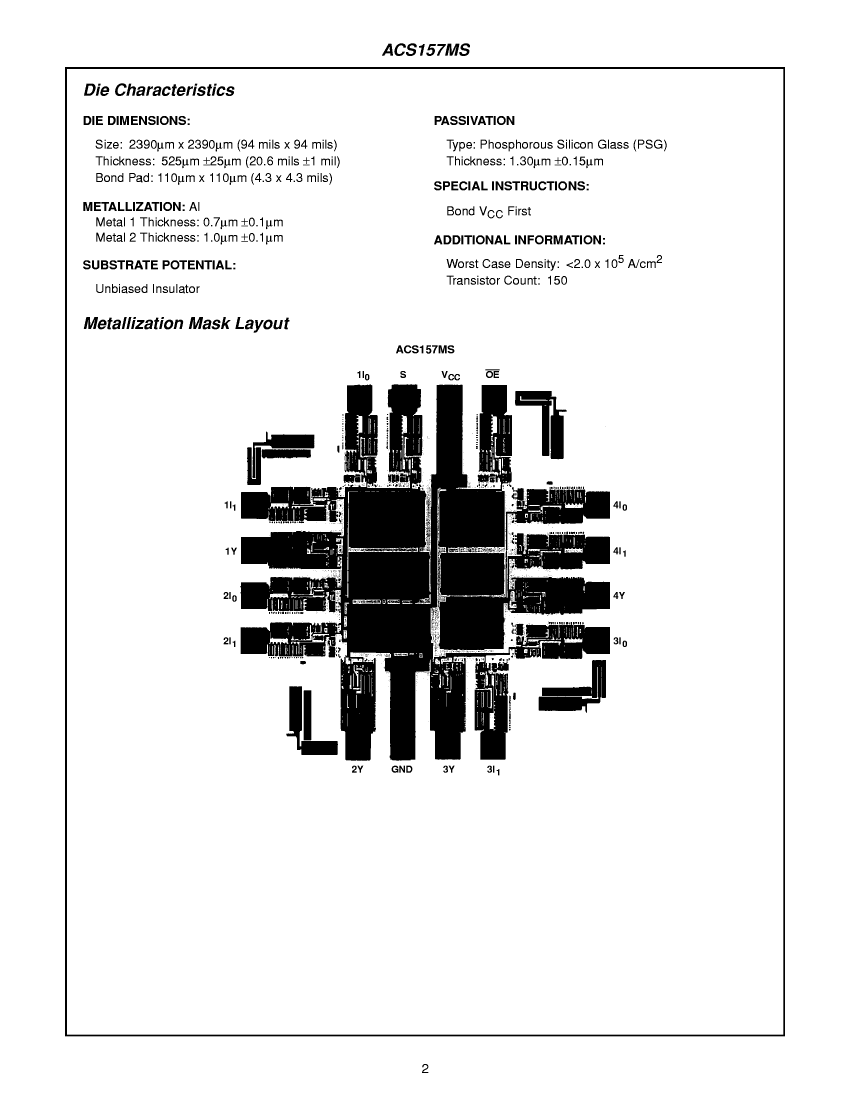

5962F9853601VEC: DescriptionMultiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDIP16; Categorylogic logic; File Size74KB，2 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962F9853601VEC Overview

Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDIP16

5962F9853601VEC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
series	AC
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Logic integrated circuit type	MULTIPLEXER
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	300k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962F9853601VEC Related Products

	5962F9853601VEC	5962F9853601VXC	ACS157D/SAMPLE-03	ACS157DMSR-02	ACS157HMSR-02	ACS157K/SAMPLE-02
Description	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDIP16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDFP16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDIP16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDIP16	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS	Multiplexer, AC Series, 4-Func, 2 Line Input, 1 Line Output, True Output, CMOS, CDFP16
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
series	AC	AC	AC	AC	AC	AC
JESD-30 code	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16	R-CDIP-T16	X-XUUC-N16	R-CDFP-F16
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Output times	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	UNCASED CHIP	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	UPPER	DUAL
Maker	-	-	Harris	Harris	Harris	Harris
