REVISION AM
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MAXIMUM BURR ALLOWANCE: .003[0.08]
3. PARTS TO BE MOLDED TO POSITION.
FEP CABLE OPTION
4. MINIMUM PIN PULLOUT FORCE: 5.000LB[22.24N].
5. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS INTO PLACE.
-T: FEP
(LEAVE BLANK FOR STANDARD
6. FOLLOW CO-RF-WI-3001-M AND SAMTEC PACKAGING STANDARDS.
PVC INSULATION)
7. ONLY AVAILABLE IN TIN PLATING.
(SEE NOTE 20)
C
8. ALL PARTS TO PASS ELECTRICAL TEST UPON ASSEMBLY
(INCLUDING HI-POT TEST AT 1000 VOLTS DC). AFTER FINAL ELECTRICAL TEST,
No OF POSITIONS
LABEL EACH ASSEMBLY WITH (1) ET STAMP ON THE BODY.
-02 THRU -15
9. APPLICATIONS INVOLVING SEVERE BENDING REQUIRE 6" MINIMUM CABLE LENGTH.
(PER ROW)
10. DELETED.
11. DELETED.
WIRE GAUGE (AWG)
12. -203 USES 20 GAGE 300 VOLT CABLE.
PVC: -16, -18, -206, -203, -22, -24
13. AVAILABLE ONLY AS AN ASO.
FEP: *-18, -24
14. -206 USES 20 GAGE 600 VOLT CABLE.
15. MINIMUM METAL LATCH RETENTION FORCE: 1.000LB[4.45N].
COLOR CODE
16. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
LEAVE BLANK FOR ALL BLACK WIRE
TOLERANCES, TOOLING AND ITS REQUIREMENTS
C: COLOR CODED WIRE, SEE COLOR
17. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL
SEQUENCE TABLE, SHEET 3
BE ±.125[3.18]. FOR OTHER LENGTHS, TOLERANCES SHALL BE ±2%.
18. AVAILABLE TO EXISTING CUSTOMERS ONLY, DO NOT DESIGN AS OF REVISION P.
(NOT AVAILABLE WITH FEP OPTION)
19. AVAILABLE TO EXISTING CUSTOMERS ONLY, DO NOT DESIGN AS OF REVISION Z.
LEAD STYLE
20. ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.
-SP: STANDARD POWER (C-169-XX-SP-T)
21. CUT LENGTH IS ASSEMBLY LENGTH MINUS OVERALL LENGTH SUBTRACTOR.
02 01
PMSDX-XX-XXXX-X-XX.XX-X-XXX
OPTION
SINGLE
-M: METAL LATCH (USE IPBD-XX-D-M)
(LEAVE BLANK FOR PLASTIC)
DOUBLE
-LUS: PLASTIC LATCH UP, STRAIGHT
-LDS: PLASTIC LATCH DOWN, STRAIGHT
-LUX: PLASTIC LATCH UP, CROSSED
-LDX: PLASTIC LATCH DOWN, CROSSED
-MUS: METAL LATCH UP, STRAIGHT
-MDS: METAL LATCH DOWN, STRAIGHT
-MUX: METAL LATCH UP, CROSSED
-MDX: METAL LATCH DOWN, CROSSED
END OPTION
-S: SINGLE END
-D: DOUBLE END
(MUST CHOOSE LUS, LDS, LUX, LDX,
MUS, MDS, MUX, OR MDX)
*AVAILABLE TO EXISTING CUSTOMERS ONLY
(No OF POS x .165[4.19])
+ .040[1.02]) REF
.337 8.56 REF
.478 12.14
REF
N
(SEE TABLE 2)
06
*(SEE NOTE 19)
-HP: HIGH POWER (C-169-XX-HP-T)
*(SEE NOTE 18)
-K: KEYED POLARIZATION (C-169-XX-SP-T)
(USE IPBD-XX-D-K) (SEE FIG 4, SHT 3)
ASSEMBLED LENGTH
SPECIFY IN INCHES
3.00 INCHES MINIMUM FOR SINGLE ENDED
3.50 INCHES MINIMUM FOR DOUBLE ENDED
[USE DWCX-XX-XX-XXX]
"A"
IPBD-XX-D
.770 19.56
REF
.485 12.32
REF
DWCX-XX-XX-XXX
C
XX.XX
(SEE NOTE 17)
XX.XX
(SEE NOTE 17)
C
DWCX-XX-XX-XXX
"A"
(PMSDX-05-XXXX-X-XX.XX-S SHOWN)
FIG 1
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
*
PROPRIETARY NOTE
(PMSDX-05-XXXX-X-XX.XX-D-LUS SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
FIG 2
*
* AVAILABLE TO
EXISTING CUSTOMERS
ONLY
** SEE NOTES 12 & 13
*** SEE NOTE 14
DECIMALS
.XX: .01[0.3]
2
.XXX: .005[0.13]
.XXXX: .0020[0.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
F:\DWG\MISC\MKTG\PMSDX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
HOUSING: NYLON UL 94V-2, COLOR: NATURAL
CONTACT: PHOS BRONZE
CABLE; INSULATION: SEE CALLOUT
WIRE: SEE CABLE PRINT (NOT LEAD FREE)
METAL LATCH: NICKEL-PLATED BeCu

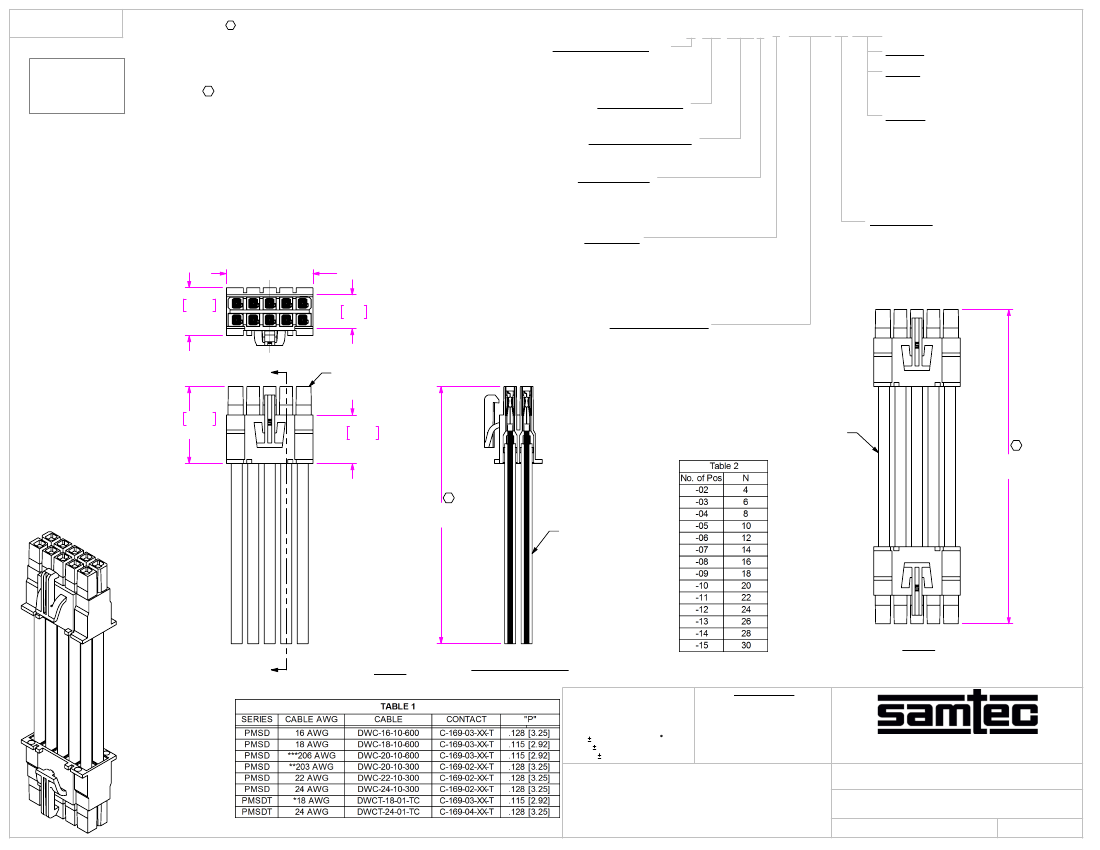

.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
PMSDX-XX-XXXX-X-XX.XX-X-XXX
07/28/2004
SHEET
1
OF
3
BY:
DEAN P
REVISION AM
01
02
N
N
N
02
01
LATCH-
END 1
02
01
LATCH-
END 1
02
01
N
LATCH-
END 2
-LUS

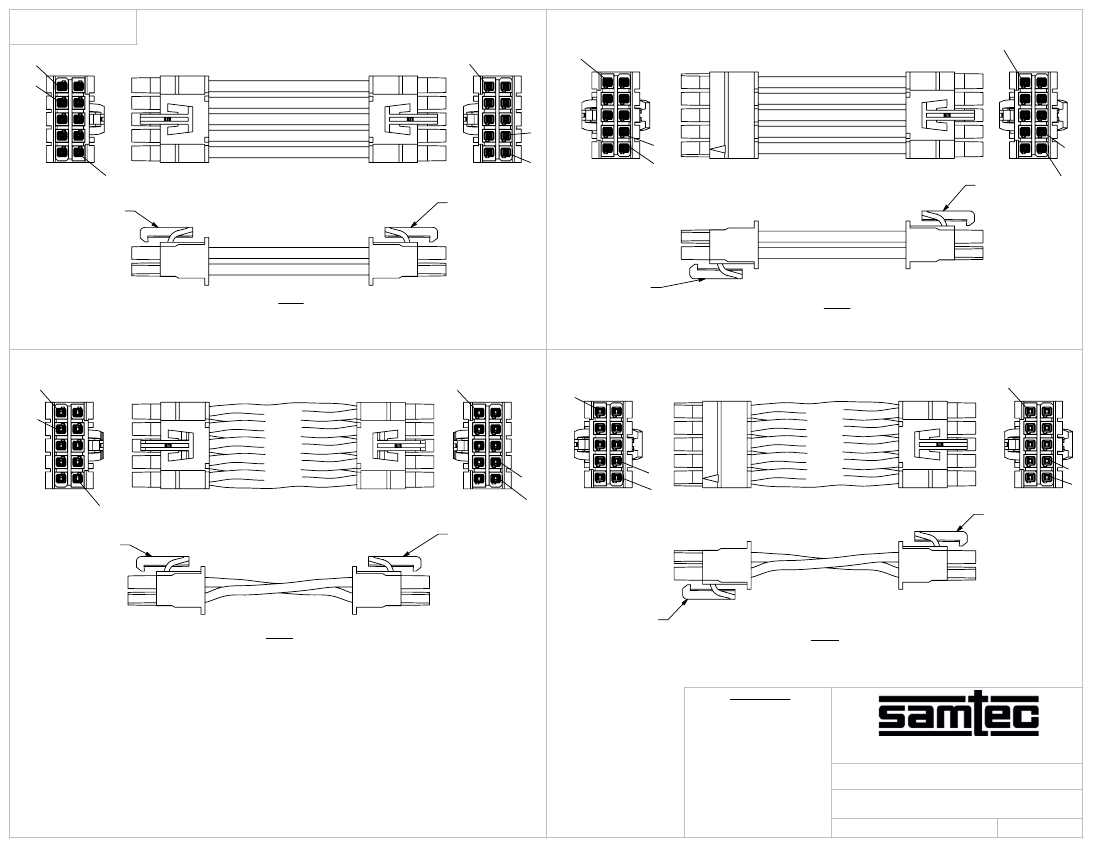

[LATCH UP- CABLE STRAIGHT]
(PIN 1 TO PIN N/2)
LATCH-
END 2
[LATCH DOWN- CABLE STRAIGHT]
(PIN 1 TO PIN N/2 +1)
-LDS
01
02
N
N
N
02
N
LATCH-
END 2
LATCH-
END 1
01
02
01
LATCH-
END 1
02
01
[LATCH UP- CABLE CROSSED]
(PIN 1 TO PIN N)
-LUX
LATCH-
END 2
[LATCH DOWN- CABLE CROSSED]
(PIN 1 TO PIN 1)
*
PROPRIETARY NOTE
*
-LDX
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
PMSDX-XX-XXXX-X-XX.XX-X-XXX
BY:
DEAN P
F:\DWG\MISC\MKTG\PMSDX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
07/28/2004
SHEET
2
OF
3
REVISION AM
IPBD-XX-D-R
.618 15.70
REF
.125
- .002
3.17
- 0.05
+.003
+0.08
.368 9.33
C
.040 1.02 REF
C
LTC-14-01-N
IPBD-XX-D-K

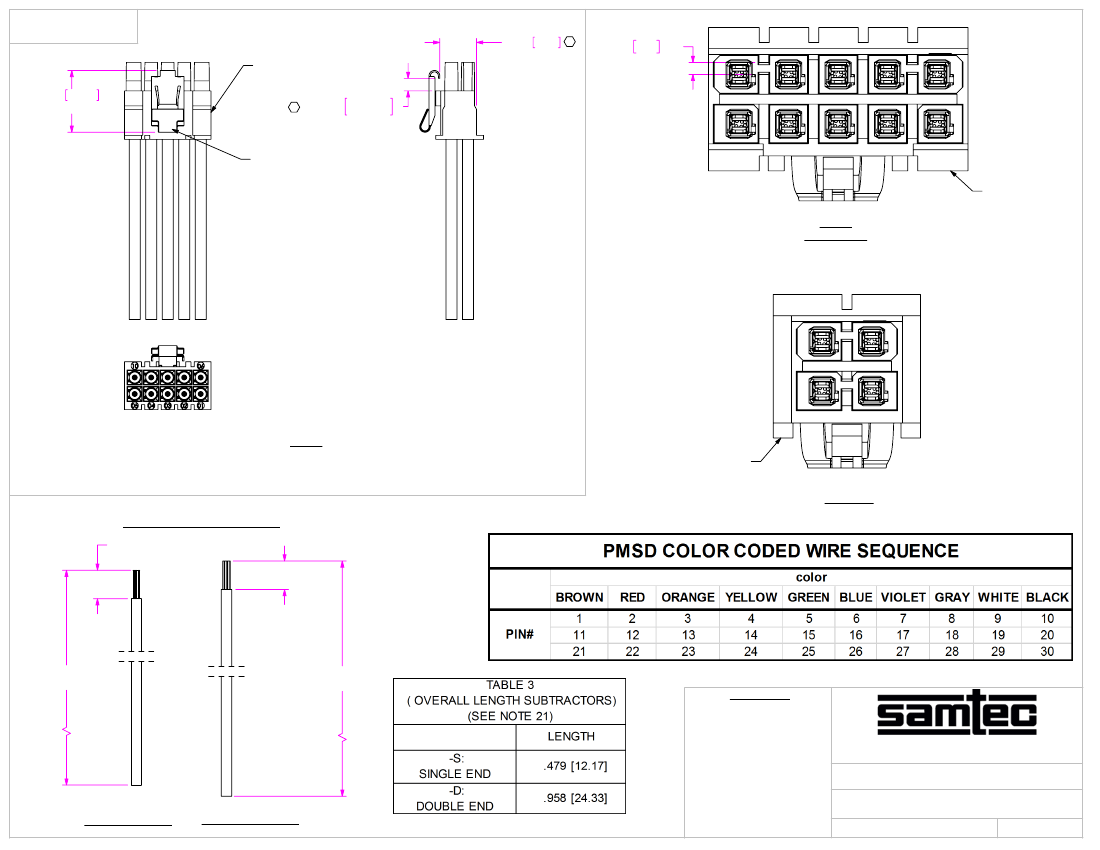

-K: KEYED POLARIZATION
(PMSDX-05-XXXX-X-XX.XX-S-K SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
FIG 4
SCALE 3:1
(PMSDX-05-XXXX-X-XX.XX-S-M SHOWN)
(SAME AS FIG 1, EXCEPT AS SHOWN)
FIG 3
IPBD-02-D-K
CABLE CUT IN-PROCESS
"P"
(SEE TABLE 1, SHT 1)
"P"
(SEE TABLE 1, SHT 1)
(DIFFERENT AS SHOWN)
-02 POS
OVERALL LENGTH
(SEE TABLE 3)
OVERALL LENGTH
(SEE TABLE 3)
*
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
-S: SINGLE END
-D: DOUBLE END
"P"
(SEE TABLE 1, SHT 1)
F:\DWG\MISC\MKTG\PMSDX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.165[4.19] SOCKET DISCREET CABLE ASSEMBLY
BY:
DEAN P
PMSDX-XX-XXXX-X-XX.XX-X-XXX
07/28/2004
SHEET
3
OF
3
