VXM7-1F2-14M001 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> VXM7-1F2-14M001

VXM7-1F2-14M001: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size334KB，4 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

VXM7-1F2-14M001 Overview

Parallel - Fundamental Quartz Crystal,

VXM7-1F2-14M001 Parametric

Parameter Name	Attribute value
Objectid	7340745541
Reach Compliance Code	compliant
Other features	AT-CUT; TR, 7 INCH
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.003%
frequency tolerance	20 ppm
load capacitance	20 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	14.001 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L3.2XB2.5XH0.8 (mm)/L0.126XB0.098XH0.031 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

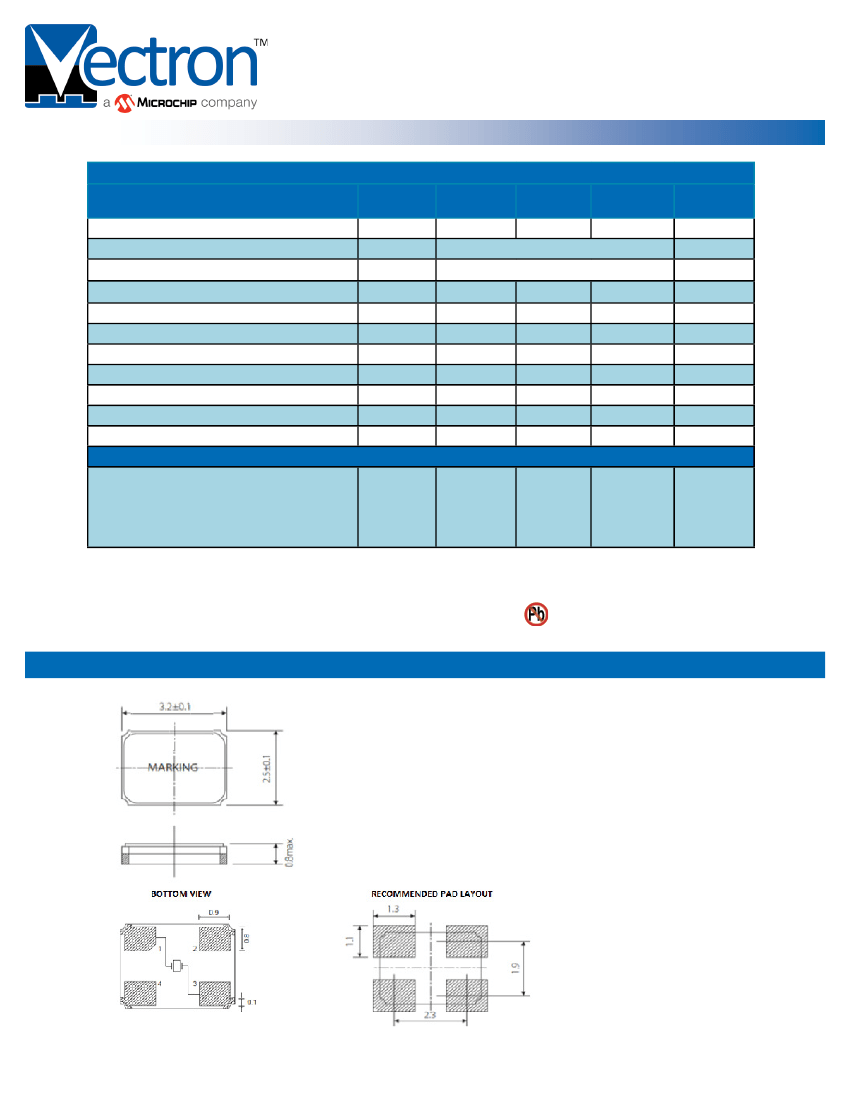

3.2 x 2.5mm Crystal

Standard Crystal Datasheet

Helping Customers Innovate, Improve & Grow

VXM7

Table 1. Electrical Performance

Parameter

Nominal Frequency

Mode

Operating Temperature Range,

ordering option

Stability Over T

OP2

ordering option

Frequency Tolerance

2,3

Load Capacitance,

ordering option

Shunt Capacitance

Drive Level

Aging / 1st year (at 25 °C)

Insulation Resistance

Storage Temperature

STAB

TOL

AGE

±10

Symbol

NOM

Min.

12.000

Fundamental, AT - Cut

0/70, -10/70, -20/70, -40/85

±100

±20

100

±5

°C

ppm

MOhm

°C

Typ

Max

60.000

Units

MHz

VT-804

Description

500

STO

-40

Equivalent Series Resistance

Crystal Frequency

ESR

Ohm

12.000MHz-14.000MHz

100

14.001MHz-19.000MHz

Applications

19.001MHz-30.000MHz

30.001MHz-60.000MHz

Notes:

Features

1. Higher frequency 3rd OT crystals can be supplied, such as 114M285 and 125M000. Please contact factory with requirements.

2. Referenced to the Frequency at 25 °C.

3. Frequency measured at 25 °C ± 3 °C.

Product is compliant to RoHS directive and fully compatible with lead free assembly.

Package Drawing

XXXX YWW

Yww

Block Diagram

Marking Option 1

XXMXXX

YYWW C

were

XXMXX = Frequency

YY = Year

WW=Week

C = Manufacturing Location

Marking Option 2

VXXYM

were

V=Vectron

XX = Frequency

Y = Year

M =Month

A = January

L = December

All Dimensions in mm

Page1

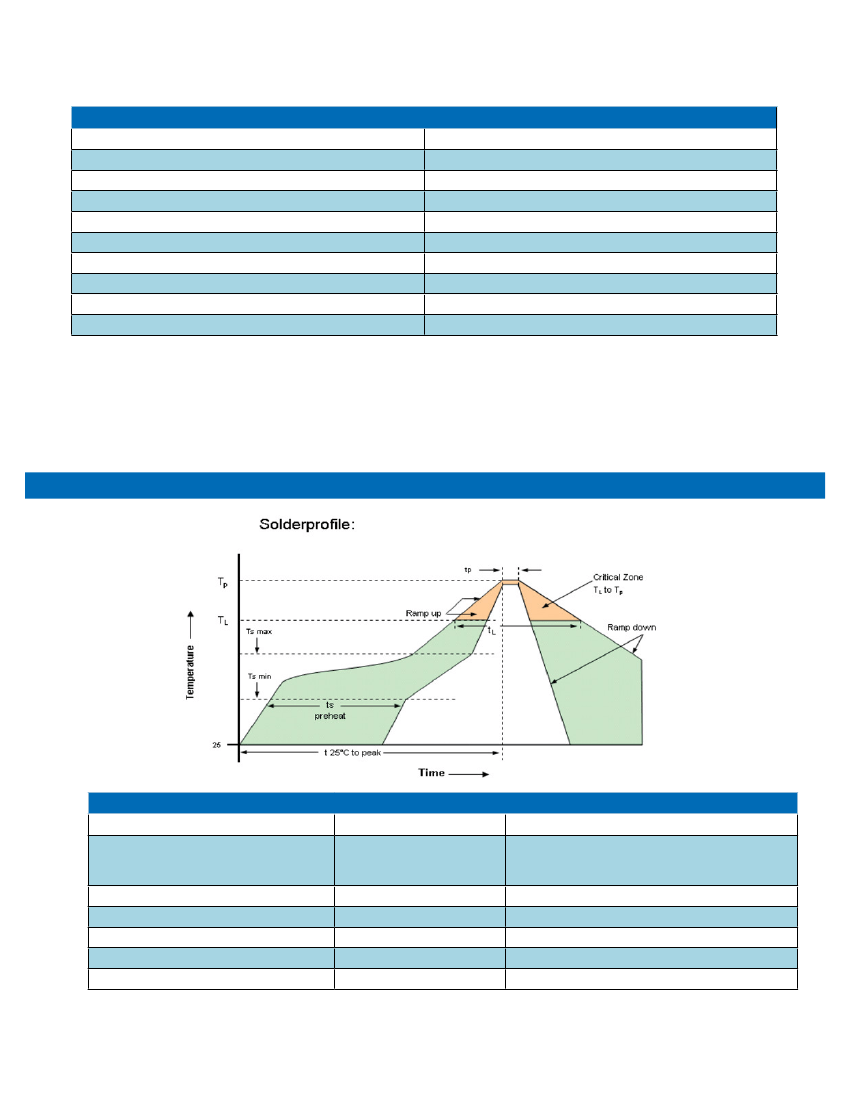

Revision History

Revision Date

December 5, 2016

August 29, 2016

September 18, 2018

June 7, 2019

Approved

Updated ESR Table

Description

Initial datasheet for factory approval and release to customer.

Update logo and contact information, add 1K reel pieces per reel and “SNPBDIP” ordering option

Update logo and contact information, add Table 2 Environmental compliance, change “SNPBDIP”

to “SNPB”

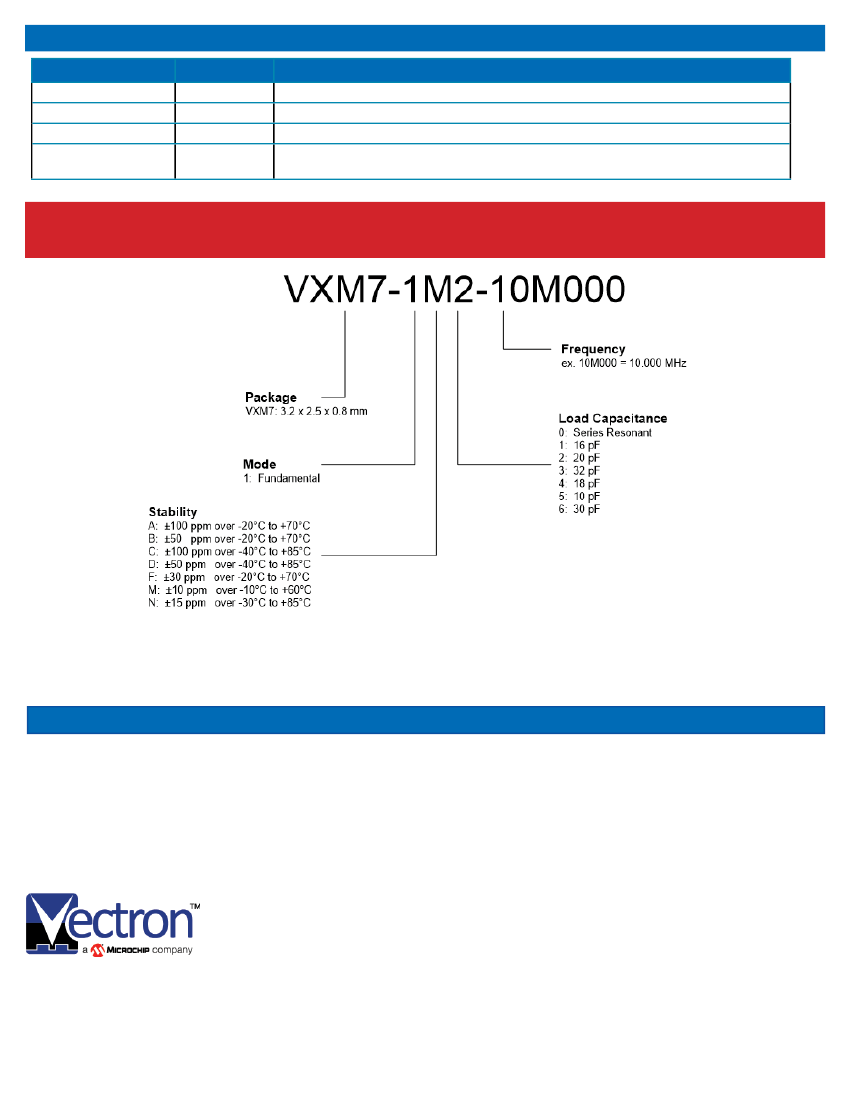

Previous Ordering Information for Reference Only

Do Not Use to Build a New Part Number

The ordering codes for the VXM7 were changed in 2016. If you had ordered a speciﬁc code based oﬀ this ordering method, it is still

available for purchase under the old code however no new part numbers will be created using this system.
