VXM9 Datasheet
267 Lowell Road
Hudson, NH 03051 USA
Tel: 1-888-328-7661 Fax: 1-603-598-0075
VXM9 Ultra Miniature SMD Crystals
Product is compliant to RoHS directive
and fully compatible with lead free assembly
Package:
Frequency Range:
Mode:
Stability:
2.0 x 1.6 x 0.6 mm 4 pads
24 MHz to 60 MHz
1 =
Fundamental
A
=
100 PPM from - 20°C to + 70°C
B
= ± 50 PPM from - 20°C to + 70°C
C
= ± 100 PPM from - 40°C to + 85°C
D
= ± 50 PPM from - 40°C to + 85°C
F
= ± 30 PPM from - 20°C to + 70°C
M
= ± 10 PPM from - 10°C to + 60°C
N
= ± 15 PPM from - 30°C to + 85°C
0 =
Series Resonant
1 =
16 pF
2 =
20 pF
3 =
32 pF
4 =
18 pF
5 =
10 pF
6 =
30 pF
10 ppm to
±100ppm
at +25 ± 3°C
80 Ohms Max. : 24.000MHz½25.999MHz
60 Ohms Max. : 26.000MHz½39.999MHz
50 Ohms Max. : 40.000MHz½60.000MHz
7 pF Maximum
10 to 100 uW
± 5 PPM/ year Maximum
Tape and Reel (1000 pcs minimum)
VXM9-1B2-16M000
M9
= 2.0 x 1.6 x 0.6 mm 4 pads
1
= Fundamental Mode
B
= ± 50 PPM -20°C to + 70°C
2
= 20 pF load
Load Capacitance (CL):
STD Calibration Tolerance:
ESR:
Shunt Capacitance (Co):
Drive Level:
Aging:
Standard Packaging:
Typical P/N:
Page1/3
Revision: October 30, 2015
VXM9 Datasheet

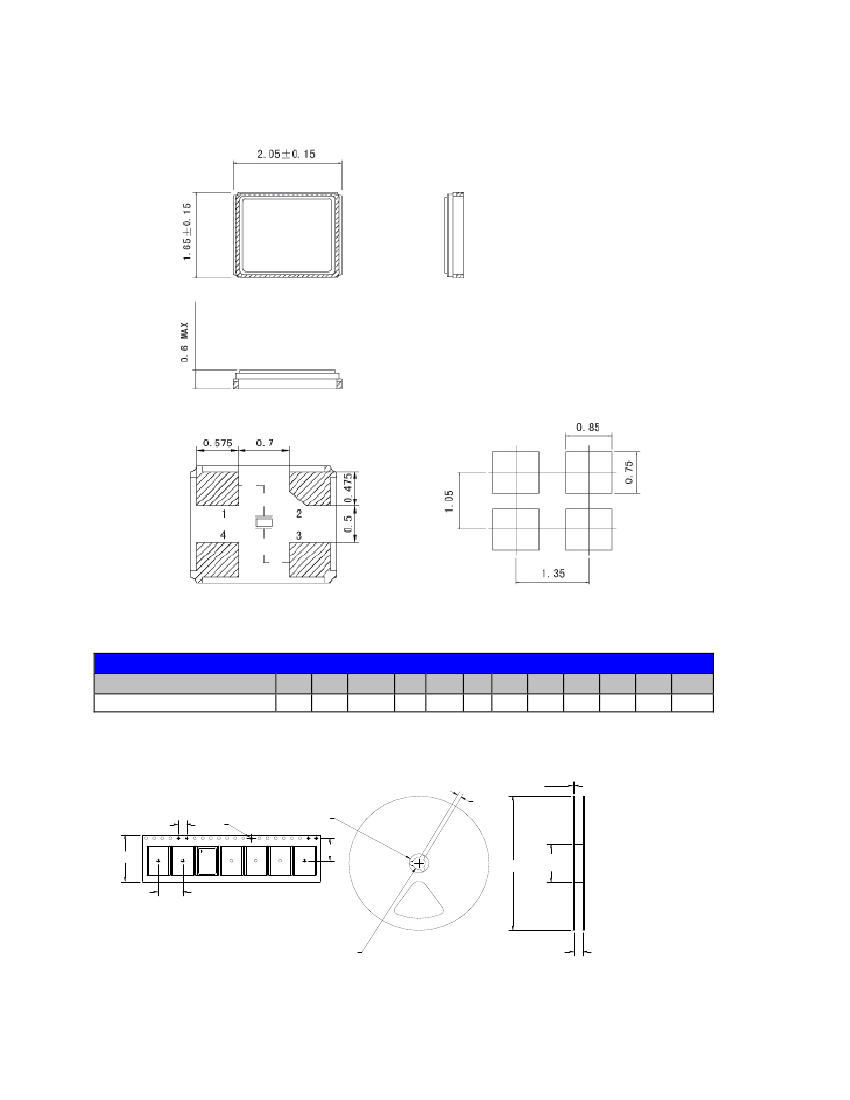

Package Drawing
Units: mm
Land Pattern
(Reference)
Tape and Reel Dimensions (mm)
Package
A B
C
VXM9
8.0
3.5
D
E
F
G
H
I
J
K
L
1.5
4.0
4.0 2.5 21.0 13.0 50.0 2.0
9.5 180.0
J
F
D
A
E
C
G
B
L
I
H
K
Page2/3
Revision: October 30, 2015
VXM9 Datasheet

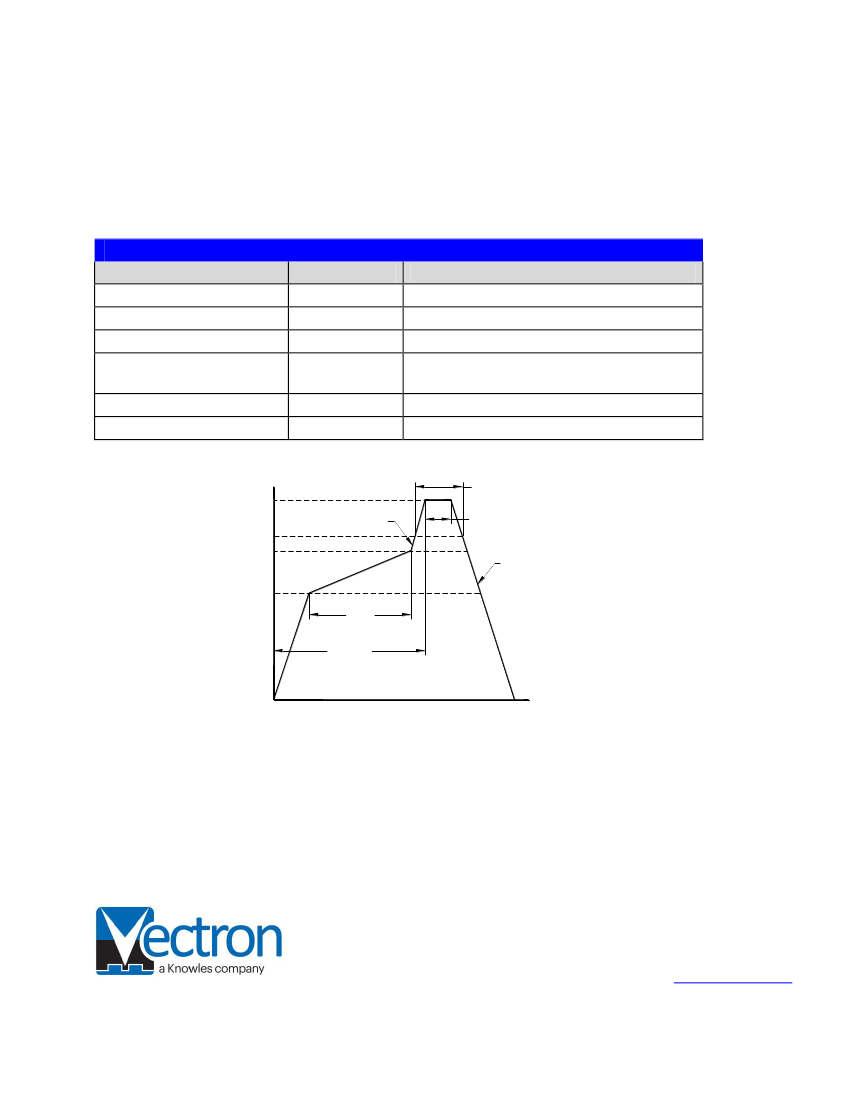

Suggested IR profile
The VXM9 are qualified to meet the JEDEC standard for Pb-Free assembly. The temperatures and time
intervals listed are based on the Pb-Free small body requirements and parameters are listed in the table
below
The VXM9 are hermetically sealed so an aqueous wash is not an issue.
Reflow Profile (IPC/JEDEC J-STD-020)
Parameter
Symbol
PreHeat Time
t
S
Ramp Up
R
UP
Time Above 217
o
C
t
L
Time To Peak
t
AMB-P
Temperature
Time At 260
o
C
t
P
Ramp Down
R
DN
Value
60 sec Min, 180 sec Max
3
o
C/sec Max
60 sec Min, 150 sec Max
480 sec Max
20 sec Min, 40 sec Max
6
o
C/sec Max
260
t
L
R
t
P
R
DN
t
S
t
AMB-P
UP
Temperature (DegC)
217
200
150
25
Time (sec)
We welcome your custom requests and will issue a custom part number for items that are not
listed.
