597D108X0004E2W

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 4 V, 1000 uF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size297KB,20 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

597D108X0004E2W Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 4 V, 1000 uF, SURFACE MOUNT, 2917, CHIP, ROHS COMPLIANT

597D108X0004E2W Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1990419842
package instruction, 2917
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL7
capacitance1000 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
JESD-609 codee3
Manufacturer's serial number597D
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, 13 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)4 V
ripple current3300 mA
size code2917
surface mountYES
Delta tangent0.08
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND

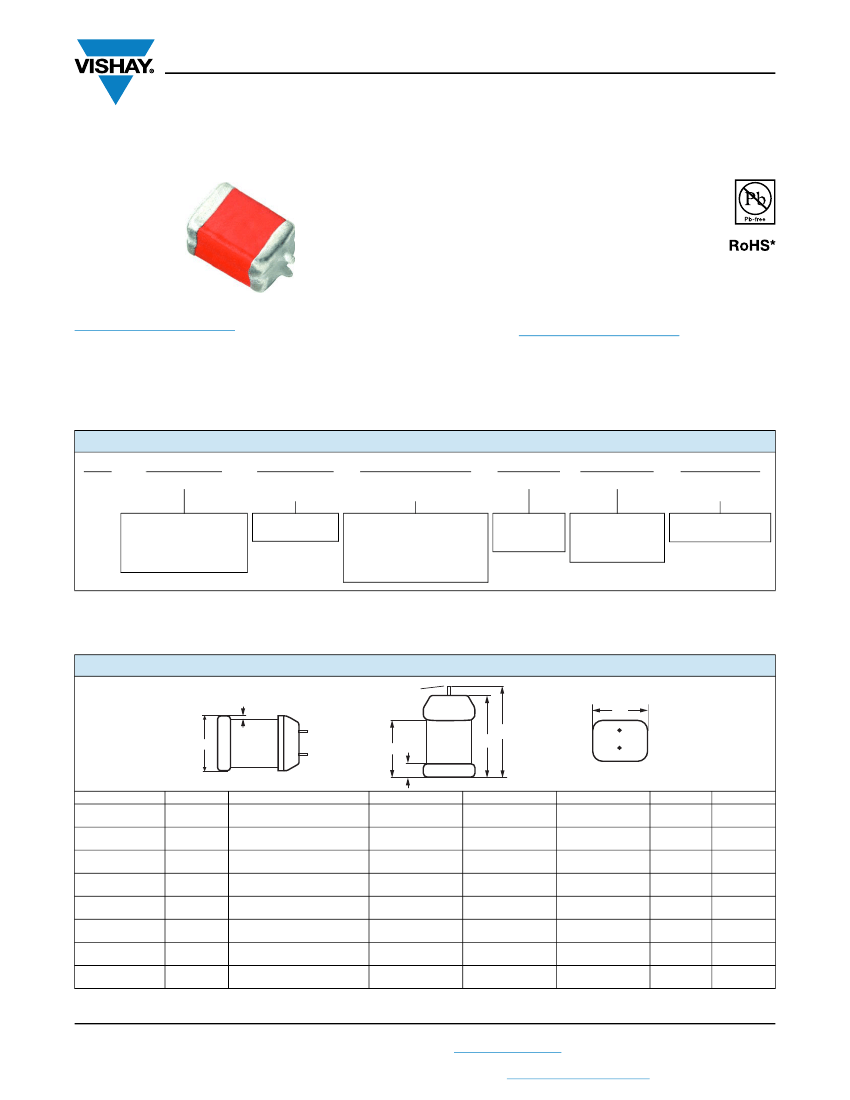

597D
www.vishay.com
Vishay Sprague
Solid Tantalum Chip Capacitors, T
ANTAMOUNT
™,
Ultra-Low ESR, Conformal Coated, Maximum CV
FEATURES
• New case size offerings
• Terminations: 100 % tin (2) standard; tin / lead
available
• Extremely low ESR
• Mounting: surface mount
• Ripple current up to 4.1 A
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details
Available
Available
PERFORMANCE CHARACTERISTICS
www.vishay.com/doc?40194
Operating Temperature:
-55 °C to +125 °C
(above 85 °C, voltage derating is required)
Capacitance Range:
10 μF to 2200 μF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 V
DC
to 75 V
DC
Moisture Sensitivity Level 2a
ORDERING INFORMATION
597D
TYPE
687
CAPACITANCE
X0
CAPACITANCE
TOLERANCE
X0 = ± 20 %
X9 = ± 10 %
6R3
DC VOLTAGE RATING
AT +85 °C
This is expressed in V.
To complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an “R”
(6R3 = 6.3 V).
E
CASE CODE
2
TERMINATION
T
REEL SIZE AND
PACKAGING
T = tape and reel
7" [178 mm] reel
This is expressed in pF.
The first two digits are
the significant figures.
The third is the number
of zeros to follow.
See Ratings
and Case
Codes table
2 = 100 % tin
8 = solder plated
(60/40)
special order
Note
• Preferred tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Low ESR solid tantalum chip capacitors allow delta ESR of 1.25 times the datasheet limits after mounting
DIMENSIONS
in inches [millimeters]
J
Tantalum wire
nib identifies
anode (+)
terminal
L
H
B
A
D
W
CASE CODE
V
D
E
R
F
Z
M
H
L (MAX.)
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.299
[7.6]
0.315
[8.0]
0.315
[8.0]
W
0.173 ± 0.016
[4.4 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
0.260 + 0.016 / - 0.024
[6.6 + 0.4 / - 0.6]
H
0.079
[2.0 max.]
0.138
[3.5 max.]
0.157 ± 0.016
[4.0 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.185 ± 0.016
[4.7 ± 0.4]
0.236 ± 0.016
[6.0 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.205 ± 0.016
[5.2 ± 0.4]
A
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.055 ± 0.016
[1.4 ± 0.4]
0.055 ± 0.016
[1.4 ± 0.4]
0.051 ± 0.012
[1.3 ± 0.3]
0.055 ± 0.016
[1.4 ± 0.4]
B
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.181 ± 0.024
[4.6 ± 0.6]
0.197 ± 0.024
[5.0 ± 0.6]
0.197 ± 0.024
[5.0 ± 0.6]
D (REF.)
0.252
[6.4]
0.252
[6.4]
0.252
[6.4]
0.244
[6.2]
0.244
[6.2]
0.244
[6.2]
0.260
[6.6]
0.260
[6.6]
J (MAX.)
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
Note
• The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
Revision: 26-Nov-2018
Document Number: 40047
1
