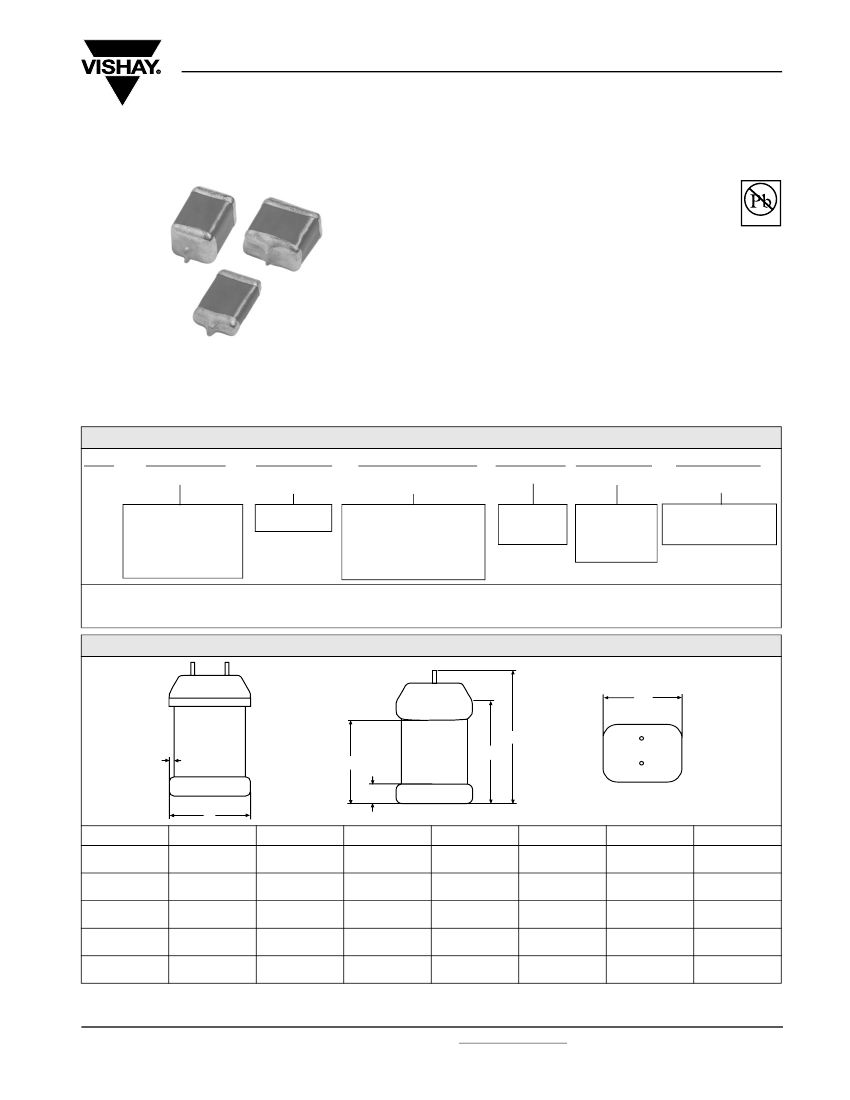

597D
Vishay Sprague
Solid Tantalum Chip Capacitors T
ANTAMOUNT
®
,
Ultra-Low ESR, Conformal Coated, Maximum CV
FEATURES
•
New case size offerings
•
Case profiles: E case (4 mm) and R case
(3.6 mm)
•
Low profile case: V case (2 mm)
•
Terminations: Tin (2) standard
•
Extremely low ESR
•
Ripple current up to 4.1 A
Pb-free
Available
RoHS*
COMPLIANT
PERFORMANCE CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C
(To + 125 °C with voltage derating)
Note:
Refer to doc. 40088
Capacitance Range:
22 µF to 1500 µF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 WVDC to 50 WVDC
ORDERING INFORMATION
597D
TYPE
687
CAPACITANCE
This is expressed in
picofarads. The first two
digits are the significant
figures. The third is the
number of zeros to
follow.
X0
CAPACITANCE
TOLERANCE
X0 =
±
20 %
X9 = ± 10 %
6R3
DC VOLTAGE RATING
AT + 85 °C
This is expressed in volts.
To complete the three-digit
block, zeros precede the
voltage rating. A decimal
point is indicated by an "R"
(6R3 = 6.3 V).
E
CASE CODE
See Ratings
and Case
Codes Table
2
TERMINATION
2 = 100 % Tin
8 = Solder
Plated (60/40)
Special Order
T
REEL SIZE AND
PACKAGING
T =Tape and Reel
7" [500] Reel
W = 13" [N/A] Reel
Note:
Preferred Tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size
Voltage substitutions will be marked with the higher voltage rating
DIMENSIONS
in inches [millimeters]
W
L
D
J
B
A
H
CASE CODE
E
F
R
V
Z
L (MAX.)
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
0.287 ± 0.012
[7.3 ± 0.3]
W
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
0.173 ± 0.016
[4.4 ± 0.4]
0.238 ± 0.016
[6.0 ± 0.4]
H
0.157 ± 0.016
[4.0 ± 0.4]
0.187 ± 0.016
[4.7 ± 0.4]
0.142 ± 0.016
[3.6 ± 0.4]
0.079
[2.0] Max.
0.238 ± 0.016
[6.0 ± 0.4]
A
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
0.051 ± 0.012
[1.3 ± 0.3]
B
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
0.180 ± 0.025
[4.6 ± 0.6]
D (REF.)
0.253
[6.4]
0.243
[6.2]
0.243
[6.2]
0.253
[6.4]
0.243
[6.2]
J (MAX.)
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
Note:
The anode termination (D less B) will be a minimum of 0.012" [0.3 mm]
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 40047
Revision: 07-Jan-08
For technical questions, contact: tantalum@vishay.com
www.vishay.com
107
597D
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
®
, Ultra-Low ESR,
Conformal Coated, Maximum CV
6.3 V
10 V
16 V
20 V
25 V
35 V
50 V
E/R
R
F
Z
63 V
75 V
RATINGS AND CASE CODE
µF
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
4V
F
R
R
F
E
V
E
E/R
R
V
E
E
R
E
E
R
R
F
STANDARD RATINGS
CAPACITANCE
(µF)
470
680
1000
1000
1500
330
470
680
1000
330
470
680
220
220
330
68
150
47
15
15
22
33
47
22
CASE CODE
MAX. DCL
MAX. DF
MAX. ESR
AT + 25 °C
AT + 25 °C
AT + 25 °C
(µA)
120 Hz (%)
100 kHz (mΩ)
4 WVDC AT + 85 °C, SURGE = 5.2 V . . . 2.7 WVDC AT + 125 °C, SURGE = 3.4 V
V
597D477X_004V__
19
8
30
E
597D687X_004E__
27
6
25
E
597D108X_004E__
40
8
20
R
597D108X_004R__
40
8
18
R
597D158X_004R__
60
8
15
6.3 WVDC AT + 85 °C, SURGE = 8 V . . . 4 WVDC AT + 125 °C, SURGE = 5 V
V
597D337X_6R3V__
21
8
35
E
597D477X_6R3E__
30
6
30
E
597D687X_6R3E__
43
6
25
R
597D108X_6R3R__
63
8
20
10 WVDC AT + 85 °C, SURGE = 13 V . . . 7 WVDC AT + 125 °C, SURGE = 8 V
E
597D337X_010E__
33
6
35
E
597D477X_010E__
47
6
28
R
597D687X_010R__
68
6
28
16 WVDC AT + 85 °C, SURGE = 20 V . . . 10 WVDC AT + 125 °C, SURGE = 12 V
E
597D227X_016E__
35
8
40
20 WVDC AT + 85 °C, SURGE = 26 V . . . 13 WVDC AT + 125 °C, SURGE = 16 V
R
597D227X_020R__
44
8
80
66
10
100
F
597D337X_020F__
(1)
25 WVDC AT + 85 °C, SURGE = 32 V . . . 17 WVDC AT + 125 °C, SURGE = 20 V
17
6
100
R
597D686X_025R__
(1)
(1)
38
8
80
F
597D157X_025F__
35 WVDC AT + 85 °C, SURGE = 46 V . . . 23 WVDC AT + 125 °C, SURGE = 28 V
17
6
80
R
597D476X_035R__
(1)
50 WVDC AT + 85 °C, SURGE = 65 V . . . 33 WVDC AT + 125 °C, SURGE = 38 V
E
597D156X_050E__
8
6
300
R
597D156X_050R__
8
6
250
R
597D226X_050R__
11
6
170
F
597D336X_050F__
17
6
150
(1)
24
6
145
Z
597D476X_050Z__
63 WVDC AT + 85 °C, SURGE = 81 V . . . 42 WVDC AT + 125 °C, SURGE = 54 V
14
6
200
F
597D226X_063F__
(1)
PART NUMBER
MAX. RIPPLE
100 kHz
IRMS (A)
2.2
2.9
3.3
3.7
4.1
2.0
2.7
2.9
3.5
2.5
2.8
2.9
2.3
1.8
1.4
1.6
1.8
1.8
0.8
1.0
0.8
0.8
1.1
0.9
Note
(1) Contact factory for availability
www.vishay.com
108
For technical questions, contact: tantalum@vishay.com
Document Number: 40047
Revision: 07-Jan-08
597D
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
®
, Ultra-Low ESR,
Conformal Coated, Maximum CV

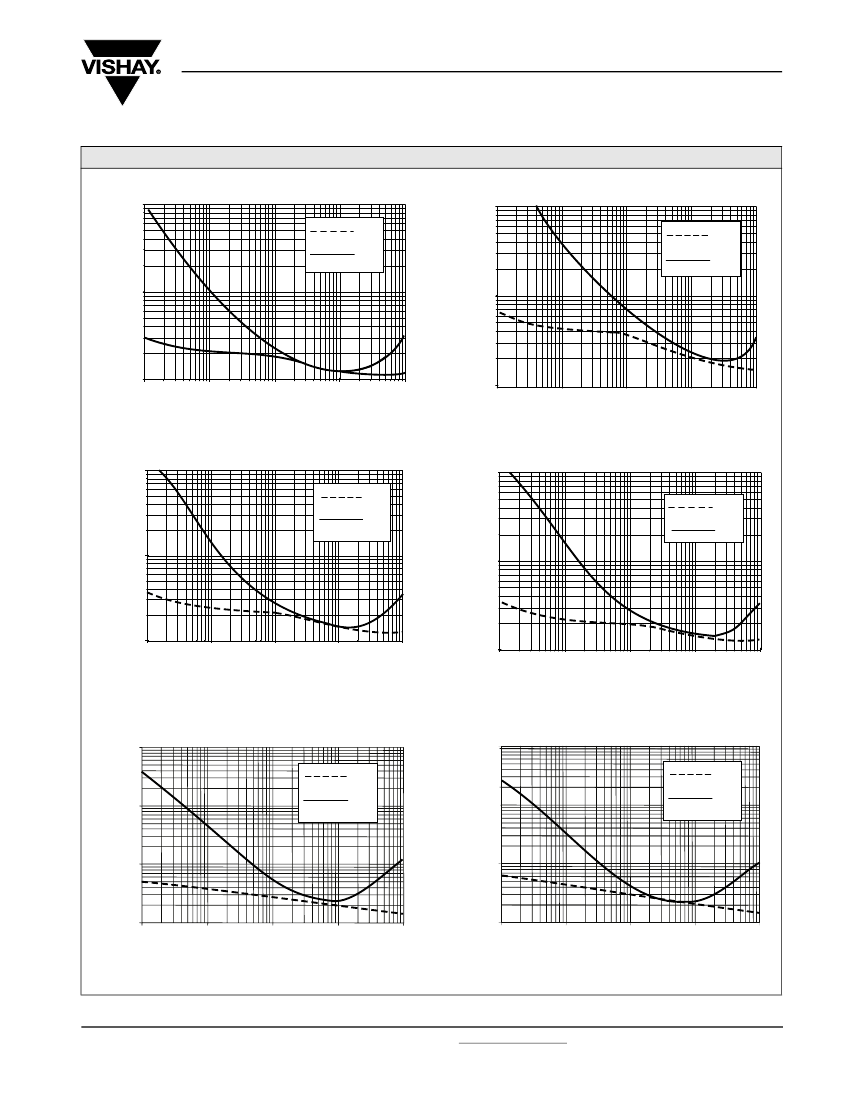

TYPICAL CURVES
T97 1500 µF - 4 V 'R' CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
ESR and Z (Ω)
ESR and Z (Ω)
Vishay Sprague
T97 330 µF - 10 V
'E'
CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
Z
Z
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100
1 kHz
10 kHz
FREQUENCY (Hz )
100 kHz
1 MHz
T97 1000 µF - 4 V 'E' CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
T97 1000 µF - 6.3 V 'R' CASE SIZE ESR and Z vs. FREQUENCY
1
ESR
ESR and Z (Ω)
Z
ESR and Z (Ω)
Z
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
T97 330 µF - 6.3 V
'V'
CASE SIZE ESR and Z vs. FREQUENCY
10
ESR
T97 470 µF - 4 V
'V'
CASE SIZE ESR and Z vs. FREQUENCY
10
ESR
ESR and Z (Ω)
ESR and Z (Ω)
1
Z
1
Z
0.1
0.1
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
0.01
100 Hz
1 kHz
10 kHz
FREQUENCY
100 kHz
1 MHz
Document Number: 40047
Revision: 07-Jan-08
For technical questions, contact: tantalum@vishay.com
www.vishay.com
109
