5962-8951401QX datasheet, PDF - EEWORLD Datasheet

5962-8951401QX: DescriptionParallel I/O Port, 16 I/O, CMOS, CDIP40, 2.096 X 0.620 INCH, 0.225 INCH HEIGHT, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size556KB，16 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

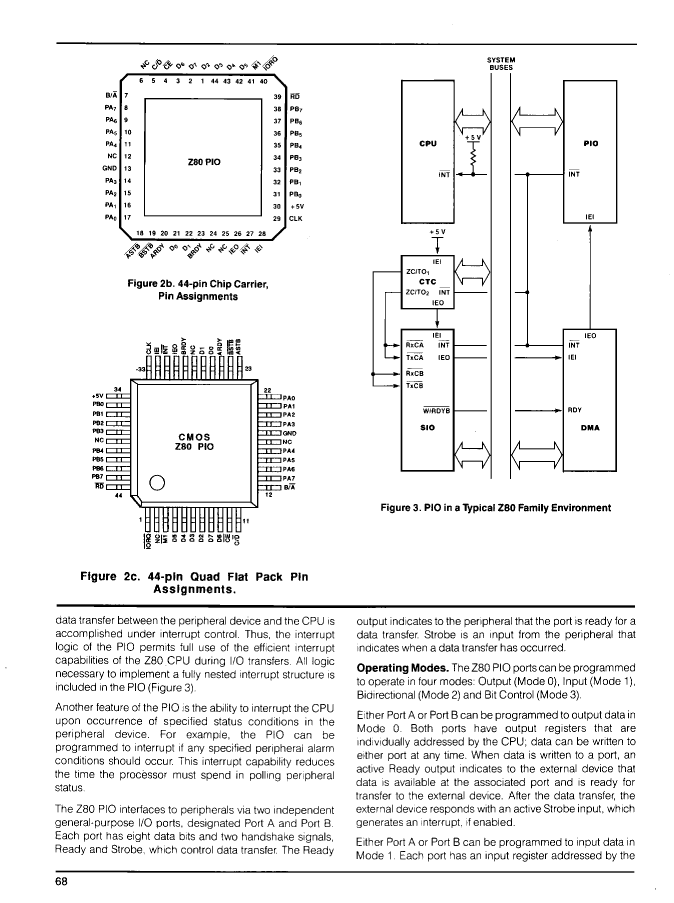

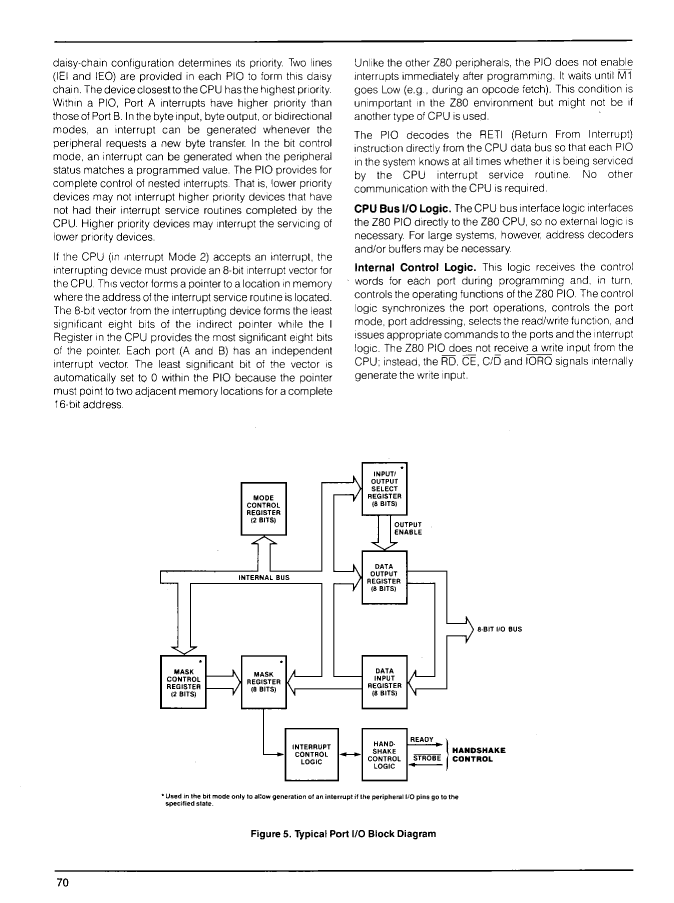

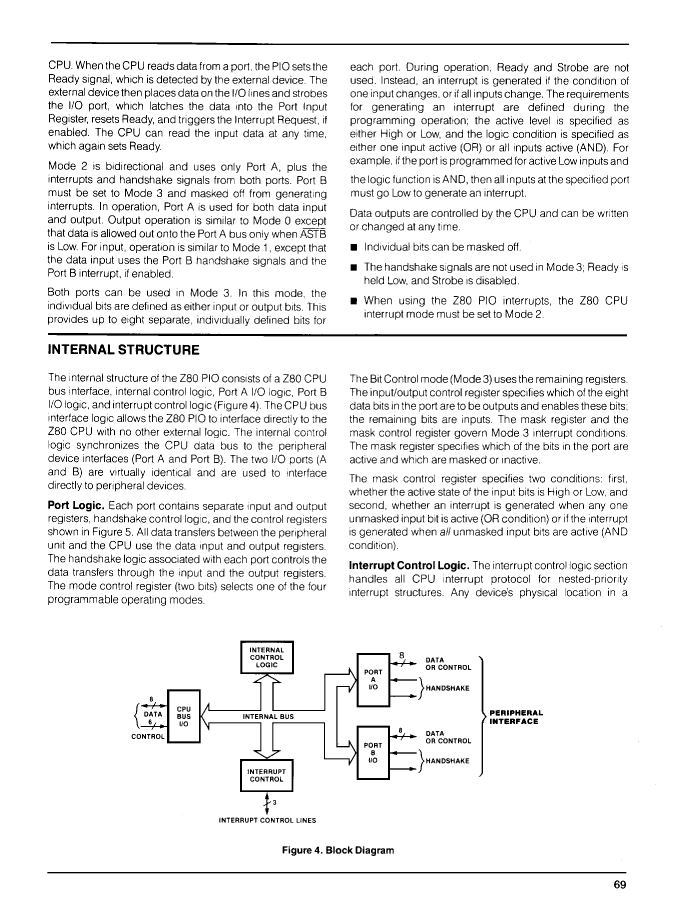

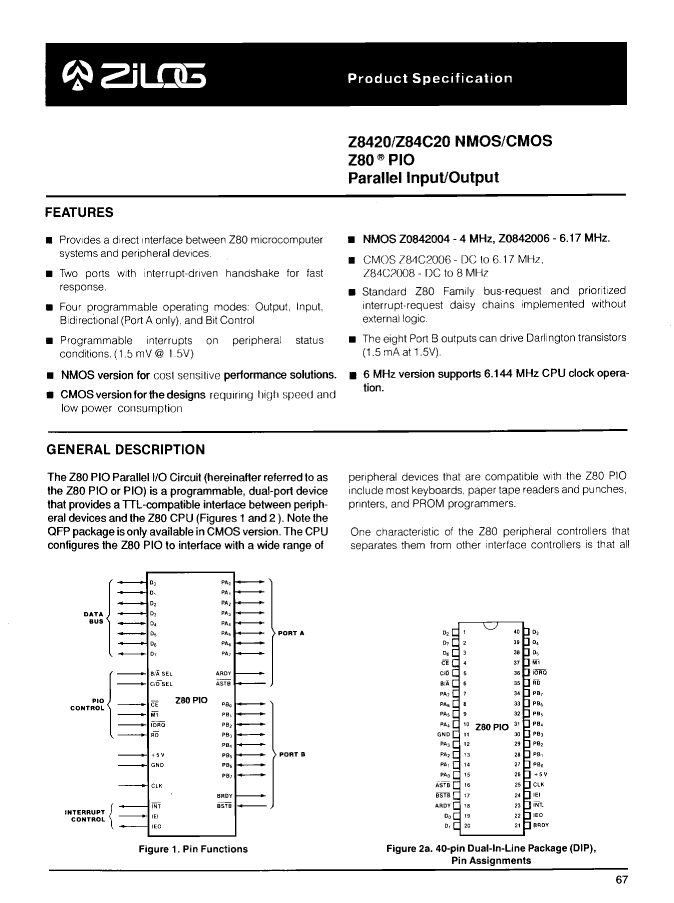

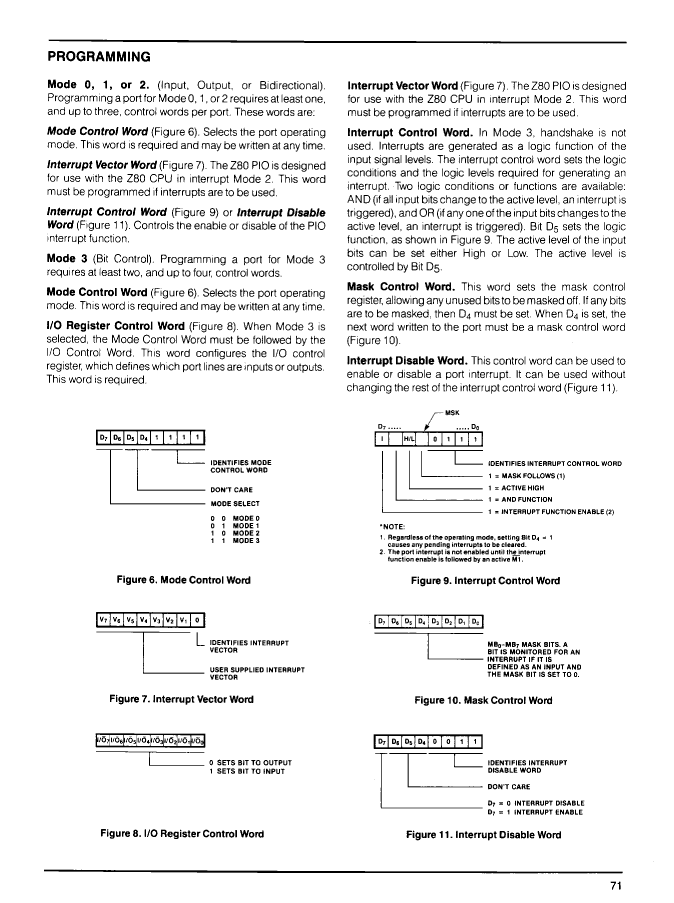

5962-8951401QX Overview

Parallel I/O Port, 16 I/O, CMOS, CDIP40, 2.096 X 0.620 INCH, 0.225 INCH HEIGHT, DIP-40

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-CDIP-T40
Number of I/O lines	16
Number of ports	2
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
Base Number Matches	1

	5962-8951401QX	Z84C2006CMB
Description	Parallel I/O Port, 16 I/O, CMOS, CDIP40, 2.096 X 0.620 INCH, 0.225 INCH HEIGHT, DIP-40	Parallel I/O Port, 16 I/O, CMOS, CDIP40, SIDE BRAZED, CERAMIC, DIP-40
Parts packaging code	DIP	DIP
package instruction	DIP, DIP40,.6	DIP, DIP40,.6
Contacts	40	40
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
JESD-30 code	R-CDIP-T40	R-CDIP-T40
Number of I/O lines	16	16
Number of ports	2	2
Number of terminals	40	40
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP40,.6	DIP40,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883 Class B	38535Q/M;38534H;883B
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE	PARALLEL IO PORT, GENERAL PURPOSE
