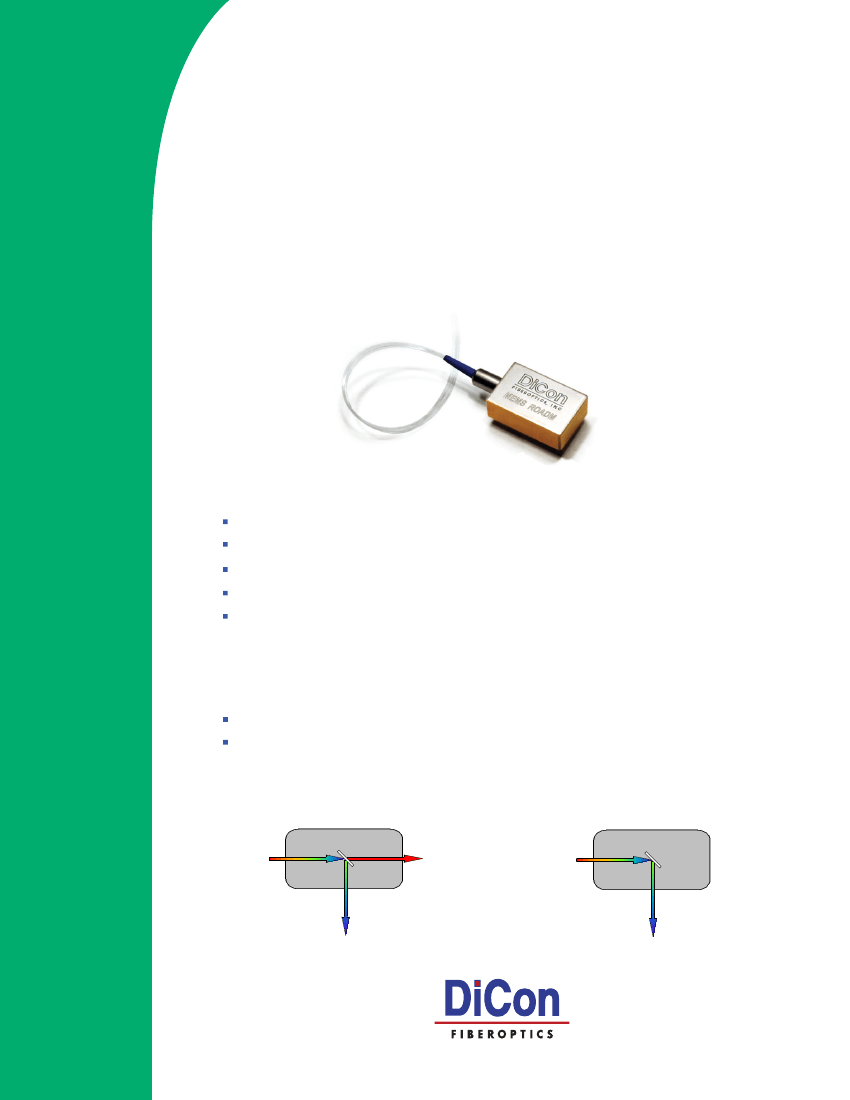

MEMS WDM ON/OFF OPTICAL SWITCH
DiCon’s MEMS WDM On/Off Switch provides single channel
MUX and DEMUX functionality in a compact package. The switch
combines DiCon’s proprietary thin film coating and MEMS
technologies. The thin film filter is used to DEMUX a single channel
from the input signal, while the MEMS mirror changes the coupling
of the DEMUX signal with the output fiber.
FEATURES
Proven MEMS Durability and Reliability
Compact Form Factor
Fast Switching Time
Unique Scalable Configuration
Based on GR-1221 Qualified Platform
APPLICATIONS
ROADM Networks
Secure Communications
On State
Off State
In
Out
In
Drop
Drop
Specifications subject to change. Copyright © 2009 DiCon Fiberoptics, Inc. All rights reserved.
OPTICAL SPECIFICATIONS
1
PARAMETER
Wavelength Range
Channel Spacing
Passband
Insertion
In-Drop
2
Loss
In-Out
Isolation
In-Drop
In-Out
Back Reflection
Switching Time
Ripple
3
PDL
Directivity / Crosstalk
Repeatability
4
Durability
Optical Power
Operating Temp
Storage Temp
Fiber Type
RATING
1421 to 1621 nm.
20 nm
13 nm min.
1.0 dB max.
0.7 dB max.
25 dB min.
12 dB min.
40 dB min.
30 ms max.
0.3 dB max.
0.1 dB max.
35 dB min.
+/- 0.05 dB max.
10
9
cycles min.
500 mW max.
0 to 70
o
C
-40 to 85
o
C
9/125
µm
single mode
ORDERING INFORMATION
MS1 10/WDM
Product Code
MS1
MEMS Switch
9/BF
Switch Configuration
10/WDM On/Off Switch (WDM)
Control Interface
TTL
TTL
I2C
I
2
C
CWDM Center Wavelength
XXXX
Specify Center Wavelength
Available CWL: 1431, 1451, 1471, 1491, 1511,
1531, 1551, 1571, 1591, 1611
Fiber and Jacket Type
9/BF
Corning SMF-28, bare fiber
Or other equivalent 9µm Singlemode fiber
Connector Type
FC
FC/SPC
FC/APC FC/APC
N
NONE
Also Available: SC, SC/UPC, SC/APC,
ST, ST/UPC, LC
1. Specifications are without connectors
2. IL is measured at CWL, 23
o
C
3. Within channel passband
4. Repeatability is defined after 100 cycles.
Pigtail Length
1
X
1 Meter
Specify X Meters
Tolerance is +/- 10 cm

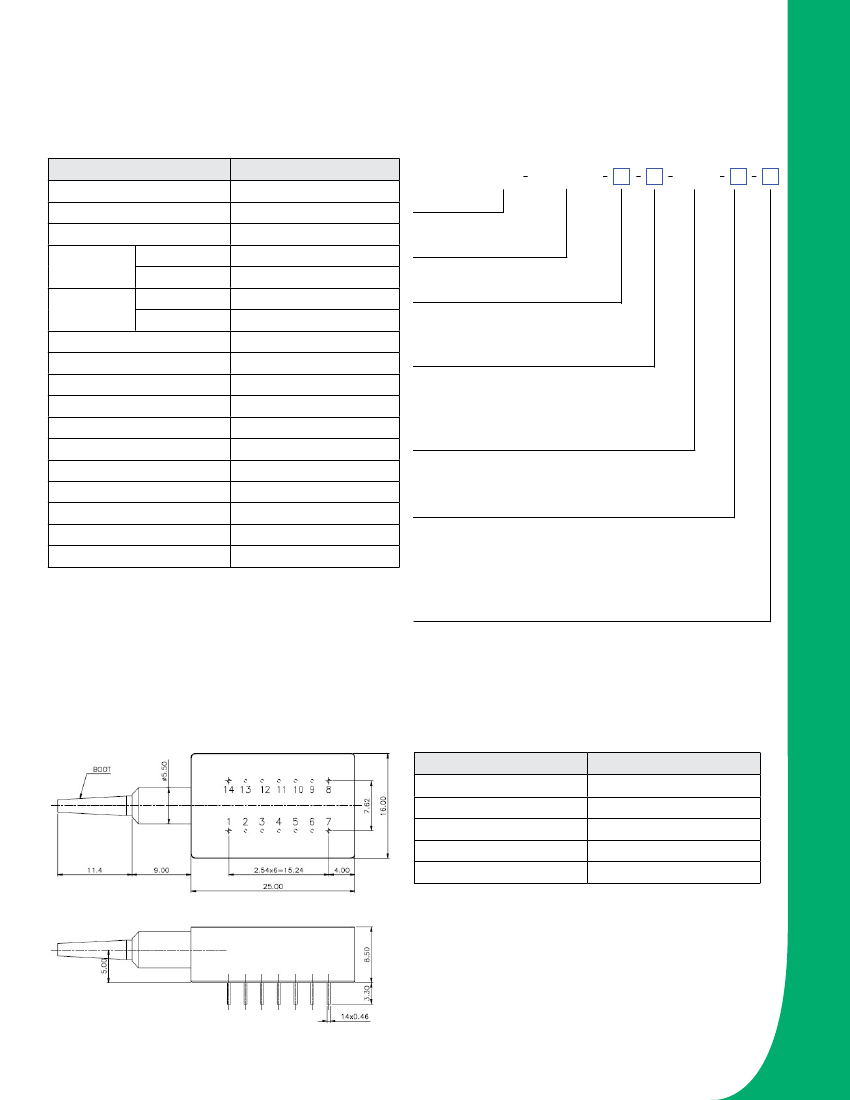

MECHANICAL DIMENSIONS
Top View
ELECTRICAL SPECIFICATIONS
PARAMETER
Latching Type
Control Type
Vcc Voltage
Power Consumption
Vcc Damage Threshold
RATING
non-latching
I
2
C and TTL
12 VDC
170 mW max.
15 VDC
Side View
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804 Tel. (510) 620-5000 Fax. (510) 620-4100 www.diconfiberoptics.com
0184A
MEMS WDM ON/OFF OPTICAL SWITCH
(Units: mm)
SPECIFICATIONS / ORDERING INFORMATION
MEMS WDM ON/OFF OPTICAL SWITCH
