MR9359556K00QAE66 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> MR9359556K00QAE66

MR9359556K00QAE66: DescriptionFixed Resistor, Wire Wound, 2W, 556000ohm, 1000V, 0.02% +/-Tol, -10,10ppm/Cel,; CategoryPassive components The resistor; File Size85KB，3 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

MR9359556K00QAE66 Overview

Fixed Resistor, Wire Wound, 2W, 556000ohm, 1000V, 0.02% +/-Tol, -10,10ppm/Cel,

MR9359556K00QAE66 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	997098694
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	6.85
structure	Cylindrical
JESD-609 code	e3
Lead diameter	0.813 mm
Number of terminals	2
Maximum operating temperature	145 °C
Minimum operating temperature	-55 °C
Package diameter	12.7 mm
Package length	50.8 mm
Package shape	CYLINDRICAL PACKAGE
Package form	Axial
method of packing	Bulk
Rated power dissipation(P)	2 W
resistance	556000 Ω
Resistor type	FIXED RESISTOR
series	MR93
technology	WIRE WOUND
Temperature Coefficient	10 ppm/°C
Terminal surface	Matte Tin (Sn)
Tolerance	0.02%
Operating Voltage	1000 V

Preview

Download Datasheet

View All

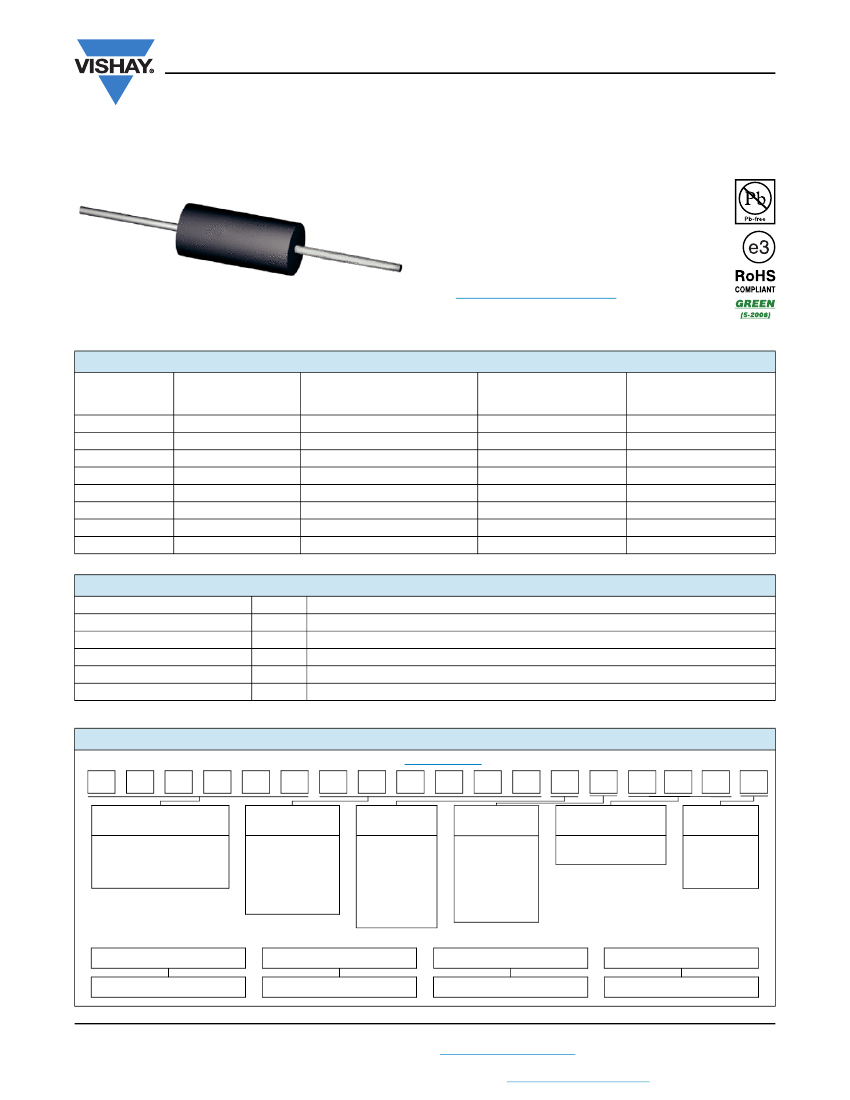

MR93 Series

www.vishay.com

Vishay Mills

Wirewound Resistor, Ultra Precision,

Epoxy Molded, Axial Lead

FEATURES

• Resistance values up to 6 M

• Resistance tolerances down to ± 0.01 %

• Temperature coefficients down to 2 ppm/°C

• Material categorization:

For definitions of compliance please see

www.vishay.com/doc?99912

STANDARD ELECTRICAL SPECIFICATIONS

GLOBAL

MODEL

MR9352

MR9353

MR9354

MR9355

MR9356

MR9357

MR9358

MR9359

POWER RATING

25 °C

0.750

0.500

0.330

0.250

0.200

1.000

1.500

2.000

TOLERANCE

±%

0.01, 0.02, 0.05, 0.1, 0.25, 0.5, 1

RESISTANCE RANGE



10 to 6.0M

10 to 3.8M

10 to 2.5M

10 to 1.2M

10 to 1.0M

10 to 6.0M

MAXIMUM WORKING

VOLTAGE

600

400

300

200

800

900

1000

TECHNICAL SPECIFICATIONS

PARAMETER

Temperature Coefficient

Terminal Strength

Dielectric Withstanding Voltage

Operating Temperature Range

Maximum Working Voltage

UNIT

ppm/°C

°C

MR93 RESISTOR CHARACTERISTICS

± 10 > 100

;

± 20 for 10



to 100



4.5

750

- 55 to 145

(P x

1/2

GLOBAL PART NUMBER INFORMATION

Global Part Numbering example: MR9355500K00AAE66

(visit

www.vishay.net

SAP parts manual for all options)

VALUE

(6 digits)

(1 digits)

SPECIAL

(1 digits)

(Dash

Number)

From

as applicable

GLOBAL MODEL

(6 digits)

(See Standard Electrical

Specifications Global

Model column

for options)

TOLERANCE

(1 digit)

= ± 0.01 %

= ± 0.02 %

= ± 0.05 %

= ± 0.1 %

= ± 0.25 %

= ± 0.5 %

= ± 1.0 %

PACKAGING CODE

(3 digits)

E66

= Lead (Pb)-free

bulk pack

= Decimal

= Thousand

= Million

15R000

= 15



1K5000

= 1.5 k

1M0000

= 1 M

= Standard,

10, 20 (W)

= 3900 (Q)

= 4500 (M)

= 6000 (N)

Historical Part Number example: MR9355W500K0A

MR9355

HISTORICAL MODEL

W = STANDARD

500 k

RESISTANCE VALUE

0.05 %

TOLERANCE

Revision: 17-Aug-12
