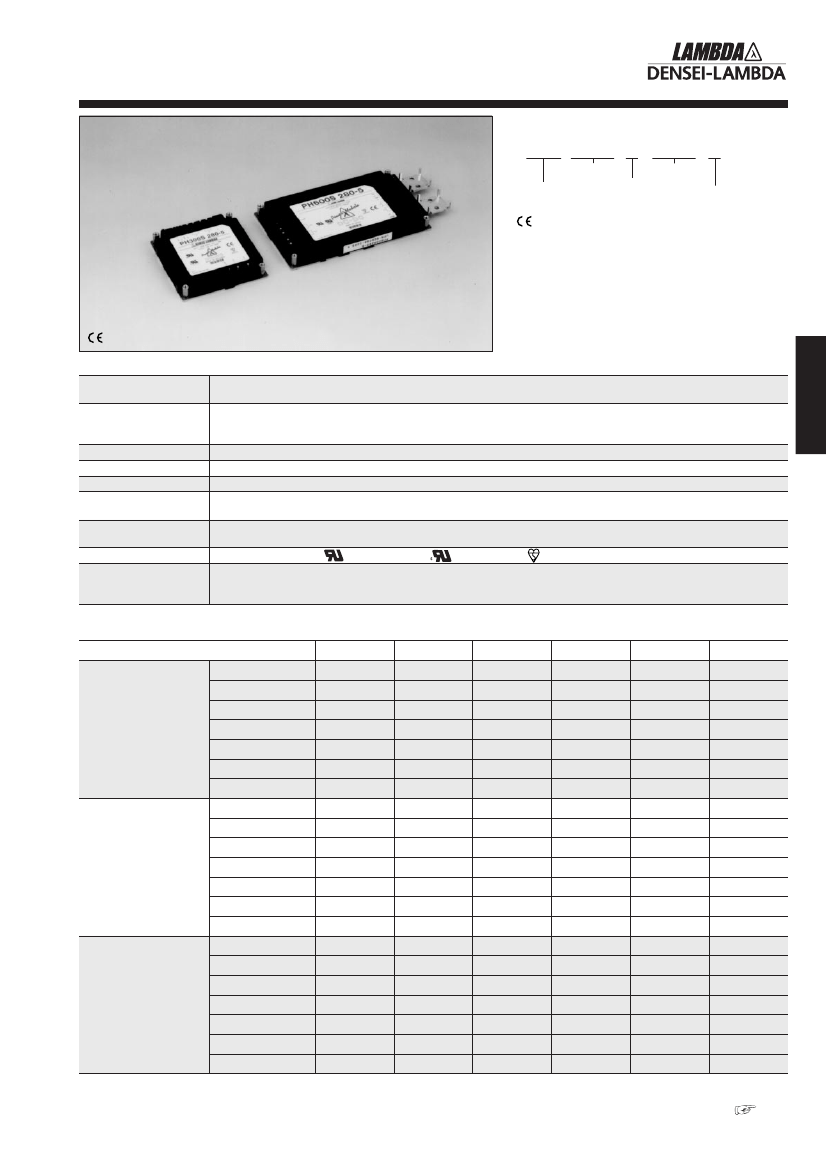

PH300S/PH600S

-SERIES

Single output 300W ~ 600W

DC-DC power module

Model name

PH 600 S 280-5

Output power

Name of series

Nominal input

voltage

Function

S: Simple function Nominal output voltage

Features

marking (Low Voltage Directive)

Compact DC-DC power module

Large power 300W/600W

High power density: 61.6W/inch

(600W type)

600W type: 146

12.7mm

300W type: 83

12.7mm

Wide baseplate temperature: –20 ~ +100°C

Conduction cooling

Wide input voltage range

DC48V input: DC36 ~ 76V, DC280V input: DC200 ~ 400V

2 year warranty

(Low Voltage Directive)

Multigrades : 2 year warranty

Power Module

Specifications

1. Input voltage range

2. Output voltage

range

3. Line regulation

4. Load regulation

5. Cooling

6. Operating ambient

temperature

7. Withstand voltage

8. Safety standard

9. Functions

PH300S48(300W type): DC36 ~ 76V

PH300S280(300W type)/PH600S280(600W type): DC200 ~ 400V

10% (12V ~ 28V types), –10 ~ +20% (3.3V, 5V and 48V types)

(by TRM terminal and external resistor)

Output voltage range is different according to input voltage.

0.4%, within nominal input voltage range at constant load (3.3V output: 20mV)

0.8%, no load to full load at constant input voltage (3.3V output: 40mV)

Conduction cooling (Heatsink & airflow has to be chosen according to instruction manual)

Baseplate temperature: –20 ~ +100°C (Output derating is different according to condition)

Ambient temperature: above –20°C

DC48V input/input to output: 1.5kVAC, Input to baseplate: 1.5kVAC for 1 min.

DC280V input/input to output: 3.0kVAC, Input to baseplate: 2.5kVAC for 1 min.

Approved by UL1950

, CSA950(C-UL)

and EN60950 (BSI)

Over voltage protection (Can be reset by external signal), Over current protection, Thermal protection

Remote sensing, Remote on/off control, Inverter good signal (IOG terminal)

CS terminal (Load current balancing is possible with external control circuit under parallel operation)

Product lineup

Model name

PH300S-48-3.3

PH300S-48-5

PH300S-48-12

PH300S48

(input 48VDC)

PH300S-48-15

PH300S-48-24

PH300S-48-28

PH300S-48-48

PH300S-280-3.3

PH300S-280-5

PH300S-280-12

PH300S280

(input 280VDC)

PH300S-280-15

PH300S-280-24

PH300S-280-28

PH300S-280-48

PH600S-280-3.3

PH600S-280-5

PH600S-280-12

PH600S280

(input 280VDC)

PH600S-280-15

PH600S-280-24

PH600S-280-28

PH600S-280-48

Output voltage

3.3V

12V

15V

24V

28V

48V

3.3V

12V

15V

24V

28V

48V

3.3V

12V

15V

24V

28V

48V

Output current

50A

25A

20A

12.6A

10.8A

6.3A

50A

25A

20A

12.5A

10.8A

6.3A

100A

50A

40A

25A

21.5A

12.5A

Output power

165W

250W

300W

302.4W

165W

250W

300W

302.4W

330W

500W

600W

602W

600W

: Safety standard approved

CSA

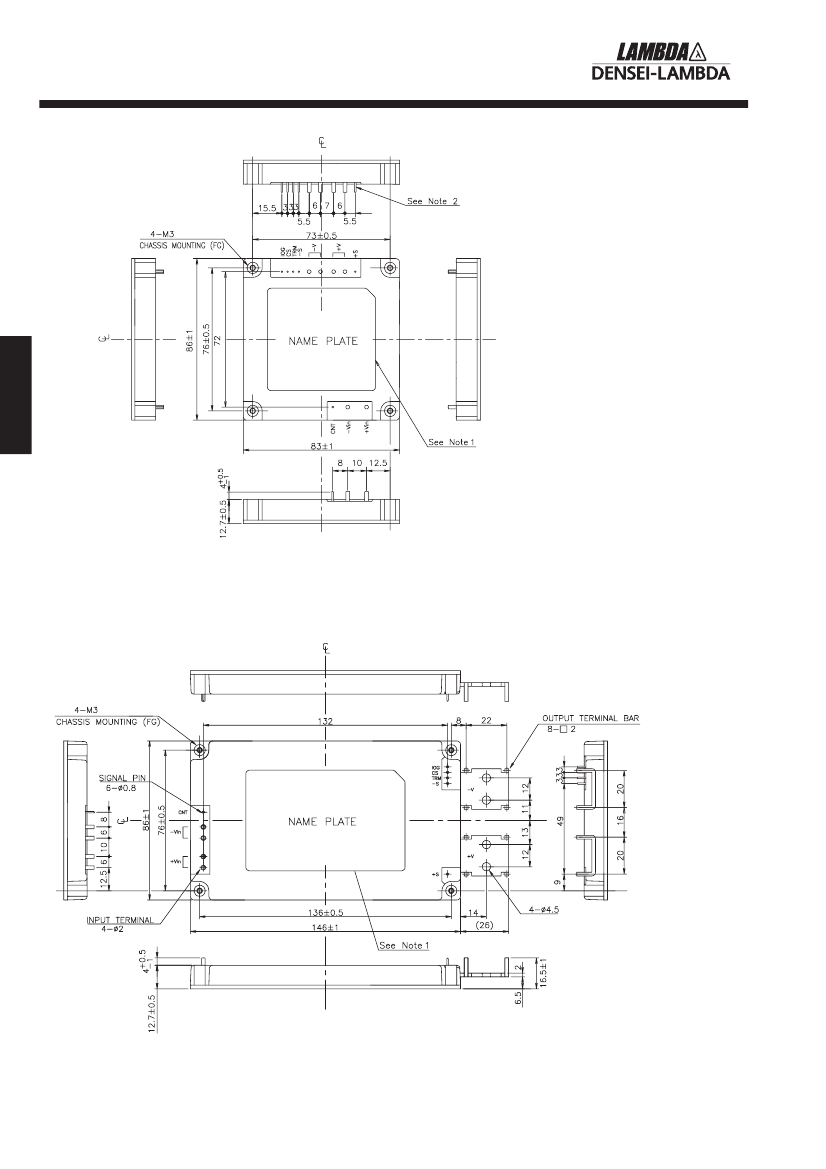

Request customer specification for further details of specifications, outline, characteristics, etc.

Read the instruction manual before usage.
