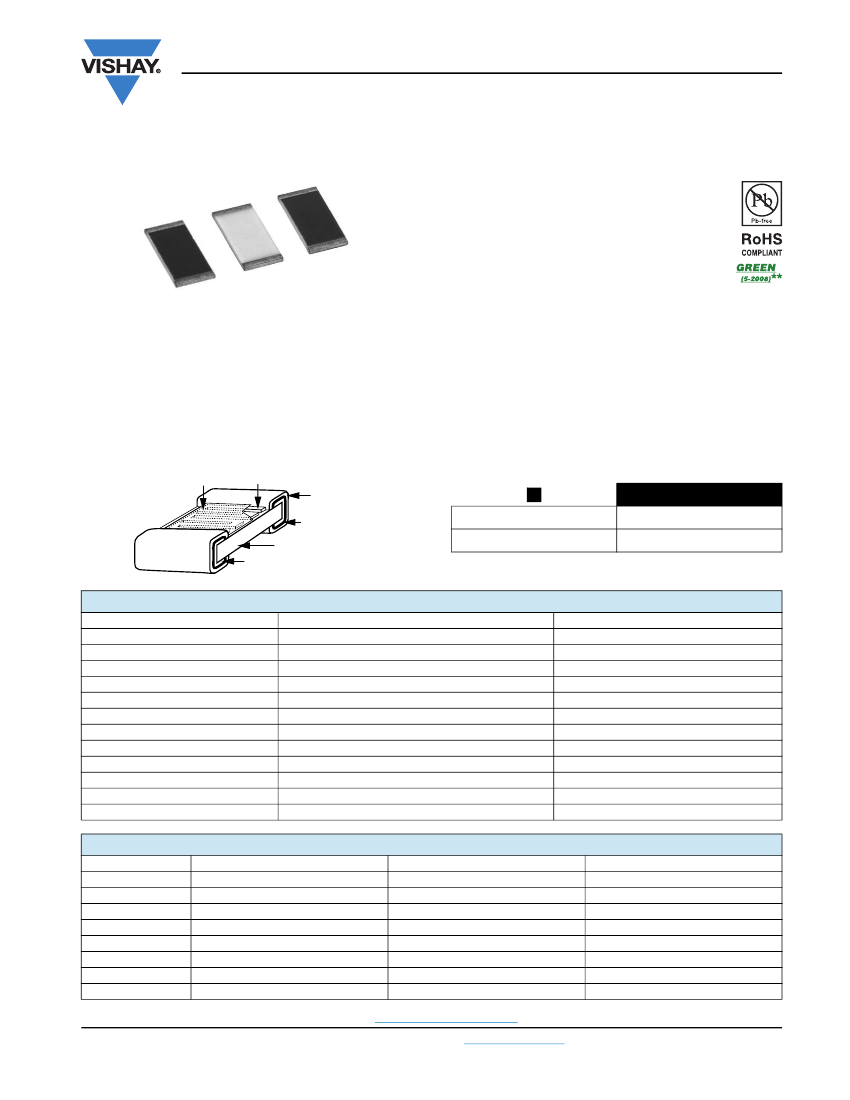

PAT
Vishay Thin Film
Precision Automotive Thin Film Chip Resistors,
AEC-Q200 Qualified, 2 kV ESD Rating
FEATURES
• Resistance range: 10
Ω
to 3 MΩ
• AEC-Q200 ESD rated class 1C (2 kV)
• Laser trimmed to any value
• Lead (Pb)-free
• Moisture resistant to MIL-STD-202,
method 202
• Tantalum nitride resistor film on high purity alumina
substrate
• 100 % visual inspected per MIL-PRF-55342
• Laser-trimmed tolerances to ± 0.1 %
• Load life stability < 0.05 % at 1000 h at 70 °C
• Very low noise and voltage coefficient
(< - 30 dB, < 0.1 ppm/V)
• Compliant to RoHS directive 2002/95/EC
These chip resistors are available in wraparound
terminations styles in 12 case sizes. They incorporate self
passivated enhanced tantalum nitride resistor film to give
superior performance on moisture resistance, electrostatic
discharge, voltage coefficient, power handling and
resistance stability. The terminations consist of an adhesion
layer, a leach resistant nickel barrier, and solder coating
(lead (Pb)-free). This product will out-perform all
requirements of AEC-Q200.
CONSTRUCTION
Passivation
Tantalum Nitride
Resistive Film
Solder
Coating
Nickel Barrier
High Purity
Alumina Substrate
Adhesion Layer
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
25
0.1
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Resistance Range
TCR: Absolute
Tolerance: Absolute
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Shelf Life Stability: Absolute
SPECIFICATIONS
Tantalum nitride
10
Ω
to 3 MΩ
± 25 ppm/°C to ± 100 ppm/°C
± 0.1 % to ± 1.0 %
± 0.05 %
Not applicable
Less than 0.1 ppm/V
75 V to 200 V
- 55 °C to + 150 °C
- 55 °C to + 150 °C
< - 30 dB
100 ppm
CONDITIONS
-
-
- 55 °C to + 125 °C
+ 25 °C
2000 h at 70 °C rated power
-
-
-
-
-
-
1 year at 25 °C
COMPONENT RATINGS
CASE SIZE
POWER RATING (mW)
WORKING VOLTAGE (V)
0402
50
75
0603
150
75
0805
200
100
1206
400
200
1505
400
150
2208
750
150
2010
800
200
2512
1000
200
* Pb containing terminations are not RoHS compliant, exemptions may apply
** Please see document “Vishay Material Category Policy”:
www.vishay.com/doc?99902
Document Number: 60024
Revision: 30-Nov-09
For technical questions, contact:
thinfilm@vishay.com
RESISTANCE RANGE (Ω)
20 to 35K
10 to 80K
10 to 301K
10 to 1M
10 to 1M
10 to 1.75M
10 to 2M
10 to 3M
www.vishay.com
80
PAT
Vishay Thin Film
DIMENSIONS
in inches
D
T
D
W
E
L
L
T
Precision Automotive Thin Film Chip Resistors,
AEC-Q200 Qualified, 2 kV ESD Rating
CASE SIZE
0402
0603
0805
1206
1505
2010
2208
2512
L
0.042 ± 0.008
0.064 ± 0.006
0.080 ± 0.006
0.126 ± 0.008
0.155 ± 0.007
0.209 ± 0.009
0.230 ± 0.007
0.259 ± 0.009
W
0.022 ± 0.005
0.032 ± 0.005
0.050 ± 0.005
0.063 ± 0.005
0.050 ± 0.005
0.098 ± 0.005
0.075 ± 0.005
0.124 ± 0.005
T
0.015 ± 0.003
0.015 ± 0.003
0.015 ± 0.003
0.015 ± 0.003
0.015 ± 0.003
0.015 ± 0.003
0.015 ± 0.003
0.015 ± 0.003
D
E
0.010 ± 0.005
0.010 ± 0.005
0.012 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.015 ± 0.005
0.020 + 0.005, - 0.010 0.020 + 0.005, - 0.010
0.015 ± 0.005
0.015 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
0.020 ± 0.005
ENVIRONMENTAL TESTS
(Vishay Performance vs. AEC-Q200 Requirements)
LIMITS
TYPICAL VISHAY
PER AEC-Q200 PERFORMANCE
Resistance Temperature Characteristic
- 55 °C to + 125 °C
± 50 ppm/°C
± 35 ppm/°C
Max. Ambient Temp. at Rated Wattage
+ 70 °C
+ 70 °C
Max. Ambient Temp. at Power Derating
+ 150 °C
+ 150 °C
High Temperature Storage
ΔR
MIL-STD-202, 108, 1000 h at 125 °C
± 0.1 %
+ 0.016 %
Temperature Cycling
ΔR
JESD22, JA-104, 1000 cycles, - 55 °C to + 125 °C
± 0.15 %
+ 0.013 %
Moisture Resistance
ΔR
MIL-STD-202, 106
± 0.20 %
+ 0.0010 %
Biased Humidity
ΔR
MIL-STD-202, 103, 1000 h at 85 °C, 85 % RH, 10 % P
± 0.10 %
+ 0.0297 %
Life
ΔR
MIL-STD-202, 108 at 125 °C, 1000 h
± 0.1 %
+ 0.0220 %
Mechanical Shock
ΔR
MIL-STD-202, method 213, condition C
± 0.1 %
+ 0.0130 %
Vibration
ΔR
MIL-STD-202 method 204, 10 Hz to 2 kHz
± 0.1 %
+ 0.0030 %
Resistance to Soldering Heat
ΔR
MIL-STD-202, 204, condition B
± 0.10 %
+ 0.0150 %
Electrostatic Discharge
ΔR
AEC-Q200-002 at 2 kV, human body
± 0.10 %
- 0.032 %
Solderability
Visual
J-STD-002, method B and B1
95 %
Acceptable
Terminal Strength
ΔR
AEC-Q200-006 at 1 kg for 60 s
± 0.10 %
+ 0.012 %
Flame Retardance
Visual
AEC-Q200-001 para 4.0
Acceptable
ENVIRONMENTAL TEST
CONDITIONS
GLOBAL PART NUMBER INFORMATION
New Global Part Numbering: PAT1206E1002BBT1
P
GLOBAL
MODEL
PAT
A
CASE
SIZE
0402
0603
0805
1206
1505
2010
2208
2512
T
1
2
0
6
E
1
0
0
2
B
B
T
1
TCR
CHARACTERISTIC
E
= ± 25 ppm/°C
H
= ± 50 ppm/°C
K
= ± 100 ppm/°C
RESISTANCE
The first 3 digits are
significant
figures
and the last digit
specifies the number
of zeros to follow.
“R” designates the
decimal point.
Example:
10R0 = 10
Ω
1000 = 100
Ω
1002 = 10 kΩ
TOLERANCE
B
= ± 0.1 %
D
= ± 0.5 %
F
= ± 1.0 %
G
= ± 2.0 %
J
= ± 5.0 %
TERMINATION
S
= Wraparound
lead (Pb)-free
solder
w/nickel barrier
PACKAGING
TAPE AND REEL
T1
= 1000 min., 1000 mult
TF
= Full reel
TS
= 100 min., 1 mult
www.vishay.com
81
For technical questions, contact:
thinfilm@vishay.com
Document Number: 60024
Revision: 30-Nov-09
