PCAN1206K2102BGTF datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> PCAN1206K2102BGTF

PCAN1206K2102BGTF: DescriptionFixed Resistor, Thin Film, 2W, 21000ohm, 100V, 0.1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP; CategoryPassive components The resistor; File Size111KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

PCAN1206K2102BGTF Overview

Fixed Resistor, Thin Film, 2W, 21000ohm, 100V, 0.1% +/-Tol, 100ppm/Cel, Surface Mount, 1206, CHIP

PCAN1206K2102BGTF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145049921394
package instruction	CHIP
Reach Compliance Code	unknown
Country Of Origin	USA
ECCN code	EAR99
YTEOL	7.55
Other features	FLAME PROOF, PRECISION
structure	RECTANGULAR PACKAGE
JESD-609 code	e4
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.381 mm
Package length	3.2004 mm
Package form	SMT
Package width	1.6002 mm
method of packing	TR
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	21000 Ω
Resistor type	FIXED RESISTOR
size code	1206
surface mount	YES
technology	THIN FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.1%
Operating Voltage	100 V

Preview

Download Datasheet

View All

PCAN

www.vishay.com

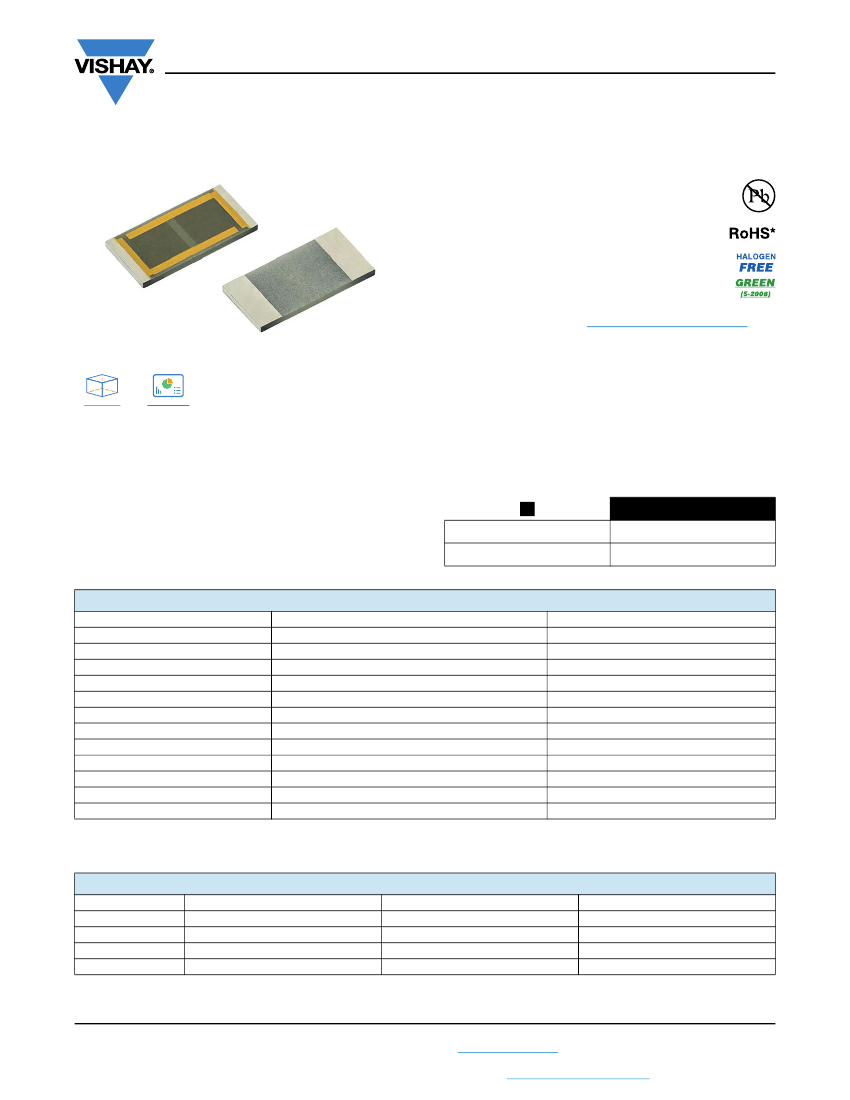

Vishay Dale Thin Film

High Power Aluminum Nitride, Wraparound Surface Mount,

Precision Thin Film Chip Resistor (Up to 6 W)

FEATURES

• High thermal conductivity aluminum nitride

substrate

Available

• Power rating up to 6.0 W

Available

• Resistance range 2

to 30.1 kΩ

• Resistor tolerance to ± 0.1 %

• TCR to ± 25 ppm/°C

• Flame resistant UL 94 V-0

Available

• Material categorization: for definitions of

compliance please see

www.vishay.com/doc?99912

LINKS TO ADDITIONAL RESOURCES

3D Models

Infographics

Note

This datasheet provides information about parts that are

RoHS-compliant and / or parts that are non RoHS-compliant. For

example, parts with lead (Pb) terminations are not RoHS-compliant.

Please see the information / tables in this datasheet for details

APPLICATIONS

• Power supplies

• Power switching

• Braking system

PCAN series chip resistors are designed on aluminum

nitride ceramic substrates with enlarged backside

terminations to reduce the thermal resistance between the

topside resistor layer and the solder joint on the end users

circuit assembly.

Actual power handling capability is limited by the end user

mounting process. As with any high power chip resistor the

ability to remove the heat is critical to the overall

performance of the device.

TYPICAL PERFORMANCE

ABSOLUTE

TCR

TOL.

0.1

STANDARD ELECTRICAL SPECIFICATIONS

TEST

Material

Resistance Range

TCR: Absolute

Tolerance: Absolute

Power Rating: Resistor

Stability: Absolute

Voltage Coefficient

Working Voltage

Operating Temperature Range

Storage Temperature Range

Noise

Shelf Life Stability: Absolute

SPECIFICATIONS

Passivated nichrome

to 30.1 kΩ

25 ppm/°C (standard) and 100 ppm/°C

0.1 %, 0.25 %, 0.5 %, 1.0 %, 2.0 %, and 5.0 %

0.5 W to 6.0 W

(1)

ΔR

1.0 %

< 0.1 ppm/V

75 V to 100 V

-55 °C to +155 °C

< -30 dB

± 0.01 %

CONDITIONS

-55 °C to +150 °C

Maximum at +70 °C

1000 h at +70 °C

1 year at +25 °C

Note

(1)

Dependant on component mounting by user

COMPONENT RATINGS

CASE SIZE

0603

0805

1206

2512

(1)

POWER RATING (mW)

500

(1)

1000

(1)

2000

(1)

6000

(1)

WORKING VOLTAGE (V)

100

RESISTANCE RANGE (Ω)

2 to 30.1K

Note

Dependant on component mounting by user

Document Number: 60125
