Part Number

Search

PHP00805K34R8FST1

Description
Fixed Resistor, Thin Film, 0.625W, 34.8ohm, 100V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP
CategoryPassive components    The resistor
File Size141KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric View All

PHP00805K34R8FST1 Overview

Fixed Resistor, Thin Film, 0.625W, 34.8ohm, 100V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0805, CHIP

PHP00805K34R8FST1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid7016369648
package instructionCHIP
Reach Compliance Codecompliant
Country Of OriginUSA
ECCN codeEAR99
YTEOL7.7
Other featuresFLAME PROOF
structureRectangular
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.8382 mm
Package length2.032 mm
Package formSMT
Package width1.27 mm
method of packingTR
Rated power dissipation(P)0.625 W
Rated temperature70 °C
resistance34.8 Ω
Resistor typeFIXED RESISTOR
size code0805
surface mountYES
technologyTHIN FILM
Temperature Coefficient100 ppm/°C
Terminal surfaceTIN SILVER COPPER OVER NICKEL
Terminal shapeWRAPAROUND
Tolerance1%
Operating Voltage100 V
PHP
www.vishay.com

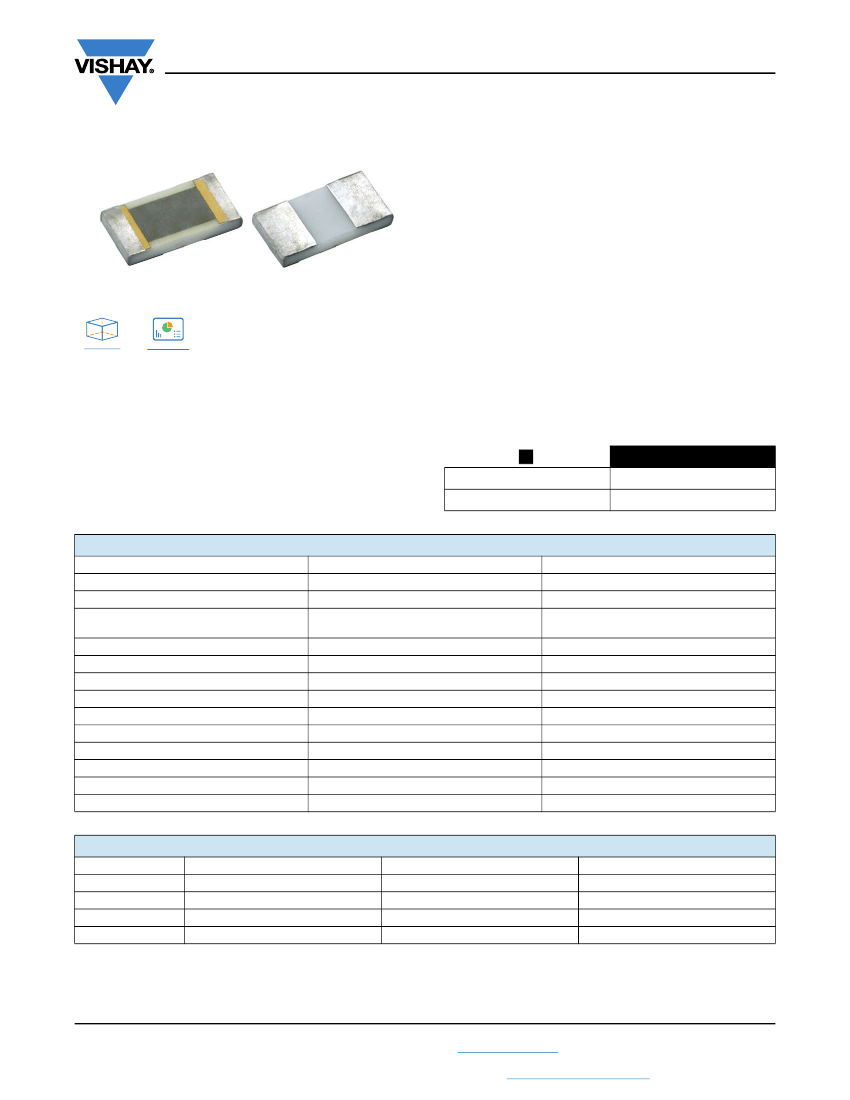

Vishay Dale Thin Film
High Power Thin Film Wraparound Chip Resistor
FEATURES
• High purity ceramic substrate
• Power rating to 2.5 W
• Resistance range 10
Ω
to 30.1 kΩ
• Resistor tolerance to ± 0.1 %
• TCR to ± 25 ppm/°C
• Flame resistant UL 94 V-0
LINKS TO ADDITIONAL RESOURCES
APPLICATIONS
• Power supplies
• Power switching
• Braking system
• Test and measurement equipment
• Motor deflection circuits
D
D
3
3
3D Models
Infographics
PHP series chip resistors are designed with enlarged
backside terminations to reduce the thermal resistance
between the topside resistor layer and the solder joint on the
end users circuit board.
Actual power handling capability is limited by the end user
mounting process. As with any high power chip resistor the
ability to remove the generated heat is critical to the overall
performance of the device.
TYPICAL PERFORMANCE
ABSOLUTE
TCR
TOL.
25
0.1
STANDARD ELECTRICAL SPECIFICATIONS
TEST
Material
Resistance Range
TCR: Absolute
Tolerance: Absolute
Power Rating: Resistor
Stability: Absolute
Stability: Ratio
Voltage Coefficient
Working Voltage
Operating Temperature Range
Storage Temperature Range
Noise
Shelf Life Stability: Absolute
SPECIFICATIONS
Nichrome
10
Ω
to 30.1 kΩ
25 ppm/°C, 50 ppm/°C (standard)
and, 100 ppm/°C
0.1 %, 0.5 %, 1.0 % and, 5.0 %
0.375 W to 2.5 W
(1)
ΔR
0.1 %
Not applicable
< 0.1 ppm/V
75 V to 200 V
-55 °C to +155 °C
-55 °C to +155 °C
< -30 dB
± 0.01 %
CONDITIONS
-
-
-55 °C to +125 °C
+25 °C
Maximum at +70 °C
2000 h at +70 °C
-
-
-
-
-
-
1 year at +25 °C
COMPONENT RATINGS
CASE SIZE
0603
0805
1206
2512
POWER RATING (mW)
375
(1)
WORKING VOLTAGE (V)
75
100
200
200
RESISTANCE RANGE (Ω)
10 to 30.1K
10 to 30.1K
10 to 30.1K
10 to 30.1K
625
(1)
1000
(1)
2500
(1)
Note
(1)
Dependent on component mounting by user
Revision: 08-Mar-2021
Document Number: 60076
1
For technical questions, contact:
thinfilm@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
