3414NGHH-389

Description
DC Fan, Axial Construction, 24V, 3.2W,
CategoryThermal management products    Heat resisting bracing
File Size188KB,1 Pages
Manufacturerebm-papst
Websitehttp://www.ebmpapst.com
Environmental Compliance
Download Datasheet Parametric View All

3414NGHH-389 Overview

DC Fan, Axial Construction, 24V, 3.2W,

3414NGHH-389 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Makerebm-papst
Reach Compliance Codecompliant
air flow volume60 CFM
Bearing typeSLEEVE
structureAXIAL
high92 mm
length92 mm
life expectancy140000 h
noise39 dB
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
rated power3.2 W
Rated voltage24 V
speed3250 rpm
Heat Resistant Support Device TypeDC FAN
weight100 g
width25 mm
Base Number Matches1
max.
102
m3/h

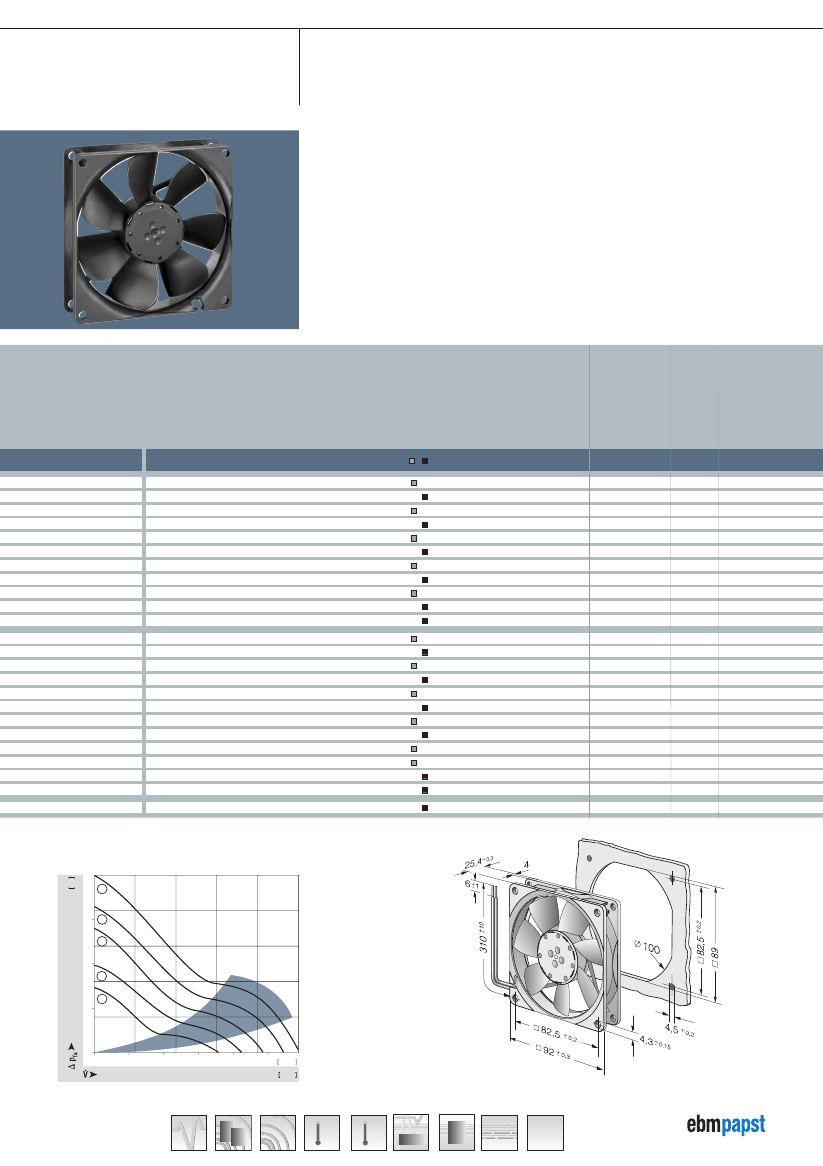

DC axial fans
Series 3400 N
92 x 92 x 25 mm
Highlights:
– Ball bearings and sleeve bearings available.
– Some models suitable for use at high ambient temperatures up to 85 °C.
General characteristics:
– Material: fibreglass-reinforced plastic. Impeller PA, housing PBT.
– Fully integrated electronic commutation.
– Protected against reverse polarity and locking.
– Connection via single strands AWG 24, TR 64. Bared and tin-plated.
– Air exhaust over struts. Direction of rotation counter-clockwise, seen on rotor.
– Mass: 100 g.
Sintec sleeve bearings
Ball bearings
Sound pressure level
Service life L10 (40 °C)
ebm-papst Standard
Life expectancy
L10
Nominal voltage
Service life L10 (Tmax)
ebm-papst Standard
Temperature range
Sound power level
(40 °C) see P. 15
Voltage range
Nominal speed
Power input
Nominal data
Type
3412 NGLE
3412 NLE
3412 NGME
3412 NME
3412 NG
3412 N
3412 NGH
3412 NH
3412 NGHH
3412 NHH
3412 NHH-379
3414 NGL
3414 NL
3414 NGM
3414 NM
3414 NG
3414 N
3414 NGH
3414 NH
3414 NGHH
3414 NGHH-389
3414 NHH
3414 NHH-386
3418 N
m3/h
61
61
72
72
84
84
94
94
102
102
102
61
61
72
72
84
84
94
94
102
102
102
102
84
CFM
35,9
35,9
42,4
42,4
49,4
49,4
55,3
55,3
60,0
60,0
60,0
35,9
35,9
42,4
42,4
49,4
49,4
55,3
55,3
60,0
60,0
60,0
60,0
49,4
VDC
12
12
12
12
12
12
12
12
12
12
12
24
24
24
24
24
24
24
24
24
24
24
24
48
VDC
8...15
8...15
8...15
8...15
8...15
8...15
8...15
8...15
8...13,2
8...13,2
8...15
18...28
18...28
18...28
18...28
18...28
18...28
18...26
18...26
18...26
18...28
18...26
18...28
36...56
dB(A) Bel(A)
23
23
28
28
32
32
36
36
39
39
39
23
23
28
28
32
32
36
36
39
39
39
39
32
4,0
4,0
4,3
4,3
4,7
4,7
5,0
5,0
5,1
5,1
5,1
4,0
4,0
4,3
4,3
4,7
4,7
5,0
5,0
5,1
5,1
5,1
5,1
4,7
/
Watts
1,1
0,8
1,6
1,1
2,2
2,2
2,5
2,5
3,2
2,9
2,7
1,4
1,4
1,8
1,8
2,3
2,3
3,0
3,0
3,2
3,2
2,7
2,7
2,4
RPM
1 950
1 950
2 300
2 300
2 700
2 700
3 000
3 000
3 250
3 250
3 250
1 950
1 950
2 300
2 300
2 700
2 700
3 000
3 000
3 250
3 250
3 250
3 250
2 700
°C
-20...+80
-20...+85
-20...+75
-20...+75
-20...+70
-20...+70
-20...+70
-20...+70
-20...+60
-20...+60
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
-20...+70
Hours
80 000 / 30 000
80 000 / 27 500
75 000 / 32 500
75 000 / 32 500
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
70 000 / 45 000
70 000 / 45 000
70 000 / 35 000
80 000 / 40 000
80 000 / 40 000
75 000 / 37 500
75 000 / 37 500
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
70 000 / 35 000
Hours
160 000
160 000
150 000
150 000
140 000
140 000
140 000
140 000
150 000
150 000
140 000
160 000
160 000
150 000
150 000
140 000
140 000
140 000
140 000
140 000
140 000
140 000
140 000
140 000
1
1
2
2
3
3
4
4
5
5
5
1
1
2
2
3
3
4
4
5
5
5
5
3
P. 110/118
Specials
/2
/2
/2
/39
/2
/2
/2
/2
/2
/39
Air flow
Air flow
Other 48 VDC models on request.
[in H
2
O]
Pa
5
0,15
40
4
3
30
0,10
20
0,05
2
1
10
0
10
20
30
40
50
CFM
m³/h
20
40
60
80
40
N
G
T
I
PWM
A
H
P
IP54
Û
Curve
