Supply Voltage .................................................................................
±18V
Analog Input Voltage Range ..................................................... V– to V+
Logic Input Voltage Range ........................................................ V– to V+
Output Short Circuit (to ground) ............................................ Continuous
Operating Temperature ................................................ –40°C to +125°C
Storage Temperature .................................................... –40°C to +125°C
Junction Temperature ................................................................... +150°C
Lead Temperature (soldering,10s) .............................................. +300°C
PACKAGE INFORMATION
MODEL
PACKAGE
8-Pin Plastic DIP
SO-8 Surface-Mount
PACKAGE DRAWING
NUMBER
(1)
006
182
ORDERING INFORMATION
MODEL
PGA103P
PGA103U
PACKAGE
8-Pin Plastic DIP
SO-8 Surface-Mount
TEMPERATURE RANGE
–40°C to +85°C
–40°C to +85°C
PGA103P
PGA103U
NOTE: (1) For detailed drawing and dimension table, please see end of data
sheet, or Appendix D of Burr-Brown IC Data Book.
ELECTROSTATIC
DISCHARGE SENSITIVITY
Any integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with ap-
propriate precautions. Failure to observe proper handling and
installation procedures can cause damage.
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet published speci-
fications.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life support devices and/or systems.
®
3
PGA103

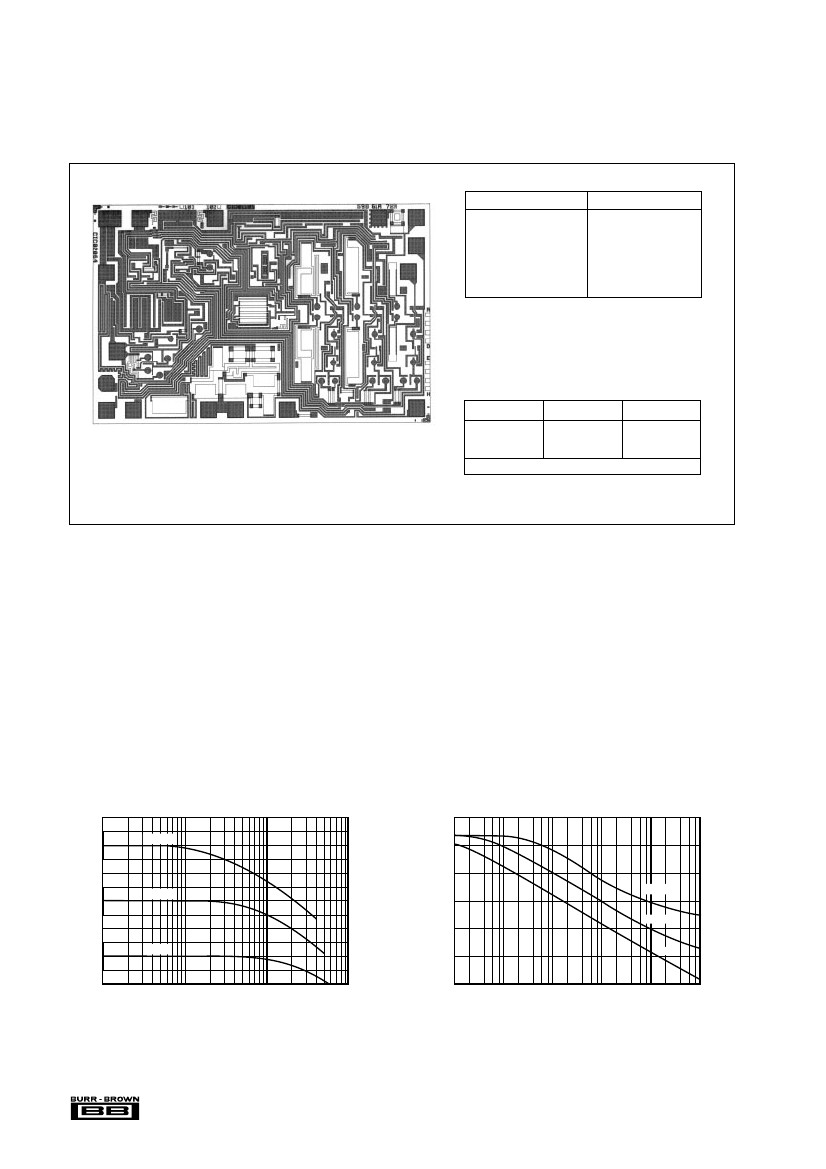

DICE INFORMATION
PAD
FUNCTION
A
0
A
1
Ground
V
IN
V–
V
O
V+
NC
6
NC
NC
NC
NC
7
4C
1
2
3A, 3B, 3C
(1)
4A, 4B, 4C
(2)
6
7
8
8
1
2
3A
3B
3C
4A
4B
NC: No Connection
NOTES: (1) Connect all three indicated pads. (2) Connect
