KP-3216MGC datasheet, PDF - EEWORLD Datasheet

KP-3216MGC: DescriptionSingle Color LED, Mega Green, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size99KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KP-3216MGC Overview

Single Color LED, Mega Green, Water Clear, 2mm, 3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3.20 X 1.60 MM, 1.10 MM HEIGHT, SURFACE MOUNT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	LED, Green KP-3216MGC, Kingbright 1206 570 nm 3216 (1206) SMD package
color	MEGA GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	70.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	BULK
peak wavelength	574 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.75 mm
perspective	120 deg
Base Number Matches	1

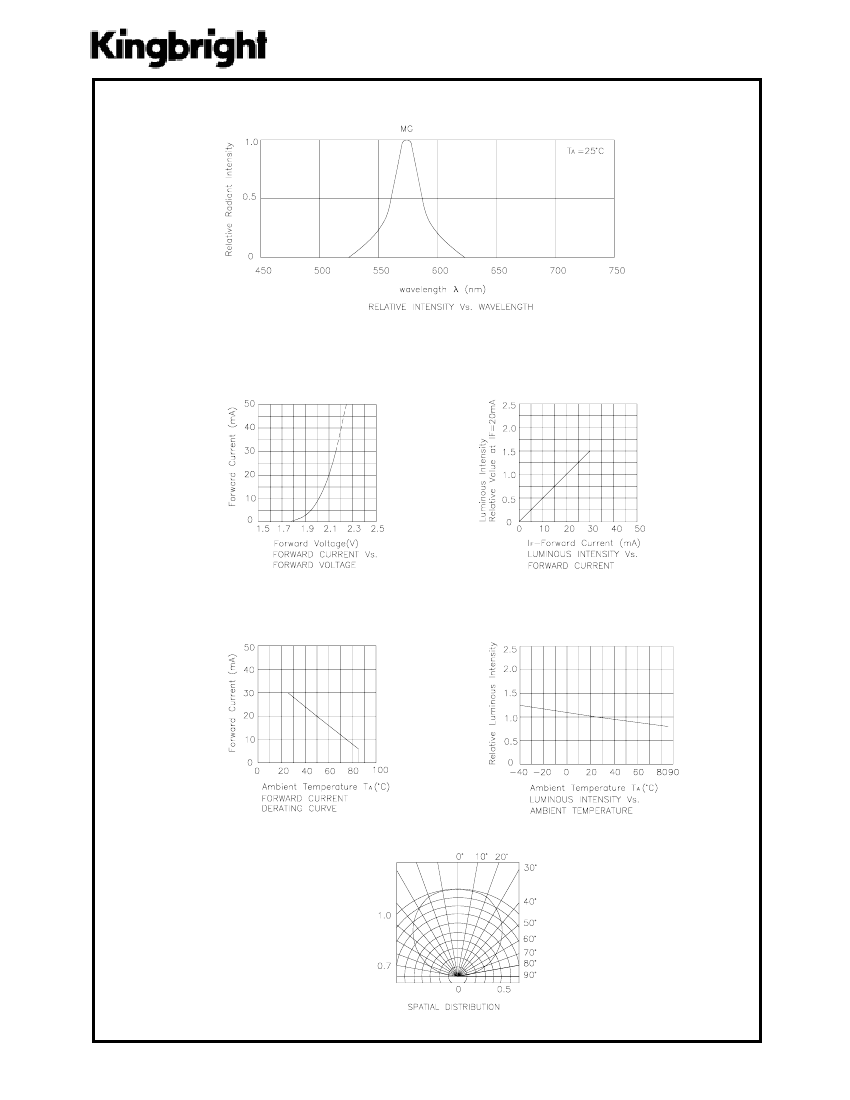

3.2x1.6mm SMD CHIP LED LAMP

KP-3216MGC

MEGA GREEN

Features

3.2mmx1.6mm SMT LED, 1.1mm THICKNESS.

LOW POWER CONSUMPTION.

WIDE VIEWING ANGLE.

IDEAL FOR BACKLIGHT AND INDICATOR.

VARIOUS

PACKAGE

Description

The Mega Green source color devices are made with

DH InGaAlP on GaAs substrate Light Emitting Diode.

COLORS AND LENS TYPES AVAILABLE.

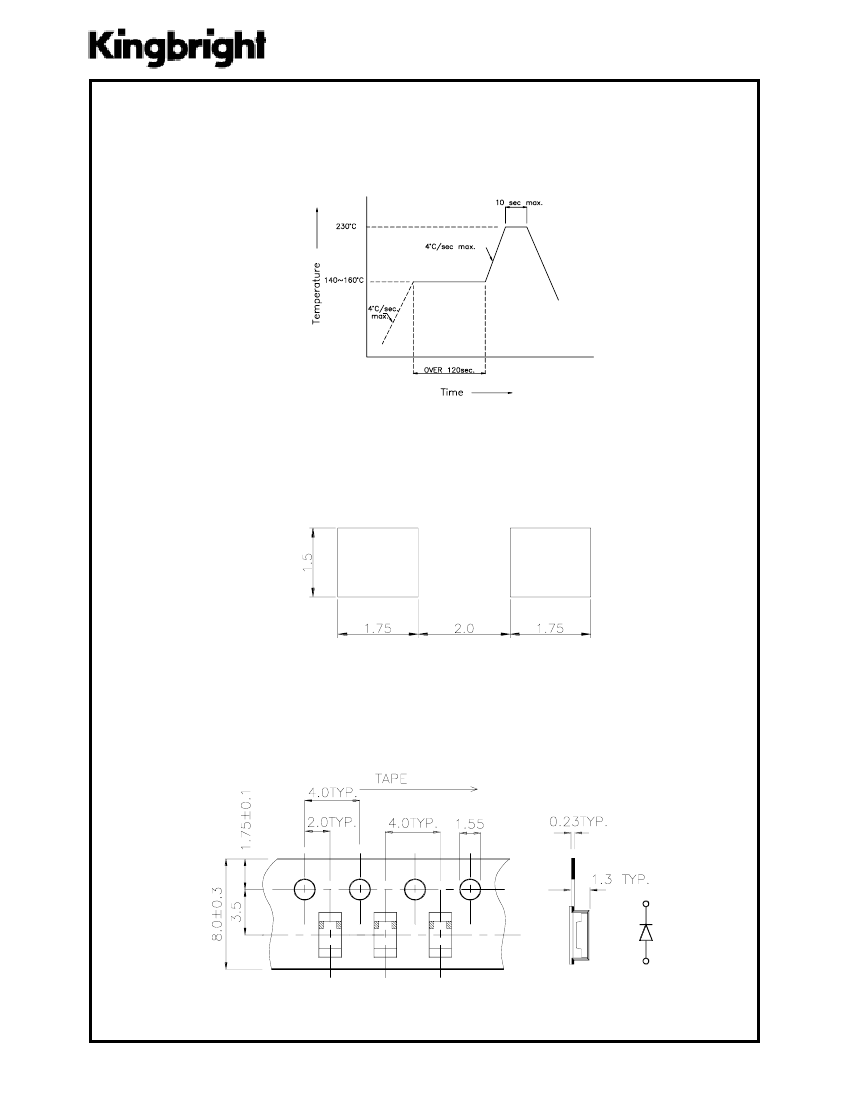

: 2000PCS / REEL.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.2(0.0079")

unless otherwise noted.

3. Specifications are subject to change without notice.

SPEC NO: DSAB1394

APPROVED : J. Lu

REV NO: V.3

CHECKED : Allen Liu

DATE: DEC/05/2002

DRAWN: L.ZHANG

PAGE: 1 OF 4
