DPED8MX32RKY5-80C datasheet, PDF

Datasheet> All Categories > storage> storage> DPED8MX32RKY5-80C

DPED8MX32RKY5-80C: DescriptionEDO DRAM Module, 8MX32, 80ns, CMOS, LEADLESS, STACK, TSOP-66; Categorystorage storage; File Size657KB，2 Pages; ManufacturerB&B Electronics Manufacturing Company

Download Datasheet Parametric Compare View All

DPED8MX32RKY5-80C Overview

EDO DRAM Module, 8MX32, 80ns, CMOS, LEADLESS, STACK, TSOP-66

DPED8MX32RKY5-80C Parametric

Parameter Name	Attribute value
Maker	B&B Electronics Manufacturing Company
Parts packaging code	QMA
package instruction	,
Contacts	66
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XQMA-N66
memory density	268435456 bit
Memory IC Type	EDO DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	66
word count	8388608 words
character code	8000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	8MX32
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

Preview

Download Datasheet

View All

2Mx32, 50 - 80ns, TSTACK

30A165-15

256 Megabit CMOS DRAM

DPnnD8MX32RY5

PRELIMINARY

DESCRIPTION:

The DPnnD8MX32RY5 is the 8 Meg x 32 Dynamic RAM

module that utilize the new and innovative space saving TSOP

stacking technology. The module is constructed of four 4 Meg

x 16 Dynamic RAM’s that are configured as 2 banks of 4 Meg x

32.

The DPnnD8MX32RY5 provides for a compatible upgrade path

to lower density compatible modules. The module features high

speed access times, common data inputs and outputs, and three

standard refresh modes.

FEATURES:

•

Access Times: 60, 70, 80ns (max.)

•

5.0V or 3.3V Supply

•

Common Data Inputs and Outputs

•

EDO or Fast Page Mode Capability

•

4096 Cycles / 64 ms

•

3 Variations of Refresh: - RAS only Refresh

- CAS before RAS Refresh

- Hidden Refresh

•

Package: TSOP Leadless Stack

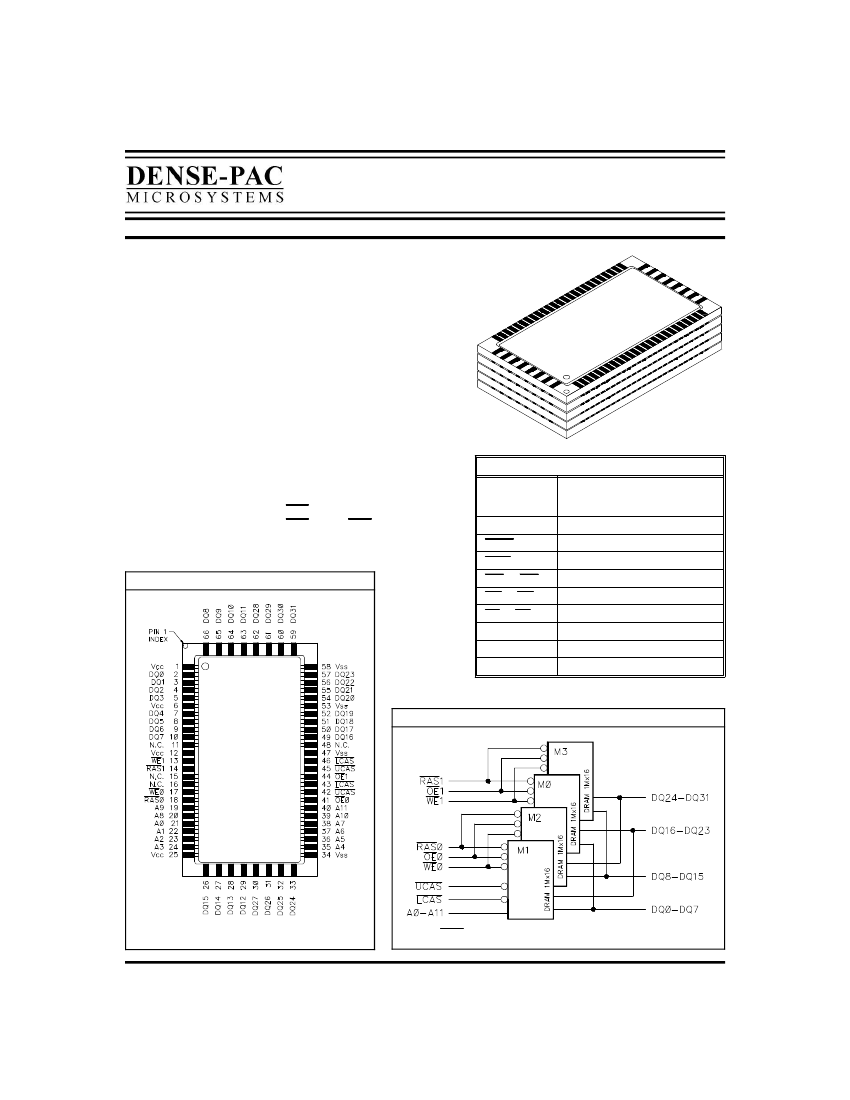

PIN-OUT DIAGRAM

PIN NAMES

A0 - A11

DQ0 - DQ31

UCAS

LCAS

RAS0 - RAS1

WE0 - WE1

OE0 - OE1

N.C.

Row Address:

A0 - A11

Column Address: A0 - A9

Refresh Address: A0 - A11

Data In / Data Out

Upper Column Addres Strobe

Lower Column Addres Stobe

Row Address Enables

Data Write Enables

Data Output Enables

Power Supply (+5V)

Ground

No Connect

FUNCTIONAL BLOCK DIAGRAM

NOTE:

Pin 43 and Pin 46 are connected together,

Pin 42 and Pin 45 are connected together.

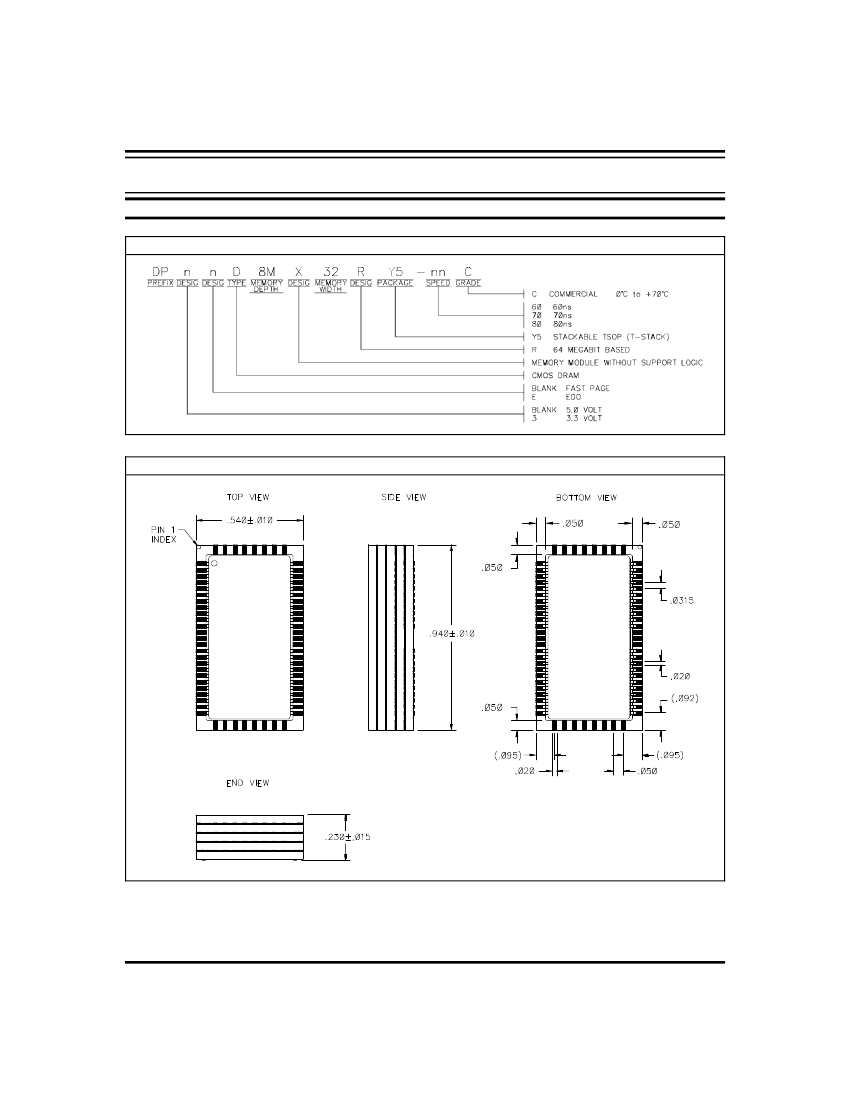

30A165-15

REV. A

NOTE:

LCAS controls DQ0-DQ15, UCAS controlls DQ16-DQ31.

This document contains information on a product presently under

development at Dense-Pac Microsystems, Inc. Dense-Pac reserves the

right to change products or specifications herein without prior notice.

DPED8MX32RKY5-80C Related Products

	DPED8MX32RKY5-80C	DPD8MX32RKY5-80C	DP3D8MX32RKY5-80C	DP3ED8MX32RKY5-80C
Description	EDO DRAM Module, 8MX32, 80ns, CMOS, LEADLESS, STACK, TSOP-66	Fast Page DRAM Module, 8MX32, 80ns, CMOS, LEADLESS, STACK, TSOP-66	Fast Page DRAM Module, 8MX32, 80ns, CMOS, LEADLESS, STACK, TSOP-66	EDO DRAM Module, 8MX32, 80ns, CMOS, LEADLESS, STACK, TSOP-66
Maker	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company	B&B Electronics Manufacturing Company
Parts packaging code	QMA	QMA	QMA	QMA
Contacts	66	66	66	66
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE	FAST PAGE	FAST PAGE WITH EDO
Maximum access time	80 ns	80 ns	80 ns	80 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-XQMA-N66	R-XQMA-N66	R-XQMA-N66	R-XQMA-N66
memory density	268435456 bit	268435456 bit	268435456 bit	268435456 bit
Memory IC Type	EDO DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	EDO DRAM MODULE
memory width	32	32	32	32
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	66	66	66	66
word count	8388608 words	8388608 words	8388608 words	8388608 words
character code	8000000	8000000	8000000	8000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	8MX32	8MX32	8MX32	8MX32
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	QUAD	QUAD	QUAD	QUAD
