39-51-2269

Description
Board Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle
CategoryThe connector    The connector
File Size55KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home

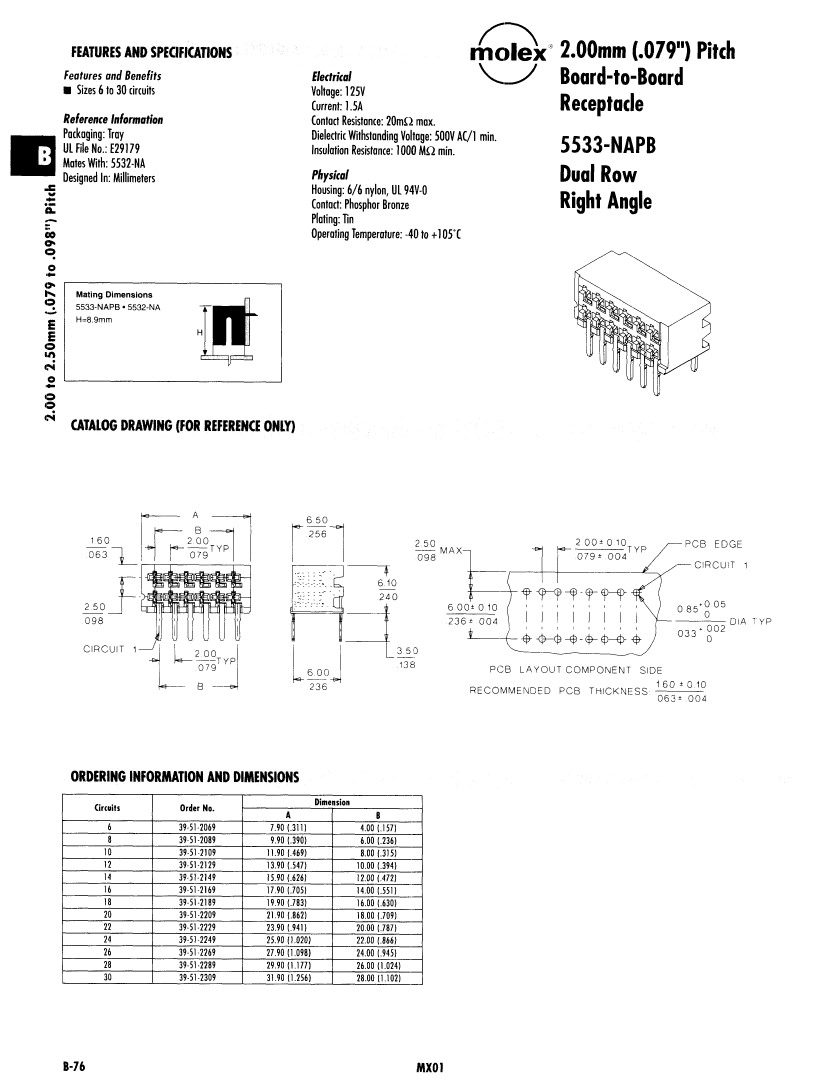

Download Datasheet Parametric View All

39-51-2269 Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, Guide Slot, Receptacle

39-51-2269 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresNONE
body width0.24 inch
subject depth0.256 inch
body length1.098 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialNYLON
MIL complianceNO
Manufacturer's serial number5533
Plug contact pitch0.079 inch
Match contact row spacing0.098 inch
Plug information39-26-9267
Mixed contactsNO
Installation option 1GUIDE SLOT
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing5.9944 mm
polarization keyENDS
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Terminal pitch2 mm
Termination typeSOLDER
Total number of contacts26
UL Flammability Code94V-0
Base Number Matches1
