326XBX48P-3.5F-24VDC

Description
On-Delay Relay, DPDT, Momentary, 0.083A (Coil), 24VDC (Coil), 2000mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount
CategoryMechanical and electronic products    relay
File Size97KB,1 Pages
ManufacturerStruthers-Dunn
Download Datasheet Parametric View All

326XBX48P-3.5F-24VDC Overview

On-Delay Relay, DPDT, Momentary, 0.083A (Coil), 24VDC (Coil), 2000mW (Coil), 10A (Contact), 28VDC (Contact), DC Input, AC/DC Output, Socket Mount

326XBX48P-3.5F-24VDC Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresRELAY FUNCTIONS SPDT AND 3PDT ALSO AVAILABLE
Maximum coil current (DC)0.083 A
Coil operating voltage (DC)19.2 V
Coil power2000 mW
Coil resistance289.16 Ω
Maximum coil voltage (DC)24 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load10A@240VAC
Maximum contact current (AC)10 A
Maximum contact current (DC)10 A
Contact (DC) maximum rated R load10A@28VDC
Maximum contact voltage (AC)240 V
Maximum contact voltage (DC)28 V
Contact/Output Power TypeAC/DC
Electrical life100000 Cycle(s)
Manufacturer's serial number326
Installation featuresSOCKET MOUNT
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
Relay actionMOMENTARY
Relay functionDPDT
Relay typeON-DELAY RELAY
surface mountNO
Termination typeSNAP-ON
Base Number Matches1
Struthers-Dunn
407 East Smith Street - Suite B
Timmonsville, SC 29161 US
Phone:
(843) 346-4427 •
Fax:
(843) 346-4465
E-Mail:
info@struthers-dunn.com •
Web site:www.struthers-dunn.com

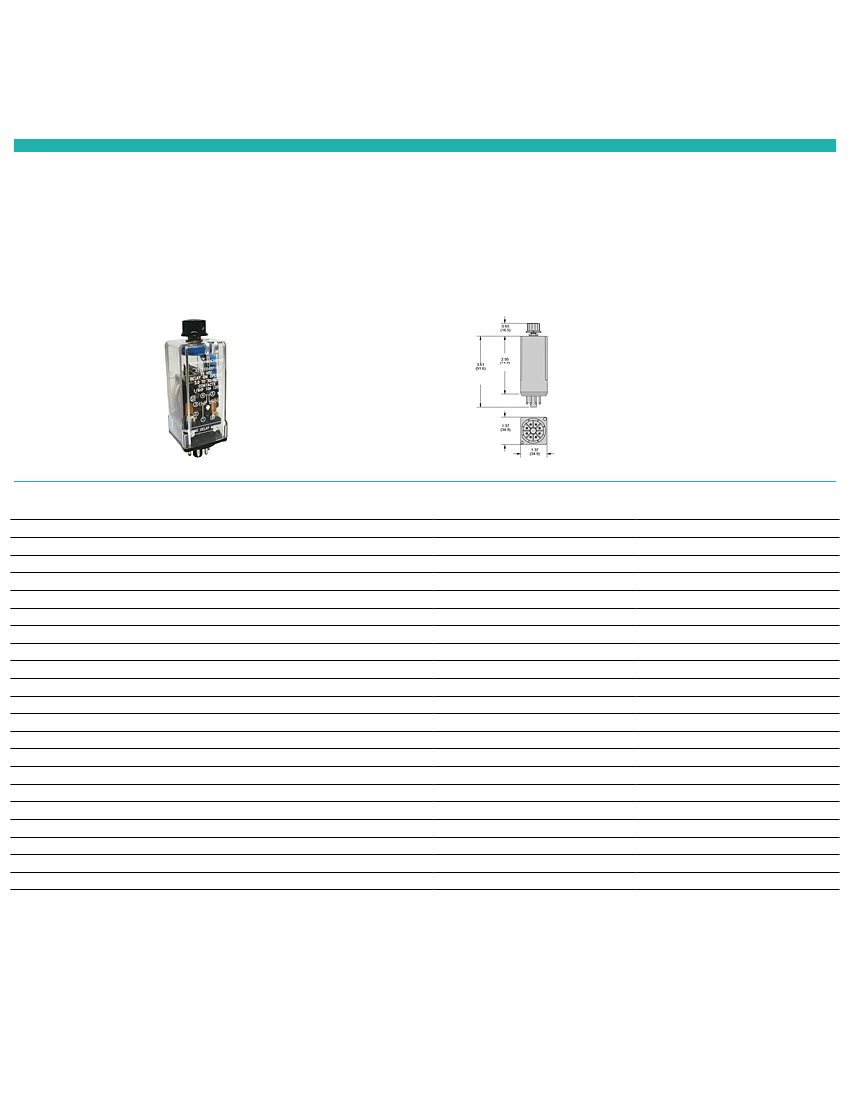

326/327 Series - Time Delay Relays
The 326 on delay and 327 off delay are “octal” base constructed time delay relays. Both AC and DC versions are available. On delays can have up to three poles. The
timing circuit is a fully encapsulated precision RC (resistor – capacitor) network typically used in applications where oscillators are not desired. Fixed time versions are
available. Single pole and double pole versions have 8 pin bases. The 3 pole version has 11 pins. All are intended for socket mounting.
For Additional Configuration please contact the manufacturer.
Results 1 - 21 of 21
Item #
326XBX48P-002-120VAC
326XBX48P-002-24VDC
326XBX48P-010-120VAC
326XBX48P-010-115-125VDC
326XBX48P-060-12VDC
326XBX48P-060-115-125VDC
326XBX48P-180-120VAC
326XBX48P-3.5F-24VDC
326XBX48P-300-120VAC
326XCX48P-010-120VAC
326XCX48P-010-115-125VDC
326XCX48P-030-120VAC
327XAX48P-002-120VAC
327XAX48P-002-115-125VDC
327XAX48P-300-120VAC
327XBX48P-002-120VAC
327XBX48P-010-120VAC
327XBX48P-060-120VAC
327XBX48P-060-12VDC
327XBX48P-180-120VAC
327XBX48P-300-120VAC
Contact Arrangement
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XCX (3PDT) - (3 form C)
XCX (3PDT) - (3 form C)
XCX (3PDT) - (3 form C)
XAX (SPDT) - (1 form C)
XAX (SPDT) - (1 form C)
XAX (SPDT) - (1 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
XBX (DPDT) - (2 form C)
Timing Range
0.2 - 2.0 s
0.2 - 2.0 s
1.0 - 10 s
1.0 - 10 s
6.0 - 60 s
6.0 - 60 s
18 - 180 s
N/A
30 - 300 s
1.0 - 10 s
1.0 - 10 s
N/A
0.2 - 2.0 s
0.2 - 2.0 s
30 - 300 s
0.2 - 2.0 s
1.0 - 10 s
6.0 - 60 s
6.0 - 60 s
18 - 180 s
30 - 300 s
Operating Voltage
120 VAC
24 VDC
120 VAC
115-125 VDC
12 VDC
115-125 VDC
120 VAC
24 VDC
120 VAC
120 VAC
115-125 VDC
120 VAC
120 VAC
115-125 VDC
120 VAC
120 VAC
120 VAC
120 VAC
12 VDC
120 VAC
120 VAC
Results 1 - 21 of 21
5/28/2013 | Page 1 of 1
