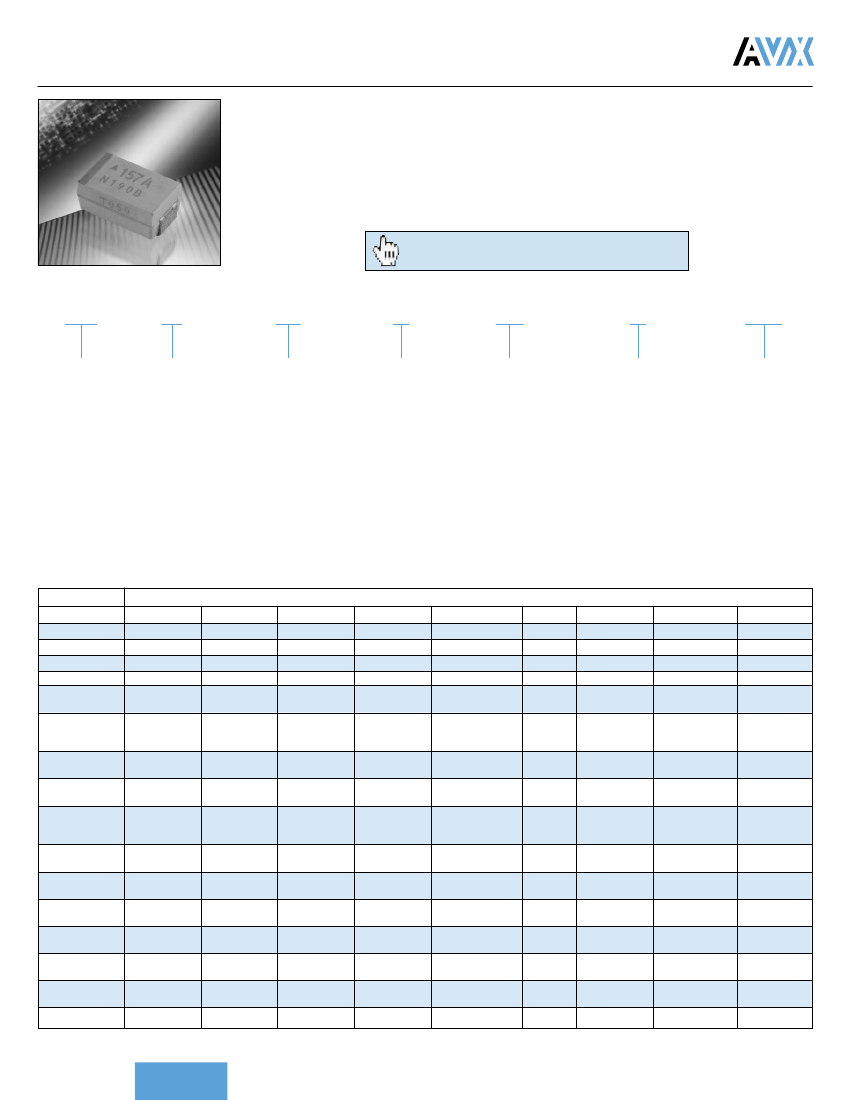

TPS Series III
New Generation Low ESR
Current application trends in circuit designs for switch-mode power supplies, micro-processors, and
digital circuits call for higher operating frequencies and smoother filtering. In order to function properly,
components with low ESR, high capacitance and high reliability are required. The New Third
generation TPS Low ESR series is based on the traditional MnO
2
process that offers very low ESR
levels previously only seen by other technologies. Further, continuous improvements in MnO
2
technology has allowed reductions in the resistance of the capacitor electrodes in order to further reduce
ESR levels. Traditional MnO
2
technology guarantees excellent line and field performance, humidity
stability and high electrical and thermal stress resistance.
Check for up-to-date CV Tables at
http://www.avx.com/docs/catalogs/tps3.pdf
HOW TO ORDER
TPS
D
227
K
010
R
0050
Type
Case Size
Capacitor Code
pF code: 1st two
digits represent
significant figures,
3rd digit represents
multiplier (number of
zeros to follow)
Capacitance
Tolerance
K = ±10%
M = ±20%
Rated DC Voltage
002 = 2.5Vdc
004 = 4Vdc
006 = 6.3Vdc
010 = 10Vdc
016 = 16Vdc
020 = 20Vdc
025 = 25Vdc
035 = 35Vdc
050 = 50Vdc
Packaging
R = 7" T/R
S = 13" T/R
A = Gold Plating 7" Reel
B = Gold Plating 13" Reel
Y = Lead Free 7" Reel
P = Lead Free 13" Reel
Maximum ESR in
Milliohms
See note below
NOTE:
The EIA & CECC standards for low ESR Solid Tantalum Capacitors
allow an ESR movement to 1.25 times catalog limit post mounting.
ESR limits quoted in brackets (milliohms)
Capacitance
µF
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2.5V
4V
Rated Voltage DC (V
R
) to 85°C
6.3V
10V
16V
20V
25V
35V
50V
D(300)
D(100)
C(150)
C(150)
B(250)
W(100,125)
C(75)
Y(65,100)
D(50)
D(45)
D(40)
D(35)
D(45)
E(35)
E(40)
E(30)
V(30)
V(25)
E(40)
D(50)
Y(65,100)
D(45)
E(45)
E(45)
V(35)
W(125,150)
Y(70,100)
C(75)
D(50)
Y(65,100)
D(50)
Y(65,100)
D(50)
E(50)
E(40)
V(40)
E(45)
V(40)
W(175)
D(80)
D(70)
Y(65,100)
D(60)
E(55)
E(50)
V(45)
V(45,50)
C(150)
D(100)
D(100)
E(70)
D(70)
V(60)
D(100)
D(100)
E(100)
E(80,100)
E(125)
V(80)
D(125)
D(100)
D(125)
E(125)
D(200)
E(100)
V(80)
V(100)
Blue - Please Contact Manufacturer
Bold - Developmental Ratings - subject to change
For TPS series and the case sizes C, D and E the ESR limits are printed on capacitor side in the following format:
T x x x -where x x x is ESR limit in milliohms i.e. T100 represents max. ESR of 100 milliohms.
NOTE: The EIA & CECC standards for low ESR Solid Tantalum Capacitors allow an ESR movement to 1.25 times catalog limit post mounting.
ESR limits quoted in brackets (milliohms)
Tantalum
31
