TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMABILITY RATING: UL94-V0
COLOR: GREEN
CONTACT MATERIAL: COPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN PLATED
ENVIRONMENTAL
OPERATING TEMPERATURE: -40°C UP TO +105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
CERTIFIED E315414
cULus
12A
300V AC
2500 VAC/min
20 mΩ max
A
B
24-16 AWG
24-16 AWG
6-8 mm
2,5 mm
B±0.3
A±0.2
±
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
WIRE STRIP LENGTH:
PITCH:
A
B
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING PROCESS

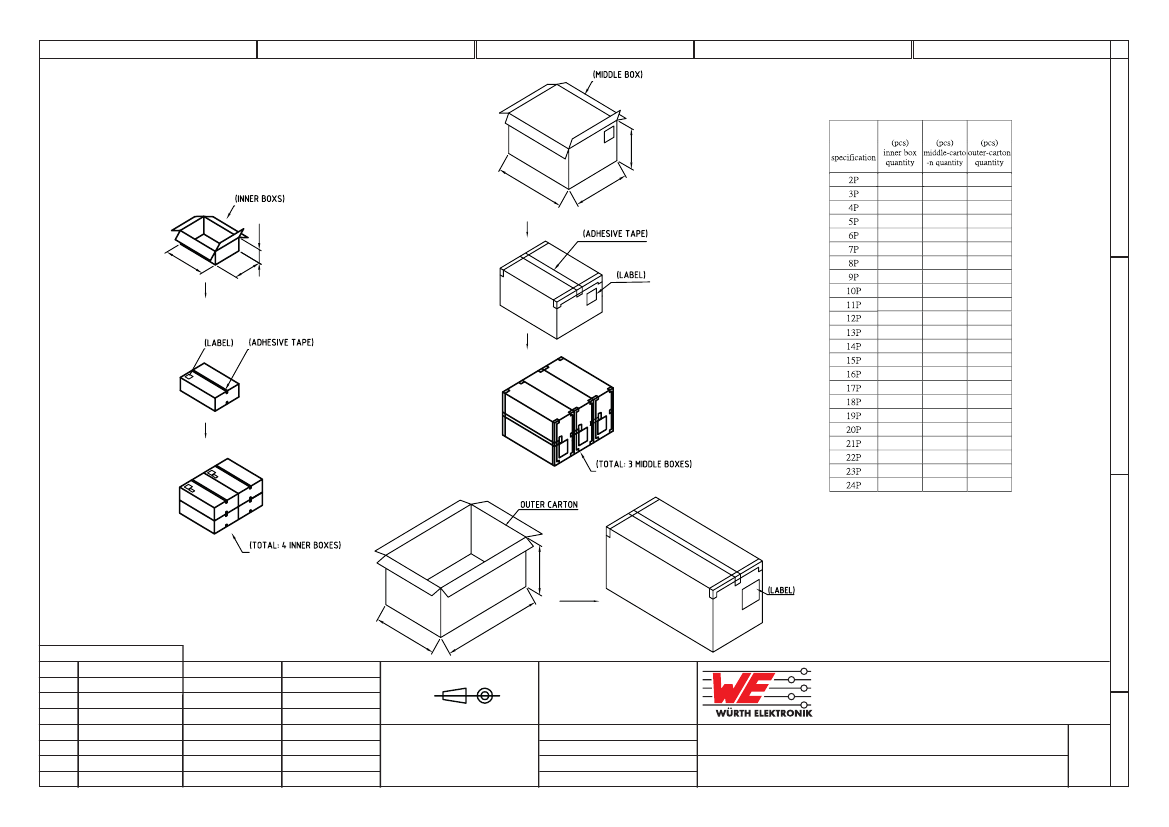

PACKAGING
BOX
C
RoHS Compliant
G
F
E
D
C
B
A
REV
24-JUL-14
DATE
PDF
FILE
AS
BY
APPROVAL: JC
SCALE:
SHEET: 1/3
DRAW: AS
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

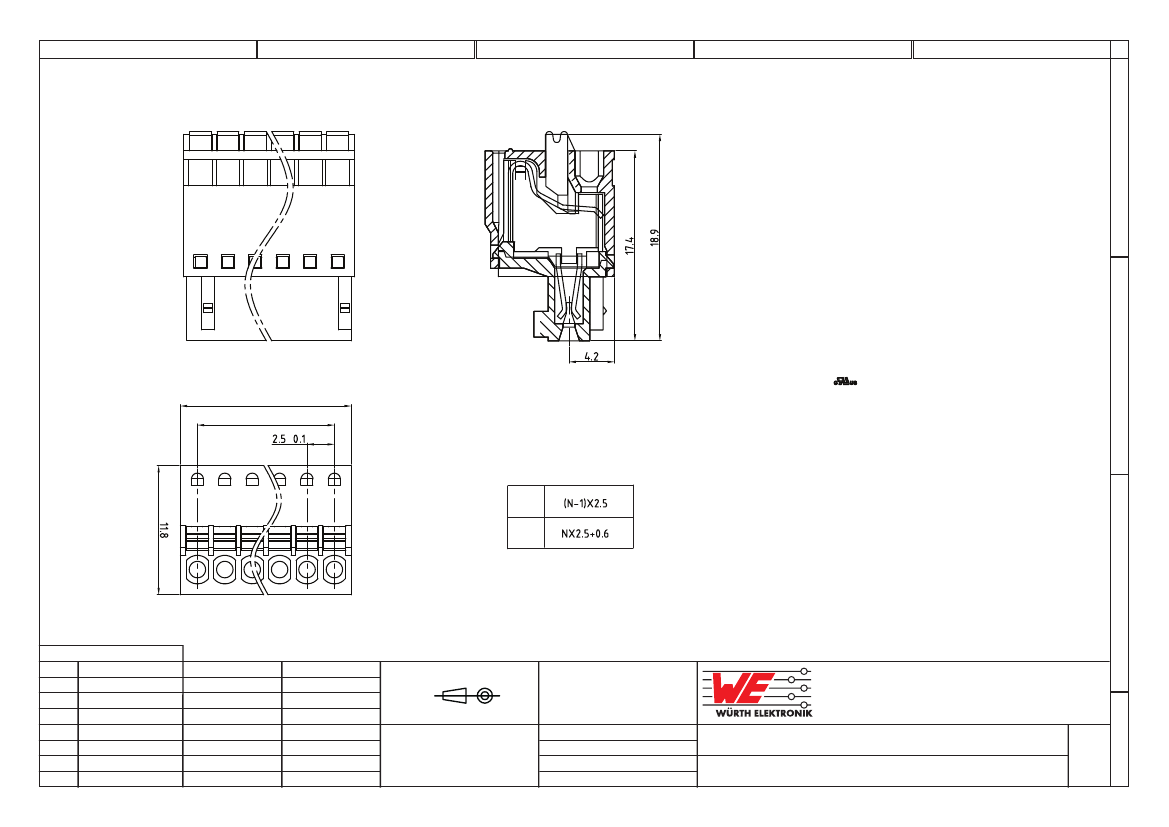

DESCRIPTION: SERIE 381 - VERTICAL CABLE ENTRY PLUG SCREWLESS -
PITCH 2,5 MM - WR-TBL
WERI PART NO: 691 381 000 0XX
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET:
3/3
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
