41PCS170TR5

Description
Single Color LED Array, Red, Diffused, T-1, 3mm,
CategoryLED optoelectronic/LED    photoelectric
File Size104KB，1 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric Compare View All

41PCS170TR5 Overview

Single Color LED Array, Red, Diffused, T-1, 3mm,

41PCS170TR5 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Other featuresIC COMPATIBLE, HIGH RELIABILITY
colorRED
color@wavelengthRed
ConfigurationSEPARATE, 4 ELEMENTS
Maximum forward voltage2.4 V
Lens typeDIFFUSED
minimum luminous intensity0.04 cd
Nominal luminous intensity40.0 mcd
Installation featuresRADIAL MOUNT
Number of functions4
Number of LEDs in the array4
Number of terminals8
Optoelectronic device typesSINGLE COLOR LED ARRAY
total height16.51 mm
method of packingBULK
peak wavelength635 nm
shapeROUND
size3 mm
surface mountNO
T codeT-1
Terminal pitch2.54 mm
perspective50 deg
Base Number Matches1

Preview

Download Datasheet

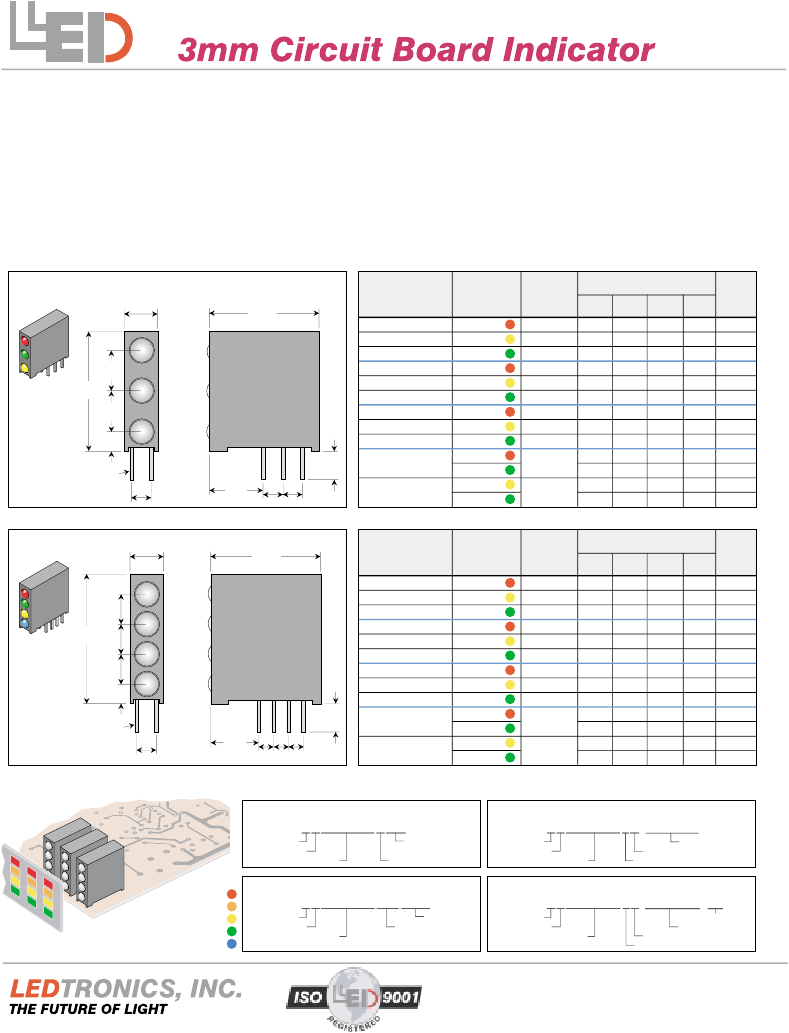

Tri-level and Quad-level for Backlighting
Features
3mm Circuit Board Indicator
Options
•
Diffused lens standard
Clear illuminator optional
•
Extended housing eliminates bleed
•
Housing material meets UL94V-0
•
Narrow viewing angle
•
Fast turn on/off time I.C. compatible
•
Available in standard and special
colors
Tri-level Indicator LEDs
31PCS170TXX4
•
Solid-State, high shock/vibration
resistant
•
Sunlight Visible Ultrabrights
•
Low current (2mA)LEDs
•
Special colors: Orange,
Cool White, Pure Green
•
Single color or Bicolor configurations
•
Infrareds 840nm, 880nm,
•
Long life / 100,000+ hours (10 years) 940nm
Electrical-Optical
Characteristics (Ta = 25˚C)
λP
If = mA Iv mcd Vf = V
typ
typ/max
typ
nm
Part Number
.170
[4.32]
.555
[14.10]
LED Color
RED
YELLOW
GREEN
RED
YELLOW
GREEN
RED
YELLOW
GREEN
RED
GREEN
YELLOW
GREEN
Lens Type/
Color
DIFFUSED
DIFFUSED
DIFFUSED
CLEAR
CLEAR
CLEAR
DIFFUSED
DIFFUSED
DIFFUSED
MILKY
WHITE
MILKY
WHITE
Full
Viewing
Angle
50˚
50˚
50˚
25˚
25˚
25˚
60˚
60˚
60˚
120˚
120˚
120˚
120˚
31PCS170TR5
31PCS170TY5
31PCS170TG5
31PCS170CR5
31PCS170CY5
31PCS170CG5
31PCS170TR3-5V
20
20
20
10
10
20
10
10
12
20
20
20
20
40
60
70
100
90
110
4.0
4.0
4.0
6.0
6.0
7.0
6.0
1.8/2.4
1.8/2.4
1.8/2.4
2.0/2.8
2.1/2.8
2.2/3.0
5/7.5
5/7.5
5/7.5
2.0/2.8
2.1/2.8
2.1/2.8
2.1/2.8
635
585
565
635
585
565
635
585
565
635
568
585
568
LED 1
.200
[5.08]
.600
[15.24]
.200
[5.08]
.100
[2.54]
LED 3
LED 2
31PCS170TY3-5V
31PCS170TG3-5V
.135
[3.43]
31PCS170TWRG4
31PCS170TWYG4
ANODE
(+)
.100
[254]
.270
[6.86]
.1.00
[2.54]
Quad-level Indicator LEDs
41PCS170TXX4
.170
[4.32]
.555
[14.10]
Part Number
41PCS170TR5
41PCS170TY5
41PCS170TG5
41PCS170CR5
41PCS170CY5
41PCS170CG5
41PCS170TR3-5V
41PCS170TY3-5V
41PCS170TG3-5V
.135
[3.43]
LED Color
RED
YELLOW
GREEN
RED
YELLOW
GREEN
RED
YELLOW
GREEN
RED
GREEN
YELLOW
GREEN
Lens Type/
Color
DIFFUSED
DIFFUSED
DIFFUSED
CLEAR
CLEAR
CLEAR
DIFFUSED
DIFFUSED
DIFFUSED
MILKY
WHITE
MILKY
WHITE
Electrical-Optical
Characteristics (Ta = 25˚C)
λP
If = mA Iv mcd Vf = V
typ
typ/max
typ
nm
Full
Viewing
Angle
50˚
50˚
50˚
25˚
25˚
25˚
60˚
60˚
60˚
120˚
120˚
120˚
120˚
20
20
20
10
10
20
10
10
12
20
20
20
20
LED 1
.150
[3.81]
LED 2
.650 .150
[16.51] [3.81]
LED 3
.150
[3.81]
.100
[2.54]
LED 4
40
60
70
100
90
110
4.0
4.0
4.0
6.0
6.0
7.0
6.0
1.8/2.4
1.8/2.4
1.8/2.4
2.0/2.8
2.1/2.8
2.2/3.0
5/7.5
5/7.5
5/7.5
2.0/2.8
2.1/2.8
2.1/2.8
2.1/2.8
635
585
565
635
585
565
635
585
565
635
568
585
568
ANODE
(+)
.100
[254]
41PCS170TWRG4
41PCS170TWYG4
.245
[6.22]
.075
[1.91]
Examples of part number ordering code
All LEDs same color
Mixed colors same type LED
41PCS170TG5
No. of LEDs high
No. of LEDs across
Body style
LED color
Lens type: T = diffused
41PCS170T5-Y/Y/Y/G
No. of LEDs high
No. of LEDs across
Body style
LED (1),(2),(3),(4) color
Brightness code
Lens type: T = diffused
All LEDs same Bi-color
R = Red
O = Orange
Y = Yellow
G = Green
B = Blue
Mixed colors, 5V/12V Resistor LEDs
41PCS170TWYG4
No. of LEDs high
No. of LEDs across
Body style
LED color
Lens type:
TW = Milky White
41PCS170T3-Y/G/Y/G-5V
No. of LEDs high
No. of LEDs across
Body style
Resistor value
LED (1),(2),(3),(4) color
Brightness code
Lens type: T = diffused
Typical Application
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
Log # 002B Rev 02-99
