N3428-D202 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> N3428-D202

N3428-D202: Description40 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size833KB，6 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

N3428-D202 Overview

40 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

N3428-D202 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	3M, POLARIZED
Board mount options	HOLE .099-.111
body length	1.764 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	TIN LEAD (200) OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	3000
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	TWO
PCB row number	2+2
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.112 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	40
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

™

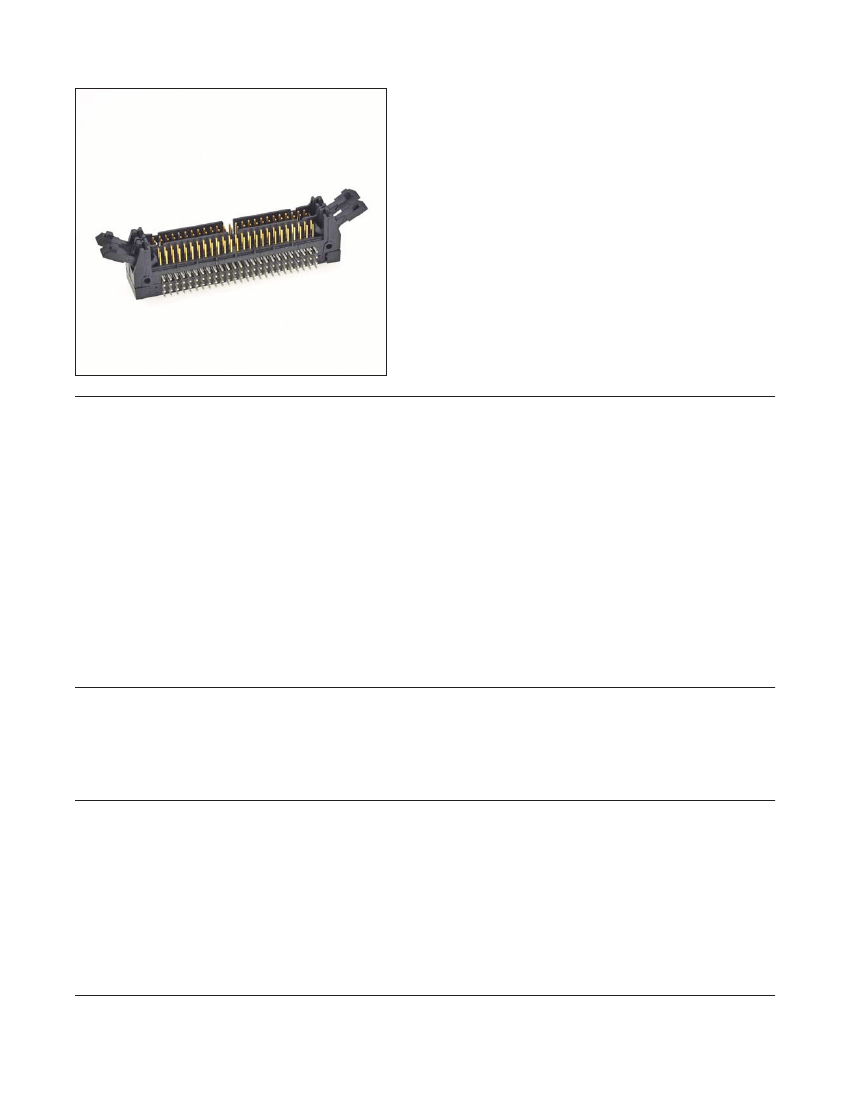

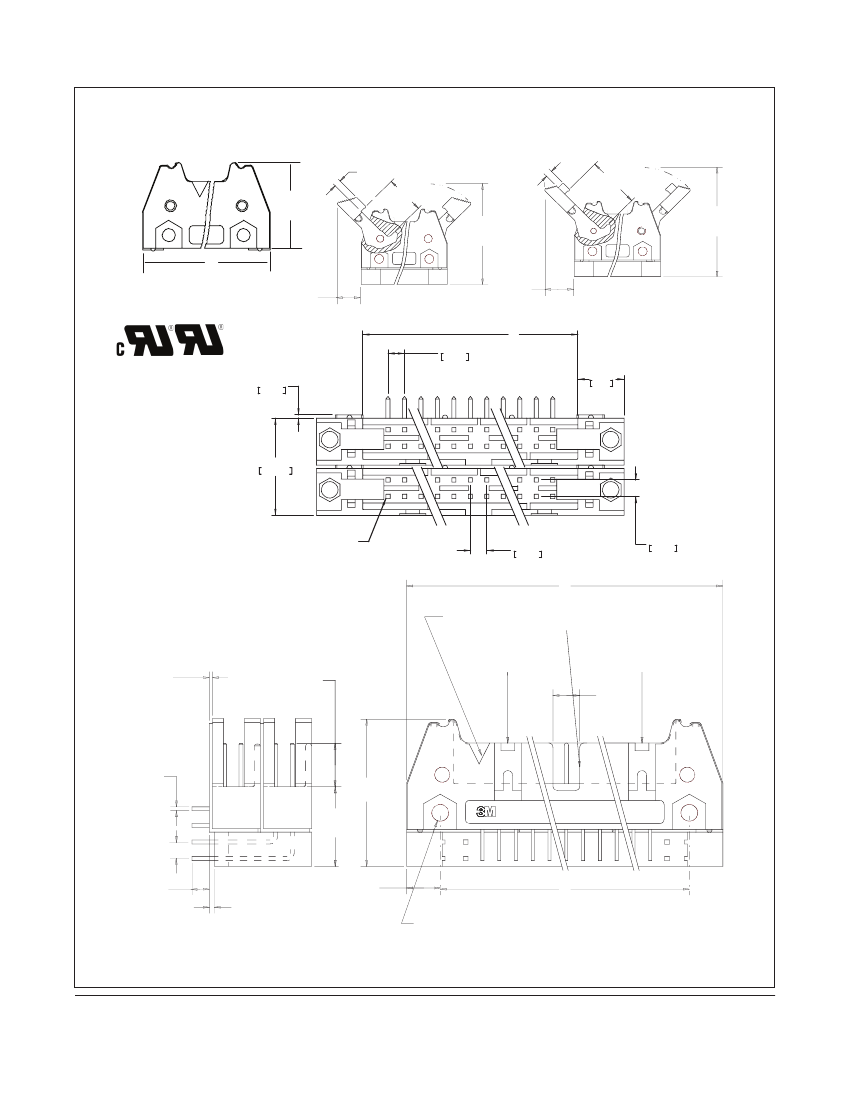

Three-Wall Condo Header

.100 × .100 Right Angle

3000 Series

•

Stacked pins conserve space on the circuit board

allowing higher density packaging

•

Pin quantity to 128 gives design flexibility with

latching

•

“HDI’’ alternative

•

Three-wall fits in VME board stacking criteria

•

Accepts standard IDC sockets

•

Mates with standard flat cable harnesses

•

Optional high temperature insulator suitable for “no

lead” soldering operations

•

High temperature option suitable for reflow soldering

using “paste in hole” techniques

•

See Regulatory Information Appendix for chemical

compliance information

Date Modified: June 11, 2008

TS-0773-D

Sheet 1 of 3

Physical

Insulation:

Material: Glass Filled Polyester (PBT), Glass Filled Polyester (PCT) - High Temp Option

Flammability: UL 94V-0

Color: Gray (PBT), Beige (PCT), Black (PCT)

Contact:

Material: Copper Alloy

Plating:

Underplating: 100 μ” [ 2.54 μm ] Nickel - Overall

Wiping Area: 30 μ” [ 0.76 μm ] Gold

Solder Tails: 200 μ” [ 5.08 μm ] Tin Lead or Matte Tin (See Ordering Information)

Marking:

3M Logo, Part Identification Number and Orientation Triangle

Electrical

Current Rating:

2 A (EIA 364-70)

Insulation Resistance:

>1 × 10

at 500 V

Withstanding Voltage:

1,000 V

RMS

at Sea Level

Environmental

Temperature Rating:

-55°C to +105°C

Process Rating:

260°C (High Temp. PCT insulator) single pass (per J-STD-020C)

Moisture Sensitivity Level:

1 (per J-STD-020C) High Temp. (PCT) versions only

UL File No.: E68080

Electronic Solutions Division

Interconnect Solutions

http://www.3M.com/interconnects/

3M is a trademark of 3M Company.

For technical, sales or ordering information call

800-225-5373

PBT gray insulator, maximum insulator temperature 191°C (solder

wave process only)

Regulatory Information Appendix

3M Electronic Solutions Division/Interconnect

EUROPE

Appendix E1: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product is RoHS Compliant 2005/95/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E2: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is

compliant by exemption under EU Commission Decision 2005/747/EC.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E3: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as

amended by Commission Decision 2005/618/EC.

This product contains lead in the solder tail area in excess of the maximum concentration value allowed.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix E4: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC, as amended by EU Commission Decision 2005/717/EC, as amended by

EU Court of Justice Decision 2008/C 116/04

This product contains decaBDE in the insulating material in excess of the maximum concentration allowed for finished

products subject to EU RoHS that are placed on the EU market after June 30, 2008.

Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information

provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.product Warranty stated below.

RIA-2217A-E

Appendix E5: European Union RoHS

Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment, as

amended by EU Commission Decision 2005/618/EC.

This product contains lead in excess of the maximum concentration value allowed but is compliant by exemption under

Item 6 of the Annex to the Directive.

“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of

the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless

the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this information

represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

CHINA

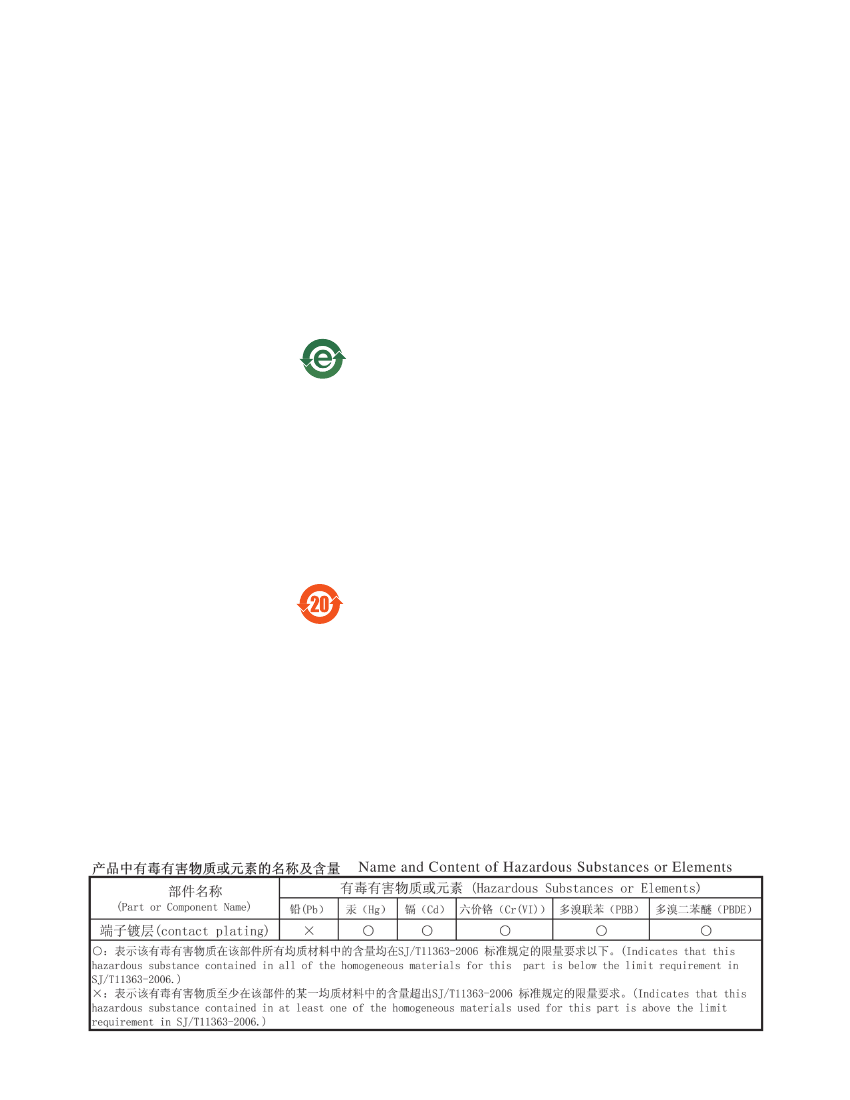

Appendix C1: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for

Certain Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that the

product or part

does not

contain any of the following substances in excess of the following maximum concentration values in any

homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated

diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing, this

information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability and

Buyer’s exclusive remedy will be in accordance with the Warranty stated below.

Appendix C2: China RoHS

Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits for Certain

Hazardous Substances in Electronic Information Products.

This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006, means that

the product or part

does

contain a substance, as detailed in the chart below, in excess of the following maximum concentration

values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium, polybrominated biphenyls or

polybrominated diphenyl ethers (excluding decaBDE); or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in

writing, this information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.

The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an

extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform with

3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in accordance with the

product Warranty stated below.

RIA-2217A-E
