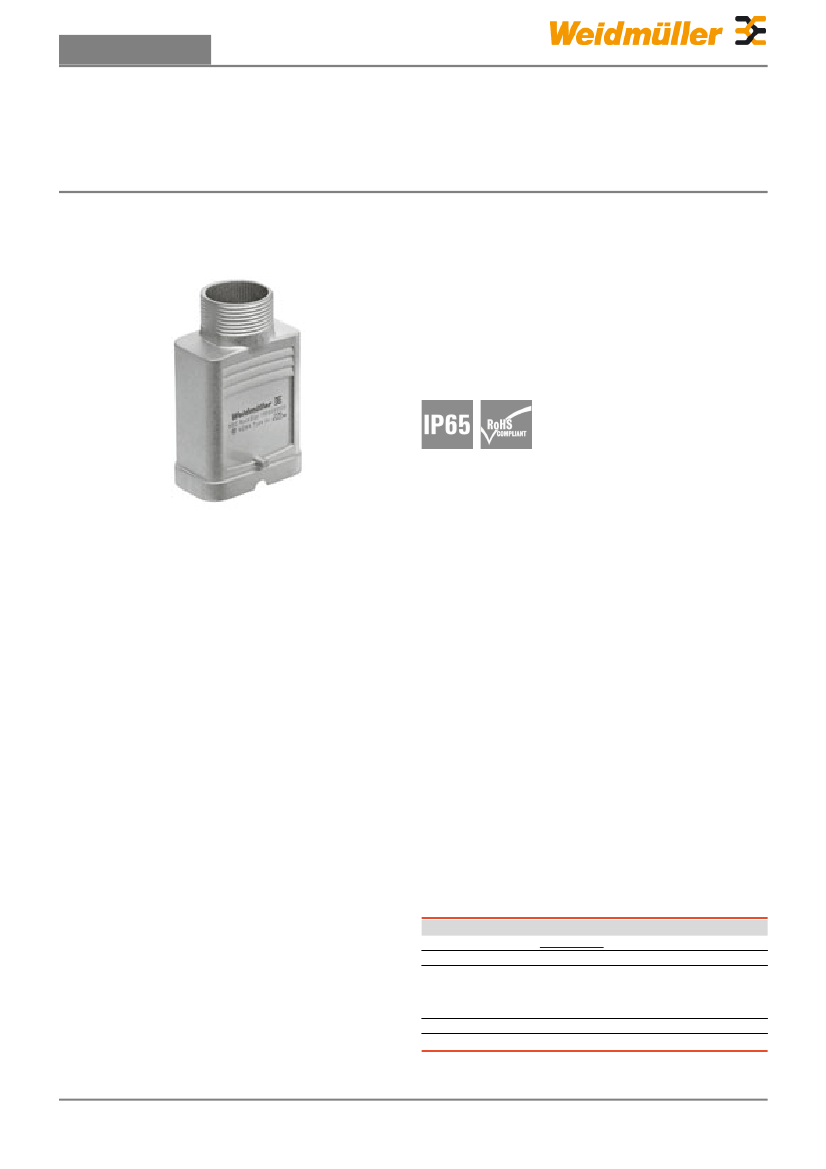

Data sheet...
HDC enclosures
HDC HQM TOLU 1PG21
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
The special die-cast alloy and the multi-layered surface
sealing provide complete protection for the HDC
housings.
The cleverly designed interlock system is manufactured
from stainless steel. This guarantees a long lifespan with
high resistance to corrosion and impact.
The housing interlock system provides integrated safety.
Our unique, patented spring system provides the housing
interlock with a secure grip and prevents accidental
opening.
The laser marking allows for easy and quick identification.
Each housing is permanently labelled with a laser
marking so that each product can be quickly designated
and positioned.
Weidmüller RockStar® IP 65 / NEMA Type 4X housings
- your first choice for industrial housings with IP 65
protection. The HQ version now offers particular
protection - the bulkhead housing (cover and metal
clamp) can be secured with a padlock.
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
1003080000
HDC HQM TOLU 1PG21
HDC enclosures, Size: HQ, Protection degree:
IP 65, Cable entry from top, Plug housing, Side-
locking clamp on lower side, Standard, Size of
cable entries: PG 21
4032248698011
1 pc(s).
Creation date July 24, 2013 6:54:02 PM CEST
Catalogue status 04.06.2013 / We reserve the right to make technical changes.
1
Data sheet...
HDC enclosures
HDC HQM TOLU 1PG21
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
50 mm
77.5 mm
Width
Net weight
Dimensions and weights
Length
Height
35 mm
200 g
Dimensions
Total length housing
Height of housing B
50 mm
77.5 mm
Width housing C
Cable entry
29 mm
w. threading
General data
Housing main material
Zinc diecast
Version
Design of housing
Design
Design of locking system
Size of cable entries
Number of cable entry sideways
Cable entry from top, Plug
housing
Standard
Side-locking clamp on
lower side
PG 21
0
Size
Top part/bottom part/lid
Cable entry
Number of cable entry on top
HQ
upper part
w. threading
1
Classifications
ETIM 2.0
UNSPSC
eClass 5.1
eClass 7.1
EC000437
30-21-18-01
27-14-34-19
27-44-02-05
ETIM 3.0
eClass 4.1
eClass 6.2
EC000437
27-14-08-05
27-14-34-19
Approvals
ROHS
Conform
Creation date July 24, 2013 6:54:02 PM CEST
Catalogue status 04.06.2013 / We reserve the right to make technical changes.
2
