SMH100-LPPE-S04-RA-BK datasheet, PDF

Datasheet> All Categories > The connector> The connector> SMH100-LPPE-S04-RA-BK

SMH100-LPPE-S04-RA-BK: Descriptionconn header 1mm 4pos; CategoryThe connector The connector; File Size297KB，1 Pages; ManufacturerSullins Connector Solutions

Download Datasheet Parametric View All

SMH100-LPPE-S04-RA-BK Overview

conn header 1mm 4pos

SMH100-LPPE-S04-RA-BK Parametric

Parameter Name	Attribute value
Maker	Sullins Connector Solutions
Reach Compliance Code	compliant
body width	0.05 inch
subject depth	0.071 inch
body length	0.157 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	SMH100
Plug contact pitch	0.039 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	0.9906 mm
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

1910

DESCRIPTION

INITIAL RELEASE

DATE

2/5/2009

1.27 .050

1.00 .039

0.30 .012

2.60 .102

1.80 .071

1.00 .039

1.80 .071

02-20, 0.20mm MAX.

21-50, 0.30mm MAX.

1.00 .039

0.60 .024

NOTES:

1. INSULATOR MATERIAL: L.C.P, UL 94V-0, BLACK COLOR.

2. CONTACT MATERIAL: PHOSPHOR BRONZE.

3. CONTACT PLATING: SEE PART NUMBER CODING.

4. CURRENT RATING: 1 AMP.

5. INSULATOR RESISTANCE: 1000 MEGA OHMS MIN.

6. CONTACT RESISTANCE: 20 MILLI OHMS MAX.

7. DIELECTRIC WITHSTANDING: AC 300V.

8. OPERATING TEMPERATURE: -40° C TO +125° C.

9. PROCESSING TEMP.: 260° C FOR 10 SECS MAX.

(INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR.

HIGHER PROCESSING TEMPERATURES MAY BE USED, PROVIDED HEAT IS

APPLIED FROM BACK SIDE OF PCB, AND INSULATOR DOES NOT EXCEED

INDICATED TEMPERATURE AND TIME.)

RECOMMENDED PCB LAYOUT

oHS COMPLIANT

DIMENSIONS ARE IN MM[INCHES]

TOLERANCES:

ANGULAR: 5

.X= .30 [.012]

.XX= .20 [.008]

.XXX= .10 [.004]

SURFACE FINISH: 63 Ra

UNLESS OTHERWISE SPECIFIED:

DRAWN

DATE

NAME

2/05/09

REMOVE ALL BURRS AND SHARP EDGES .010 MAX

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

DESCRIPTION

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

PART NUMBER

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

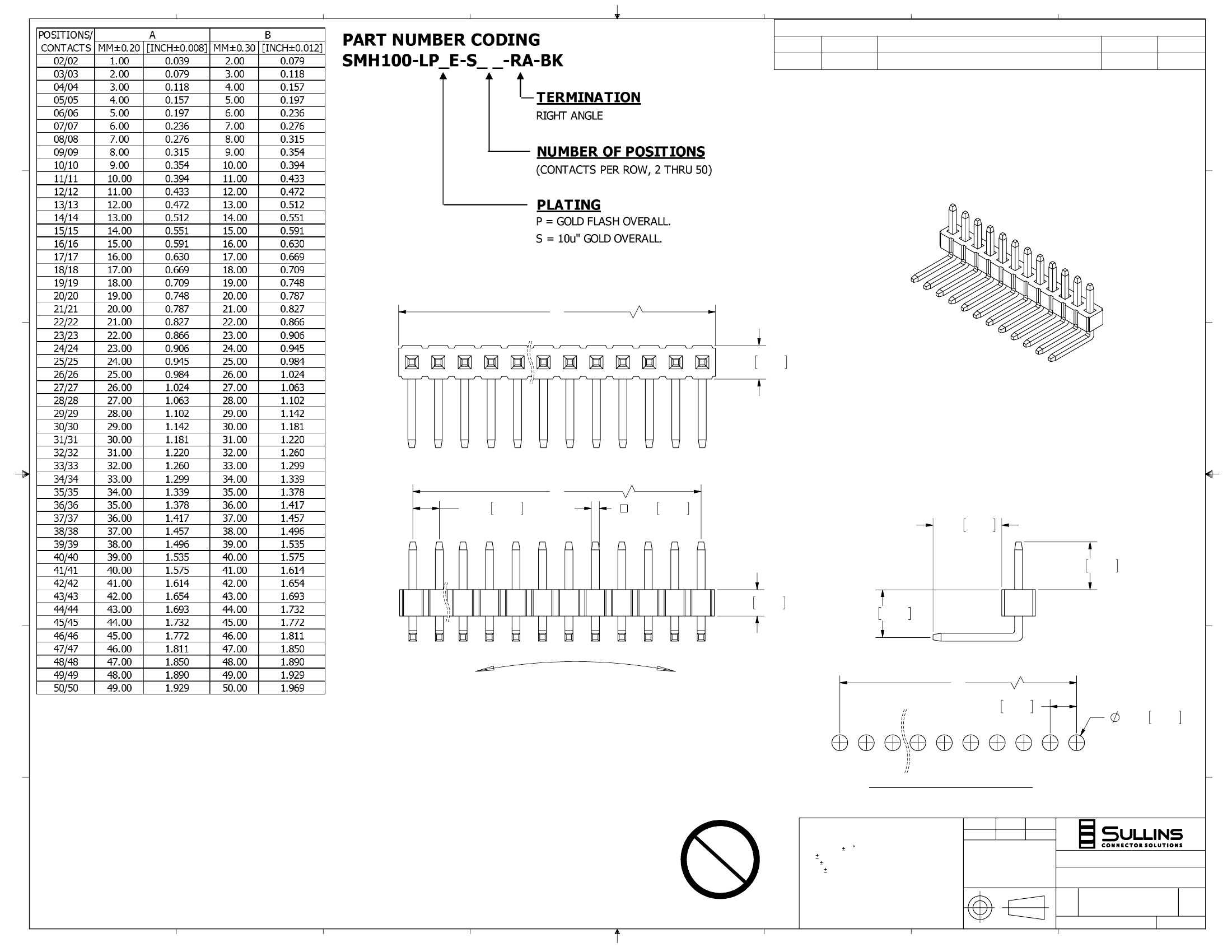

HEADER, MALE 1mm CC, 1 ROW, RA

SMH100-LP_E-S_ _-RA-BK

SIZE DWG. NO.

SCALE: 16:1

REV

INTERPRET DIMENSIONS AND GEOMETRIC

TOLERANCING

PER: ANSI Y14.5M-1994

11191

SHEET 1 OF 1

FILE NAME: C:\Documents and Settings\jhsieh\Desktop\JH PDM WIP\11191, SMH10-LP_E-S_ _-RA-BK PRINT: 3/6/2009
