35NW53.3MCA5X5 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 35NW53.3MCA5X5

Preview

35NW53.3MCA5X5: DescriptionAluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 3.3uF, Through Hole Mount; CategoryPassive components capacitor; File Size41KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

35NW53.3MCA5X5 Overview

Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 35V, 20% +Tol, 20% -Tol, 3.3uF, Through Hole Mount

35NW53.3MCA5X5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2014626905
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	3.3 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.005775 mA
Manufacturer's serial number	NW5
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	NON-POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	35 V
ripple current	11 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	WIRE

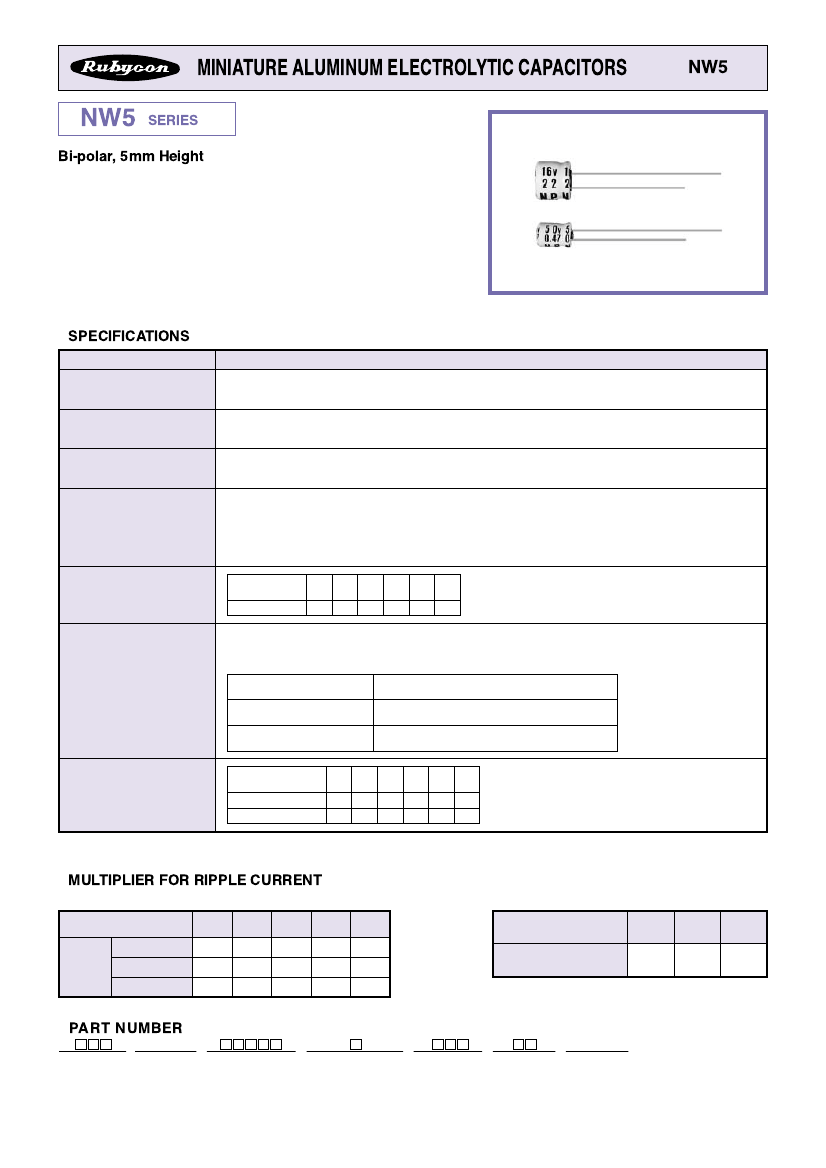

35NW53.3MCA5X5 Preview

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

NW5

SERIES

Bi-polar, 5mm Height

♦

SPECIFICATIONS

Items

Category Temperature Range

Characteristics

-40~+85°C

6.3~50V.DC

±20%(20°C,

120Hz)

Ι=0.05CV

or 10µA whichever is greater.

(After 5 minutes application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

Ι=

Leakage Current

(µA)

C=

Rated Capacitance

(µF)

(20°C, 120Hz)

V=

Rated Voltage

(V)

Dissipation Factor(MAX)

Rated Voltage

6.3 10 16 25 35 50

(V)

tan

δ

0.26 0.22 0.20 0.20 0.20 0.20

After applying rated voltage with rated ripple current for 1000hrs at 85°C, (The polarity shall be reversed every 500hrs.),

the capacitors shall meet the following requirements.

Within

±25%

of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Rated Voltage

(V)

Z(-25°C)/Z(20°C)

Z(-40°C)/Z(20°C)

Low Temperature Stability

Impedance Ratio(MAX)

6.3

6

12

10

4

10

16

4

8

25

3

6

35

2

4

50

2

4

(120Hz)

♦

MULTIPLIER FOR RIPPLE CURRENT

(1)Frequency coefficient

Frequency

(2)Temperature coefficient

500

1.20

1k

1.30

10k<

=

1.50

Coefficient

Ambient Temperature

(Hz)

0.1~1µF

2.2~4.7µF

10~47µF

60(50) 120

0.50

0.65

0.80

1.00

(°C)

85

1.0

70

1.6

50>

=

2.0

Coefficient

♦

PART

NUMBER

NW5

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

Option

Lead Forming

D×L

Case Size

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

NW5

♦

DIMENSIONS

SLEEVE

(mm)

±0.5

ød

øD

ød

F

4

5

0.45

6.3

F

1.5

2.0

2.5

L+1.5MAX

15MIN

4MIN

øD+0.5MAX

♦

STANDARD SIZE, RATED RIPPLE CURRENT

Size øD×L(mm), Ripple Current (mA r.m.s./85°C, 120Hz)

WV

(V.DC)

Cap(µF)

0.1

0.22

0.33

0.47

1

2.2

3.3

4.7

10

22

33

47

4×5

5×5

6.3×5

14

25

35

40

5×5

6.3×5

18

30

37

4×5

5×5

6.3×5

12

20

32

5×5

6.3×5

10

13

21

4×5

5×5

6.3×5

9

11

14

24

6.3

(0J)

Size

Ripple

10

(1A)

Size

Ripple

16

(1C)

Size

Ripple

25

(1E)

Size

Ripple

35

(1V)

Size

Ripple

50

(1H)

Size

4×5

5×5

Ripple

1

2

3

5

10
