450KXF39MSN20X20: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 39uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size209KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/; Environmental Compliance

Download Datasheet Parametric View All

450KXF39MSN20X20 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 450V, 39uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT

450KXF39MSN20X20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2119773122
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	39 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.39743 mA
Manufacturer's serial number	KXF
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	450 V
ripple current	360 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin (Sn)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

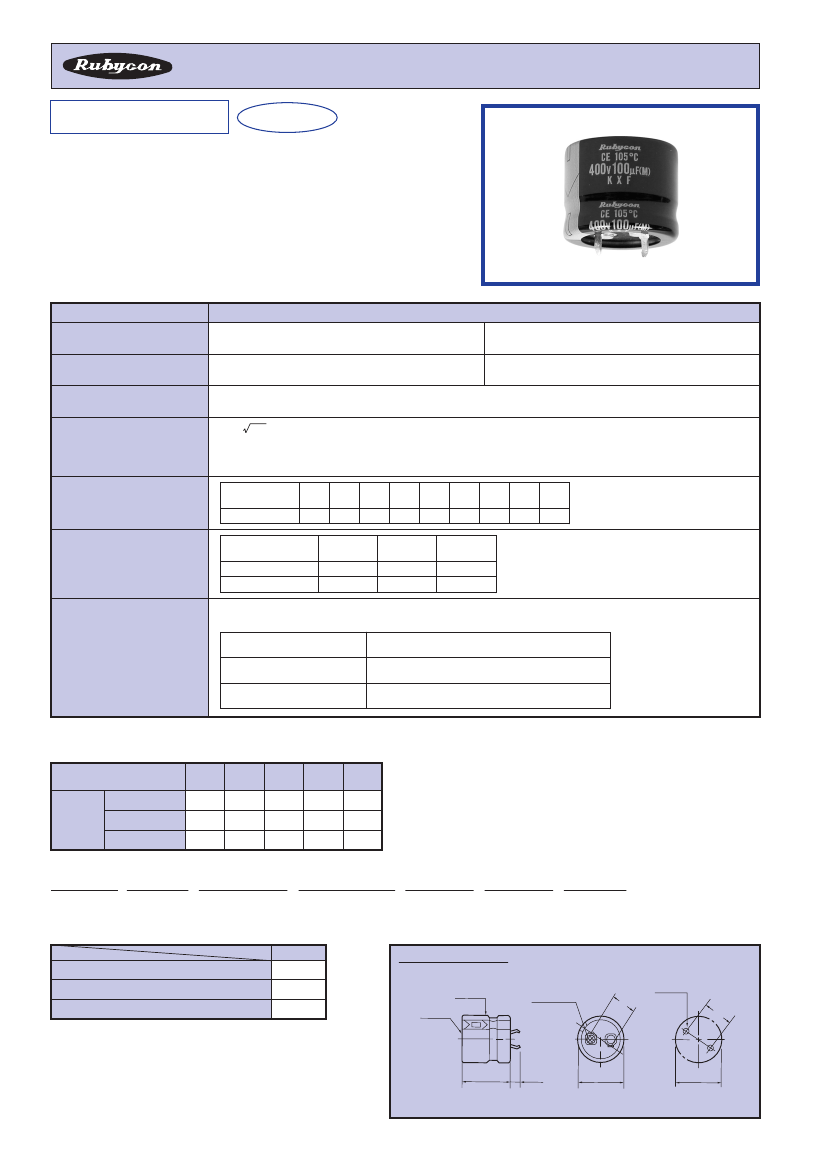

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

KXF

SERIES

UPGRADE

105℃ Low proﬁle, Snap-in Terminal Type

◆FEATURES

・

Load Life : 105℃ 3000 hours, with 20mm height.

・

Smaller size with higher ripple current endurance than AXF series.

・

RoHS compliance.

◆SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

I＝3

CV

Leakage Current(MAX)

Characteristics

−40∼＋105℃

10∼100V.DC

±20％

（20℃，

120Hz）

(After 5 minutes application of rated voltage)

−25∼＋105℃

160∼450V.DC

I＝

Leakage Current

(μA)

C＝

Rated Capacitance

(μF)

V＝

Rated Voltage

(V)

(tanδ)

Dissipation Factor(MAX)

Rated Voltage

120Hz）

10

16

25

35

50

63

80 100 160∼

（20℃，

(V)

450

tanδ

0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.20

Rated Voltage

10∼100

(V)

Z

（−25℃）（20℃）

/Z

3

Z

（−40℃）（20℃）

/Z

12

160∼250 315∼450

3

−

8

−

（120Hz）

Impedance Ratio(MAX)

After applying rated voltage with rated ripple current for 3000hrs at 105℃, the capacitors shall meet

the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Within ±20％ of the initial value.

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency coeﬃcient

Frequency

60 50） 120

（

（Hz）

10∼100WV 0.90 1.00

160∼250WV 0.80

315∼450WV 0.80

1.00

500

1.05

1.20

1k

1.10

1.30

1.25

10k≦

1.15

1.50

1.40

□

□□□

Option

Coeﬃcient

◆PART NUMBER

□□□

Rated Voltage

KXF

Series

□□□□□

Rated Capacitance

SN

Terminal Code

D×L

Case Size

Capacitance Tolerance

◆OPTION

Code

PET Sleeve without plate

PVC Sleeve without plate

PVC Sleeve with plate

◆DIMENSIONS

●SN

［4(3.5)mm½

terminal type

（mm）

EFC

OOE

Blank

VENT

SLEEVE

2-φ2

NEGATIVE

10

±0.1

L±2

※

4±0.5

※For φ35, 3.5±0.5

φD±1

MOUNTING HOLES
