Data sheet...
HDC insert
HDC S4/0 MS
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
The MixMate series of connectors can simultaneously
transmit high rated currents and voltages as well as
signals.
The wire connection level is designed as a screw
element. All screw connections are equipped with a wire
protection spring.>br> Screw connection
General ordering data
Order No.
Type
Version
GTIN (EAN)
Qty.
1023220000
HDC S4/0 MS

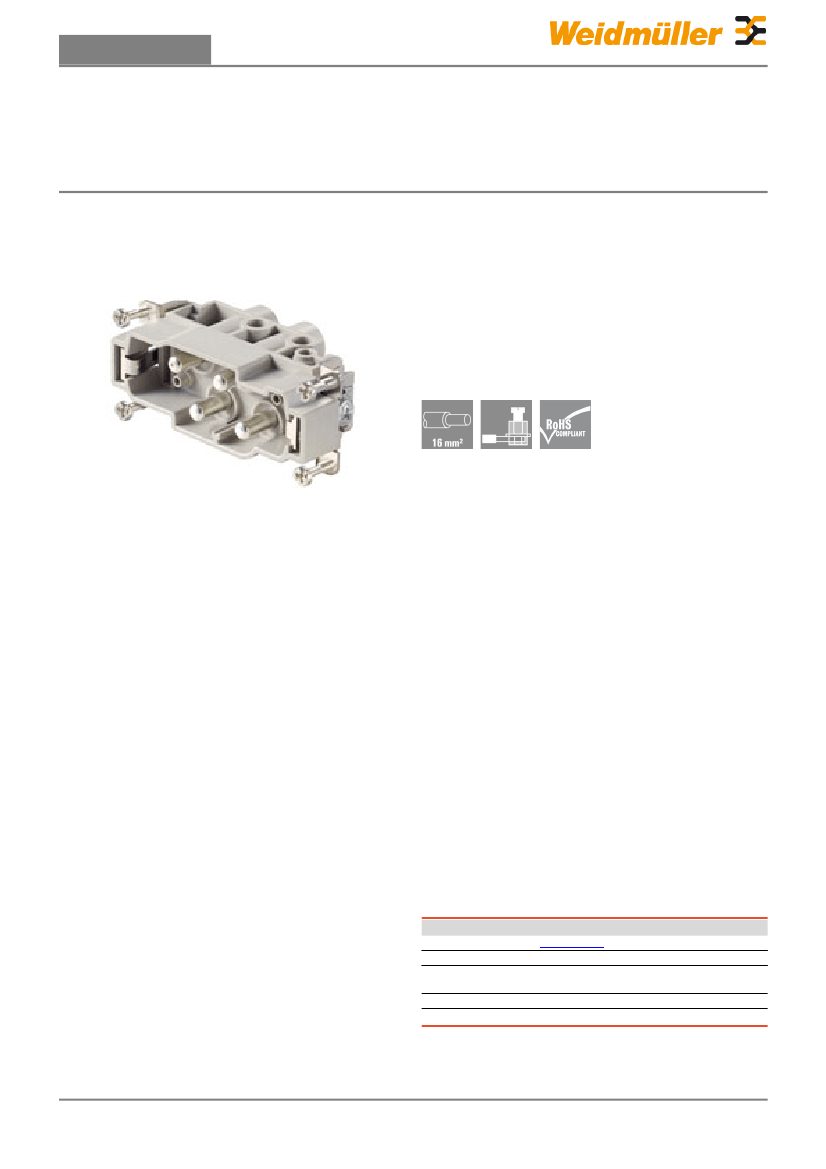

HDC insert, Male, 830 V, 80 A, No. of poles: 4,
Screw connection, Size: 6
4032248739295
1 pc(s).
Creation date April 8, 2013 11:10:45 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
1
Data sheet...
HDC insert
HDC S4/0 MS
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
84.5 mm
42 mm
Width
Net weight
Dimensions and weights
Length
Height
34 mm
109 g
Dimensions
Height of plug
42 mm
Total length base
84.5 mm
General data
Size
Rated voltage (DIN EN 61984)
Rated impulse voltage (DIN EN 61984)
UL 94 flammability rating
Insulation resistance
Conductor cross-section
Plugging cycles, silver
Type
6
830 V
8 kV
V-0
10
10
Ω
16 mm²
≥ 500
Male
Series
Rated voltage according to UL/CSA
Rated current (DIN EN 61984)
Insulating material group
Insulating material
No. of poles
Pollution severity
MixMate
600 V AC/DC
80 A
IIIa
PC glass-fibre reinforced
(UL-listed and railway-
certified)
4
3
Connection data PE
Stripping length PE connection
Wire connection cross section, finely
stranded, max.
Wire connection cross-section, finely
stranded with wire-end ferrules and
plastic collars DIN 46228/4, rated
connection, max.
Wire connection cross section AWG,
max.
Wire cross-section, solid, max.
Tightening torque, min. PE connection
Rated cross-section
Blade size, crosshead
13 mm
16 mm²
Wire connection cross-section, finely
stranded, min.
0.5 mm²
Cross-section for connected conductor,
finely stranded with wire-end ferrules
and plastic collars DIN 46228/4, rated
connection, min.
0.5 mm²
Wire connection cross section AWG,
min.
Wire cross-section, solid, min.
AWG 16
16 mm²
AWG 6
16 mm²
2 Nm
16 mm²
Gr. PH2
0.5 mm²
Connection type PE
Screw connection
Tightening torque, max. PE connection 2.5 Nm
Fixing screw
M5
Blade size, slotted (PE connection)
SD 1.2 x 6.5
Rating data
Rated current (DIN EN 61984)
Rated voltage (DIN EN 61984)
80 A
830 V
Rated impulse voltage (DIN EN 61984) 8 kV
Rated voltage according to UL/CSA
600 V AC/DC
Version
Wire connection cross section AWG,
min.
Stripping length, rated connection
Min. torque for main contact
Size
Clamping screw
Surface finish
AWG 16
15 mm
1.2 Nm
6
M6
Silver passivated
Wire connection cross section AWG,
max.
Type of connection
Max. torque for main contact
Volume resistance
Blade size, slotted (screw connection)
Material
AWG 6
Screw connection
3 Nm
≤ 1 mΩ
SD 0.8 x 4.0
Copper alloy
Creation date April 8, 2013 11:10:45 PM CEST
Catalogue status 12.03.2013 / We reserve the right to make technical changes.
2
