Model 91, 92, 93, 94 & 95 - 5/8 ” Square Single-Turn Panel Control
Mechanical Characteristics
1
Stop Strength (1/4 ” D shaft) .............................................................................................................................................45.19 N-cm (4 lb.-in.)
(1/8 ” D shaft) .............................................................................................................................................33.89 N-cm (3 lb.-in.)
Starting ........................................................................................................................................... 0.3 max. above average running torque
Running Torque
Single or Dual Section (A & R Bushings) ....................................................................................... 0.21 to 1.06 N-cm (0.3 to 1.5 oz.-in.)
Single or Dual Section (C & U Bushings) ....................................................................................... 0.14 to 1.06 N-cm (0.2 to 1.5 oz.-in.)
Mounting .............................................................................................................................................1.7-2.0 N-m (15-18 lb.-in.) maximum
Variation ...................................................................................................................... 0.35 N-cm (0.5 oz.-in.) maximum in 45 ° shaft travel
Weight (Single Section, Metal Bushing)...............................................................................................................................12.7 grams nominal
Terminals .................................................................................................................................Printed circuit terminals, J-Hooks or solder lugs
Soldering Condition ...........................................Recommended hand soldering using Sn95/Ag5 no clean solder, 0.025 ” wire diameter.
Maximum temperature 399 °C (750 °F) for 3 seconds. No wash process to be used with no clean flux.
Marking ..................................................................................Manufacturer’s trademark, date code, resistance, manufacturer’s part number
Ganging (Multiple Section Potentiometers).............................................................................................................................2 cups maximum
Hardware ...................One lockwasher and one mounting nut is shipped with each potentiometer, except where noted in the part number.
NOTE:
1
At
Performance specifications do not apply to units subjected to printed circuit board cleaning procedures.
room ambient: +25 °C nominal and 50 % relative humidity nominal, except as noted.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Model 91, 92, 93, 94 & 95 - 5/8 ” Square Single-Turn Panel Control

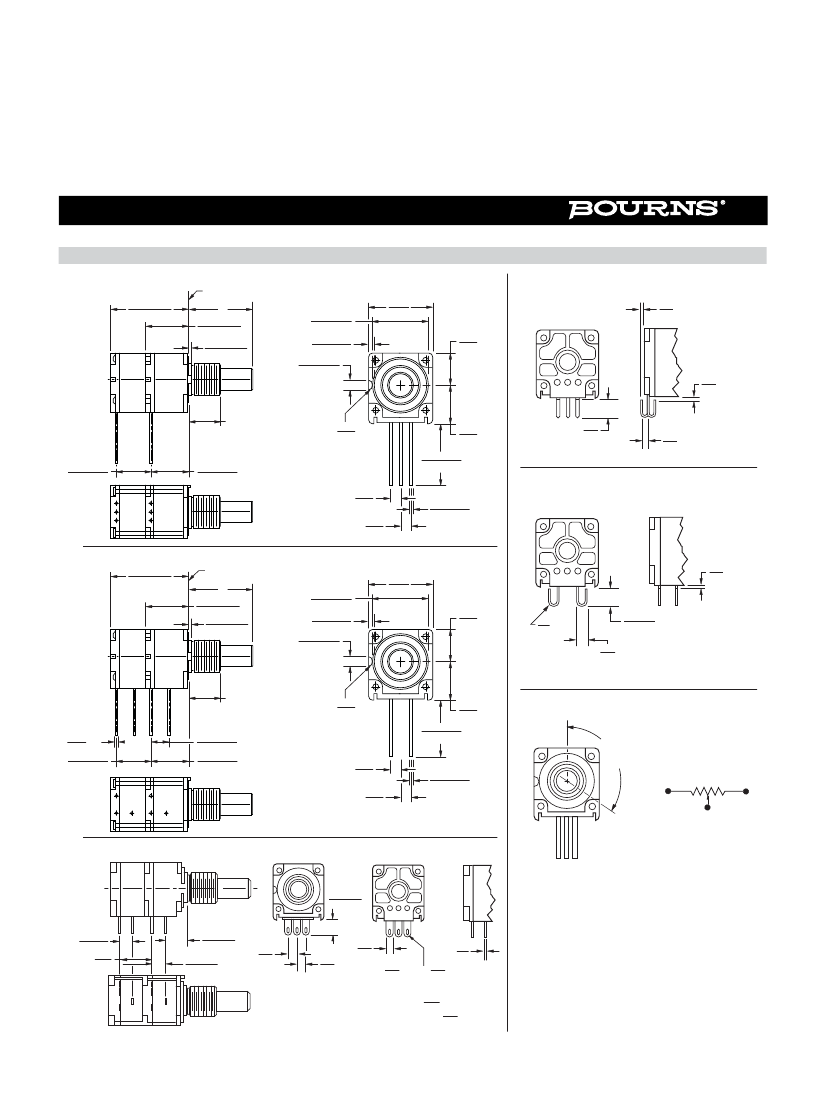

Product Dimensions
Model 91 PC Pin Terminals, In-Line
22.86 ± 0.43
(.900 ± .017)
MOUNTING
SURFACE
L
12.70 ± .229
(.500 ± .009)
0.79 ± .025
(.031 ± .010)
DIA.
13.72 ± 0.38
(.540 ± .015)
1.37 ± 0.08
(.054 ± .003)
2.36 ± 0.08
(.093 ± .003)
15.88
(.625)
7.92
(.312)
Model 92 J-Hooked
Terminals, In-Line
.79
(.031) 2 PLCS.
3 2 1
.254
(.010)
GAP
SEE
HOW TO ORDER
CHART FOR
BUSHING OPTIONS.
10.16 ± 0.30
(.400 ± .012)
11.05 ± 0.20
(.435 ± .008)
SEE
NEXT PAGE
FOR SHAFT
OPTIONS.
1.19
(.047)
“A” STYLE
A.R. LUG
R
9.53
(.375)
15.29 ± 0.56
(.602 ± .022)
5.08
(.20)
1.52
(.06)
R2
R1
1
2
3
1
2
3
2.54
(.100)
2.54
(.100)
Model 94 J-Hooked
Terminals, "L" Pattern
0.76 ± 0.05
(.030 ± .002)
TYP.
Model 93 PC Pin Terminals, "L" Pattern
22.86 ± 0.43
(.900 ± .017)
MOUNTING
SURFACE
L
12.70 ± .229
(.500 ± .009)
0.79 ± .025
(.031 ± .010)
DIA.
13.72 ± 0.38
(.540 ± .015)
1.37 ± 0.08
(.054 ± .003)
2.36 ± 0.08
(.093 ± .003)
15.88
(.625)
7.92
(.312)
3 2 1
1.52
(.06)
GAP
.81
(.032)
R. MAX.
5.33 ± .76
(.21 ± .03)
3.81
(.150)
MAX. TYP.
SEE
HOW TO ORDER
CHART FOR
BUSHING OPTIONS.
DIA.
0.81
TYP.
(.032)
10.16 ± 0.30
(.400 ± .012)
R2
R1
5.08 ± 0.38
(.200 ± .015)
11.05 ± 0.20
(.435 ± .008)
SEE
NEXT PAGE
FOR SHAFT
OPTIONS.
1.19
(.047)
“A” STYLE
A.R. LUG
R
9.53
(.375)
12.7 ± 1.02
(.500 ± .040)
Shaft Flat Orientation
2.54
(.100)
2.54
(.100)
120 ° ± 5 ° STD.
FLAT ORIENTATION
(SHAFT AT CCW END)
1
3
2
1
3
2
0.76 ± 0.05
(.030 ± .002)
TYP.
1
CCW
2
POTENTIOMETER
3
Model 95 Solder Lug Terminals, "Triangular" Pattern
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Model 91, 92, 93, 94 & 95 - 5/8 ” Square Single-Turn Panel Control
Product Dimensions
Plastic
Shaft
Styles
SHAFT TYPE "B"
(USES BUSHING A)
1.60+.38/-.00
(.063+.015/-.000)
6.32+.000/-.152
(.249+.000/.006)
DIA.
SHAFT TYPE "D"
(USES BUSHING C)
3.16+.00/-.15
DIA.
(.1245+.000/-.006)
SHAFT TYPE "T"
(USES BUSHING U)
1.50 ± .25
(0.06 ± .001)
.79
(0.03)
STD. LENGTHS:
16.0
(.630)
22.0
(.866)
1.19
(.047)
STD. LENGTHS:
15.88
19.05
(.625) (.750)
12.70
(.500)
22.23
(.875)
STD. LENGTHS:
12.70
15.88
19.05
(.500) (.625) (.750)
3.988 +0.000/-0.051
(.157 +.000/-.002)
DIA.
SHAFT TYPE "C"
(USES BUSHING A)
11.18 ± .38
(.440 ± .015)
SHAFT TYPE "R"
(USES BUSHING R)
1.80 ± .25
(0.07 ± .001)
5.994 +0.000/-0.051
(.236 +.000/-.002)
DIA.
1.00
(.04)
STD. LENGTHS:
16.0
(.630)
22.0
(.866)
SHAFT TYPE "W"
(USES BUSHING A)
14.27 ± .25
(.562 ± .010)
5.49
(.216)
STD. LENGTHS:
19.05
22.23
(.750) (.875)
6.30+.000/-.152
(.248+.000/.006)
DIA.
48 TOOTH
6.31+.025/-.051
(.2485+.001/.002)
DIA.
STD. LENGTHS:
25.40
(1.00)
Metal
Shaft
Styles
SHAFT TYPE "A"
(USES BUSHING A)
6.32+.010/-.025
(.2490+.0004/.0010)
DIA
SHAFT TYPE "H"
(USES BUSHING A)
“F” ± .38
(“F” ± .015)
6.32+.010/-.025
(.2490+.0004/.0010)
DIA
5.486 ± .051
(.216 ± .002)
25.4
(1.000)
STD. LENGTHS:
19.05
(.750)
22.23
(.875)
SHAFT TYPE "S"
(USES BUSHING R)
“F” ± .381
(“F” ± .015)
6.000+.000/-.035
(.2362+.0000/.0014)
DIA
3.988 ± .076
(.157 ± .003)
STD. LENGTHS:
16.0
(.630)
22.0
(.866)
STD. LENGTHS:
12.70
(.500)
15.88
(.625)
19.05
(.750)
22.23
(.875)
FLAT LENGTH “F”:
FLAT LENGTH “F”:
6.99
(.275)
12.98
(.511)
SHAFT TYPE "E"
(USES BUSHING C)
0.79 ± 0.25
(.031 ± .010)
3.16
(.1245)
DIA
7.95
(.313)
11.13
(.438)
SHAFT TYPE "J"
(USES BUSHING R)
1.80 ± 0.25
(.071 ± .010)
6.00+.000/-.035
(.2362+.0000/.0010)
DIA
SHAFT TYPE "V"
(USES BUSHING U)
1.50 ± 0.25
(.059 ± .010)
3.99+.000/-.035
(.1571+.0000/.0010)
DIA
0.79
(.031)
STD. LENGTHS:
12.0
(.500)
16.0
(.625)
19.0
(.750)
1.00 ± 0.13
(.039 ± .054)
STD. LENGTHS:
0.79 ± 0.13
(.031 ± .054)
STD. LENGTHS:
16.0
(.630)
22.0
(.866)
SHAFT TYPE "G"
(USES BUSHING A)
1.60+.38/-.00
(.063+.015/-.000)
6.32+.010/-.025
(.2490+.0004/.0010)
DIA.
1.194
(.047)
STD. LENGTHS:
15.88
19.05
(.625) (.750)
16.0
(.630)
22.0
(.866)
TOLERANCES EXCEPT AS SHOWN: .XX = ±
.02
(.050)
.005
.XXX = ±
(.127)
.0005
.XXXX = ±
(.0127)
12.70
(.500)
22.23
(.875)
DIMENSIONS:
MM
(INCHES)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
How to Order Model 91, 92, 93, 94 & 95 Panel Controls
91
A
2
A
-
A
28
-
A
15
/
A15
L
Part number for multiple section potentiometers must have
a taper and resistance value for each section.
A
D
ANTI-ROTATION LUG
Single .305 ” (7.8 mm) R,
90 °CW
No Lug
# SECTIONS
1 Single
2 Dual
SHAFT
LENGTH
(FMS)
Code Description
16
1/2 ”L
20
5/8 ”L
24
3/4 ”L
28
7/8 ”L
32
1 ”L
METRIC
AVAILABLE
ONLY IN
BUSHING
Code
A, C
A, C
A, C
A
A
R, U
R, U
ELEMENT TAPER
TYPE/TOLERANCE
(A)
Linear Cermet ±10 %
(H)
Linear Cermet ±5 %
RoHS IDENTIFIER
L
Compliant
16
22
16 mmL
22 mmL
A
C
R
U
BUSHING
Metal Plain 3/8 ” (9.53 mm) D x 3/8 ” (9.53 mm) L
Metal Plain 1/4 ” (6.35 mm) D x 1/4 ” (6.35 mm) L
Metal Plain 10 mm D x 9 mm L
Metal Plain 7 mm D x 9 mm L
91
92
93
94
95
MODEL
Single-Turn, In-Line PC Pins
Single-Turn, In-Line J-Hooks
Single-Turn, L-Pattern PC Pins
Single-Turn, L-Pattern J-Hooks
Single-Turn, Triangle-Pattern Solder Lugs
(B)
(E)
Linear C-P ±20 %
Linear C-P ±10 %
SHAFT TYPE
B
C
D
R
T
W
A
E
G
H
J
S
V
Plastic Single Slotted 1/4 " (6.35 mm) D
Plastic Single Flatted 1/4" (6.35 mm) D
Plastic Single Plain 1/8" (3.18 mm) D
Plastic Single Slotted 6 mm D
Plastic Single Slotted 4 mm D
Plastic Single Knurled 1/4" (6.35 mm) D
Metal Single Plain 1/4" (6.35 mm) D
Metal Single Slotted 1/8" (3.18 mm) D
Metal Single Slotted 1/4" (6.35 mm) D
Metal Single Flatted 1/4" (6.35 mm) D
Metal Single Slotted 6 mm D
Metal Single Flatted 6 mm D
Metal Single Slotted 4 mm D
AVAILABLE ONLY IN
LENGTHS
BUSHINGS
(CODE)
(CODE)
16, 20, 24, 28
A
24, 28
A
16, 20, 24
C
Metric 16, 22
R
Metric 16, 22
U
32
A
16, 20, 24
A
16, 20, 24
C
16, 20, 24, 28
A
24, 28
A
Metric 16, 22
R
Metric 16, 22
R
Metric 16, 22
U
(C)
(D)
(F)
(G)
(S)
(T)
CW Audio Cermet ±10 %
CW Audio C-P ±20 %
CCW Audio Cermet ±10 %
CCW Audio C-P ±20 %
CW Audio C-P ±10 %
CCW Audio C-P ± 10 %
RESISTANCE CODE
VALUE IN OHMS
(05) - 100
(30) - 15 K
(28) - 150
(16) - 20 K
(06) - 200
(17) - 25 K
(07) - 250
(18) - 50 K
(08) - 500
(20) - 100 K
(10) - 1 K
(21) - 200 K
(11) - 2 K
(22) - 250 K
(12) - 2.5 K (23) - 500 K
(13) - 5 K
(25) - 1 M
(15) - 10 K
(10) - 1 K
(18) - 50 K
(12) - 2.5 K
(20) - 100 K
(13) - 5 K
(22) - 250 K
(15) - 10 K
(23) - 500 K
(16) - 20 K (25) - 1 M
(17) - 25 K
(10) - 1 K
(18) - 50 K
(12) - 2.5 K (20) - 100 K
(13) - 5 K
(22) - 250 K
(15) - 10 K (23) - 500 K
(17) - 25 K (25) - 1 M
Boldface features are Bourns standard options.
All others are available with higher minimum order
quantities.
REV. 05/13
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
[i=s]This post was last edited by dcexpert on 2020-7-8 21:51[/i]Refer to ESP32-S2-Saola-1 Firmware and Download Software , write the firmware, and then refer to ESP32-S2-Saola-1 Connect USB . When run...
Can someone explain to me: If I need to use __nop() in my program, how long does it take for STM32 to execute __nop()? Is it the clock cycle? For example, if my system clock is set to 48MZ, the time i...
[i=s] This post was last edited by ljj3166 on 2018-8-27 15:35 [/i] [align=left][font=宋体]Thanks to [/font]EE[font=宋体] and [/font]GD[font=宋体] for their support [/font][/align][align=left][font=宋体] I rec...
I am a student who is currently learning how to write the MSP430 combination language. I have been writing the DS18B20 recently but I have been unable to get it to work. I would like to ask how I can ...
1. IntroductionIn the northern rural areas, every household has a stove for heating in winter. From November to March of the following year is the peak period for non-occupational carbon monoxide pois...
This program is written to simulate the serial port hardware mechanism. When used, a timed interrupt can be set with a time interval of 1/4 baud rate. The receiving function is called once for ea...[Details]
Today, with the increasing integration of functions, mobile phones can also be used as portable media players (PMP), digital cameras, handheld computers (PDAs), and even global positioning systems ...[Details]
0 Introduction
With the development of my country's economy, the number of motor vehicles continues to increase. The growth of existing roads and other hardware facilities can no longer meet t...[Details]
introduction
Throughout the history of automotive lighting, power has always played an important role. Initially, cars only needed headlights to see the road in the dark. Later, other light so...[Details]
Due to the significant increase in electronic devices in automotive and industrial applications, the automotive and industrial markets continue to play an important role in China's electronics in...[Details]
DSP (digital signal processor) is used more and more frequently in today's engineering applications. There are three main reasons for this: first, it has powerful computing power and is capable of ...[Details]
In the previous series, we have listed some basic knowledge of C language in Tables 1 to 3. We hope that beginners can strengthen their memory of the above tables and gradually learn to use them wh...[Details]
I've been studying dot matrix recently. It looks simple, but it takes a while to master it completely! The 8*8 dot matrix hardware circuit I'm making now is like this. The row is driven by 74HC138 + t...[Details]
Printed circuit boards ( PCBs
)
are used in most electrical products
. If a PCB has low
insulation resistance
(IR), the performance of the circuits on the PCB will be greatly reduced...[Details]
Only a small number of LED manufacturers can produce high-quality LEDs. For applications that are only used for simple indication, low-quality LEDs are sufficient. However, high-quality LEDs must...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
1. Introduction
With the increasing popularity of fully automatic washing machines, consumers have higher and higher requirements for their environmenta...[Details]
With the rapid development of cities and the improvement of citizens' living standards, the number of various vehicles in cities is growing, and the demand for parking spaces in major commercial an...[Details]
1 Introduction
Ultrasound refers to elastic vibration with a frequency higher than the audible frequency limit (i.e., in the frequency band above 20 kHz). The propagation process of this vib...[Details]
MicroPython Open Source section
京公网安备 11010802033920号
EEWORLD
