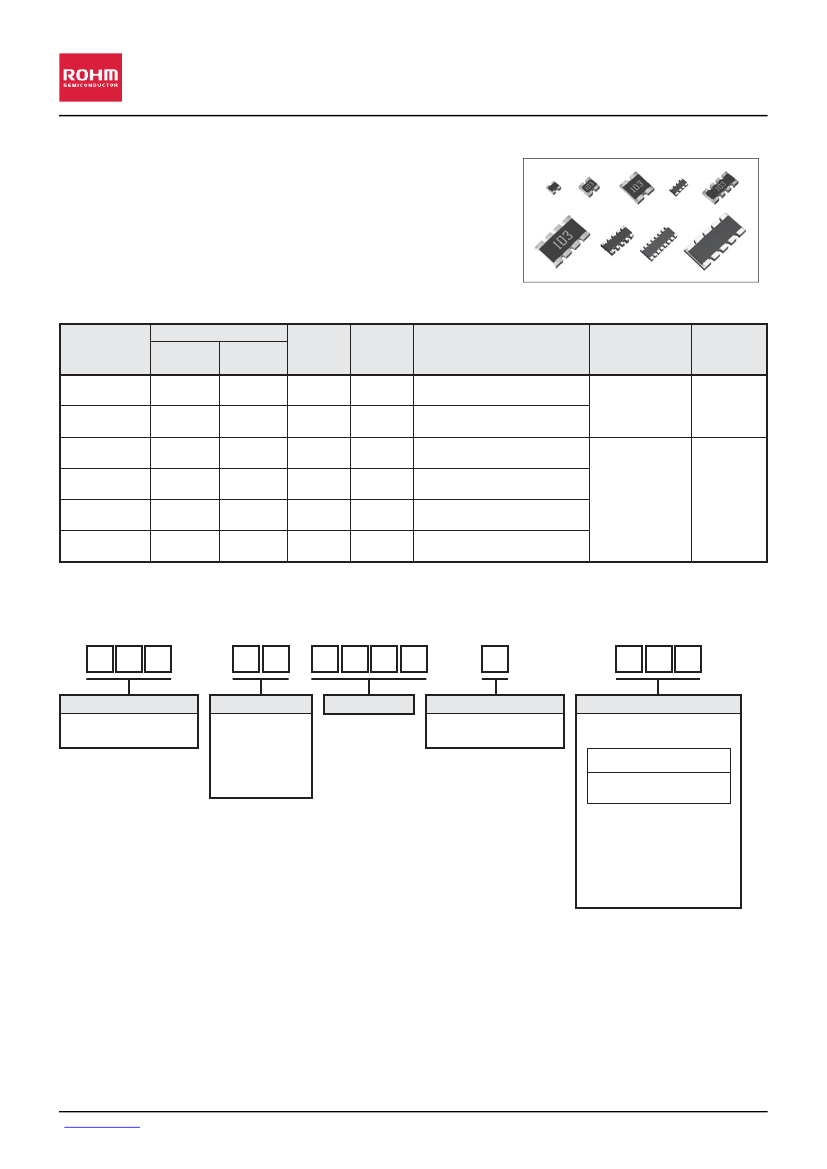

Chip Resistor Networks
MNR Series < Not for Automotive application >
Features
1) Can be mounted even more densely than chip resistors.
2) Convex electrodes secures visual inspection of fillets after soldering.
3) ROHM resistors have obtained ISO9001 / ISO / TS16949 certification.
Datasheet
Size
Part No.
(mm)
1005
×
2
1005
×
4
1608
×
2
1608
×
4
1608
×
5
1605
×
8
(inch)
0402
×
2
0402
×
4
0603
×
2
0603
×
4
0603
×
5
0602
×
8
No. of
terminals
4
8
4
8
10
16
No. of
elements
2
4
2
4
8
8
Type Code
Packing
Specification
Quantity / Reel
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
MRAP
MRAP
ERAP
ERAP
ERRP
ERAP
Paper tape
(2mm Pitch)
10,000
Paper tape
(4mm Pitch)
5,000
Part Number Description
M N R
Part No.
0 2
Size
(mm [inch])
02 (1005
[0402]
×
2)
04 (1005
[0402]
×
4)
12 (1608
[0603]
×
2)
14 (1608
[0603]
×
4)
15 (1608
[0603]
×
5)
18 (1605
[0602]
×
8)
M R A P
Type Code
J
Resistance Tolerance
F (
±1%
)
J (
±5%
)
(Including jumper type)
1 0 5
Nominal Resistance
Resistance code, 3 or 4 digits.
000 denotes jumper type.
Resistance
tolerance
F
J
:
:
Resistance
code
4 digits
3 digits
MNR
(Chip Resistor Networks)
Ex.)
1Ω = 1R0
9.1
Ω
= 9R1
10
Ω
= 10R0
100
1M
Ω
= 1004
105
(
±5%
)
(
±5%
)
(
±1%
)
(
±5%
)
(
±1%
)
(
±5%
)
www.rohm.com
c
○
2015 ROHM Co., Ltd. All rights reserved.
1/5
2015.02 - Rev.C
MNR series < Not for Automotive application >
Products List
Part No.
Type Code
Rated Power
(70°C)
(W)
Limiting Element
Voltage
(V)
Maximum
Overload
Voltage
(V)
−
Temperature Resistance
Coefficient Tolerance
(ppm /
°C)
±200
Datasheet
Resistance Range
Series
(%)
Operating
Temperature
Range
(°C)
MNR02
MRAP
0.063 / Element
25
J(±5%)
10Ω to 1MΩ
E24
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
+500/−300
1Ω to 9.1Ω
J(±5%)
±200
10Ω to 910k
−55
to
+155
E24
±200
F(±1%)
10Ω to 1MΩ
E24
MNR04
MRAP
0.063 / Element
25
50
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
±200
J(±5%)
10Ω to 1MΩ
MNR12
ERAP
0.063 / Element
50
−
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
±500
2.2Ω to 6.8Ω
J(±5%)
10Ω to 1MΩ
F(±1%)
10Ω to 1MΩ
E6
E24
MNR14
ERAP
0.063 / Element
50
−
±200
±200
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
MNR15
ERRP
0.031 / Element
12.5
−
±200
J(±5%)
56Ω to 100kΩ
E24
−55
to
+125
MNR18
ERAP
0.063 / Element
25
−
±250
J(±5%)
10Ω to 1MΩ
E24
Jumper type : Rmax = 50m
Ω
/ Imax. = 1A (Element)
∗Design
and specifications are subject to change without notice. Carefully check the specification sheet supplied with the product
before using or ordering it.
Circuit Construction
MNR02 / 12
MNR04 / 14
MNR15
R1
R1
R2
R1
R2
R3
R4
R5
R6
R7
R8
R2
R3
R4
MNR18
R1
R2
R3
R4
R5
R6
R7
R8
R1=R2
R1=R2=R3=R4
R1=R2=R3=R4=R5=R6=R7=R8 R1=R2=R3=R4=R5=R6=R7=R8
www.rohm.com
c
○
2015 ROHM Co., Ltd. All rights reserved.
2/5
2015.02 - Rev.C
MNR series < Not for Automotive application >

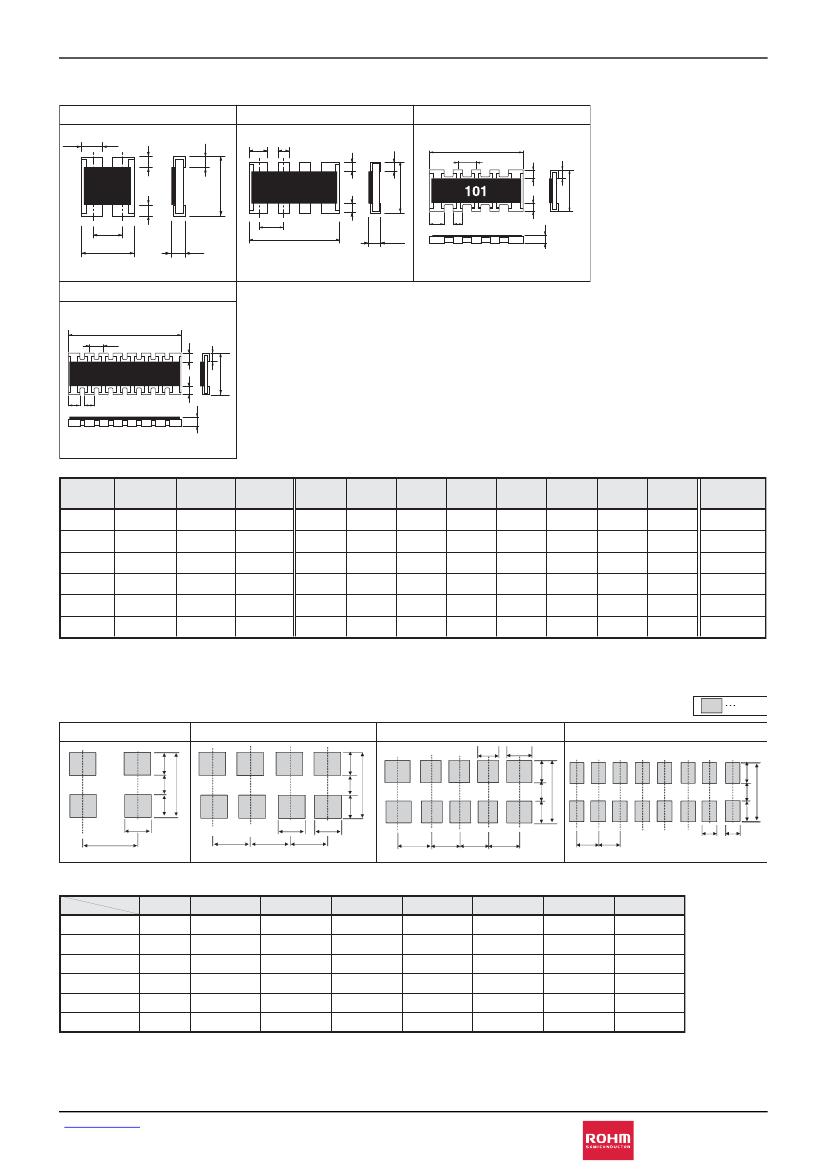

Chip Resistor Dimensions and Markings
MNR02 / 12
b2
c
a
a
W
a
p
t
L
p
L
b2
b1
c
p
a
W
a
t
b2
b1
t
a
W
Datasheet
MNR04 / 14
L
MNR15
c
103
103
MNR18
L
p
a
c
102
a
b2 b1
t
W
<Marking method>
There are three or four digits used for the calculation
number according to IEC code and “R”is used for the
decimal point.
(Unit : mm)
Part No.
Type Code
(mm)
(inch)
L
W
t
a
b1
b2
c
p
∗
Including jumper type
Marking
existence
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
MRAP
MRAP
ERAP
ERAP
ERRP
ERAP
1005
×
2
1005
×
4
1608
×
2
1608
×
4
1608
×
5
1605
×
8
0402
×
2
0402
×
4
0603
×
2
0603
×
4
0603
×
5
0602
×
8
1.0±0.1
2.0±0.1
1.6±0.15
3.2±0.2
3.2±0.2
4.0±0.2
1.0±0.1
1.0±0.1
1.6±0.15
1.6±0.15
1.6±0.15
1.6±0.1
0.3±0.1
0.4±0.1
0.45±0.1
0.5±0.1
0.55±0.1
0.4±0.1
0.15±0.1
0.2±0.1
0.3±0.2
0.3±0.2
−
0.33±0.1
−
0.25±0.1
0.25±0.2
0.3±0.2
0.3±0.2
0.3±0.15
0.3±0.2
0.67
0.5
0.8
0.8
0.64
0.5
No
Yes
Yes
Yes
Yes
Yes
0.3±0.1
−
0.6±0.15
−
−
−
0.5±0.15
0.3±0.15 0.32±0.15
0.3±0.2
0.25±0.1
Land pattern Example
Land
MNR02 / 12
C
A D
C
B
P1
P2
MNR04 / 14
C
MNR15
E
B
C
A D
C
A D
C
MNR18
C
A D
C
B
B
E
P1
P2
B
P2
P1
P1
P2
P1
P1
(Unit : mm)
Part No.
Dimensions
Type Code
MRAP
MRAP
ERAP
ERAP
ERRP
ERAP
A
0.5
0.5
1.0
1.0
1.0
1.0
B
0.35 to 0.4
0.4
0.4 to 0.6
0.4 to 0.6
0.48
0.3
C
0.5
0.5
0.7 to 0.8
0.7 to 0.8
0.7 to 0.8
0.7 to 0.8
D
1.5
1.5
2.4 to 2.6
2.4 to 2.6
2.4 to 2.6
2.4 to 2.6
E
−
0.3
−
0.4
0.32
−
P1
0.65 to 0.7
0.5
0.8 to 1.0
0.8
0.64
0.5
P2
−
0.5 to 0.55
−
0.8 to 0.9
0.72
−
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
www.rohm.com
c
○
2015 ROHM Co., Ltd. All rights reserved.
3/5
2015.02 - Rev.C
MNR series < Not for Automotive application >
Derating Curve
Datasheet
When the ambient temperature exceeds 70°C, power dissipation must be adjusted according to the derating curves below.
MNR02 / 04 / 12 / 14
100
PERCENT RATED POWER (%)
PERCENT RATED POWER (%)
MNR15 / 18
100
80
60
40
20
0
80
60
40
20
0
−55
0
70
100
155
−55
0
70
100
125
AMBIENT TEMPERATURE (
°
C)
AMBIENT TEMPERATURE (°C)
Characteristics
Test Items
Resistance
Variation of resistance
with temperature
Guaranteed Value
Resistor Type
Jumper Type
See "Products List"
20°C
Test Conditions
See "Products List"
Measurement :
+20
/
−55
/
+20
/
+125°C
Rated voltage (current)
×2.5,
2s.
Maximum overload voltage
Rosin·Ethanol : 25% (weight)
Soldering condition : 235±5°C
Duration of immersion : 2.0±0.5s
Overload
±
(2.0%+0.1Ω)
Max. 50mΩ
Solderability
A new uniform coating of minimum of
95% of the surface being immersed
and no soldering damage.
±
(1.0%+0.05Ω)
Max. 50mΩ
Resistance to
soldering heat
No remarkable abnormality on the appearance.
Soldering condition : 260±5°C
Duration of immersion : 10±1s
Rapid change of
temperature
±
(1.0%+0.05Ω)
Max. 50mΩ
Test temp. :
−55°C
to
+125°C
5cycle
Damp heat, steady state
±
(3.0%+0.1Ω)
Max. 100mΩ
40°C, 93%RH (Relative Humidity)
Test time : 1,000h to 1,048h
70°C
Rated voltage (current)
1.5h : ON
−
0.5h : OFF
Test time : 1,000h to 1,048h
125°C (MNR15 / 18)
155°C (MNR02 / 04 / 12 / 14)
Test time : 1,000h to 1,048h
23±5°C, Immersion cleaning, 5±0.5min
Solvent : 2−propanol
Endurance at 70°C
±
(3.0%+0.1Ω)
Max. 100mΩ
Endurance
±
(3.0%+0.1Ω)
Max. 100mΩ
Resistance to solvent
±
(1.0%+0.05Ω)
±
(1.0%+0.05Ω)
Max. 50mΩ
Max. 50mΩ
Bend strength of
the end face plating
Without mechanical damage such as breaks.
−
Compliance Standard(s) : IEC60115−8
JISC 5201−8
www.rohm.com
c
○
2015 ROHM Co., Ltd. All rights reserved.
4/5
2015.02 - Rev.C
MNR series < Not for Automotive application >

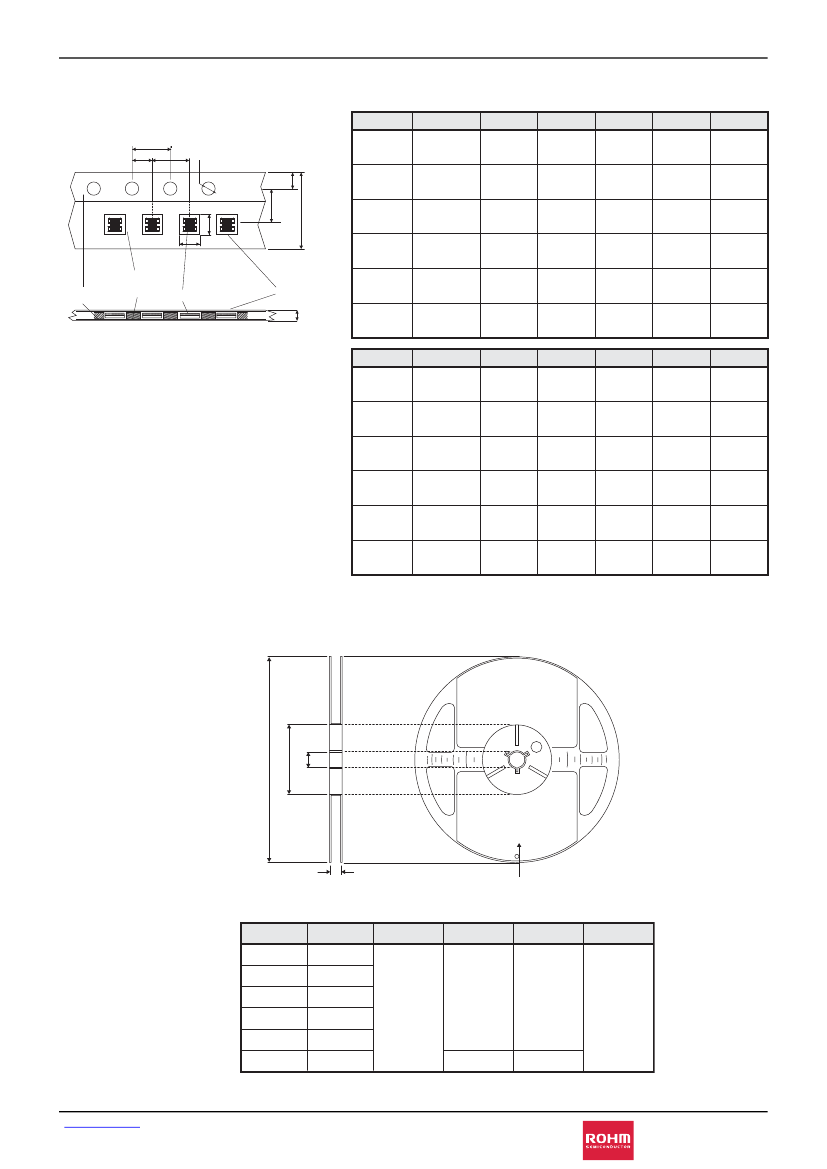

Tape Dimensions
Datasheet
(Unit : mm)
Paper
Tape
P
0
P
2
P
1
φD
0
E
F
B
0
A
0
Part No.
MNR02
Type Code
MRAP
W
8.0±0.3
F
3.5±0.05
E
1.75±0.1
A
0
1.2±0.1
B
0
1.2±0.1
MNR04
W
MRAP
8.0±0.3
3.5±0.05
1.75±0.1
1.2±0.1
2.2±0.1
MNR12
ERAP
8.0±0.3
3.5±0.05
1.75±0.1
1.9±0.1
1.9±0.1
MNR14
Top tape
Base paper
(Bottom tape)
Components
Cavity
T
2
ERAP
8.0±0.3
3.5±0.05
1.75±0.1
1.9±0.1
3.45±0.1
MNR15
ERRP
8.0±0.3
3.5±0.05
1.75±0.1
1.9±0.1
3.5±0.2
MNR18
ERAP
12.0±0.2
5.5±0.05
1.75±0.1
1.9±0.2
4.3±0.2
Part No.
MNR02
Type Code
MRAP
D
0
P
0
4.0±0.1
P
1
2.0±0.1
P
2
2.0±0.05
T
2
Max 0.5
φ1.5
φ1.5
φ1.5
φ1.5
φ1.5
φ1.5
+0.1
0
+0.1
0
+0.1
0
+0.1
0
+0.1
0
+0.1
0
MNR04
MRAP
4.0±0.1
2.0±0.1
2.0±0.05
Max 1.1
MNR12
ERAP
4.0±0.1
4.0±0.1
2.0±0.05
Max 1.1
MNR14
ERAP
4.0±0.1
4.0±0.1
4.0±0.1
4.0±0.1
2.0±0.05
2.0±0.05
Max 1.1
Max 1.1
MNR15
ERRP
MNR18
ERAP
4.0±0.1
4.0±0.1
2.0±0.05
Max 1.1
Reel Dimensions
Fig.1
(MNR02 / 04 / 12 / 14 / 15 / 18)
08
06
04
02
02
04
06
08
A
B
D
C
Label
According to EIAJ ET-7200B (RRM)
(Unit : mm)
Part No.
MNR02
MNR04
MNR12
MNR14
MNR15
MNR18
Type Code
MRAP
MRAP
ERAP
ERAP
ERRP
ERAP
φ80±1.0
13.8±0.5
φ178±2.0
φ60±1.0
9.0±0.5
φ13.5±0.5
A
B
C
D
www.rohm.com
c
○
2015 ROHM Co., Ltd. All rights reserved.
5/5
2015.02 - Rev.C
