3M
TM
FOUR-WALL CONDO HEADER, 3000 SERIES
DIM. "A"
.100" X .100" LATCH/EJECTOR, RIGHT ANGLE
D
.90
22.7
* STACKED PINS CONSERVE SPACE ON THE CIRCUIT BOARD
ALLOWING HIGHER DENSITY PACKAGING.
* PIN QUANTITY TO 128 GIVES DESIGN FLEXIBILITY WITH
LATCHING.
* "HDI" ALTERNATIVE.
* ACCEPTS STANDARD IDC SOCKETS.
* MATES WITH STANDARD FLAT CABLE HARNESSES.
* HIGH TERMERATURE INSULATOR SUITABLE FOR "NO LEAD"
SOLDERING OPERATIONS.
* SUITABLE FOR REFLOW SOLDERING USING "PASTE IN HOLE"
TECHNIQUES.
D
-L00X
HEADER WITHOUT LATCH EJECTOR
2
PHYSICAL:
INSULATOR:
MATERIAL:
FLAMMABILITY:
COLOR:
CONTACT:
MATERIAL:
PLATING:
UNDER PLATING:
WIPING AREA:
SOLDER TAILS:
MARKINGS:
GLASS FILLED POLYESTER (PCT)
UL94V-0
BLACK
COPPER ALLOY
100 " [2.54 m] NICKEL-OVERALL
30 " [0.76 m] AVG. GOLD
200 " [5.08 m] TIN LEAD OR MATTE TIN (SEE ORDERING INFORMATION)
3M LOGO, PART IDENTIFICATION NUMBER AND ORIENTATION TRIANGLE
4
.424
10.77
.010
0.25
.08
2.0
1.18
30.1
2
ELECTRICAL:
C
C
.37
9.5
CURRENT RATING: 1A (EIA 364-70)
INSULATION RESISTANCE: >1 X 10
9
AT 500 V
DC
WITHSTANDING VOLTAGE: 1,000V
RMS
AT SEA LEVEL
-L20X
HEADER WITH SHORT LATCH EJECTOR
FOR 3M SOCKETS WITHOUT STRAIN RELIEF
2
ENVIRONMENTAL:
TEMPERATURE RATING: -55 C TO 105 C
PROCESS RATING: 260 C, PER J-STD-020C, SINGLE PASS
MOISTURE SENSITIVITY LEVEL: 1 (PER J-STD-020C)
REVISION
DRAWING NUMBER
.573
14.55
.010
0.25
.08
2.0
1.28
32.5
B
.46
11.7
-L30X
HEADER WITH LONG LATCH EJECTOR
FOR 3M SOCKETS WITH STRAIN RELIEF
ORDERING INFORMATION
X3XXX-LXXXXX
K
60056
MAR
06,2015
78-5100-0774-9
JNC
RS
K
B
N= HIGH TEMP BLACK (PCT)/(RB PLATING REQ'D)
BLANK= (UB PLATING)
3M PART NUMBER:
(SEE TABLE 1)
PLATING:
RB = 30 " [0.76 m] GOLD AND 200 " [5.08 m] MATTE TIN
(APP. E1 & C1 APPLY)
UB = 30 " [0.76 m] GOLD AND 200 " [5.08 m]
TIN LEAD (APP. E3 & C2 APPLY)
TAIL:
02 = FOR .062 [1.57] THICK BOARD
03 = FOR .094 TO .125 [2.39 TO 3.18] THICK BOARD
DIMENSIONS: INCHES [MM]
[MM] IS REF. ONLY
DESIGN REFERENCE
ACCESS
CODES
REVISE ORDERING
NUMBER
J
REV
DRFT
56068
ECO
AUG 05,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
NEXT ASSEMBLY
A
LATCH/EJECTOR SYSTEM:
0 = NO LATCH/EJECTOR INSTALLED
2 = SHORT ROLL PIN LATCH/EJECTORS
3 = LONG ROLL PIN LATCH/EJECTORS
3M ELECTRONIC MATERIALS SOLUTIONS DIVISION
INTERCONNECT SOLUTIONS
http://www.3mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
CASTIGLIONE
CHKD
AUG 05,2014
DATE
APPVL
R. SCHERER
DIVISION
DIVISION CODE
SEP 05,2014
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
2
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
R
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
UL FILE NO: E68080
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 4-WALL,
CONDO, .100 X .100
LATCH/EJECTOR, RA
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0774-9
DET.
LISTS
YES
NO
K
3000 SERIES
SHT 1 OF 3
8
7
6
5
4
3
2
1
Imaged: K.1 3/6/2015 12:57 PM UTC-06:00
8
7
6
5
4
3
2
1
3M
TM

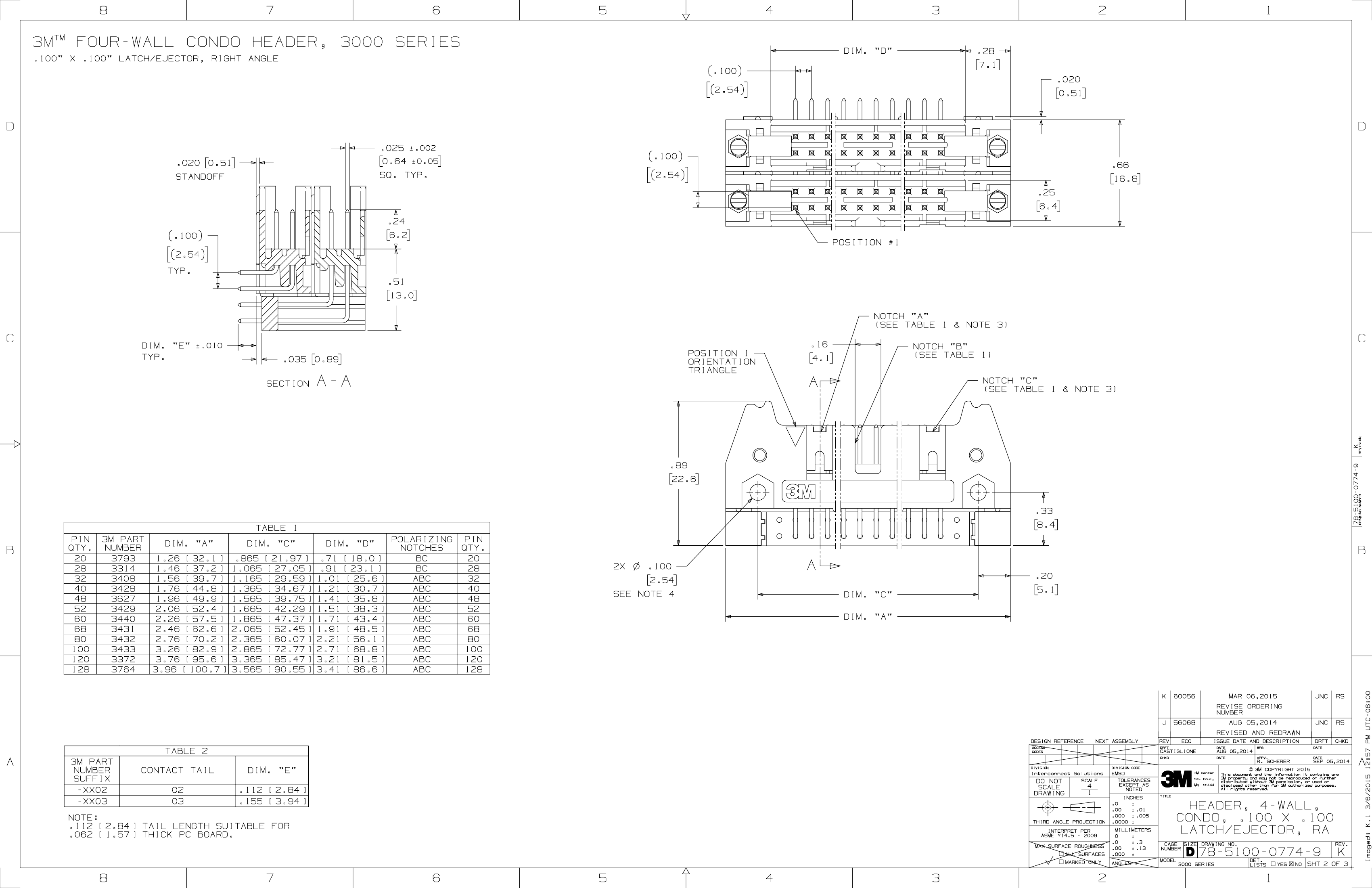

FOUR-WALL CONDO HEADER, 3000 SERIES
.100
2.54
.100" X .100" LATCH/EJECTOR, RIGHT ANGLE
DIM. "D"
.28
7.1
.020
0.51
D
.025
.020 0.51
STANDOFF
0.64
.002
0.05
D
.100
.66
2.54
.25
6.4
.24
.100
2.54
TYP.
.51
13.0
NOTCH "A"
(SEE TABLE 1 & NOTE 3)
6.2
POSITION #1
16.8
SQ. TYP.
C
DIM. "E"
TYP.
.010
.16
.035 0.89
SECTION
POSITION 1
ORIENTATION
TRIANGLE
4.1
NOTCH "B"
(SEE TABLE 1)
NOTCH "C"
(SEE TABLE 1 & NOTE 3)
C
A-A
A
22.6
.33
TABLE 1
8.4
DIM. "D"
.71 [18.0]
.91 [23.1]
1.01 [25.6]
1.21 [30.7]
1.41 [35.8]
1.51 [38.3]
1.71 [43.4]
1.91 [48.5]
2.21 [56.1]
2.71 [68.8]
3.21 [81.5]
3.41 [86.6]
POLARIZING
NOTCHES
BC
BC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
ABC
PIN
QTY.
20
28
32
40
48
52
60
68
80
100
120
128
PIN
QTY.
20
28
32
40
48
52
60
68
80
100
120
128
3M PART
DIM. "A"
NUMBER
3793
1.26 [32.1]
3314
1.46 [37.2]
3408
1.56 [39.7]
3428
1.76 [44.8]
3627
1.96 [49.9]
3429
2.06 [52.4]
3440
2.26 [57.5]
3431
2.46 [62.6]
3432
2.76 [70.2]
3433
3.26 [82.9]
3372
3.76 [95.6]
3764
3.96 [100.7]
B
DIM. "C"
.865 [21.97]
1.065 [27.05]
1.165 [29.59]
1.365 [34.67]
1.565 [39.75]
1.665 [42.29]
1.865 [47.37]
2.065 [52.45]
2.365 [60.07]
2.865 [72.77]
3.365 [85.47]
3.565 [90.55]
2X
.100
2.54
A
DIM. "C"
DIM. "A"
.20
5.1
SEE NOTE 4
78-5100-0774-9
K
60056
MAR
06,2015
.89
B
DRAWING NUMBER
REVISION
K
JNC
RS
REVISE ORDERING
NUMBER
J
DESIGN REFERENCE
NEXT ASSEMBLY
REV
DRFT
56068
ECO
AUG 05,2014
REVISED AND REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
DATE
RS
CHKD
TABLE 2
ACCESS
CODES
CASTIGLIONE
CHKD
AUG 05,2014
DATE
APPVL
A
3M PART
NUMBER
SUFFIX
-XX02
-XX03
R. SCHERER
SEP 05,2014
CONTACT TAIL
02
03
DIM. "E"
.112 [2.84]
.155 [3.94]
DIVISION
DIVISION CODE
Interconnect Solutions
EMSD
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
.01
.005
TITLE
3M Center
St. Paul,
MN
DO
NOT
SCALE
DRAWING
SCALE
4
1
55144
C
3M COPYRIGHT 2015
This document and the information it contains are
3M
property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
A
NOTE:
.112 [2.84] TAIL LENGTH SUITABLE FOR
.062 [1.57] THICK PC BOARD.
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
MILLIMETERS
0
.0
.3
.00
.13
.000
ANGLES
HEADER, 4-WALL,
CONDO, .100 X .100
LATCH/EJECTOR, RA
CAGE SIZE DRAWING NO.
NUMBER
MODEL
REV.
78-5100-0774-9
DET.
LISTS
YES
NO
K
3000 SERIES
SHT 2 OF 3
8
7
6
5
4
3
2
1
Imaged: K.1 3/6/2015 12:57 PM UTC-06:00
8
7
6
5
4
3
2
1
3M
TM

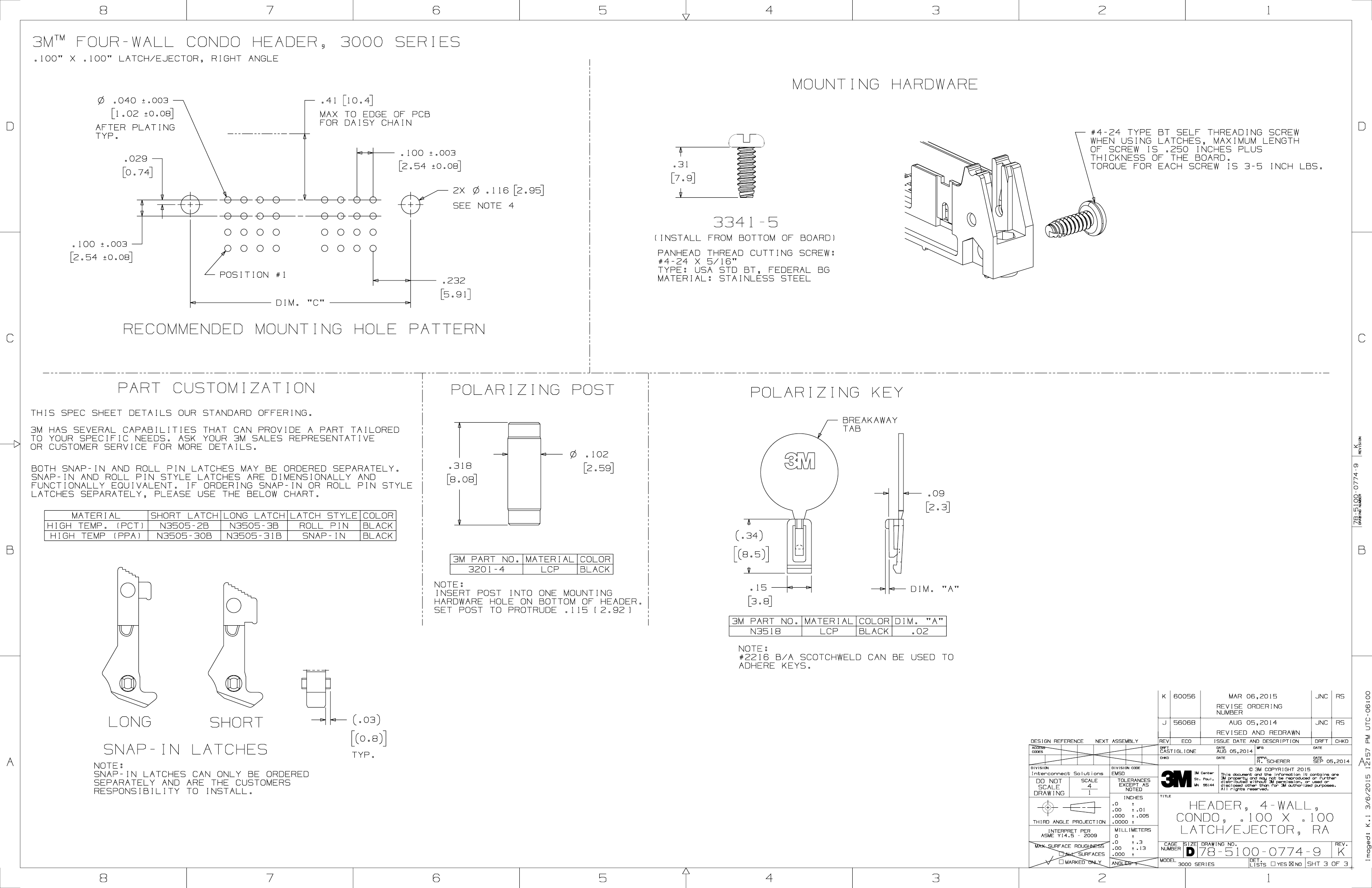

FOUR-WALL CONDO HEADER, 3000 SERIES
