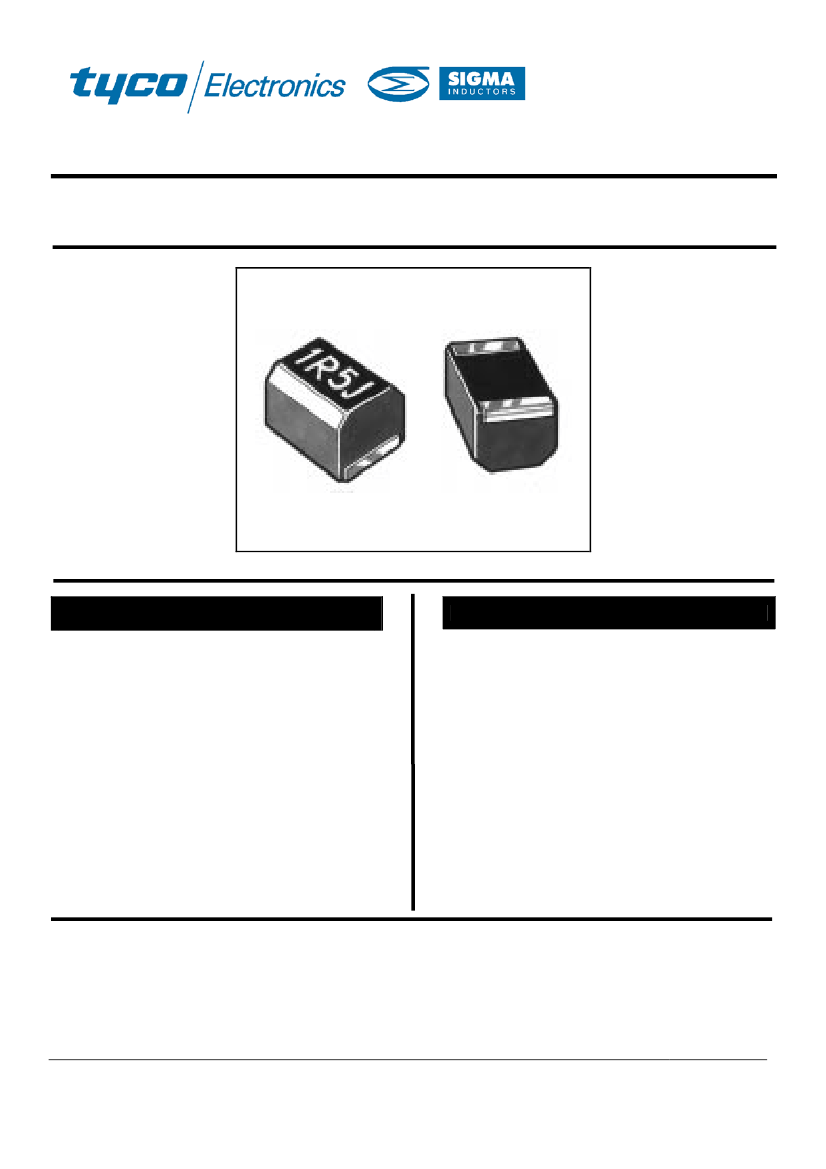

winding on ferrite, of particularly high quality and
reliability. Packaged in reels of 2000 pieces these
devices are used on automatic pick and place
machines for high speed mounting. Wide solder
coated intergrated terminals aid accurate
placement. The 3612 series is offered in five
versions, the M, L, S, T and P styles. The M is an
economy version, the L offers low inductance
values, the S is shielded whilst the T is the standard
style. The P style is a recently introduced power
version offering surprisingly high current carrying
capability.
•
•
•
•
•
•
•
•
Inductance of 0.01µH to 470µH
Suitable for Dip and Wave Solder
Small Size - 3.2 x 2.5 mm (1210)
Temperature Range -20°C to +100°C
Taped to IEC 286 Pt3
Laboratory Design Kits Available
High Reliability
Available from Stock
STOCKISTS:
This product is not available on Distribution.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 1 of 5
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3612 SERIES
ELECTRICAL ~ Style M (Economy)
1
st
April 2003
ISSUE 3

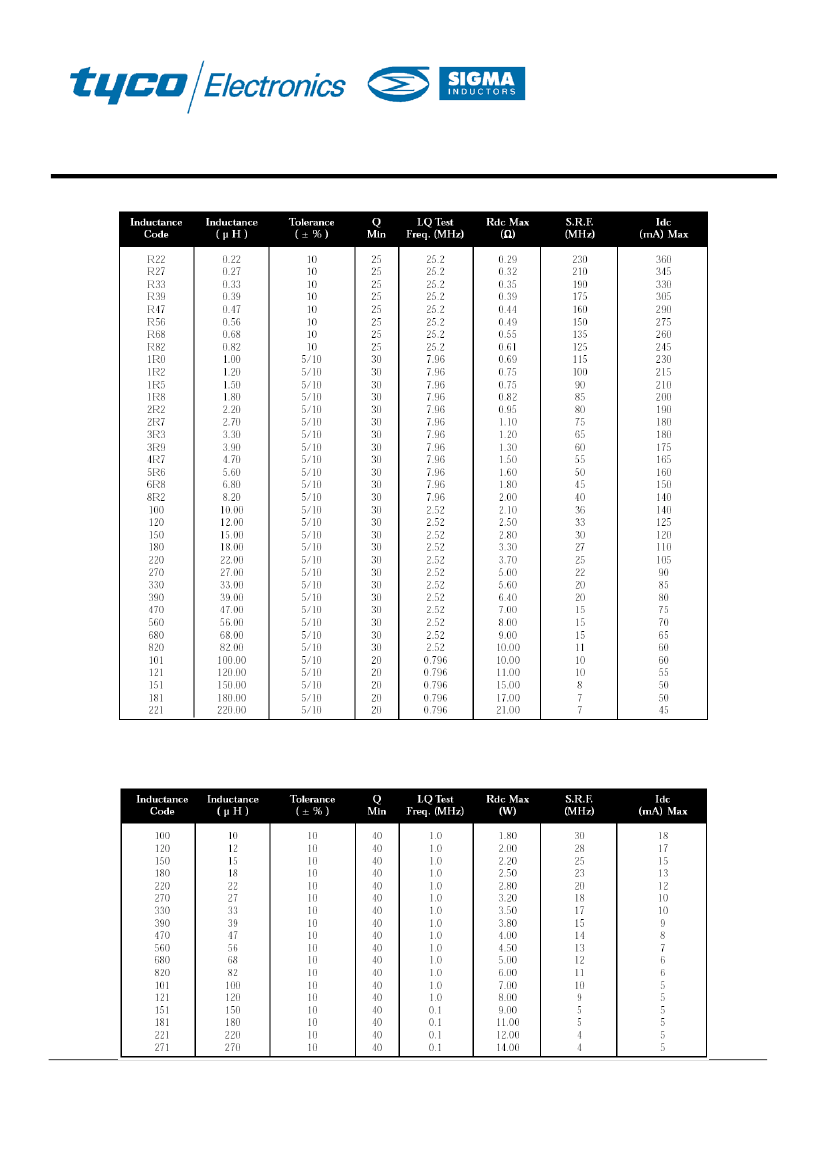

ELECTRICAL ~ Style S (Shielded)
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 2 of 5
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3612 SERIES
ELECTRICAL ~ Style P (High Current)
1
st
April 2003
ISSUE 3
ELECTRICAL ~ Style L (Low Inductance)
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 3 of 5
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3612 SERIES

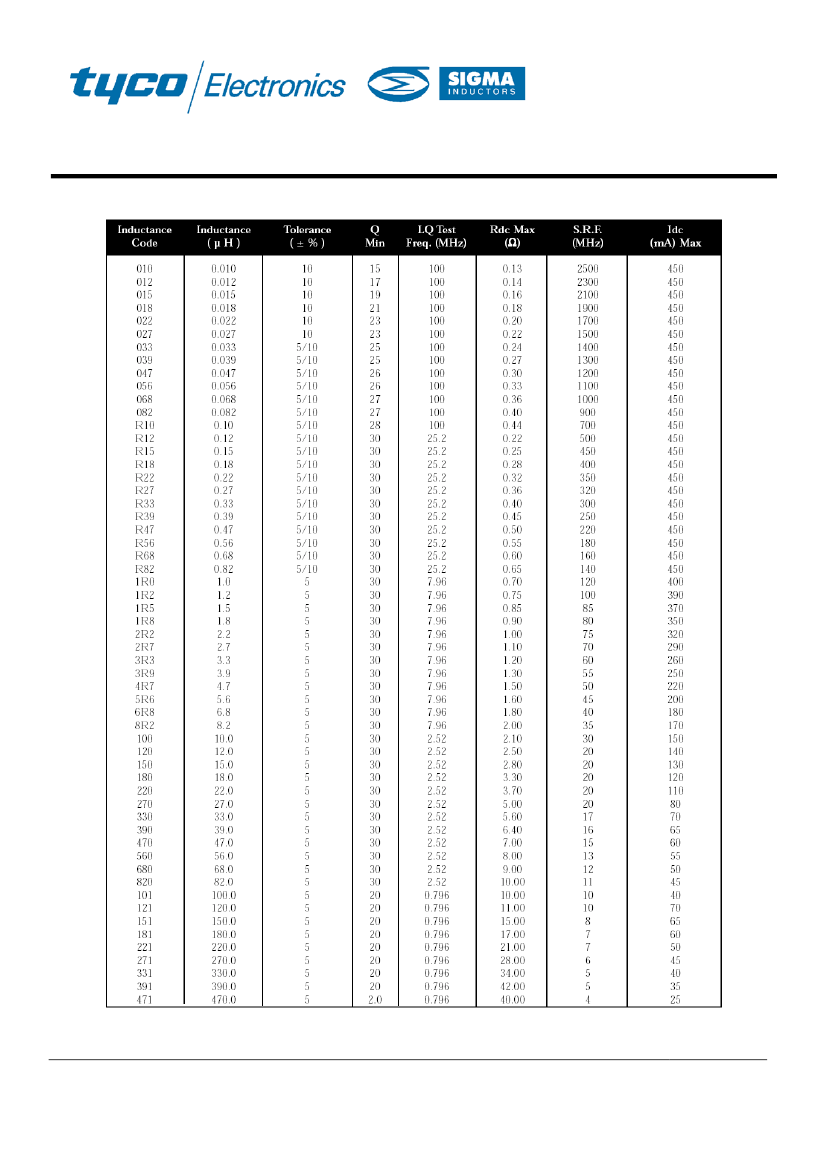

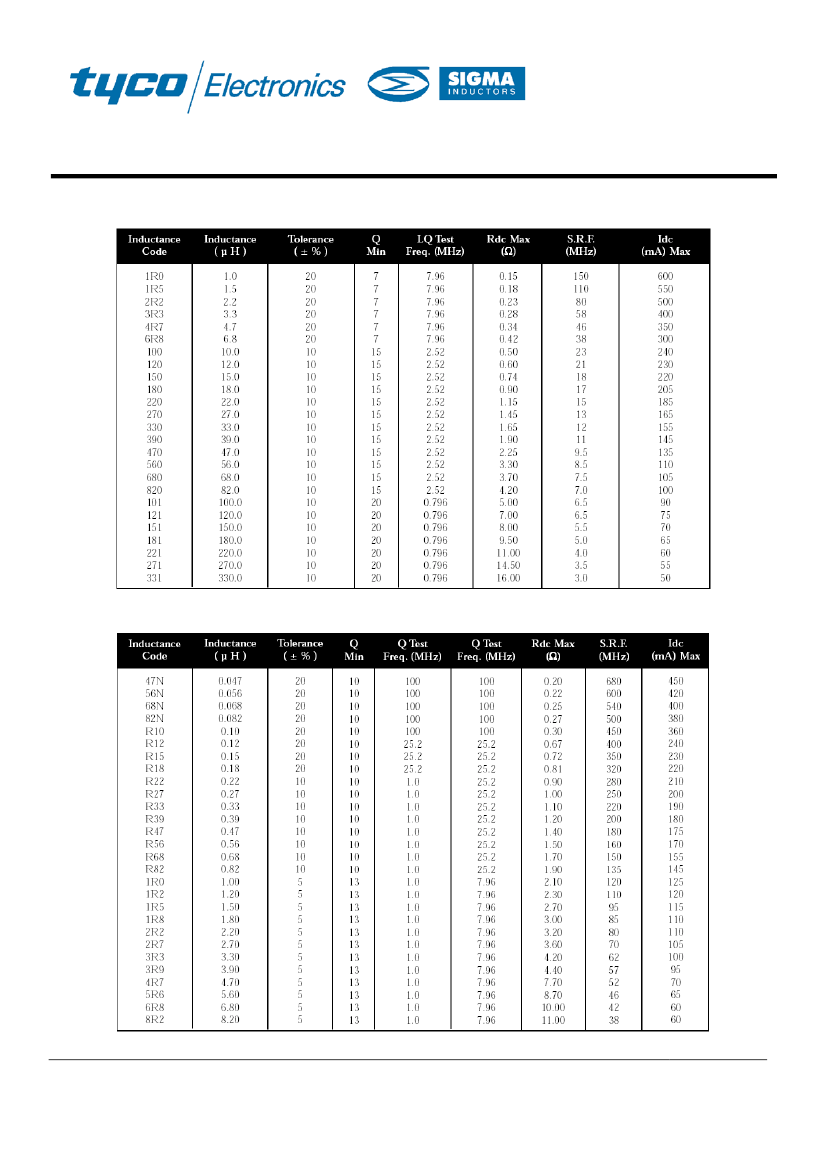

ELECTRICAL ~ Style T (Standard)
1
st
April 2003
ISSUE 3
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 4 of 5
Website – www.resistors.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3612 SERIES
TEMPERATURE
Temperature Range (Storage):
Temperature Range (Operating):
Resistance to Soldering:
-40°C to +100°C
-20°C to +100°C
260°C for 10 secs.
1
st
April 2003
ISSUE 3

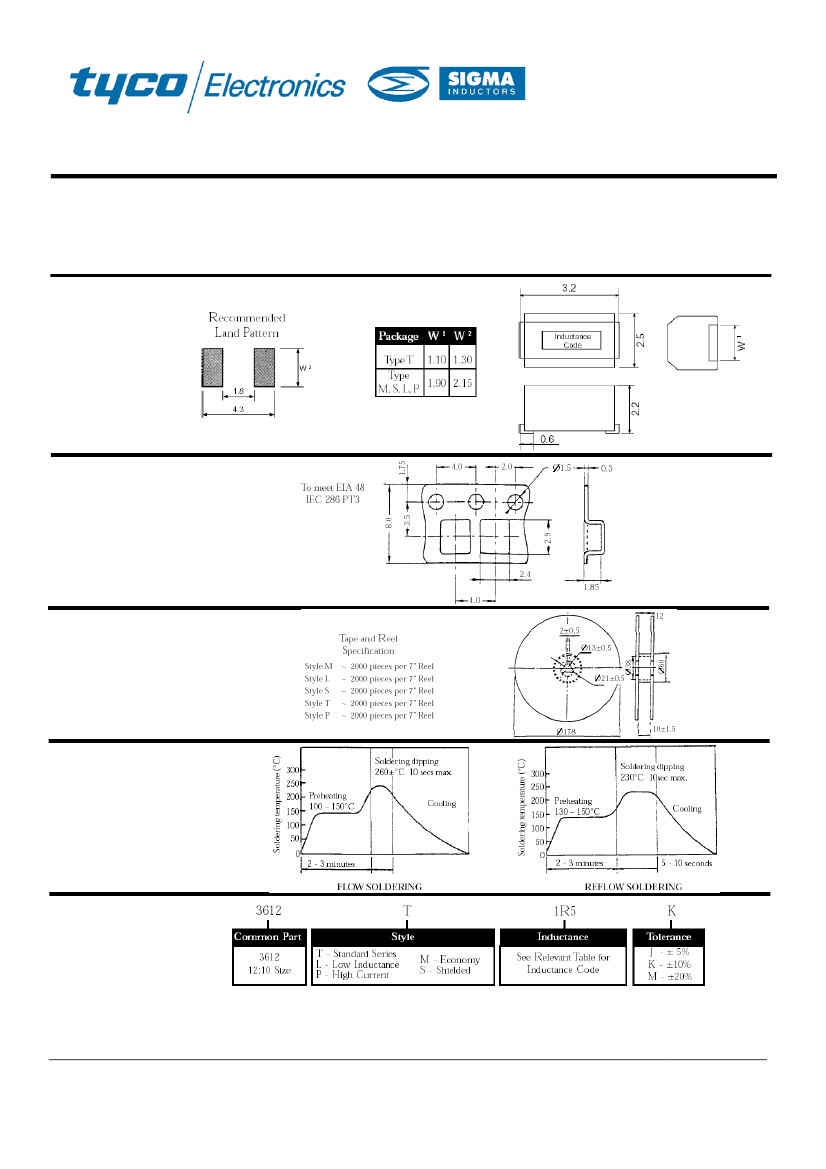

DIMENSIONS
PACKAGING (TAPE)
PACKAGING (REEL)
SOLDERING
HOW TO ORDER
