HEADER HE13 STRAIGHT 3 P

Preview

Download Datasheet

View All

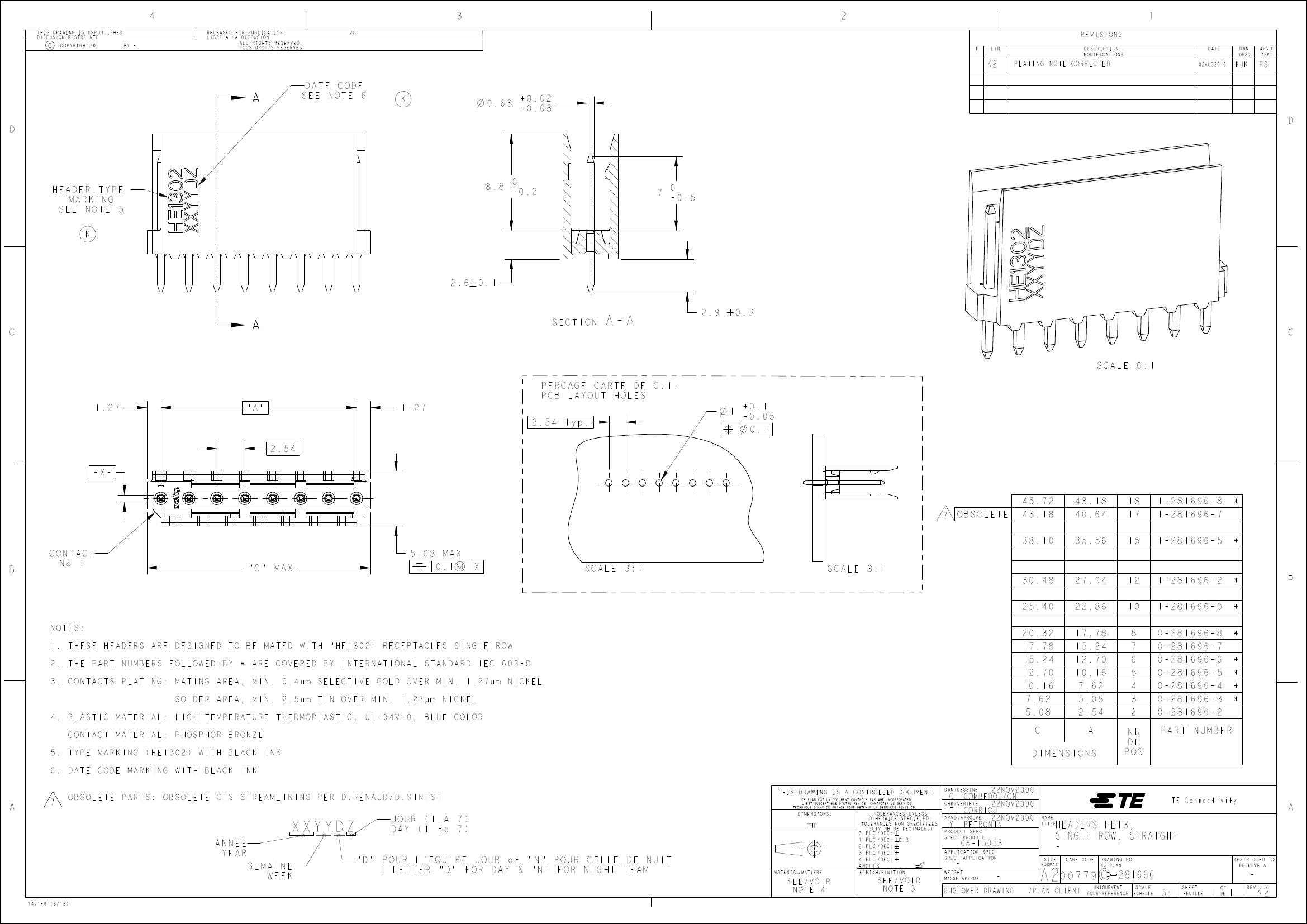

THIS DRAWING IS UNPUBLISHED.

DIFFUSION RESTREINTE

RELEASED FOR PUBLICATION

LIBRE A LA DIFFUSION

REVISIONS

LTR

DESCRIPTION

MODIFICATIONS

DATE

DWN

DESS.

APVD

APP.

BY -

DATE CODE

SEE NOTE 6

+0.02

-0.03

PLATING NOTE CORRECTED

02AUG2016

KJK

n 0.63

HEADER TYPE

MARKING

SEE NOTE 5

8.8

-0.2

-0.5

2.6

0.1

SECTION

A-A

2.9

# 0.3

SCALE

6:1

1.27

"A"

1.27

PERCAGE CARTE DE C.I.

PCB LAYOUT HOLES

2.54 typ.

+0.1

-0.05

2.54

-X-

45.72

43.18

38.10

SCALE

3:1

SCALE

3:1

43.18

40.64

35.56

1-281696-8

1-281696-7

1-281696-5

OBSOLETE

CONTACT

No 1

"C" MAX

5.08 MAX

30.48

25.40

27.94

22.86

17.78

15.24

12.70

10.16

7.62

5.08

2.54

POS

1-281696-2

1-281696-0

0-281696-8

0-281696-7

0-281696-6

0-281696-5

0-281696-4

0-281696-3

0-281696-2

PART NUMBER

NOTES:

1. THESE HEADERS ARE DESIGNED TO BE MATED WITH "HE1302" RECEPTACLES SINGLE ROW

2. THE PART NUMBERS FOLLOWED BY * ARE COVERED BY INTERNATIONAL STANDARD IEC

3. CONTACTS PLATING: MATING AREA, MIN. 0.4µm SELECTIVE GOLD OVER MIN. 1.27µm

SOLDER AREA, MIN. 2.5µm TIN OVER MIN. 1.27µm NICKEL

4. PLASTIC MATERIAL: HIGH TEMPERATURE THERMOPLASTIC, UL-94V-0, BLUE COLOR

CONTACT MATERIAL: PHOSPHOR BRONZE

5. TYPE MARKING (HE1302) WITH BLACK INK

6. DATE CODE MARKING WITH BLACK INK

603-8

NICKEL

20.32

17.78

15.24

12.70

10.16

7.62

5.08

DIMENSIONS

OBSOLETE PARTS: OBSOLETE CIS STREAMLINING PER D.RENAUD/D.SINISI

CE PLAN EST UN DOCUMENT CONTROLE PAR AMP INCORPORATED.

IL EST SUSCEPTIBLE D'ETRE REVISE. CONTACTER LE SERVICE

TECHNIQUE D'AMP DE FRANCE POUR OBTENIR LA DERNIERE REVISION.

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

TOLERANCES NON SPECIFIEES

(SUIV NB DE DECIMALES)

ANNEE

YEAR

XXYYDZ

SEMAINE

WEEK

JOUR (1 A 7)

DAY (1 to 7)

"D" POUR L'EQUIPE JOUR et "N" POUR CELLE DE NUIT

1 LETTER "D" FOR DAY & "N" FOR NIGHT TEAM

MATERIAL

SEE/VOIR

NOTE 4

/MATIERE

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

/DEC:

0.3

PRODUCT SPEC

SPEC. PRODUIT

22NOV2000

C. COMBEDOUZON

CHK /VERIFIE

22NOV2000

T. CORRIOU

APVD /APROUVE

22NOV2000

Y. PETRONIN

DWN /DESSINE

TE Connectivity

NAME

TITRE

FINISH /FINITION

5 $

APPLICATION SPEC

SPEC. APPLICATION

WEIGHT

MASSE APPROX.

108-15053

SIZE

FORMAT

HEADERS HE13,

SINGLE ROW, STRAIGHT

CAGE CODE

DRAWING NO

No PLAN

SEE/VOIR

NOTE 3

CUSTOMER DRAWING

/PLAN CLIENT

00779

UNIQUEMENT

POUR REFERENCE

281696

RESTRICTED TO

RESERVE A

SCALE

ECHELLE

1471-9 (3/13)

5:1

SHEET

FEUILLE
