3191BA472T028MPA1 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 3191BA472T028MPA1

3191BA472T028MPA1: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 28V, 50% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size110KB，5 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

3191BA472T028MPA1 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 28V, 50% +Tol, 10% -Tol, 4700uF, Stud Mount, CAN, ROHS COMPLIANT

3191BA472T028MPA1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1653332636
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	4700 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	35.408 mm
dielectric materials	ALUMINUM (WET)
ESR	23.4 mΩ
length	54.813 mm
Manufacturer's serial number	3191
Installation features	STUD MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	50%
Rated (DC) voltage (URdc)	28 V
ripple current	6600 mA
series	3191
surface mount	NO
Terminal pitch	12.7 mm
Terminal shape	BINDING POST

Preview

Download Datasheet

View All

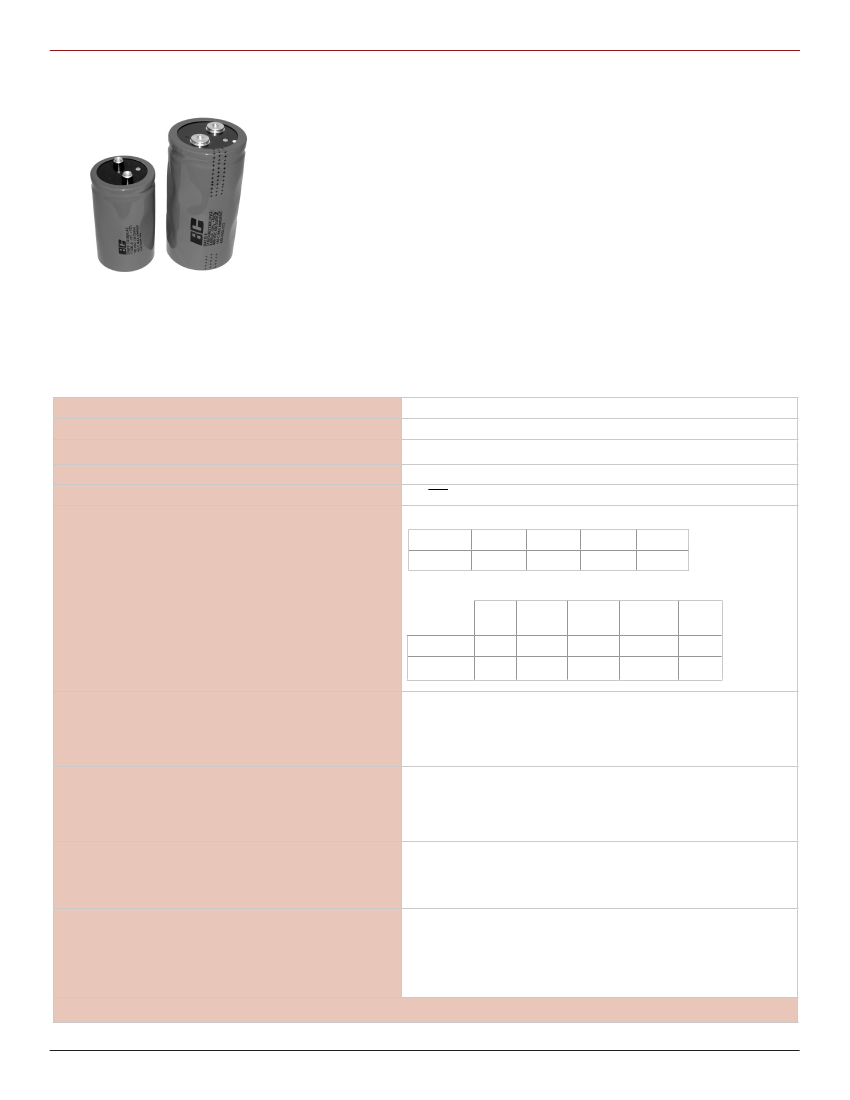

Type 3191, Aluminum Electrolytic Screw Terminal

Screw Terminal Capacitors for Power Output Filtering

The low ESR of Type 3191 capacitors makes them a great choice for

output filtering in switching and audio power supplies. It’s available

with the capacitor element potted in place for lowest cost or secured

by rill, spoon shaped dimples in the side of the can. Rilled construction

offers high vibration and shock withstanding and excellent heat

transfer for higher ripple current.

Highlights

- Stud mount available

- High current application

- Industrial applications

- Smoothing and filtering

- Audio power supplies

Specifications

Temperature Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Leakage Current

Ripple Current Multipliers

–40 ºC to +85 ºC

7.5 Vdc to 55 Vdc

2700 µF to 150000 µF

–10 to + 30%; –10 to +50%; ±20%

≤6√CV µA (6 mA max.) at 5 minutes

Ambient Temperature

45 °C

2.24

Frequency

60 Hz 120 Hz

16 – 100 V

0.90

1.00

200 – 500 V

0.90

300 Hz

1.15

1.25

1000 Hz

1.25

1.40

≥10

kHz

1.30

1.50

55 °C

2.00

65 °C

1.73

75 °C

1.41

85 °C

1.00

Low Temperature Characteristics

Impedance ratio: Z

–20 ⁰C

∕ Z

+25 ⁰C

≤ 8 (16–50 Vdc)

≤ 4 (63–100 Vdc)

≤ 3 (150–500 Vdc)

1,500 h @ full load at 85 °C

∆Capacitance ±10%

ESR 200% of limit

DCL 100% of limit

500 h @ 85 °C

∆Capacitance ±10%

ESR 175% of limit

DCL 100% of limit

10 to 500 Hz, 0.75 mm or 10 g* if less,

3 directions, 2 h ea

Δ Capacitance: ±5%

no visible damage or leakage

*15 g if rilled construction

RoHS Compliant

Endurance Life Test

Shelf Life Test

Vibration

CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.
