BRS-02-LPG-74-A-TN-SMCP

Description
Board Connector, 74 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug
CategoryThe connector    The connector
File Size156KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

BRS-02-LPG-74-A-TN-SMCP Overview

Board Connector, 74 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

BRS-02-LPG-74-A-TN-SMCP Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid304487649
Reach Compliance Codeunknown
Country Of OriginMainland China, Taiwan, USA
ECCN codeEAR99
YTEOL8.4
Other featuresROHS COMPLIANT
Board mount optionsPEG
body width0.165 inch
subject depth0.11 inch
body length2.937 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage500VAC V
Durability500 Cycles
IEC complianceNO
Insulation resistance5000000000 Ω
MIL complianceNO
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.0066 mm
Termination typeSURFACE MOUNT
Total number of contacts74
1
2
3
4
5
6
7
8
9
A
Recommended
PC Board Layout
A
B
B
C
C
D
E
SPECIFICATIONS
Current rating:
Contact material:
Contact plating:
Contact resistance:
Insulation material:
Insulation resistance:
Withstanding:
Operating temperature:
2 amps
Phosphor bronze
Tin, gold, duplex
20 milliohm max.
Polyester Nylon 6T, UL94V-0
5,000 megohms min.
500VAC for 1 min.
-40°C to +105°C
D
E
F
RoHS compliant
Rev.
Description
Date
Approved
Series
No. of Rows
Profile
Contacts
Tail
Plating
Options
BRS
XX
LPG
XX
A
XX
XX
2mm female header 01=1 row
LPG=2.7mm 2-80 contacts A=Standard TN=Tin
SM=Surface mount
02=2 rows
GD=Gold
CP=Centering pin
SG=Duplex

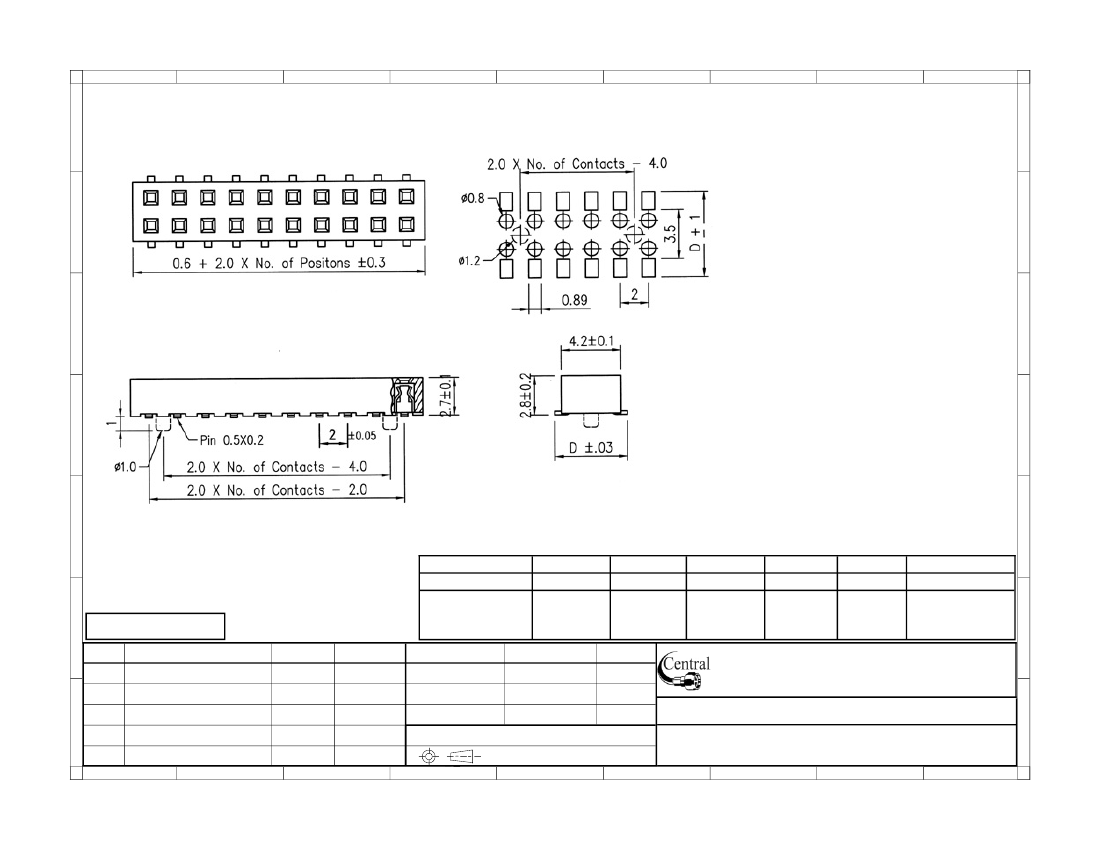

Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
08/10/99
08/10/99
08/10/99 Part No.:
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
BRS-02-LPG-XX-A-XX-SMCP
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Header, female, 2mm pitch, 2.7mm profile, dual rows,
SMT type
G
1
2
3
4
