CFPC-100-S113-10-RV-TN-TB: DescriptionCard Edge Connector, 10 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking; CategoryThe connector The connector; File Size184KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CFPC-100-S113-10-RV-TN-TB Overview

Card Edge Connector, 10 Contact(s), 1 Row(s), Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking

CFPC-100-S113-10-RV-TN-TB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166818868
Reach Compliance Code	unknown
Country Of Origin	Mainland China, Taiwan, USA
ECCN code	EAR99
YTEOL	7.89
Other features	ROHS COMPLIANT
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.161 inch
body length	0.63 inch
Body/casing type	SOCKET
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SINGLE PRONG
DIN compliance	NO
Dielectric withstand voltage	500VAC V
IEC compliance	NO
maximum insertion force	ZIF N
insulator material	POLYETHYLENE
MIL compliance	NO
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Evacuation force-minimum value	ZIF N

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

C

D

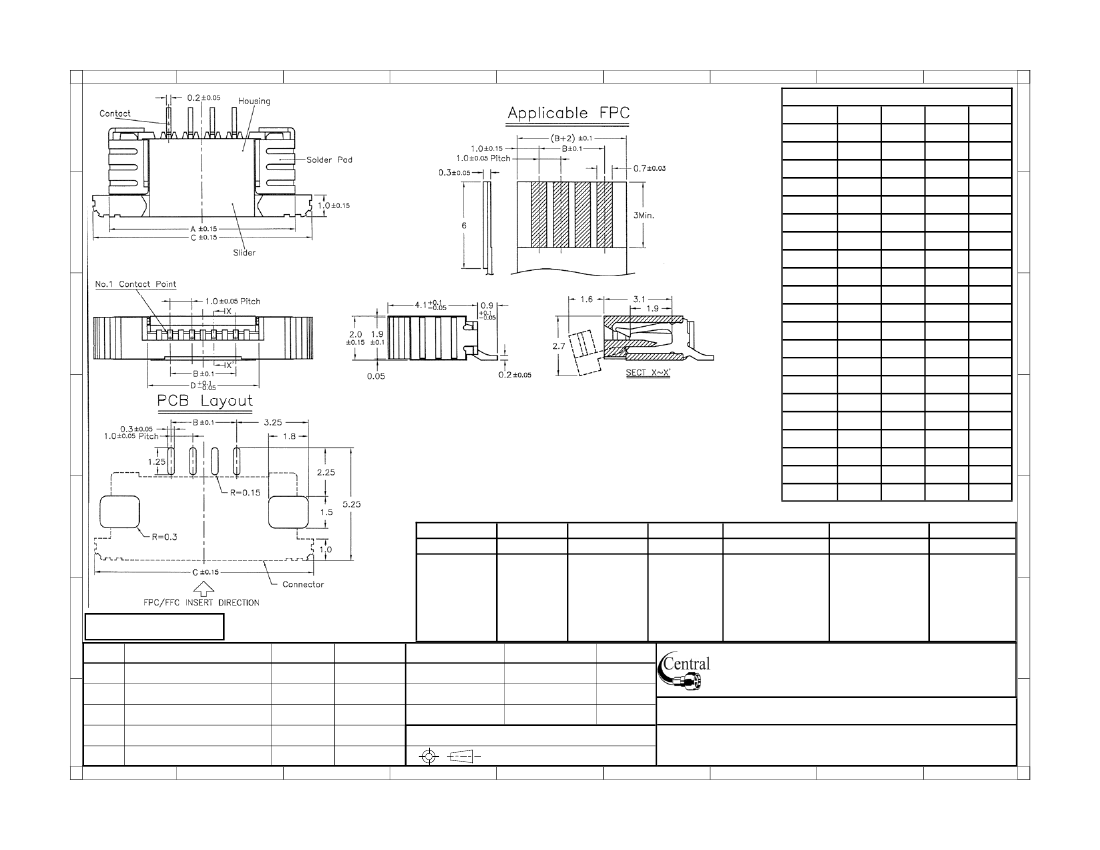

SPECIFICATIONS

Housing:

Slider:

Contacts:

Voltage:

Current:

Operating Temp:

Thermoplastic

Copper

50V

0.5A

-55C ~ +85C

Dimensions

Contacts

A

B

C

4

8.5

3

10

5

9.5

4

11

6

10.5

5

12

7

11.5

6

13

8

12.5

7

14

9

13.5

8

15

10

14.5

9

16

11

15.5

10

17

12

16.5

11

18

13

17.5

12

19

14

18.5

13

20

15

19.5

14

21

16

20.5

15

22

17

21.5

16

23

18

22.5

17

24

19

23.5

18

25

20

24.5

19

26

21

25.5

20

27

22

26.5

21

28

23

27.5

22

29

24

28.5

23

30

Style

XX

R=Right Angle

V=Vertical

VR=Vertical Reverse

Pins

U=Upper Contacts

B=Bottom Contacts

D

5.1

6.1

7.1

8.1

9.1

10.1

11.1

12.1

13.1

14.1

15.1

16.1

17.1

18.1

19.1

20.1

21.1

22.1

23.1

24.1

25.1

A

B

C

D

E

Series

Pitch

Type

Contacts

CFPC

XXX

S113

XX

FPC Connector 050=0.50mm S113 ZIF Type 4-24 see chart

030=0.30mm

100=1.00mm

125=1.25mm

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

E

Plating

Options

XX

TN=Tin over nickel [blank]=None

GD1=Gold 1u” over TR=Tape & Reel

nickel

TB=Tube

GD3=Gold 3u” over

nickel

F

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

CFPC-100-S113-XX-RV-XX-XX

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: 1.0mm Pitch FPC/FFC Connector
