PREC018SAAN-RC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> PREC018SAAN-RC

PREC018SAAN-RC: Descriptionconn header .100" sngl str 18pos; CategoryThe connector The connector; File Size187KB，1 Pages; ManufacturerSullins Connector Solutions; Environmental Compliance

Download Datasheet Parametric View All

PREC018SAAN-RC Overview

conn header .100" sngl str 18pos

PREC018SAAN-RC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Sullins Connector Solutions
Reach Compliance Code	compliant
body width	0.1 inch
subject depth	0.1 inch
body length	1.8 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Manufacturer's serial number	PRE
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

REVISIONS

REV.

ECO. NO

2268

2422

DESCRIPTION

INITIAL RELEASE

ADD 'P' PLATING OPTION, OBSOLETE 11139

DATE

03/21/2011

08/04/2011

B .012[ 0.30]

.100 2.54

HEAD DIM.

.098 2.50

TAIL DIM.

.100 2.54

.025 0.64

.100 2.54

.039 1.00

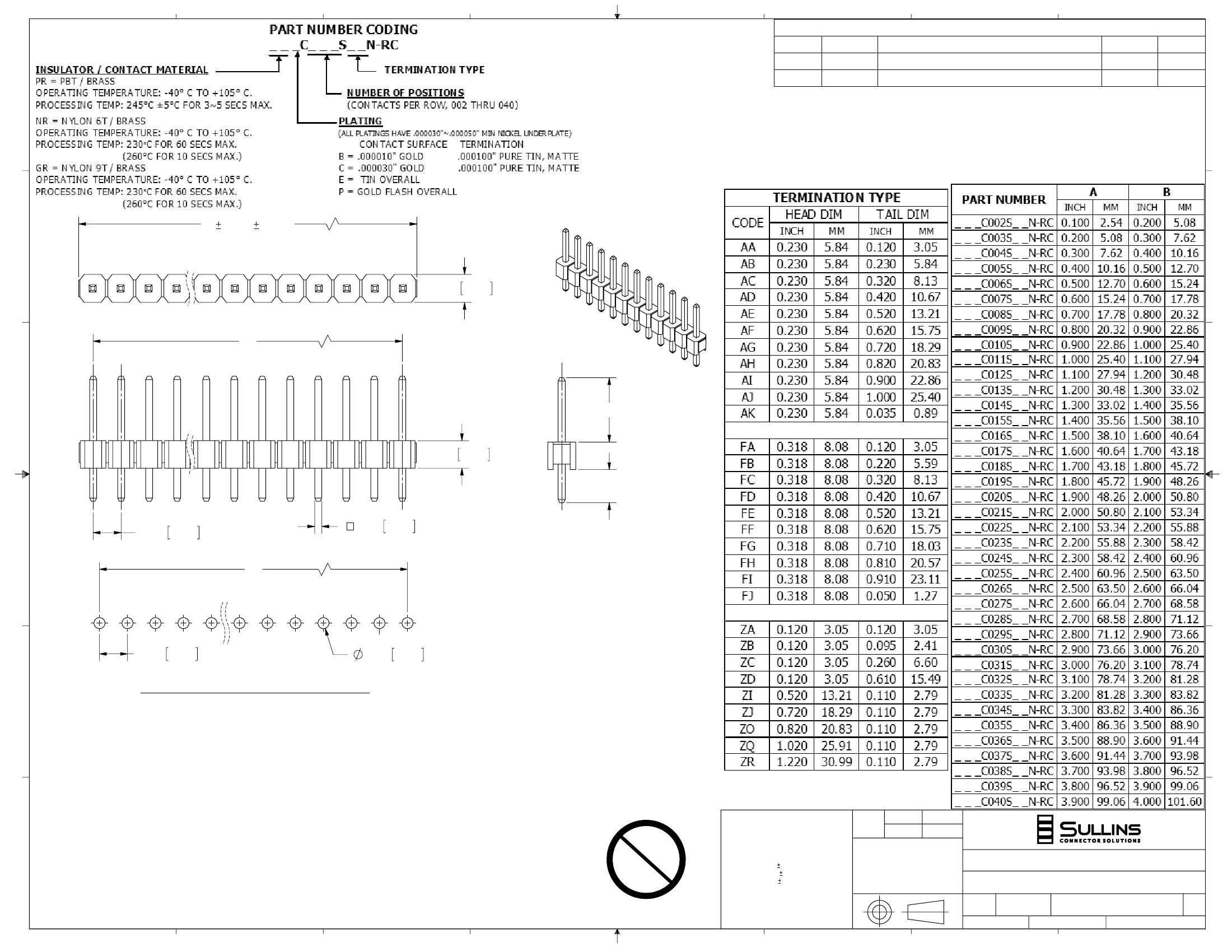

RECOMMENDED PCB LAYOUT

NOTES:

1. INSULATOR MATERIAL: SEE PART NUMBER CODING, UL 94V-0, BLACK.

2. CONTACT MATERIAL: SEE PART NUMBER CODING.

3. CONTACT PLATING: SEE PART NUMBER CODING.

4. CURRENT RATING: 3 AMPS PER CONTACT.

5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.

6. CONTACT RESISTANCE: 20 MILLIOHMS MAX.

7. DIELECTRIC WITHSTANDING: 1000 VAC.

OPERATING TEMPERATURE:

SEE PART NUMBER CODING.

9. *PROCESSING TEMP.: SEE PART NUMBER CODING.

*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR. HIGHER PROCESSING

TEMPERATURES MAY BE USED, PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB,

AND INSULATOR DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.

DRAWN

DATE

03/21/2011

NAME

TITLE

oHS COMPLIANT

UNLESS OTHERWISE SPECIFIED:

DIMENSIONS ARE IN INCHES[MM]

TOLERANCES: ANGULAR:

.XX= .012 [.30]

.XXX= .008 [.20]

.XXXX= .0040 [.100]

INTERPRET DIMENSIONS

AND TOLERANCING

PER: ASME Y14.5M-2009

THE INFORMATION HEREIN CONTAINS

PROPIETARY INFORMATION OF

SULLINS ELECTRONICS AND IS NOT

TO BE REPRODUCED, USED OR

DISCLOSED TO OTHERS FOR ANY

PURPOSE EXCEPT AS SPECIFICALLY

AUTHORIZED IN WRITING BY AN

OFFICER OF SULLINS ELECTRONICS.

HEADER MALE .100" PITCH, STRAIGHT

PART NUMBER

SIZE

_ R_C_ _ _S_ _N-RC

DWG. NO.

SCALE: 5:1

CAGE CODE

54453

11635

SHEET 1 OF 1

REV

FILE NAME: Z:\ECO PENDING\2422, TAIWAN HEADER 100 CC ADD P PLATING\11635, _ R_C_ _ _S_ _N-RC, ST PRINT: 8/26/2011
