REVISIONS
REV.
A
B
F
ECO. NO
2268
2422
DESCRIPTION
INITIAL RELEASE
ADD 'P' PLATING OPTION
DATE
03/21/2011
08/08/2011
BY
LH
GC
F
E
B .012[ 0.30]
E
.098 2.50
A
D
TAIL DIM. .012[0.30]
D
HEAD DIM.
.098 2.50
.158 4.02
.100 2.54
C
.025 0.64
C
A
.100 2.54
.039 1.00
B
RECOMMENDED PCB LAYOUT
NOTES:
1. INSULATOR MATERIAL: SEE PART NUMBER CODING, UL 94V-0, BLACK.
2. CONTACT MATERIAL: SEE PART NUMBER CODING.
3. CONTACT PLATING: SEE PART NUMBER CODING.
4. CURRENT RATING: 3 AMPS PER CONTACT.
5. INSULATOR RESISTANCE: 5000 MEGOHMS MIN.
6. CONTACT RESISTANCE: 20 MILLIOHMS MAX.
7. DIELECTRIC WITHSTANDING: 1000 VAC.
8. OPERATING TEMPERATURE: SEE PART NUMBER CODING.
9. *PROCESSING TEMP.: SEE PART NUMBER CODING.
*INDICATED TEMPERATURE AND TIME IS FOR COMPONENT INSULATOR. HIGHER PROCESSING
TEMPERATURES MAY BE USED, PROVIDED HEAT IS APPLIED FROM BACK SIDE OF PCB,
AND INSULATOR DOES NOT EXCEED INDICATED TEMPERATURE AND TIME.
8
7
6
5
B
DRAWN
DATE
NAME
A
Pb
R
oHS COMPLIANT
4
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES [MM]
TOLERANCES: ANGULAR:
.XX= .012 [.30]
.XXX= .008 [.20]
.XXXX= .0040 [.100]
INTERPRET DIMENSIONS AND
TOLERANCING
PER: ASME Y14.5M-2009
3
03/21/2011 LH
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.

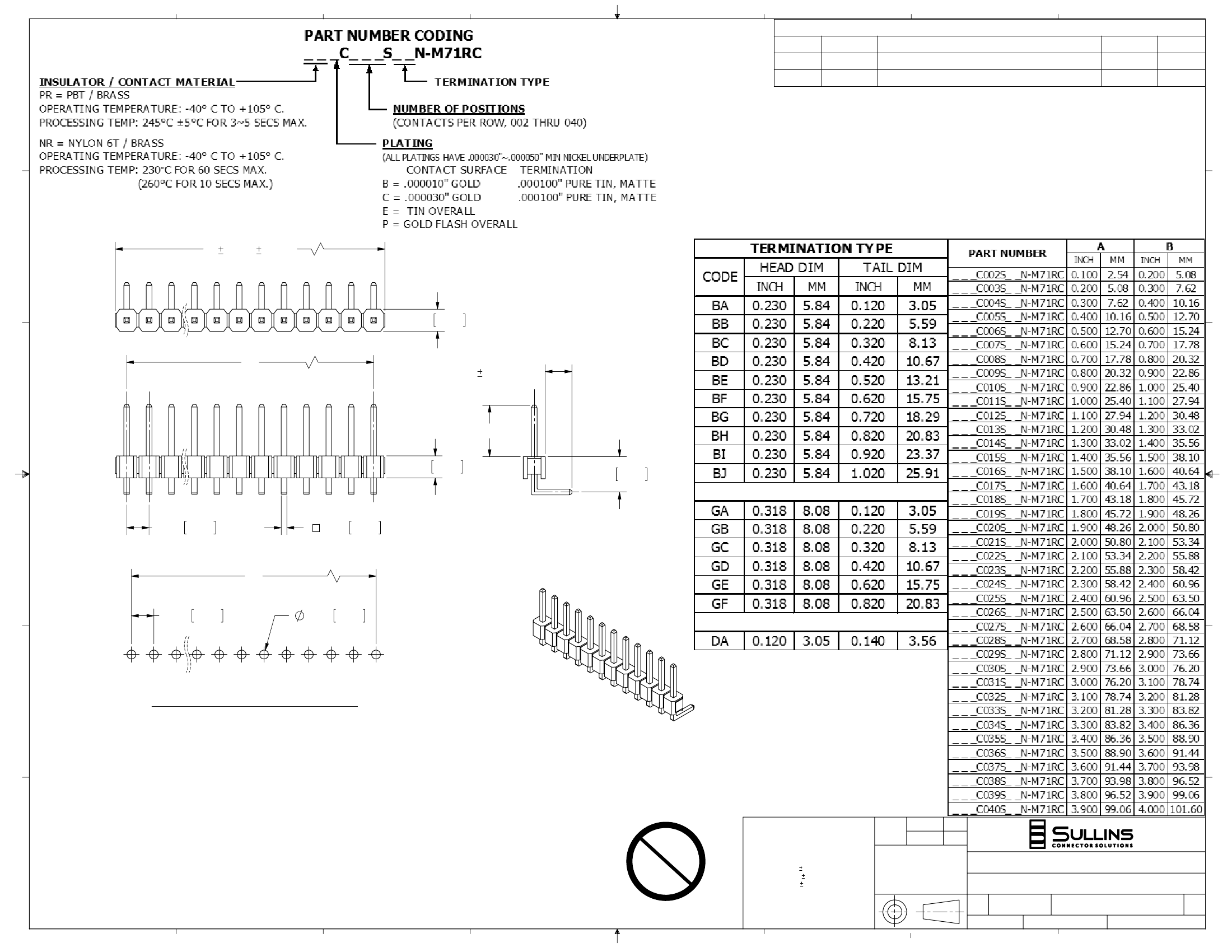

HEADER MALE .100"[2.54mm]PITCH, RA
PART NUMBER
SIZE
TITLE
A
SCALE: 4:1
2
C
CAGE CODE
_ R _C_ _ _S_ _N-M71RC
DWG. NO.
54453
11637
REV
SHEET 1 OF 1
1
B
FILE NAME: Z:\ECO PENDING\2422, TAIWAN HEADER 100 CC ADD P PLATING\11637, _ R_C_ _ _S_ _N-M71RC PRINT: 8/26/2011
