2VQ09CTF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 2VQ09CTF

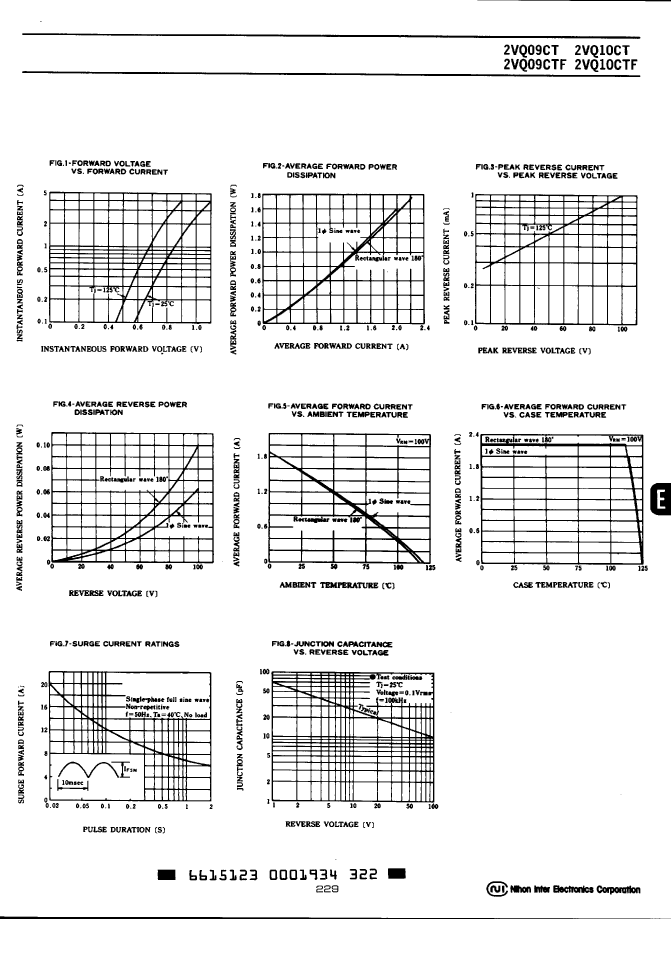

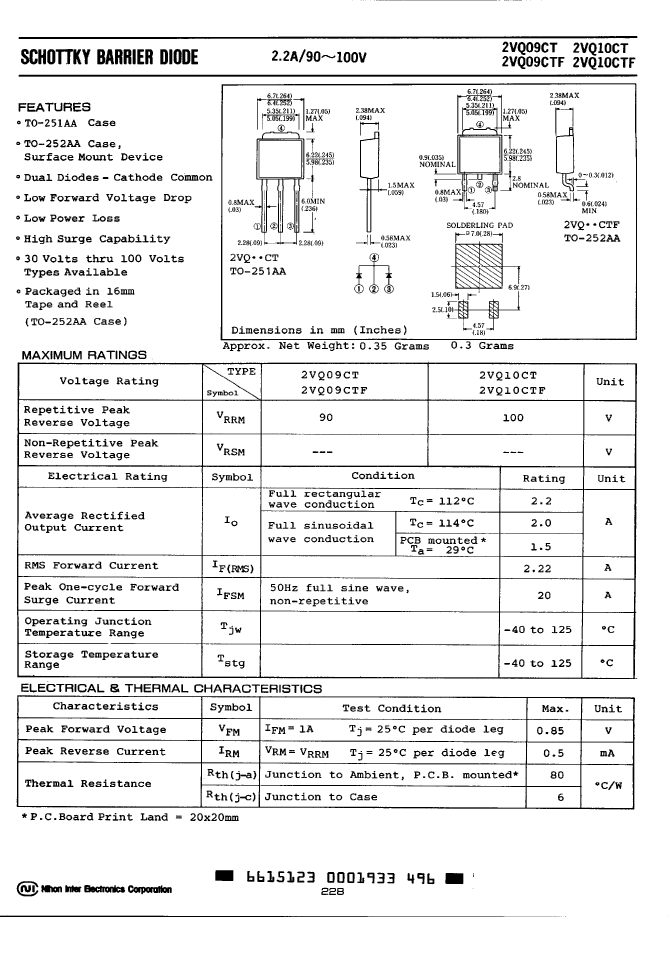

2VQ09CTF: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 90V V(RRM), Silicon, TO-252AA; CategoryDiscrete semiconductor diode; File Size79KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

2VQ09CTF Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 90V V(RRM), Silicon, TO-252AA

2VQ09CTF Parametric

Parameter Name	Attribute value
package instruction	R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	20 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	90 V
Maximum reverse current	500 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

2VQ09CTF Related Products

	2VQ09CTF	2VQ09CT	2VQ10CTF	2VQ10CT
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 90V V(RRM), Silicon, TO-252AA	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 90V V(RRM), Silicon, TO-251AA,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 100V V(RRM), Silicon, TO-252AA	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, 100V V(RRM), Silicon, TO-251AA,
package instruction	R-PSSO-G2	R-PSIP-T3	R-PSSO-G2	R-PSIP-T3
Reach Compliance Code	unknown	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.85 V	0.85 V	0.85 V
JEDEC-95 code	TO-252AA	TO-251AA	TO-252AA	TO-251AA
JESD-30 code	R-PSSO-G2	R-PSIP-T3	R-PSSO-G2	R-PSIP-T3
Maximum non-repetitive peak forward current	20 A	20 A	20 A	20 A
Number of components	2	2	2	2
Phase	1	1	1	1
Number of terminals	2	3	2	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	90 V	90 V	100 V	100 V
Maximum reverse current	500 µA	500 µA	500 µA	500 µA
surface mount	YES	NO	YES	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1
