FLT
CONNECTOR
0.5mm
(.020") pitch
Emboss Tape
Connectors for FPC
Features ––––––––––––––––––––––––

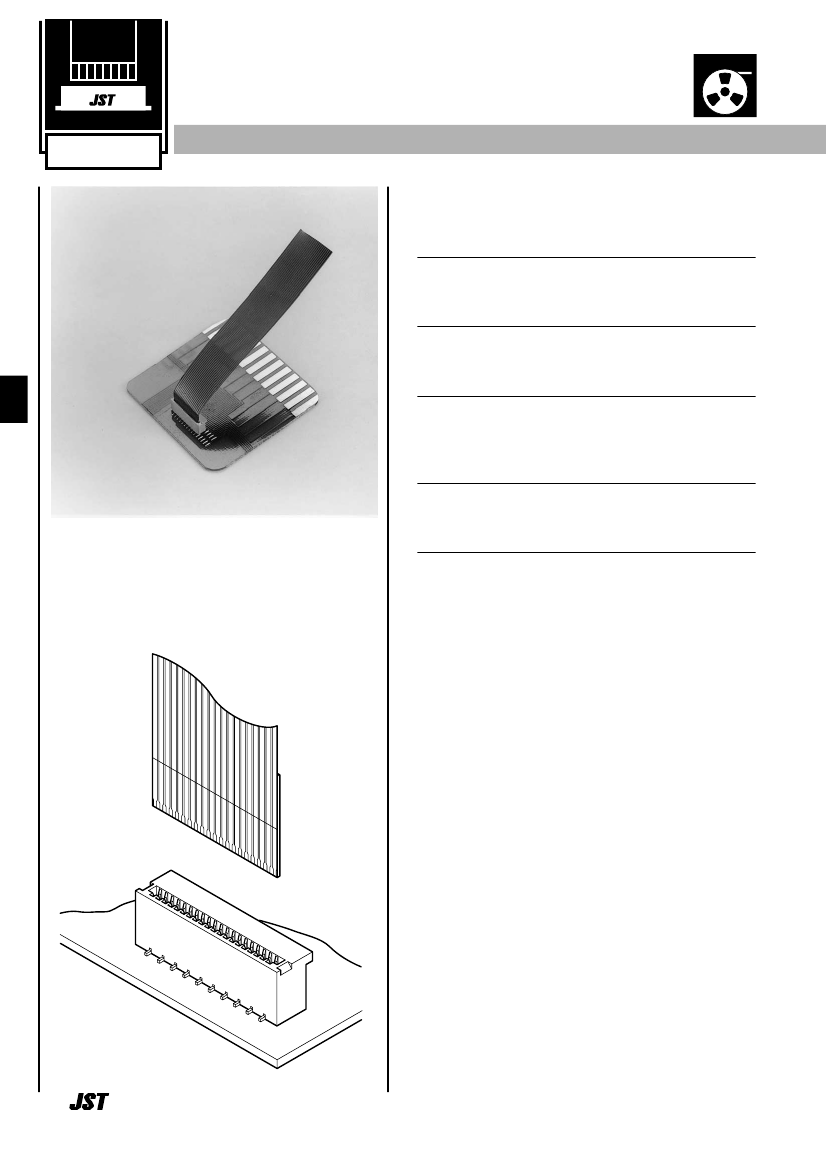

• Heat resistant design suitable for surface
mounting
The housing is made of heat resistant plastic to allow reflow
soldering.
• Staggered surface mount tails
The lead pitch is thus 1.0mm (.039"), which enables connector
mounting operation easier.
• Embossed tape for automatic mounting
The FLT connector is packaged in embossed tape for
automatic mounting. The plastic reel can be used repeatedly,
good for eco-system.
• FPC insertion is easy
Staggered and unique contact point layout can reduce the
FPC insertion force, yet with secure retention force.
• Compact design
This connector measures only 4.15mm (.163") high after
mounting, with a reduced surface mounting area, as solder
tabs are not necessary because of the staggered solder tail
construction.
Specifications –––––––––––––––––––
• Current rating: 0.5A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/50m
Ω
max.
After environmental testing/20m
Ω
max.
(Variance from the initial)
• Insulation resistance:
500M
Ω
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Lead pitch/0.5mm (.020")
Lead width/0.35mm (.014")
Mating part thickness/
0.30
±
0.05mm (.012"±.002")
<
Note
>
FPC to be actually used should be checked for applicability.
* Contact JST if Lead-Free product is required.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
Recognized E60389
528
1
Certified LR20812
FLT
CONNECTOR

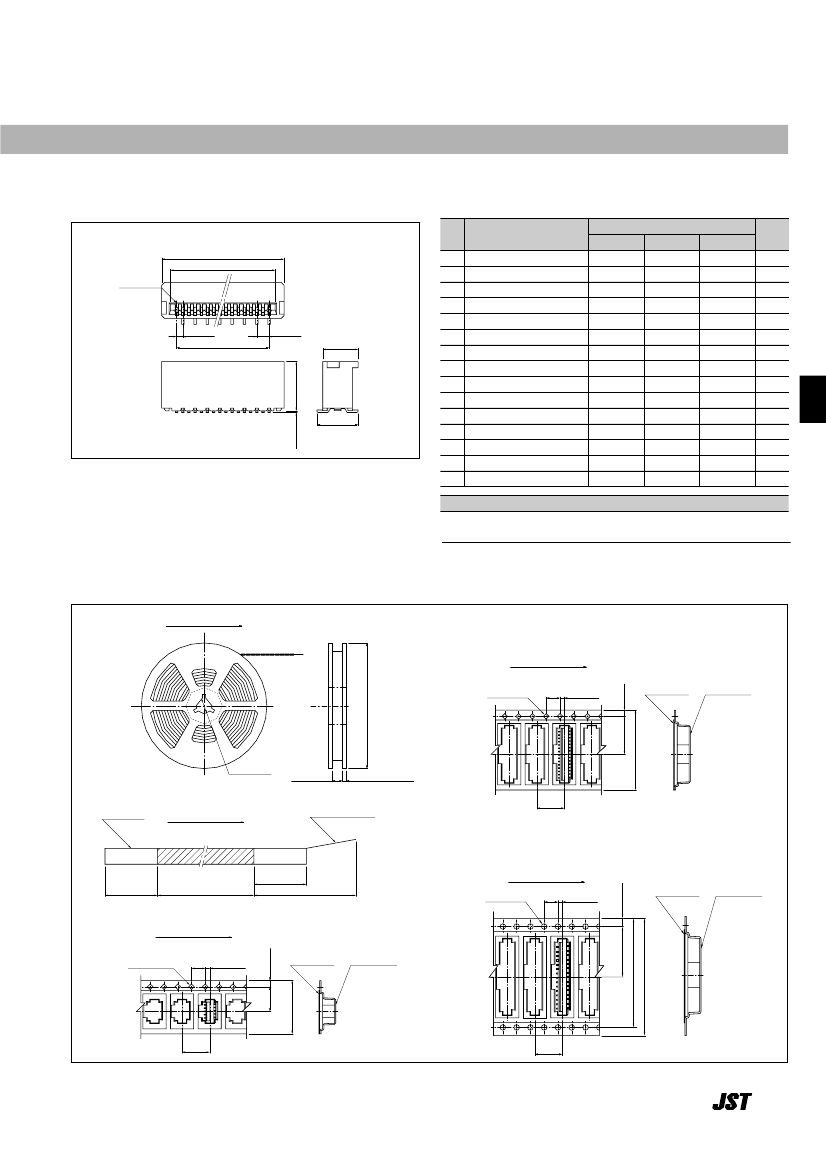

Connector –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
A
B
Circuit No.1
Model No.
06FLT-SM1-TB
08FLT-SM1-TB
10FLT-SM1-TB
12FLT-SM1-TB
14FLT-SM1-TB
16FLT-SM1-TB
18FLT-SM1-TB
20FLT-SM1-TB
22FLT-SM1-TB
24FLT-SM1-TB
26FLT-SM1-TB
28FLT-SM1-TB
30FLT-SM1-TB
32FLT-SM1-TB
40FLT-SM1-TB
Dimensions mm(in.)
A
4.9(.193)
5.9(.232)
6.9(.272)
7.9(.311)
8.9(.350)
9.9(.390)
10.9(.429)
11.9(.469)
12.9(.508)
13.9(.547)
14.9(.587)
15.9(.626)
16.9(.665)
17.9(.705)
21.9(.862)
B
3.5(.138)
4.5(.177)
5.5(.217)
6.5(.256)
7.5(.295)
8.5(.335)
9.5(.374)
10.5(.413)
11.5(.453)
12.5(.492)
13.5(.531)
14.5(.571)
15.5(.610)
16.5(.650)
20.5(.807)
C
2.5(.098)
3.5(.138)
4.5(.177)
5.5(.217)
6.5(.256)
7.5(.295)
8.5(.335)
9.5(.374)
10.5(.413)
11.5(.453)
12.5(.492)
13.5(.531)
14.5(.571)
15.5(.610)
19.5(.768)
Q'ty /
reel
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
2,500
6
8
10
12
14
0.5(.020)
C
1.0(.039)
2.95(.116)
16
18
4.0(.157)
20
22
24
3.4(.134)
0.15(.006)
26
28
30
32
40
Material and Finish
Contact: Phosphor bronze, copper-undercoated, tin/lead-plated
Housing: Nylon 46, UL94V-0
Note: 1. The products listed above are supplied on embossed-tape.
2. 32FLT-SM1-TB and 40FLT-SM1-TB are not CSA approved.
Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
Feeding direction
(12 to 30 circuits)
W1···25.5mm (1.004")
380±2.0(14.961±.079)dia.
Feeding direction
1.55±0.05
4.0±0.1
1.1±0.1
(.061±.002)dia. (.157±.004) (.043±.004)
1.75±0.1
(.069±.004)
Cover tape
Carrier tape
[13(.512)dia.]
W1
+2.5
(
+.098
)
-1.0
-.039
2.0±0.5(.079±.020)
8.0±0.1
(.315±.004)
Carrier tape
Feeding direction
Cover tape leader
(32 to 40 circuits)
W1···33.5mm (1.319")
1.55±0.05
4.0±0.1
1.1±0.1
(.061±.002)dia. (.157±.004) (.043±.004)
1.75±0.1
(.069±.004)
The end part
160(6.299)min. Connector mounting part
Leader part
100(3.937)min.
400(15.748)min.
Feeding direction
Cover tape
Carrier tape
(6 to 10 circuits)
W1···17.5mm (.689")
14.2±0.1
(.559±.004)
28.4±0.1(1.118±.004)
32.0±0.3(1.260±.012)
8.0±0.1
(.315±.004)
Feeding direction
1.55±0.05
4.0±0.1
1.1±0.1
(.061±.002)dia. (.157±.004) (.043±.004)
1.75±0.1
(.069±.004)
Cover tape
Carrier tape
8.0±0.1
(.315±.004)
Note:
1. Specifications conform to JIS C 0806. The tape width, connector recess hole dimensions,
etc.are determined by the number of circuits and external shape of the connector to be loaded.
2. Specifications are subject to change without prior notice.
16.0±0.3
(.630±.012)
7.5±0.1
(.295±.004)
11.5±0.1
(.453±.004)
24.0±0.3(.945±.012)
529
FLT
CONNECTOR
Lead section dimensions of FPC ––––––––––––––––––––––––––––––––––––––––––––
[0.5(.020)X(Nomber of circuits+1)]
±0.05(.002)
0.5±0.1(.020±.004)
[0.5(.020)X(Nomber of circuits-1)]
±0.03(.001)
0.5±0.03
0.35±0.04
(.020±.001)
(.014±.002)
0.3±0.05
(.012±.002)
Reinforcing layer
3.0(.118)min.
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
1.0±0.05
(.039±.002)
Circuit No.1
0.5±0.05(.020±.002)
1.6(.063)
1.6(.063)
4.0(.157)
2.95(.116)
[5.5(.217)]
0.5(.020)
Note:
1.Tolerances are non-cumulative:
±
0.05mm(
±
.002") for all centers.
2.The dimensions above should serve as a guide line. Contact JST for details.
530
4.15(.163)
