2590-6-18-1-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2590-6-18-1-01

2590-6-18-1-01: DescriptionBoard Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2590-6-18-1-01 Overview

Board Connector, 18 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

2590-6-18-1-01 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307758551
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.138 inch
body length	1.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	2590
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.9972 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	5.08 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

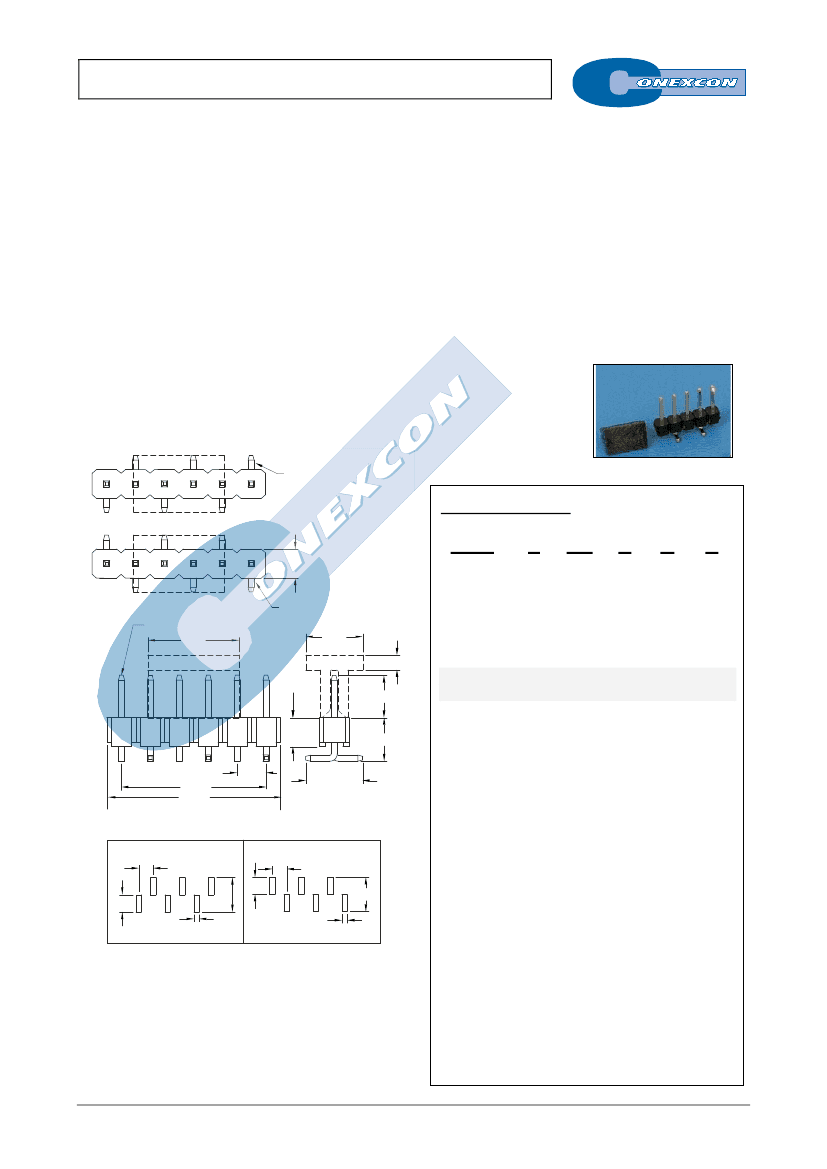

SINGLE ROW VERTICAL SMT PIN HEADER

2590 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features

Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 600 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz



Mates with sockets 2.54 mm pitch 2101, 2550, 2595, 2596,



2553, 2554,2247, 2551, 2552, 2577, 2102, 2106 & 2452 series



0,64 mm. square pin with different plating



Different pin length. Consult Sales Office



Available in 2 through 40 circuits

Materials

Mechanical Features



Insulator: High temperature thermoplastic UL 94 V-0

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 0,50 Kgf



Durability: 50 cycles

Dimension Information

Type 1

Pin 1

Ordering Information:

Type 2

2590 -

2.54±0.20

T-

XX- S-

Pin 1

1. Connector Series

5.00

0.64±0.02

8.00

2.54±0.20

2. (T) Contact Plating

1.30



T =

Tin plated



T =

Gold flash over nickel

Recommended Finish

±0.25



T =

15µ” gold over nickel



T =

30µ” gold over nickel

3. (XX) Number of circuits

2.54±0.10

±0.15

±0.50



Available in 2 through 40 circuits

4. (S) Contacts Configuration

Type 1

Type 2



S =

Type 1



S =

Type 2

2.54

6.00

3.00

5. (C) Pin Dimensions

6.00

1.00

RECOMMENDED PCB LAYOUT

00000

Dimensions:

(In mm.)

= 2.54 x (XX*-1)

= 2.54 x (XX*)

* XX

(Number of circuits)



C =

0. H

= 5.00 mm.

= 3.50 mm.

= 4.83 mm.

C =

1. H

= 5.84 mm.

= 3.50 mm.

= 4.83 mm.

C =

2. H

= 8.08 mm.

= 3.50 mm.

= 4.83 mm.

C =

3. H

= 6.20 mm.

= 3.20 mm.

= 4.86 mm.

C =

4. H

= 6.00 mm.

= 3.81 mm.

= 5.00 mm.

C =

6. H

= 11.50 mm.

= 3.50 mm.

= 5.30 mm.

C =

7. H

= 13.00mm.

= 3.50 mm.

= 4.83 mm.

3.00

6. (E) Packing Options



E =

Tube + Pad



E =

Reel + Pad

E-XX

FULL LINE CATALOGUE
