5636-13-24-01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 5636-13-24-01

Preview

5636-13-24-01: DescriptionD Type Connector, 24 Contact(s), Female, 0.075 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5636-13-24-01 Overview

D Type Connector, 24 Contact(s), Female, 0.075 inch Pitch, Solder Terminal

5636-13-24-01 Parametric

Parameter Name	Attribute value
Objectid	308960587
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.39 inch
subject depth	0.197 inch
body length	1.465 inch
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Filter function	YES
Insulator color	WHITE
Plug contact pitch	0.075 inch
Match contact row spacing	0.075 inch
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.102 inch
Terminal pitch	1.905 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

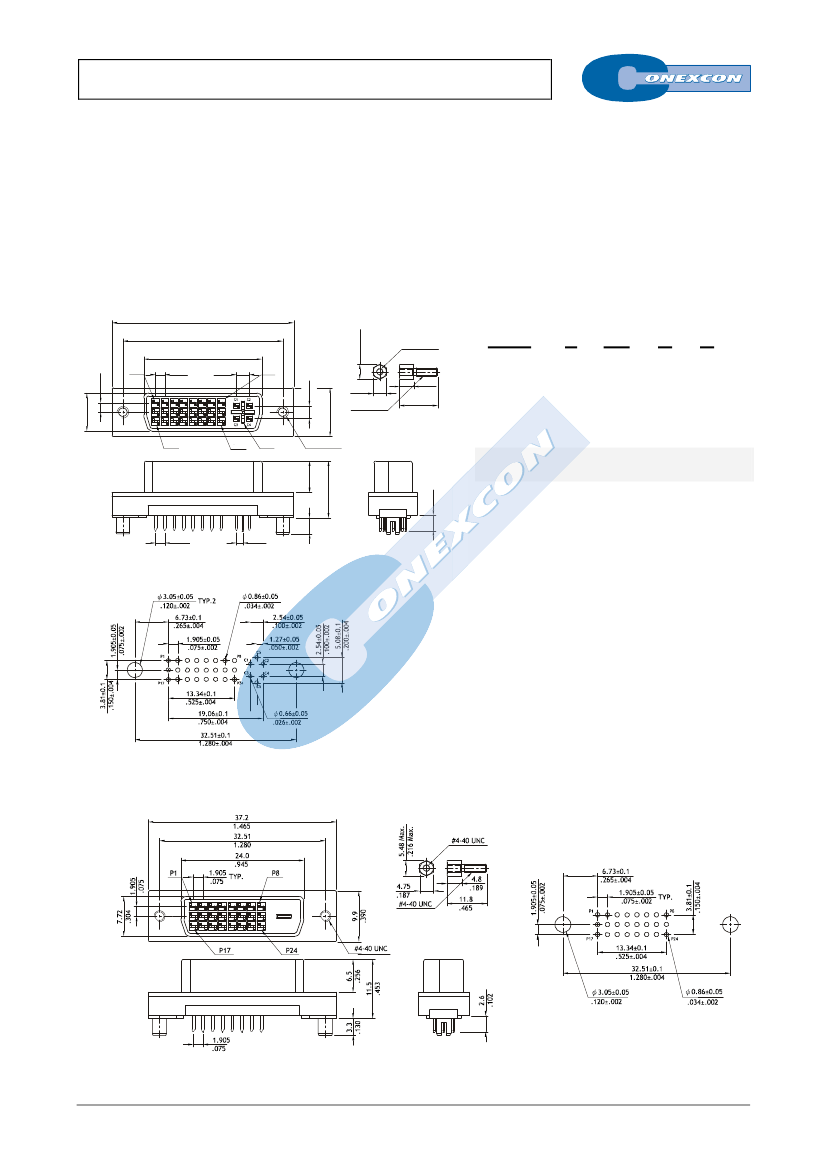

STRAIGHT FEMALE CONNECTOR PCB DVI

5636 SERIES.

For PCB Solder.

Features



Available in 24 circuits(digital version) or 29 circuits

Integrated version (Digital / Analog 25+4 )

Contact Material: Brass with different plating options

Insulator Material: Fibre glass filled; UL 94V-0

Shell in brass, nickel plated

Positive polarized and shielded EMI / RFI 1



The contact design handles 4.95 Gbps of single

connectiones and 9.9 Gbps of double connections

Mates with standard DVI

The coaxial section handles a band width of 2.5 Ghz

analog signals

Contact our Sales Dapartment for further information

Ordering and Dimensional Information

Dimensional Information

5.48 max.

.216 max.

37.2

1.465

32.51

1.280

P1

24.0

.945

2.54

.100

P8

4.75

.187

9.9

.390

#4.40 UNC

5636 -

1

T-

2

XX-

3

C

4

R

5

1.905

.075

2.54

.100

1.905

.075

7.72

.304

4.8

.189

11.8

.465

1. Connector Series

2. Plating Options

P17

P24

C5

#4.40 UNC



6.5

.256

T =

13.

Selctive Gold Flash over 1.27 µ Ni.

RECOMMENDED FINISH

T =

15.

0.38 µ Selective Gold over 1.27 µ Ni.

T =

16.

0.76 µ Selective Gold over 1.27 µ Ni.



11.5

.453

.130

3.3

2.6

.102

1.905

.075

1.27

.050

3. Circuit Size

XX = 24 contacts (Digital)

XX = 29 contacts (Integraded D /A)

4. Hardware Options

C = 0. Version w/o Nut and Groundig tap

C = 1. Version with Nut 4-40 UNC and

Grounding tap

5. Insulation Colour

RECOMMENDED HOLE PATTERN



R = 1. White

R = 2. Black

R = 3. Ivory

RECOMMENDED HOLE PATTERN

K-86
