HGM062MXA1A01A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HGM062MXA1A01A

HGM062MXA1A01A: DescriptionBoard Connector, 62 Contact(s), 3 Row(s), Male, 0.1 inch Pitch, Solder Lug Terminal, Locking, Green Insulator, Plug; CategoryThe connector The connector; File Size461KB，7 Pages; ManufacturerIEH Corp.

Download Datasheet Parametric View All

HGM062MXA1A01A Overview

Board Connector, 62 Contact(s), 3 Row(s), Male, 0.1 inch Pitch, Solder Lug Terminal, Locking, Green Insulator, Plug

HGM062MXA1A01A Parametric

Parameter Name	Attribute value
Objectid	315832210
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	3
body width	0.35 inch
subject depth	0.335 inch
body length	2.9 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Durability	100000 Cycles
Insulation resistance	5000000000 Ω
Insulator color	GREEN
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	HGM
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
reliability	COMMERCIAL
Termination type	SOLDER LUG
Total number of contacts	62

Preview

Download Datasheet

View All

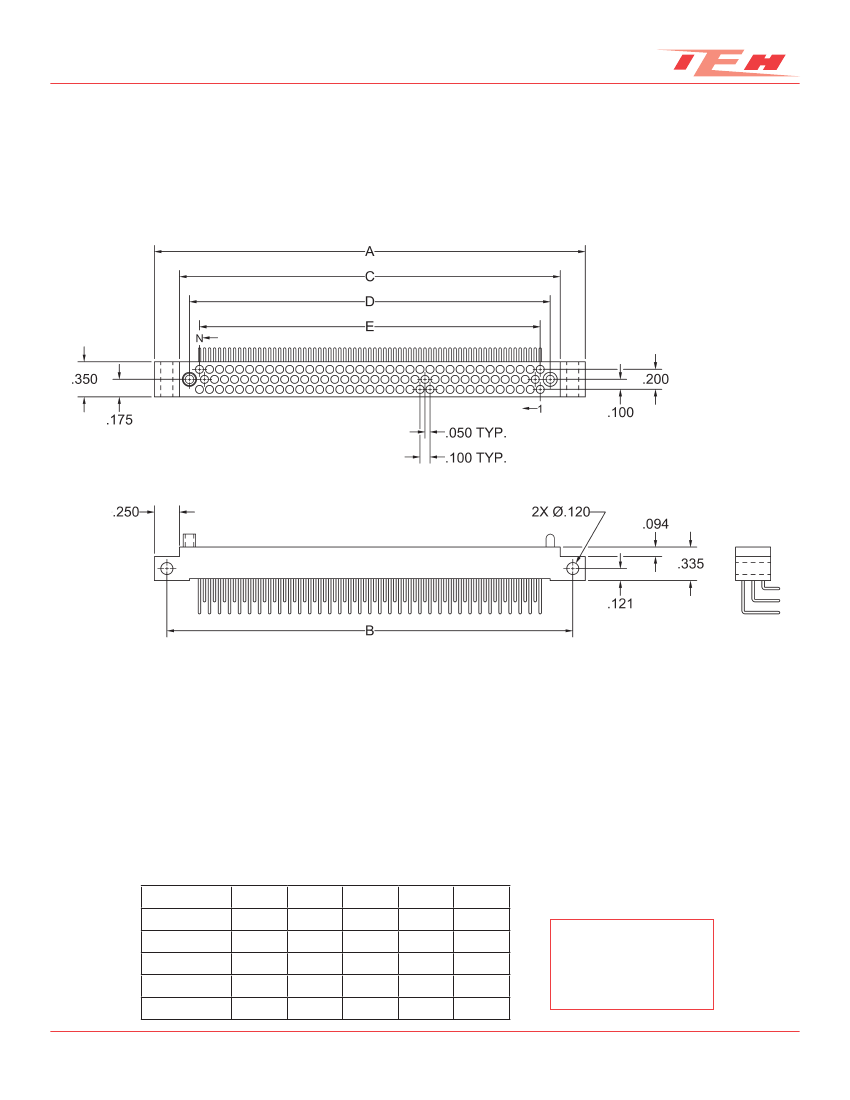

3 ROW

RECEPTACLE, RIGHT ANGLE

STYLE FEE

‘N’ Contacts

050

062

080

092

104

2.500

2.900

3.500

3.900

4.300

2.250

2.650

3.250

3.650

4.050

2.000

2.400

3.000

3.400

3.800

1.800

2.200

2.800

3.200

3.600

1.600

2.000

2.600

3.000

3.400

www.iehcorp.com

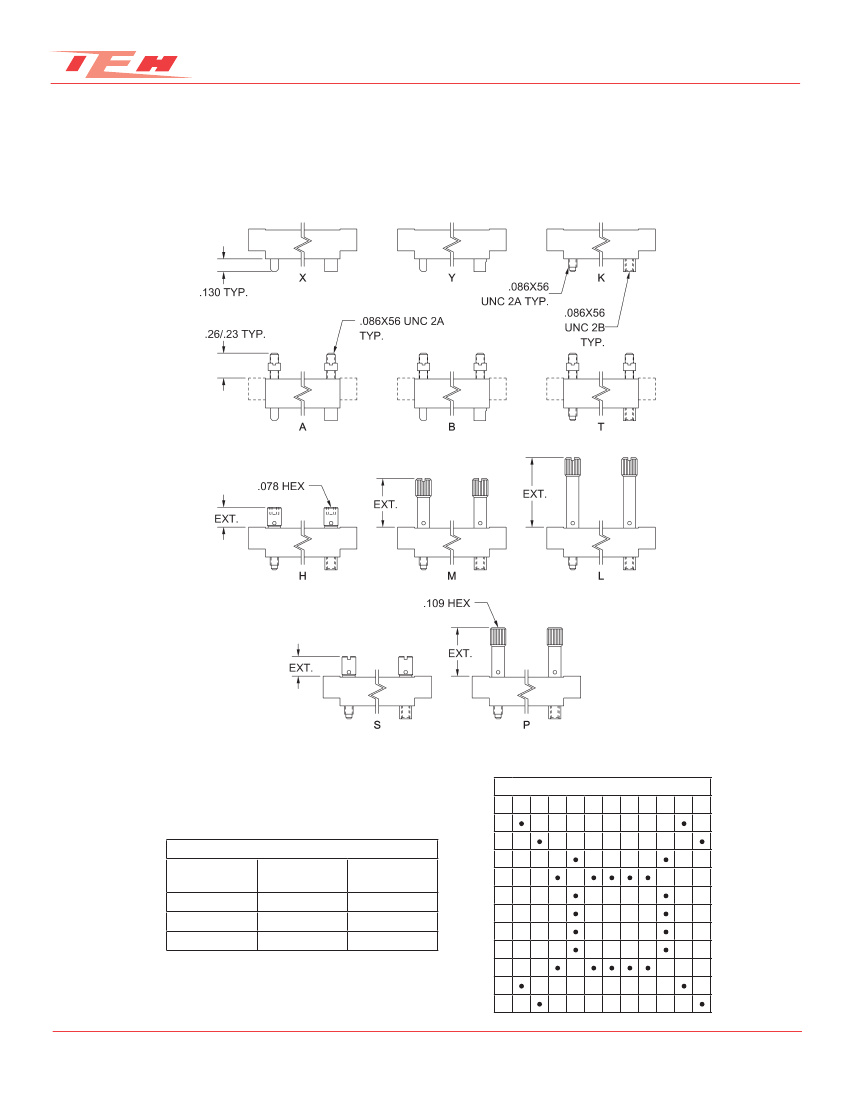

REFER TO APPENDIX FOR

TERMINATION DETAILS,

HARDWARE STYLES,

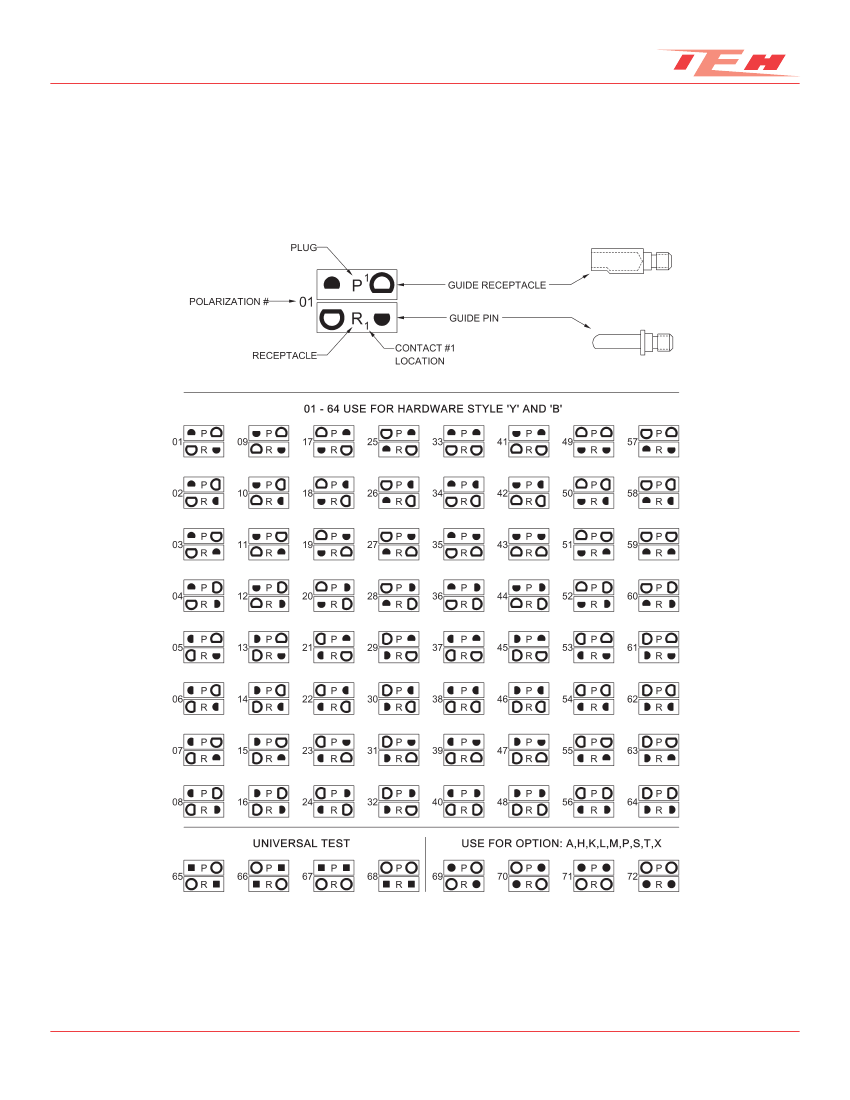

POLARIZATION CHART,

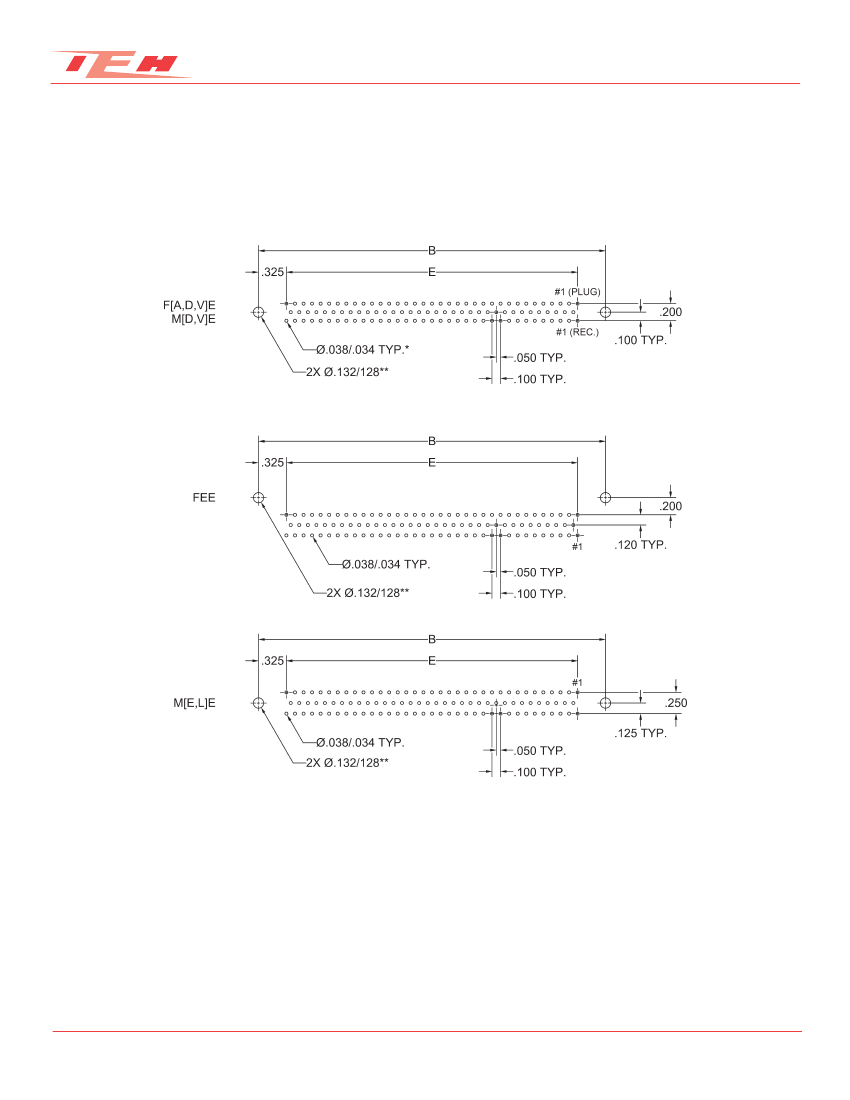

AND PWB PATTERNS

140 58th Street 8E, Brooklyn, NY 11220

Ph: (718) 492-4448 Fax: (718) 492-9898
